C104 (Engine-To-Forward Lamp) Connector End View

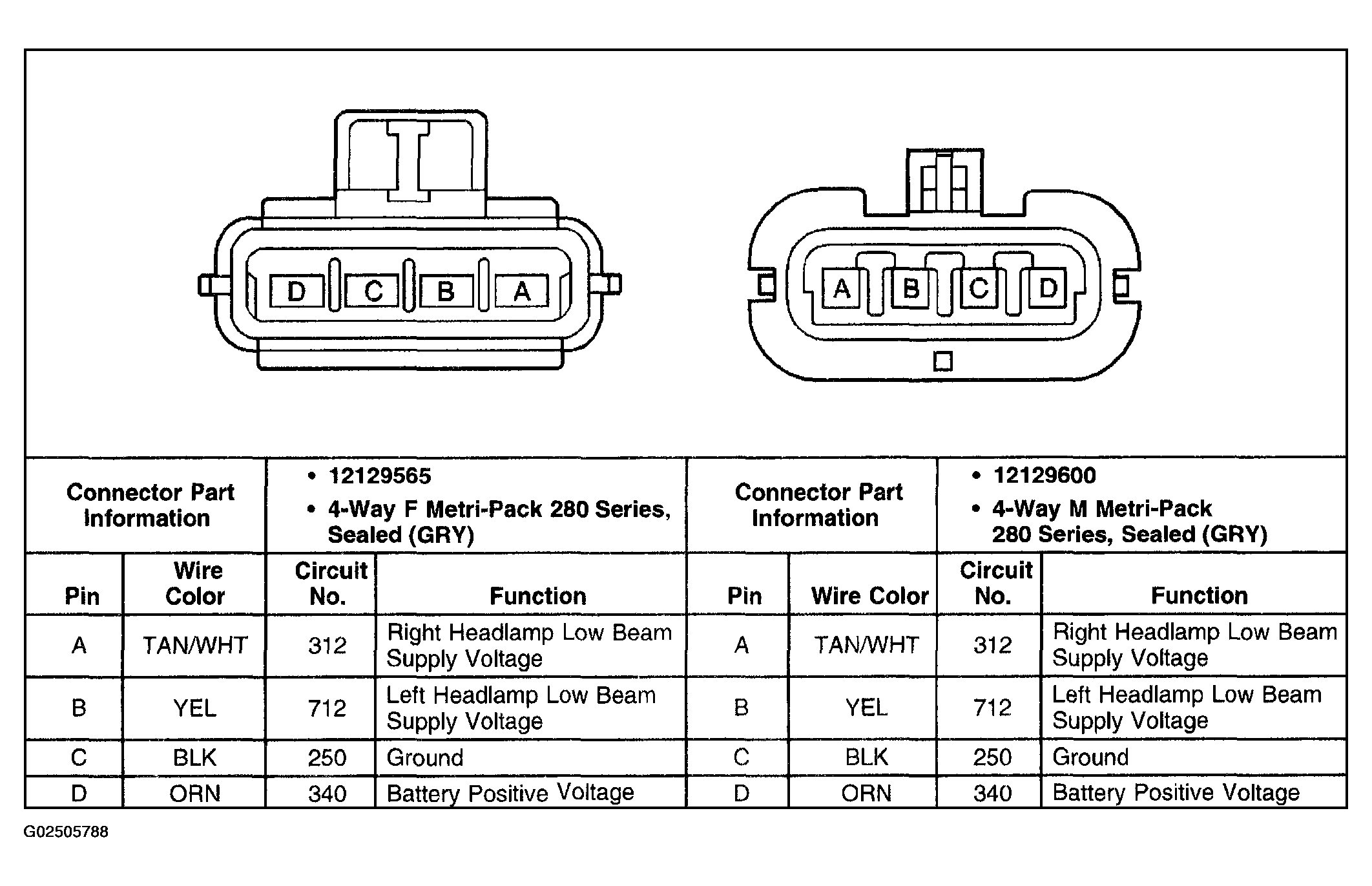

Fig 1: C104 (Engine-To-Forward Lamp) Connector End View

G02505788

Courtesy of GENERAL MOTORS CORP.
