Installation Procedure

  1. Place the power steering pump pulley on the end of the power steering pump shaft.
  2. Install the power steering pump pulley using J 25033-C  .

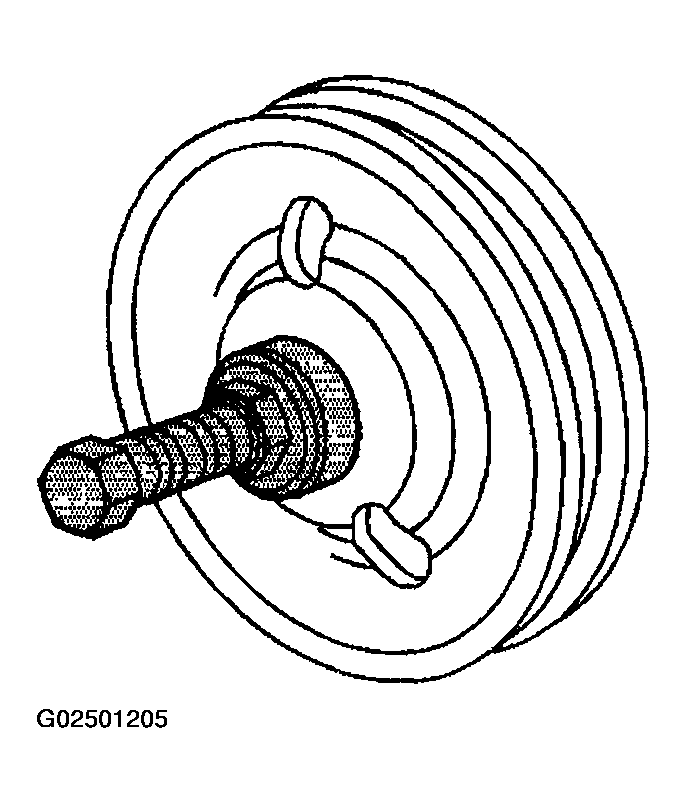

    Fig 1: Installing Power Steering Pump Pulley
    G02501205Courtesy of GENERAL MOTORS CORP.
  3. Ensure that the power steering pump pulley (1) is flush against the power steering pump shaft (2), with an allowable variance of 0.25 mm (0.010 in).

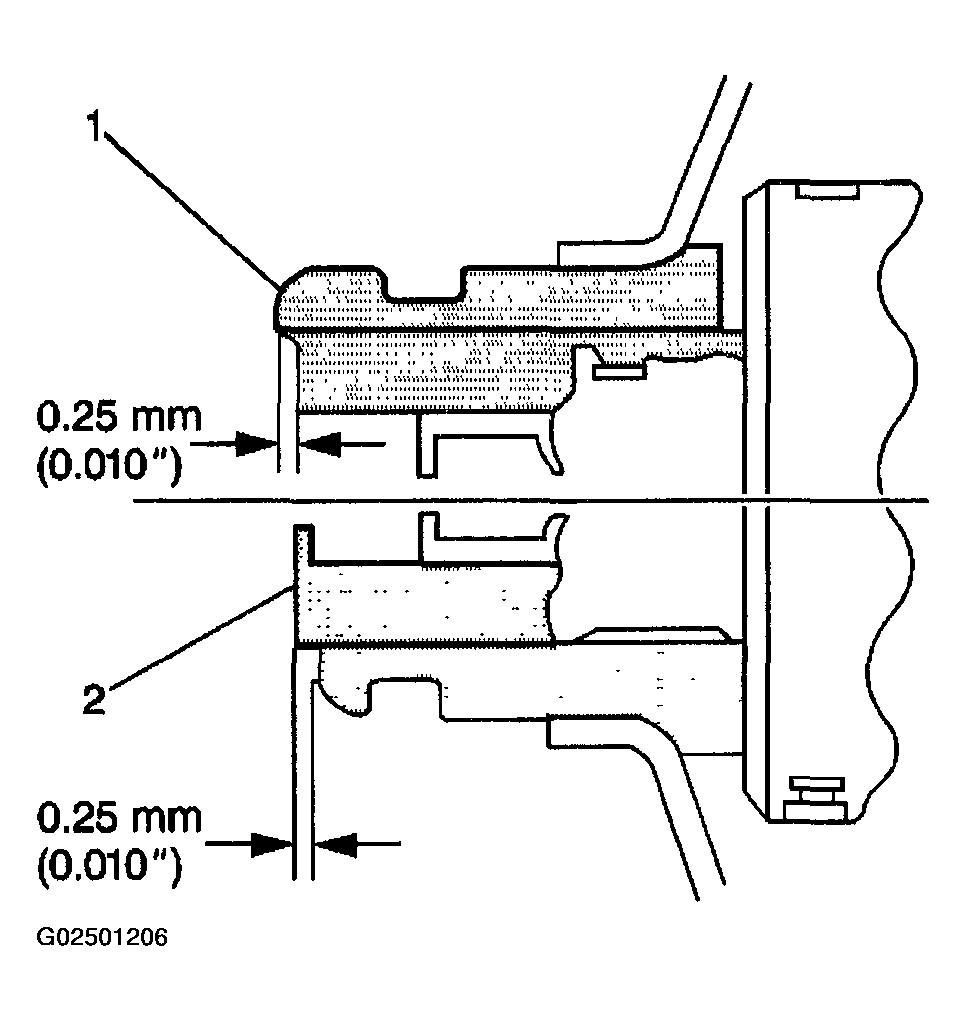

    4. Fig 2: Installing Power Steering Pump Pulley Against Power Steering Pump Shaft
    G02501206Courtesy of GENERAL MOTORS CORP.
  4. Install the drive belt.
  5. Install the lower fan shroud.
