Power Steering Pump Disassembled View

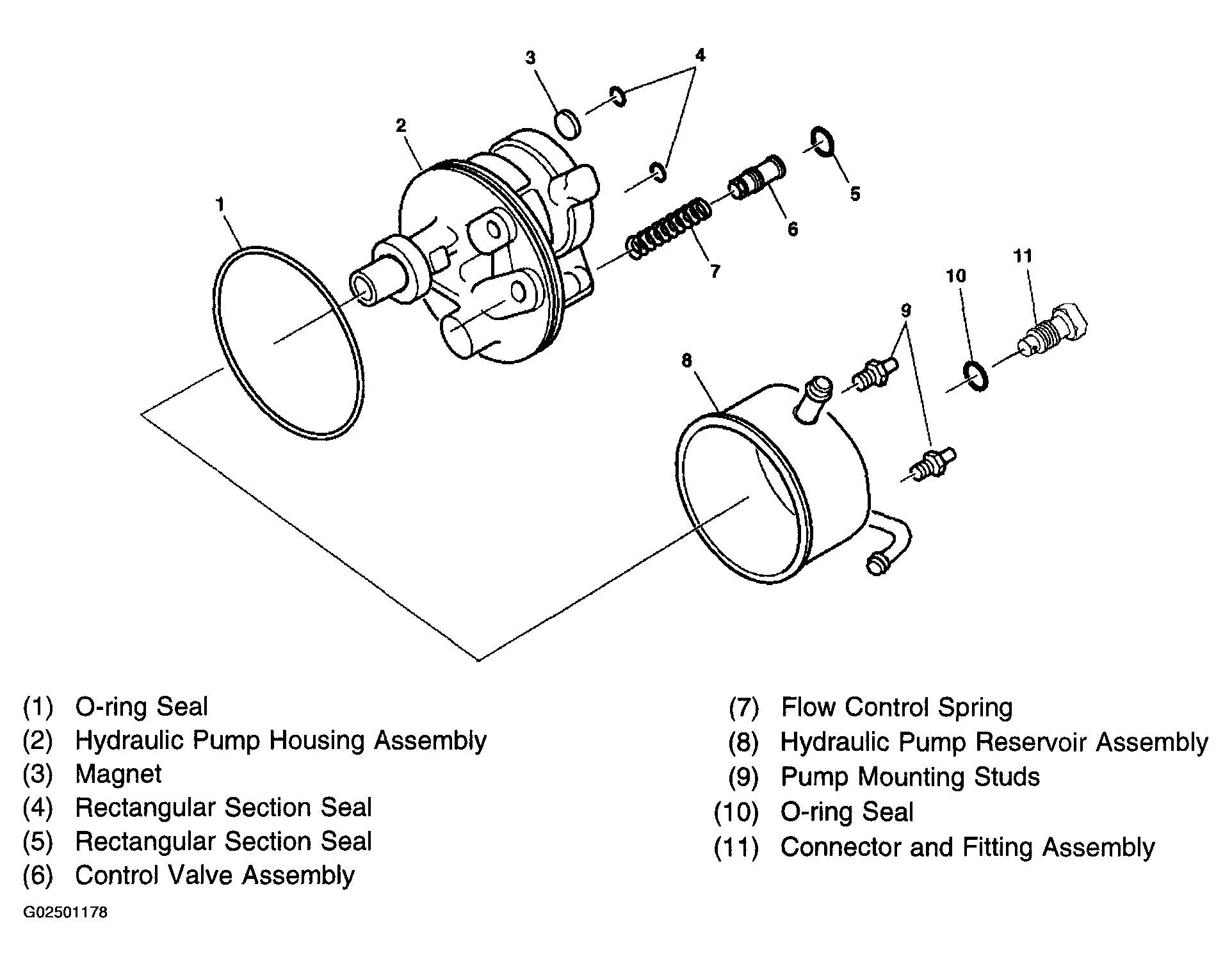

Fig 1: Identifying Power Steering Pump Components

G02501178

Courtesy of GENERAL MOTORS CORP.
