Installation Procedure

  1. Install the retractor to the vehicle.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the retractor bolt to the pillar.

    Tighten

    Tighten the retractor bolt to the pillar to 53 N.m (39 ft lbs).

  3. Install the electrical connectors.
  4. Install the body side front lower molding.
  5. Install the left inside garnish molding.
  6. Install the bolt retaining the shoulder belt guide to the adjuster bracket.

    Tighten

    Tighten the shoulder belt retaining bolt to 30 N.m (22 ft lbs).

  7. Install the cover to the shoulder belt guide.
  8. Install the seat belt to the seat belt guide located on the side of the bucket seat.
  9. Slide the front seat back in position.

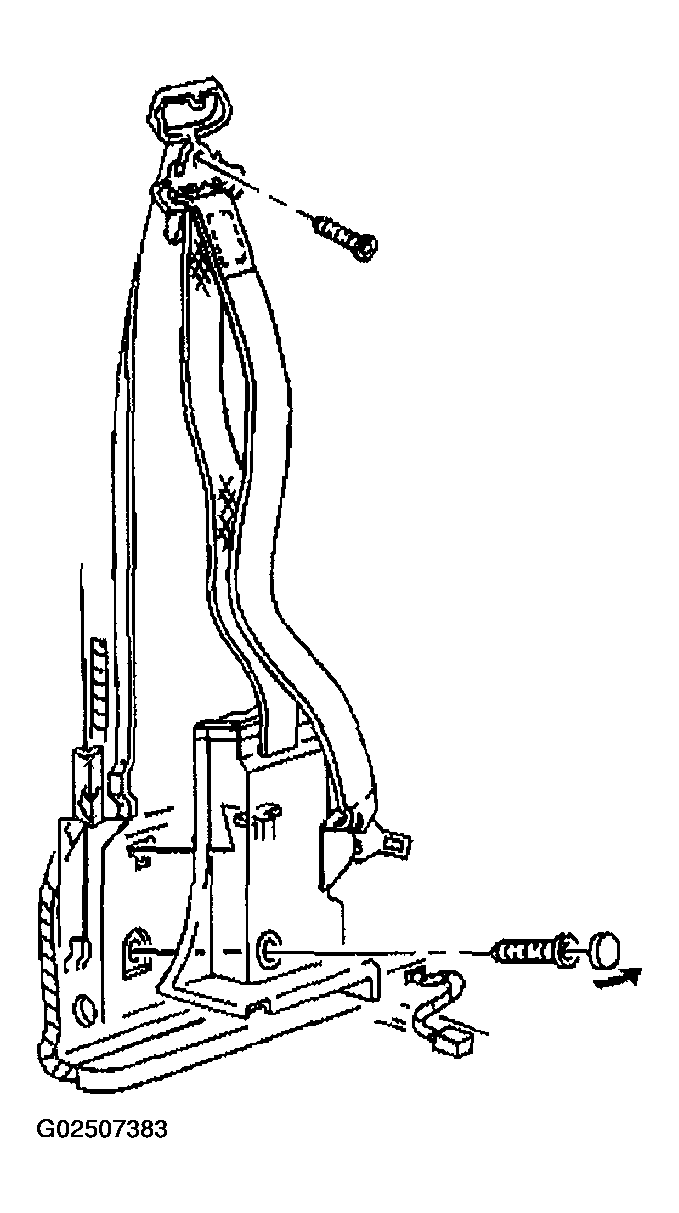

    Fig 1: Installing Left Front Seat Belt Retractor
    G02507383Courtesy of GENERAL MOTORS CORP.
