Installation Procedure

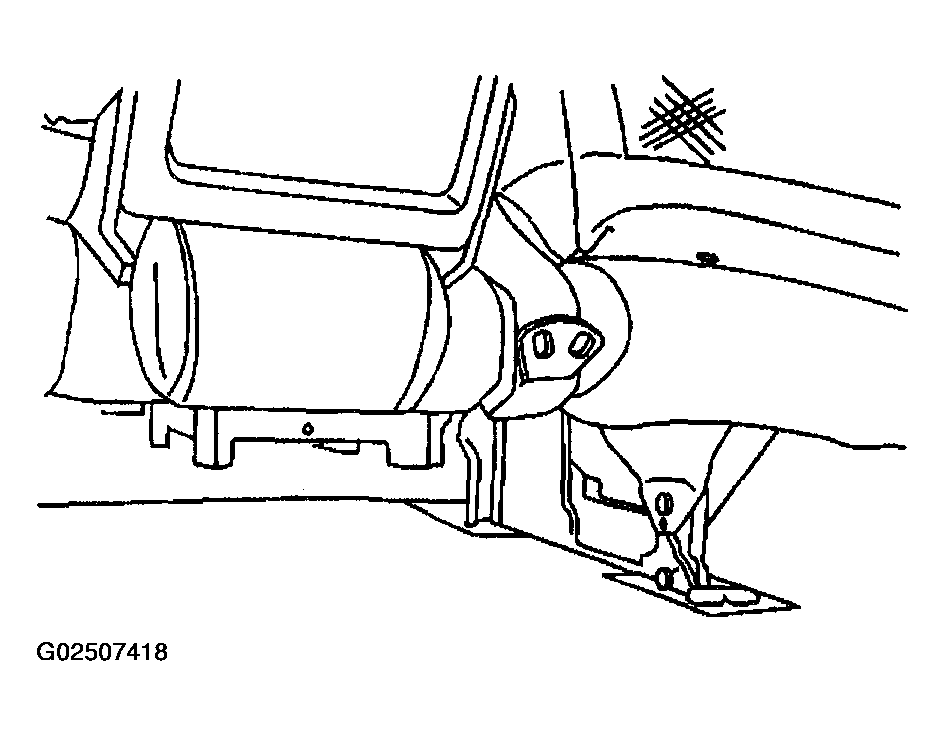

  1. For the bench seats YC7, the seat belt tether belt must run under the headrest and hook into the seat belt tether anchor. Located behind the seatback and integrated into the center seat belt. If the seat belt tether anchor or seat belt are damaged the rear center seat belts must be replaced. Refer to Seat Belt Buckle and Latch Replacement -No. 2 Rear
    Fig 1: Installing Belt At Tether (Bench Seat)
    G02507418Courtesy of GENERAL MOTORS CORP.
  2. For the bench seats YC6, the tether belt must run under the headrest and hook into the seat belt tether anchor. Located behind the seatback and integrated into the center seat belt. If the seat belt tether anchor or seat belt are damaged the rear center seat belts must be replaced. Refer to Seat Belt Buckle and Latch Replacement -No. 2 Rear
    Fig 2: Installing Front Bucket Seat Passenger Side Tether Belt To Anchor
    G02507419Courtesy of GENERAL MOTORS CORP.

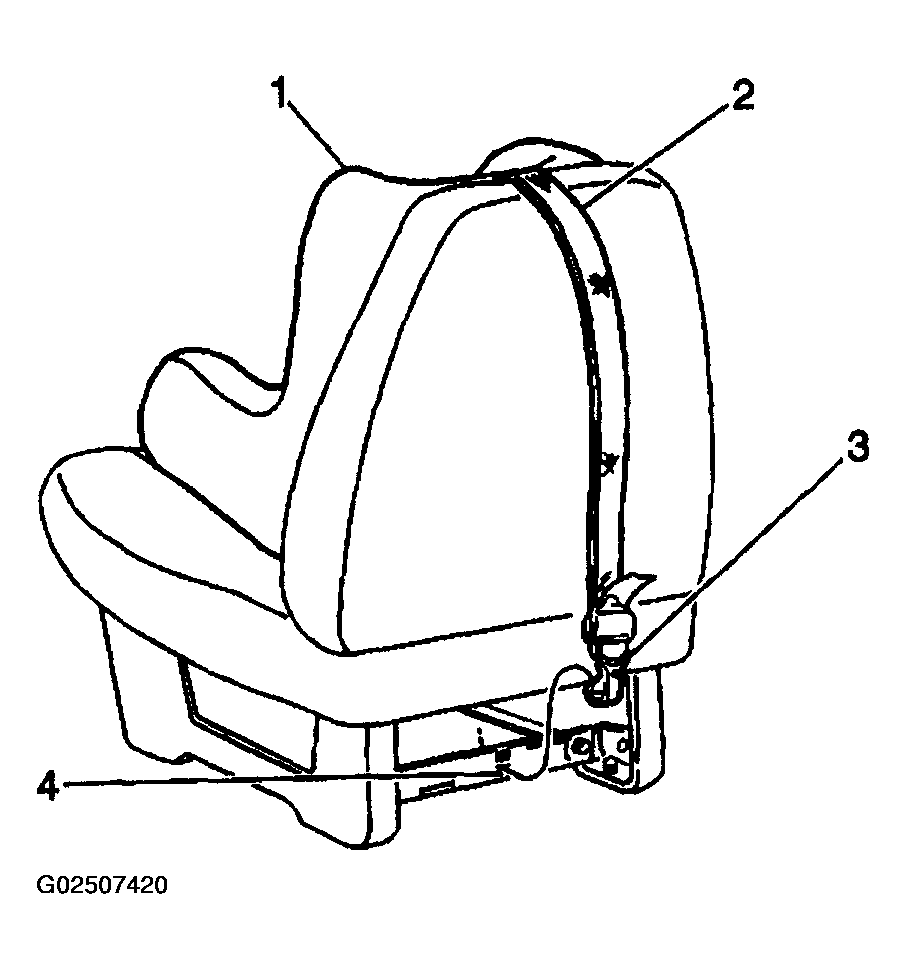

  3. The front bucket seat passenger side tether belt (2) runs down the center of seatback and hooks to the seat belt tether spacer bar (4) located in the center of the seat riser support bar.
    Fig 3: Installing Front Bucket Seat Passenger Side Tether Belt
    G02507420Courtesy of GENERAL MOTORS CORP.
