Test Description

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 2.  Lack of communication may be due to a partial malfunction of the class 2 serial data circuit or due to a total malfunction of the class 2 serial data circuit. The specified procedure will determine the particular condition.
  2. 3.  The symptom list in Symptoms will determine the correct diagnostic procedure to use.

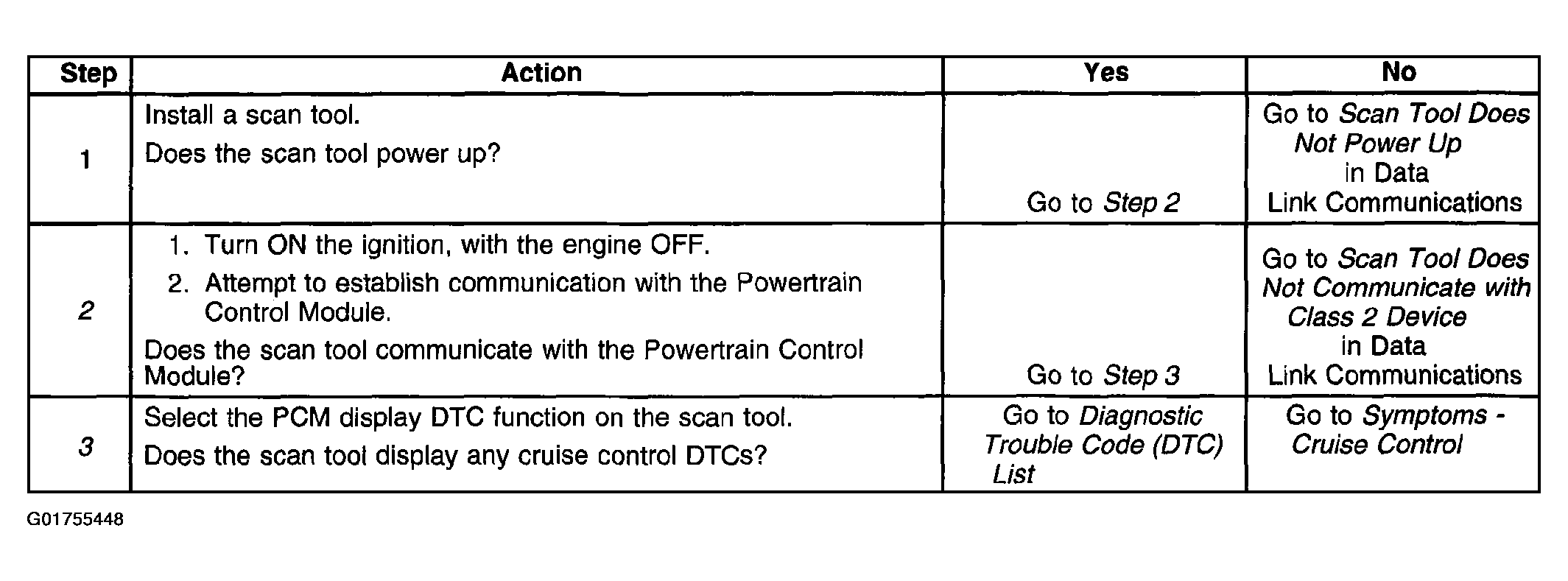

    3. Fig 1: Identifying Diagnostic System Check - Cruise Control Diagnostic Table
    G01755448Courtesy of GENERAL MOTORS CORP.
