Removal Procedure

An accumulation of dirt and corrosion may make removing exhaust components difficult. Applying a penetrating oil on the threads of the bolts may assist in the removal of these components.

1. Raise the vehicle.
2. Support the muffler assembly.
3. Remove the 3 nuts connecting the muffler assembly to the catalytic converter assembly.
4. To aid in the removal of the muffler assembly, lubricate the rubber hangers with rubber lubricant GM P/N 12345884. Remove the muffler assembly from the front hanger.

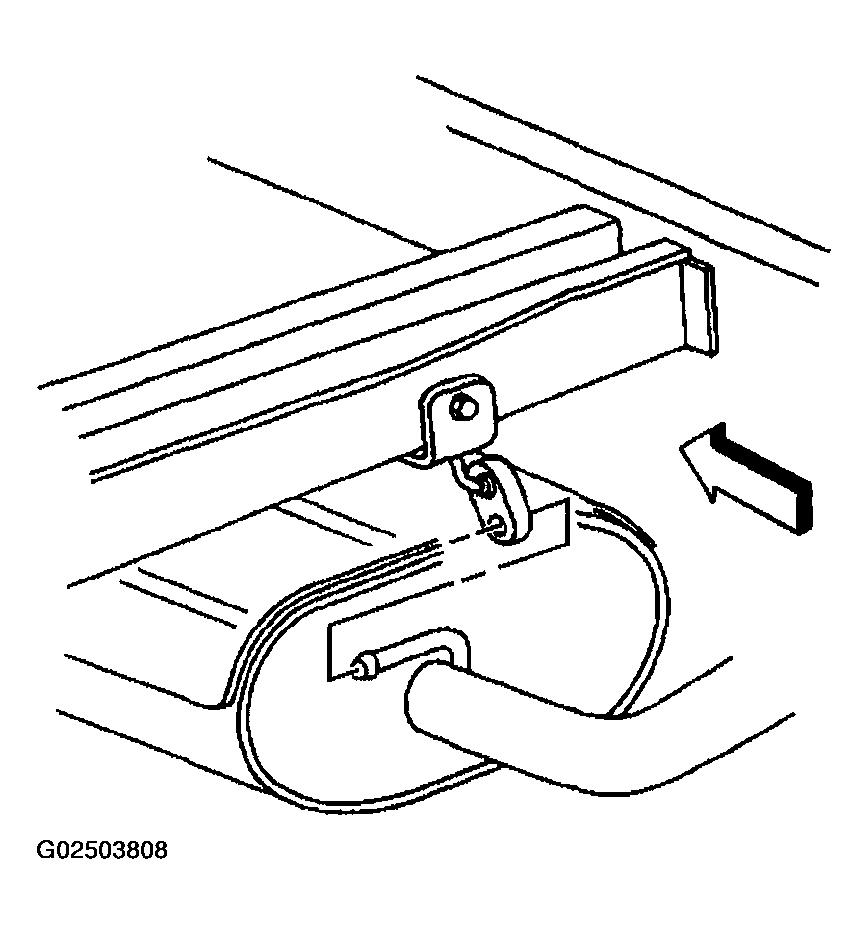

   Fig 1: Rubber Hangers

   Courtesy of GENERAL MOTORS CORP.
5. Remove muffler assembly from the rear hanger.
   Fig 2: Muffler Assembly

   Courtesy of GENERAL MOTORS CORP.
6. Remove the muffler assembly from the tailpipe hanger.
7. Remove the muffler assembly from the vehicle.
