Windshield Wiper Motor and Module Connector End View

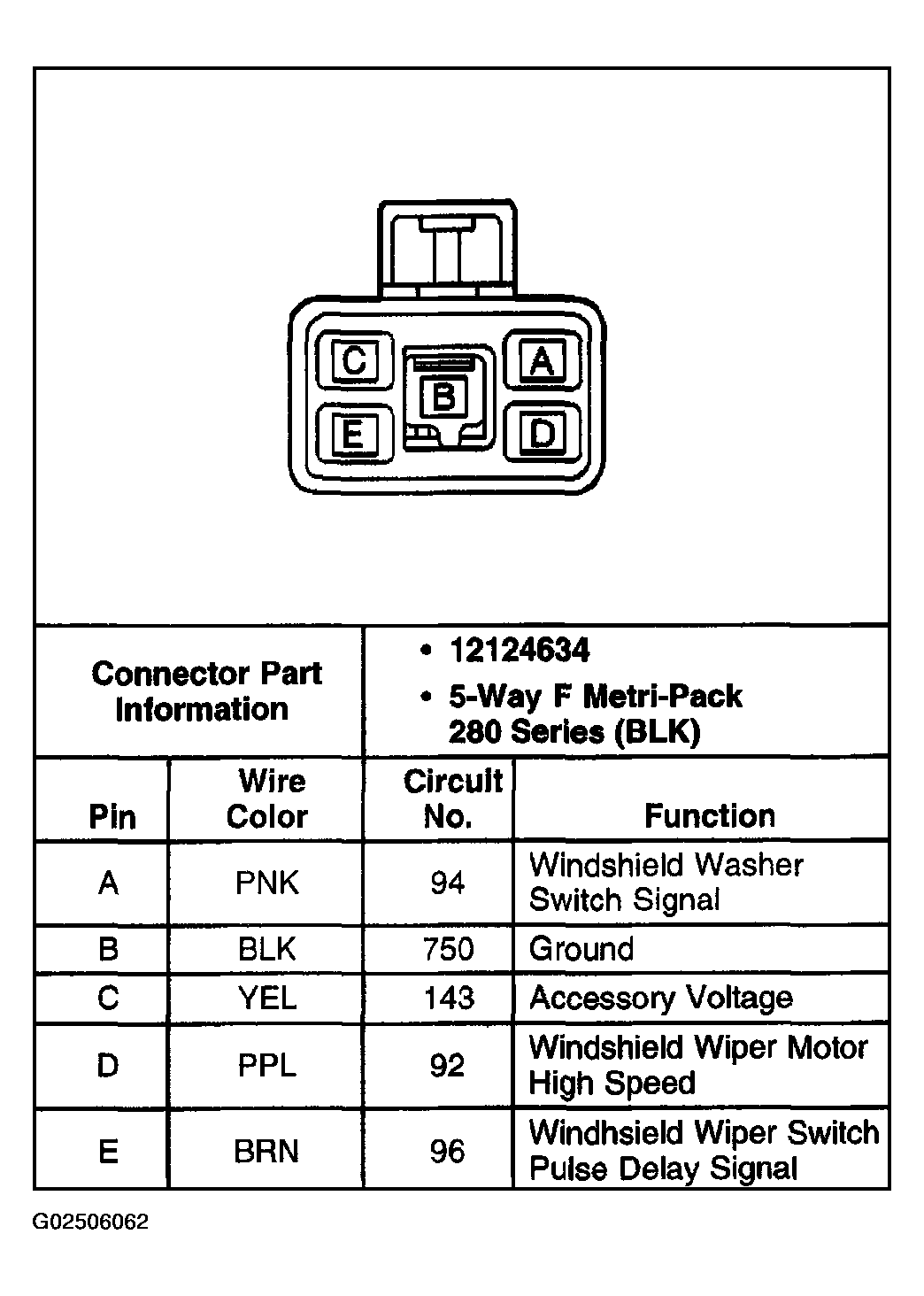

Fig 1: Windshield Wiper Motor and Module Connector End View

G02506062

Courtesy of GENERAL MOTORS CORP.
