Rear Window Wiper/Washer Module Connector End View

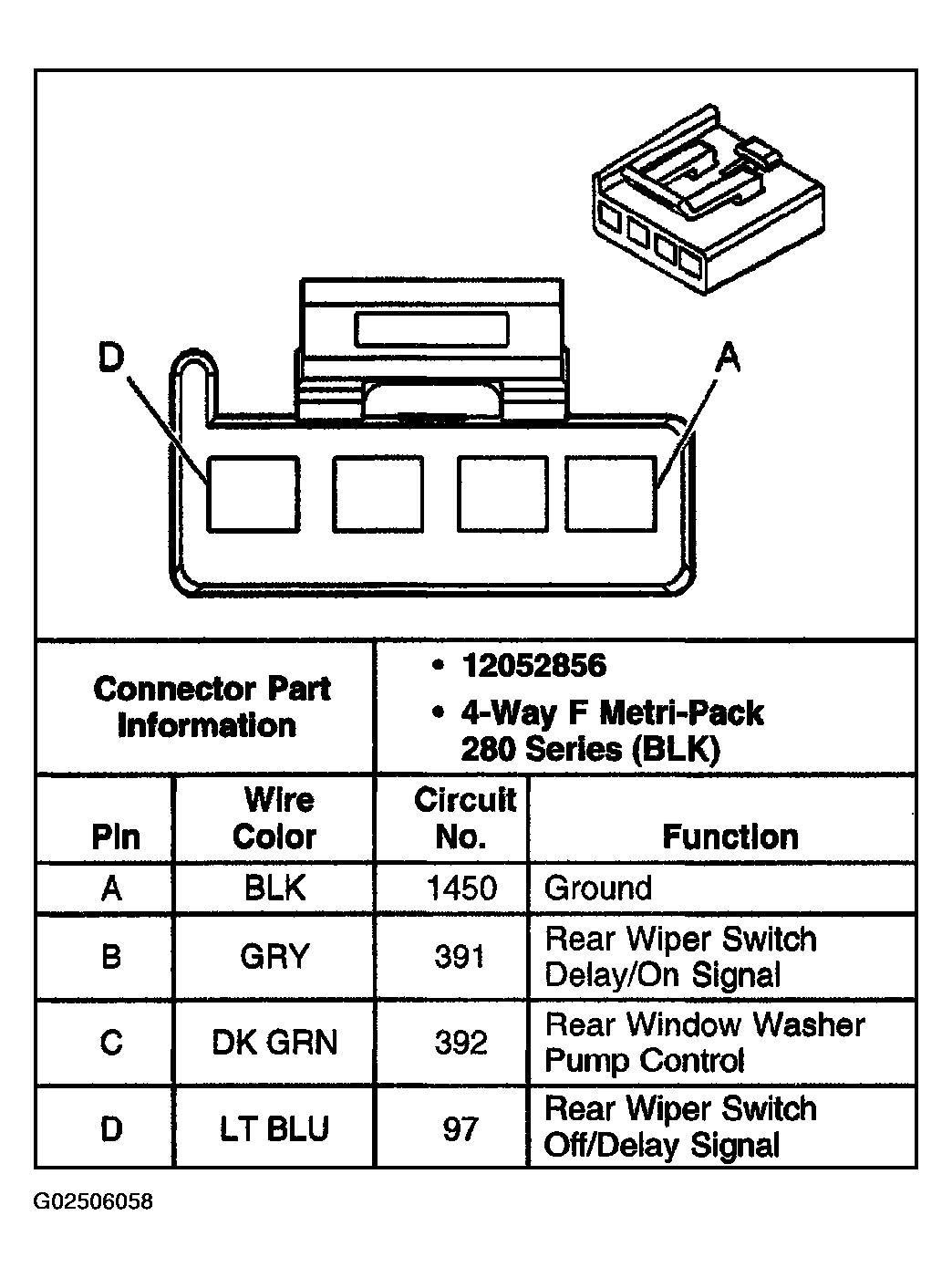

Fig 1: Rear Window Wiper/Washer Module Connector End View

G02506058

Courtesy of GENERAL MOTORS CORP.
