Stationary Windows Connector End Views

Fig 1: Identifying HVAC Control Assembly C1 Connector End View
G02506514Courtesy of GENERAL MOTORS CORP.

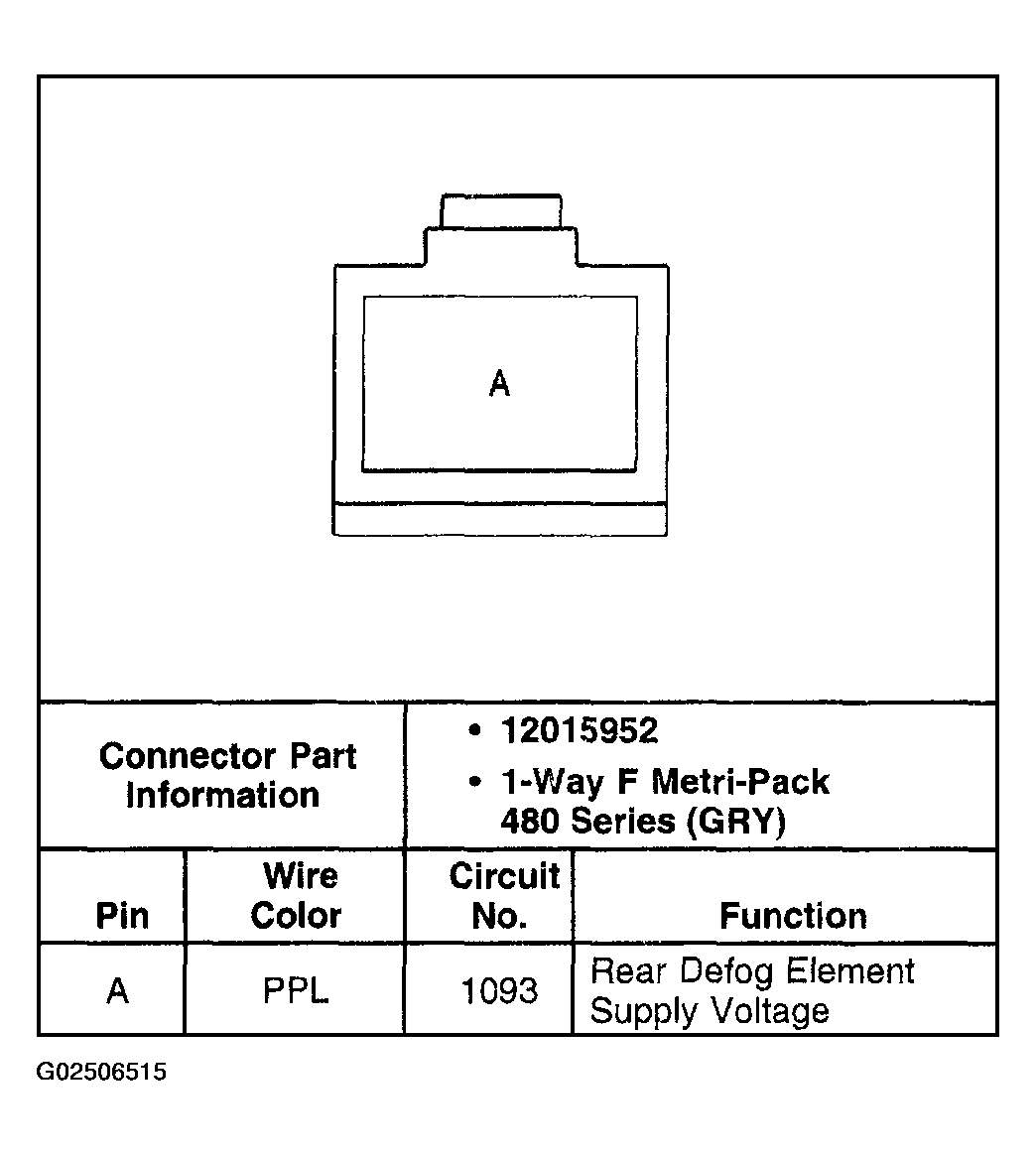

Fig 2: Identifying Rear Window Defogger Grid C1 Connector End View
G02506515Courtesy of GENERAL MOTORS CORP.

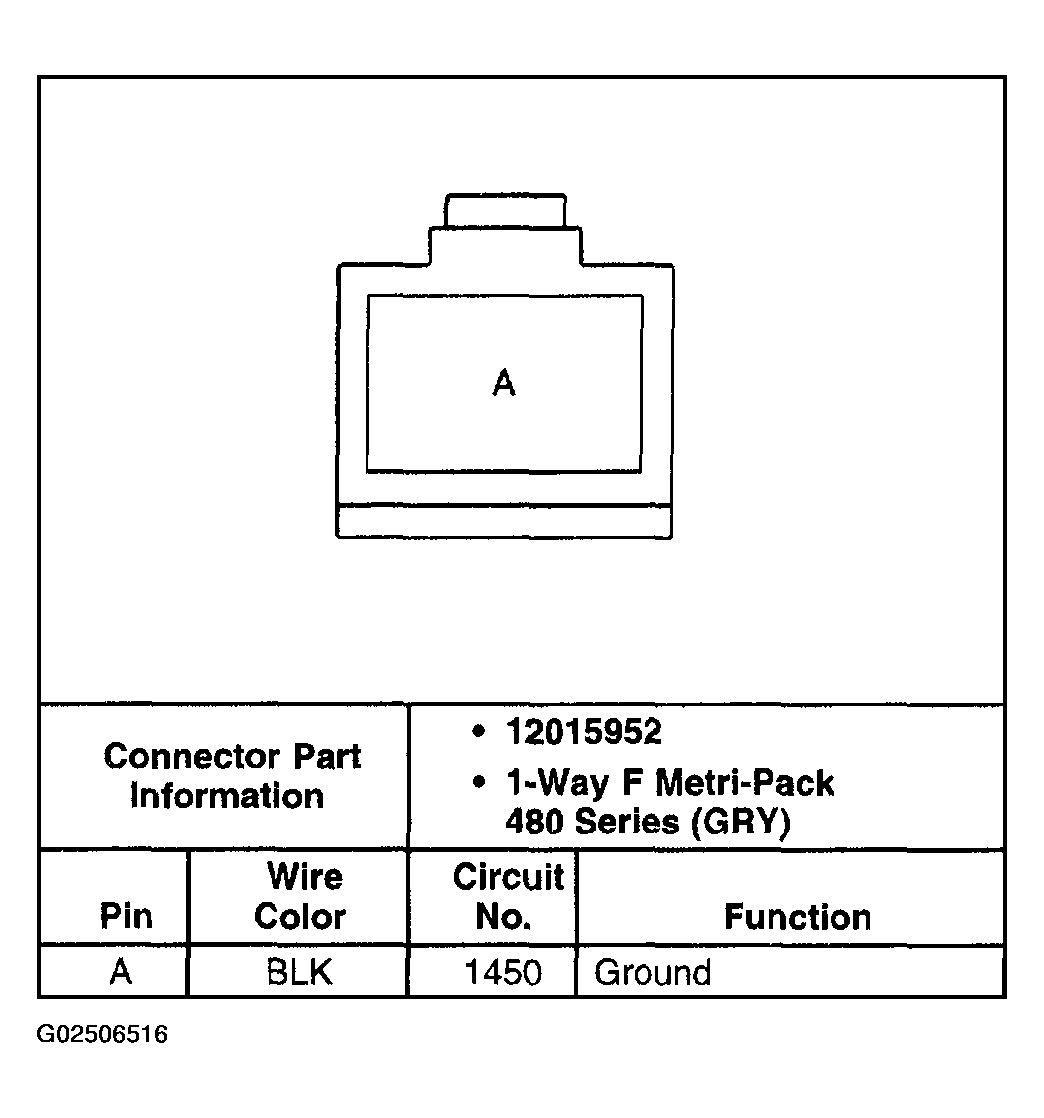

Fig 3: Identifying Rear Window Defogger Grid C2 Connector End View
G02506516Courtesy of GENERAL MOTORS CORP.
