Removal Procedure

  1. Remove the power window regulator. Refer to Window Regulator Replacement  .
  2. Install a self-tapping, pan head sheet metal screw through the sector gear and the backing plate at the hole provided. This will lock the sector gear into position.
  3. Drill out the rivets (2) attaching the power window motor to window regulator.
  4. Remove the power window motor from the window regulator (3).

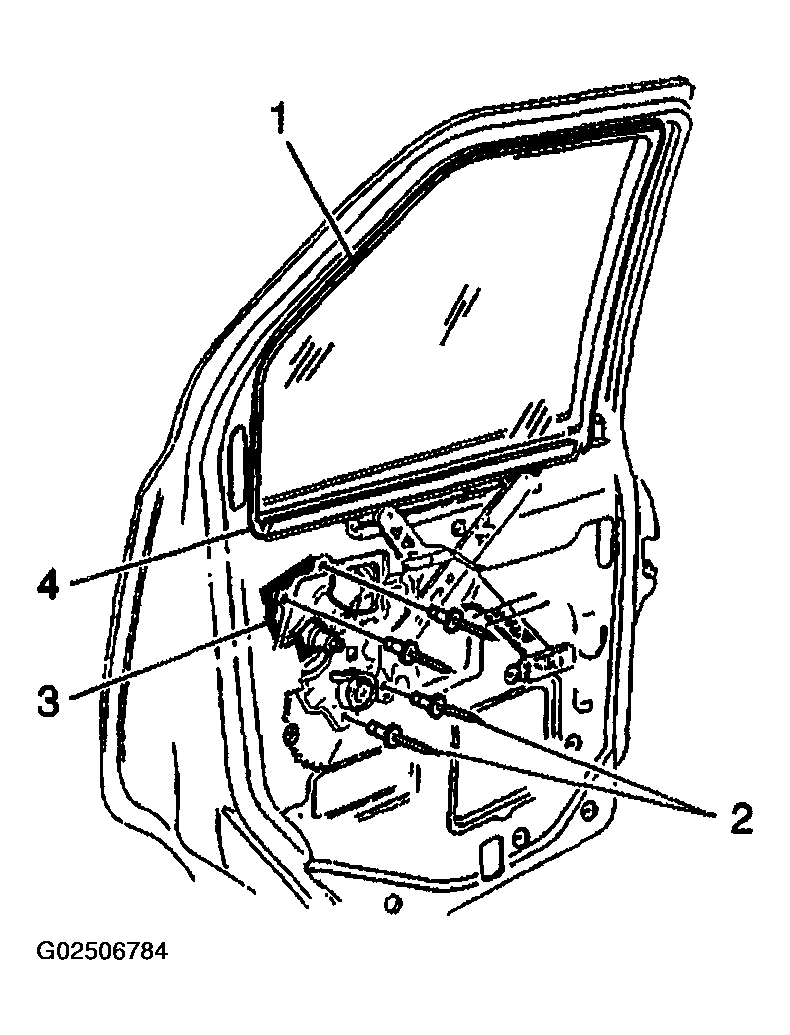

    5. Fig 1: Removing & Installing Power Window Motor
    G02506784Courtesy of GENERAL MOTORS CORP.
