Installation Procedure

  1. Install the multifunction alarm assembly to the convenience center.
  2. Align the retaining tab.
  3. Press the tab in place

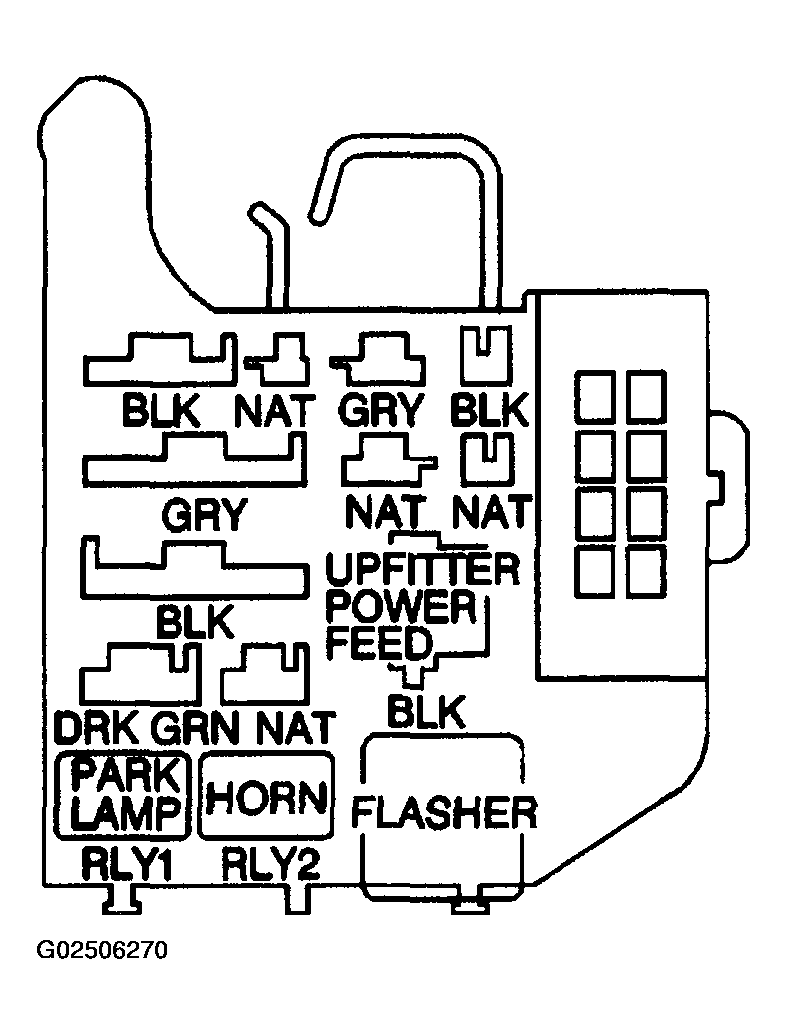

    4. Fig 1: Identifying Convenience Center
    G02506270Courtesy of GENERAL MOTORS CORP.
