Transfer Case Shift Control Module C1 Electrical Connector End View

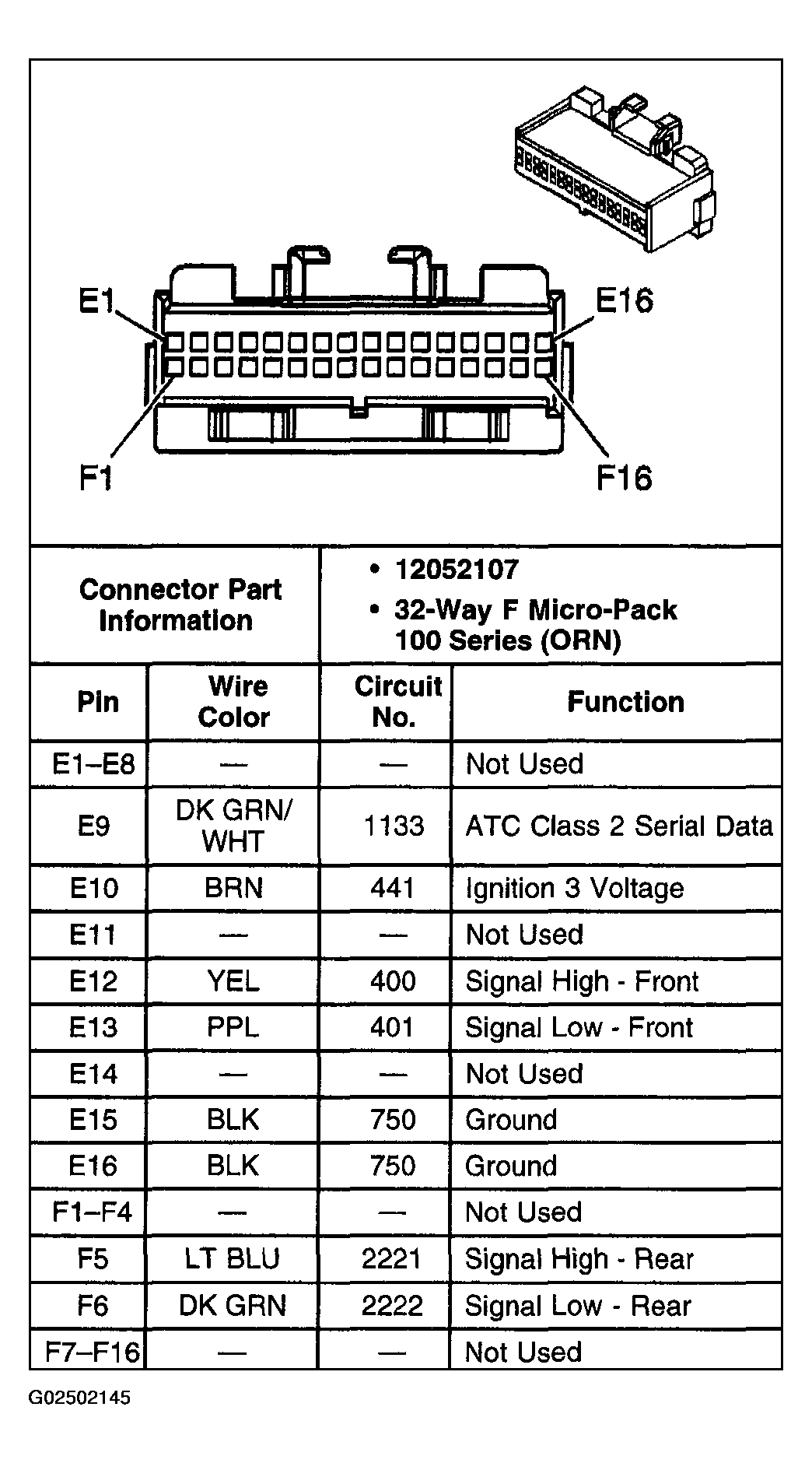

Fig 1: Transfer Case Shift Control Module C1 Electrical Connector End View
G02502145Courtesy of GENERAL MOTORS CORP.
