Body Control Module Connector End Views

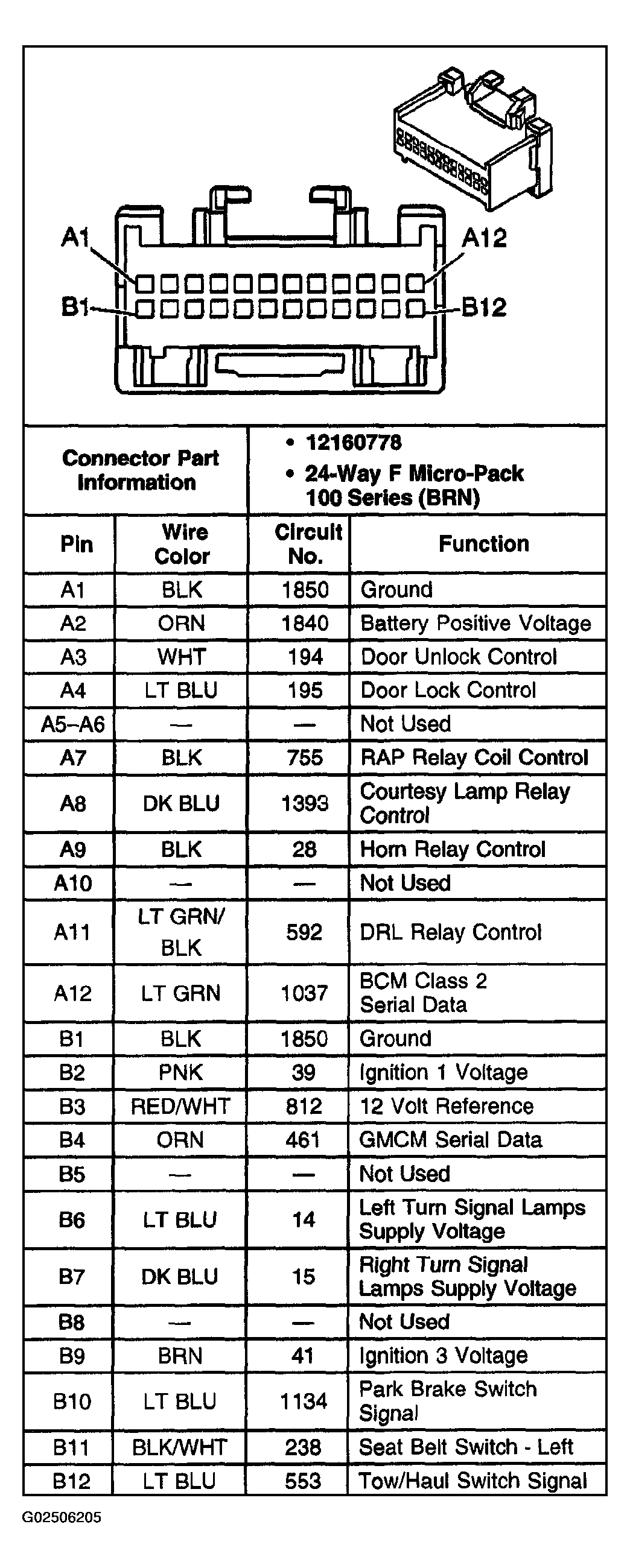

Fig 1: Identifying Body Control Module C1 Connector Terminals
G02506205Courtesy of GENERAL MOTORS CORP.

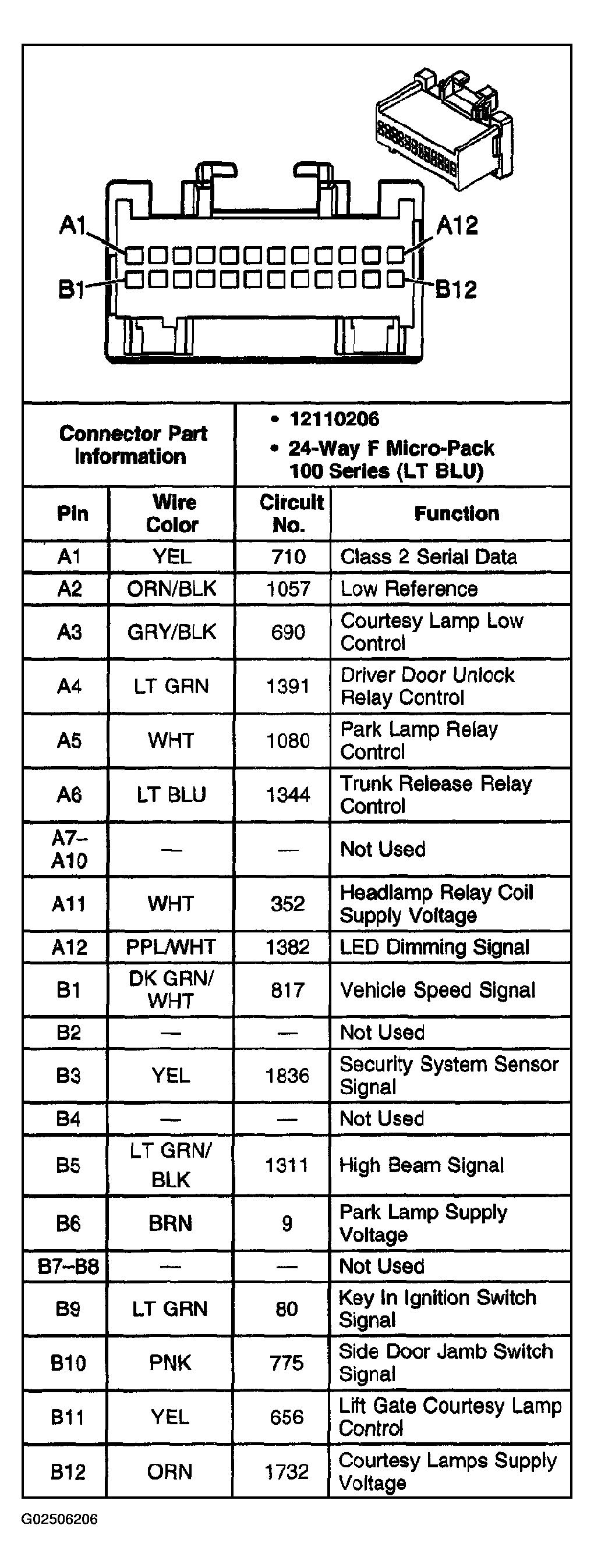

Fig 2: Identifying Body Control Module C2 Connector Terminals
G02506206Courtesy of GENERAL MOTORS CORP.

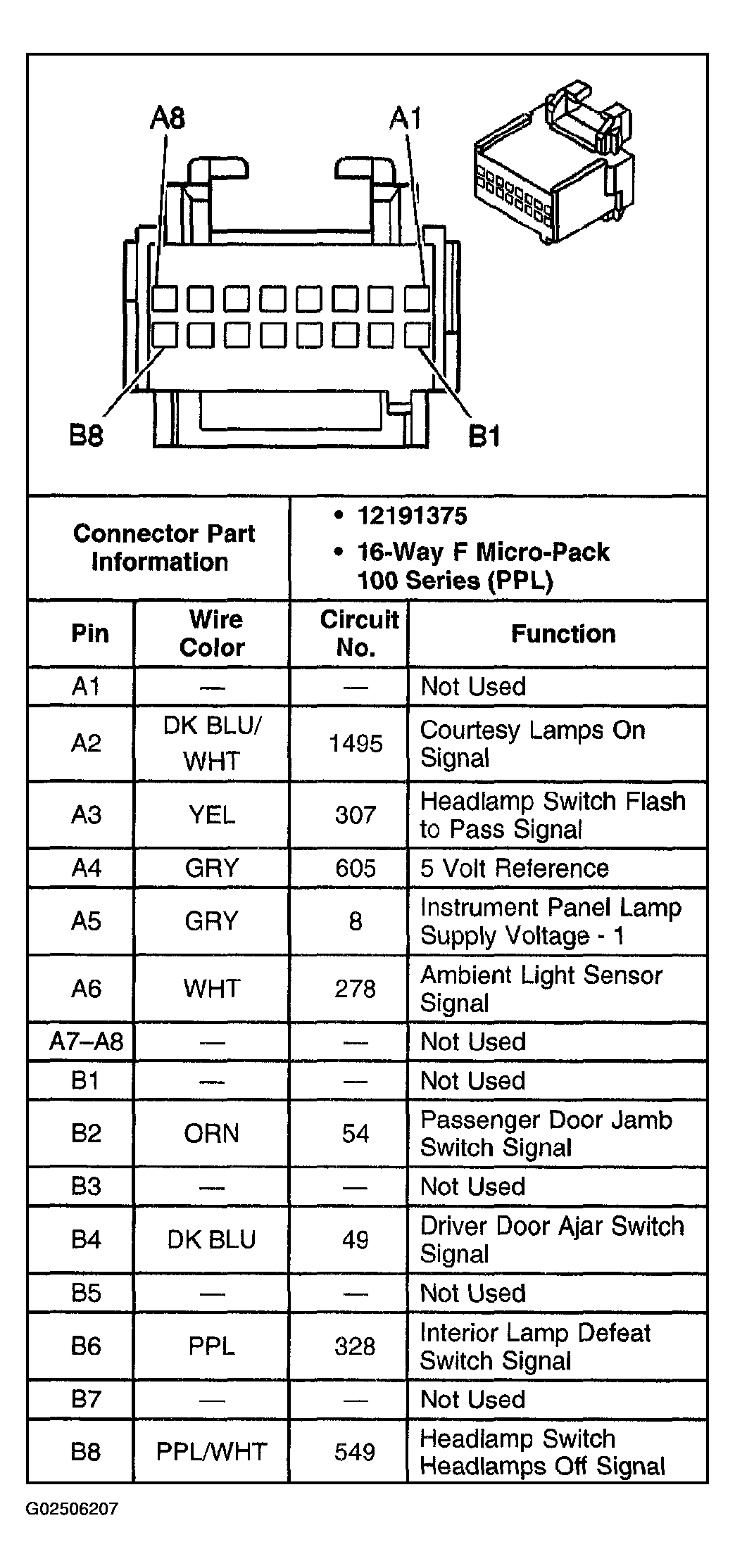

Fig 3: Identifying Body Control Module C3 Connector Terminals
G02506207Courtesy of GENERAL MOTORS CORP.
