Component Location

NOTE: For component locations, refer to illustrations Fig 1 and Fig 2 .
COMPONENT LOCATION

Component Location
Instrument Panel Fuse Block Behind Right Side Of Instrument Panel
Interior Light & Multifunction Switch Part Of Overhead Console
Power Sliding Door Actuator Motor And Clutch Assembly Behind Respective Rear Quarter Panel, Above Wheelwell
Power Sliding Door "B" Pillar Open/Close Switch Mounted To Respective "B" Pillar
Power Sliding Door On-Off Switch Part Of Interior Light & Multifunction Switch
Rear Side Door Actuator Control Module Behind Instrument Panel, Near Firewall
Sliding Door Alarm Part Of Power Sliding Door Actuator Motor And Clutch Assembly
Sliding Door Detent Switch Inside Respective Power Sliding Door
Sliding Door Unlatch Actuator Inside Respective Power Sliding Door

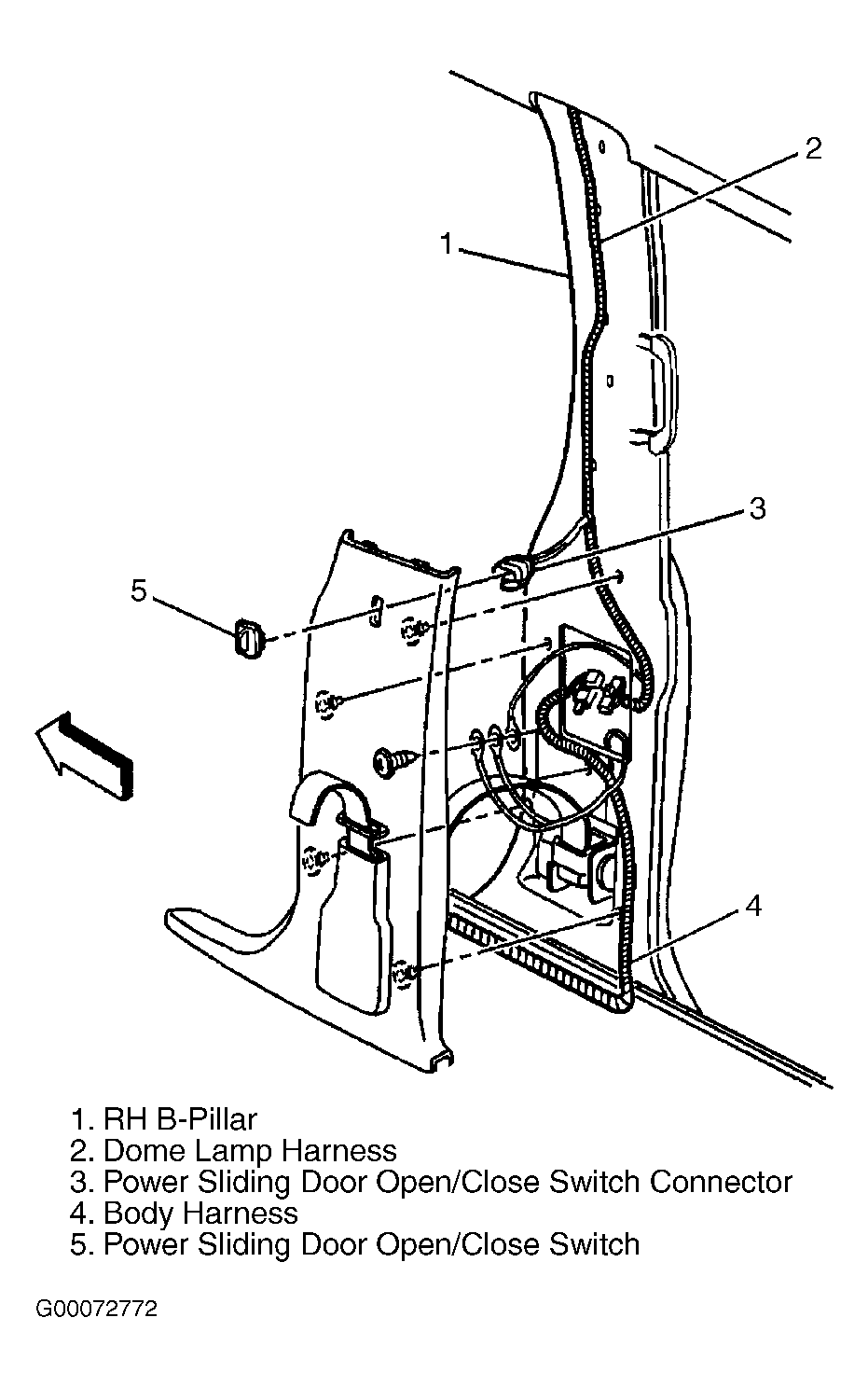

Fig 1: Locating "B" Pillar Components
G00072772Courtesy of GENERAL MOTORS CORP.

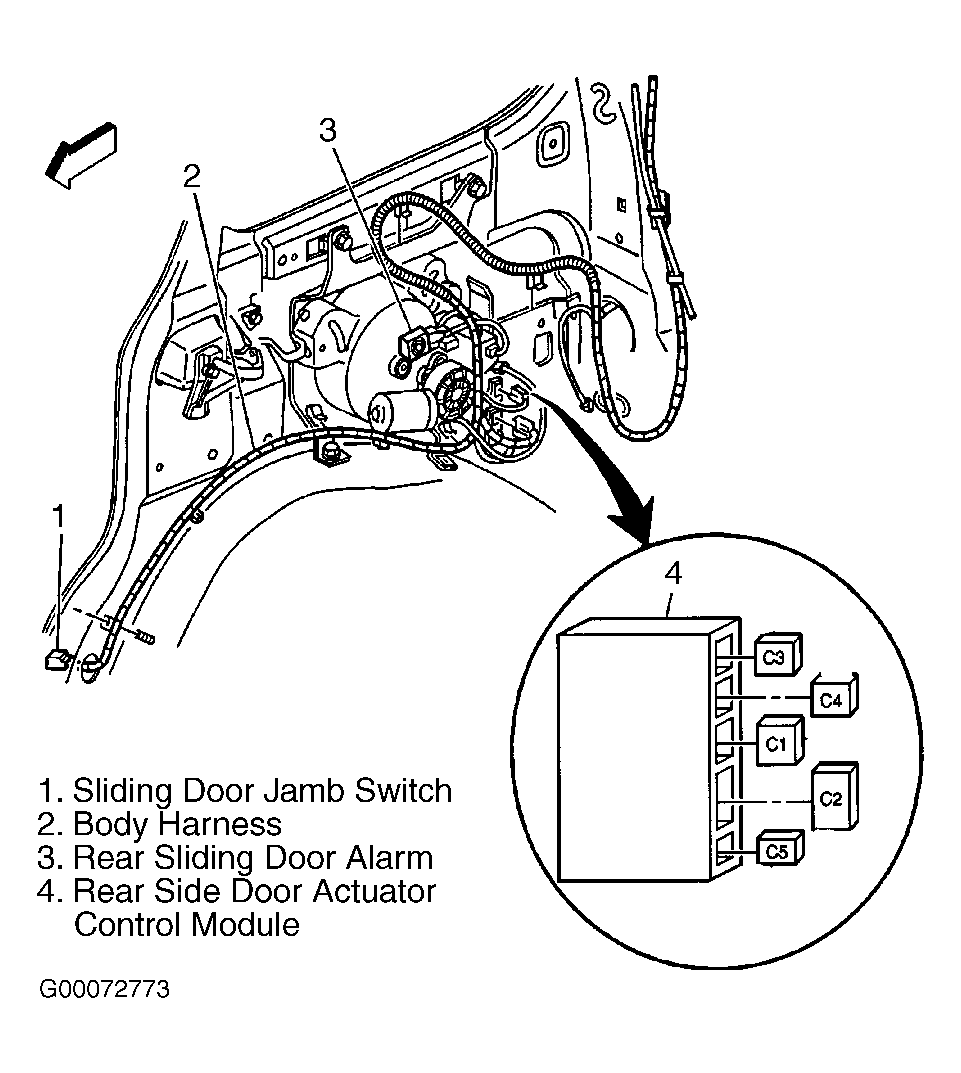

Fig 2: Locating Right & Left Rear Side Door Actuator Control Module
G00072773Courtesy of GENERAL MOTORS CORP.
