Front Suspension: Description

Tracker uses MacPherson strut type, independent suspension. Upper end of strut is anchored to vehicle body by strut support. Lower end of steering knuckle is attached to ball joint, which is attached to suspension control arm. Steering wheel movement is transferred to the knuckle by a tie rod end. See Fig 1 .

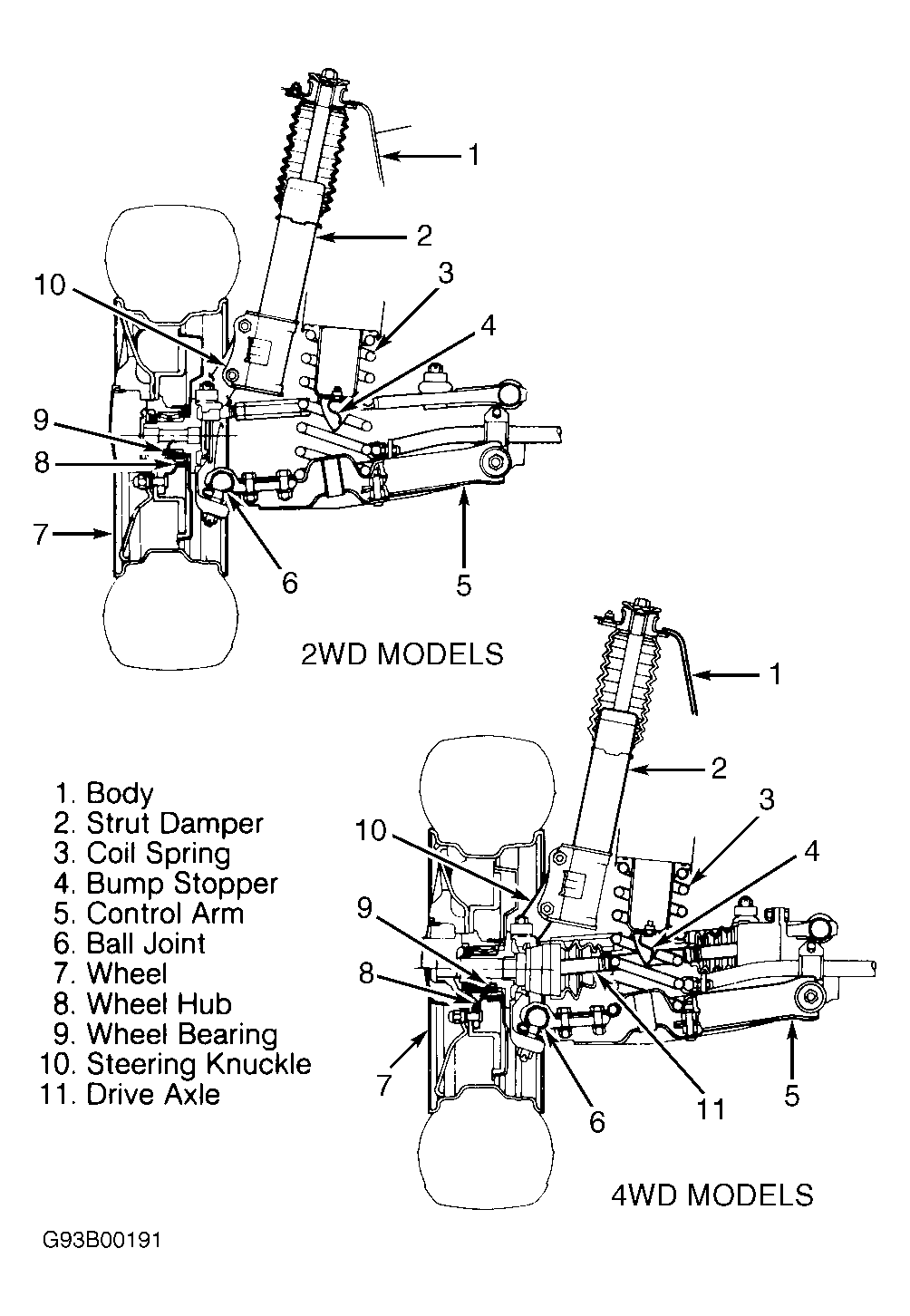

Fig 1: Cross-Sectional View Of Front Suspension Assembly

Courtesy of GENERAL MOTORS CORP.
