Transfer Case Disassemble

Tools Required

• J 37637-A  Case Separator
• J 8433  Bearing Puller
• J 37756  Output Shaft Bearing Puller Adapter
• J 26941  Needle Bearing Puller
• J 23907  Slide Hammer
• J 34757  Output Shaft Ring Remover
• J 39497  Friction Ring Remover and Installer
• J 22912-01  Split Plate
• J 34844  Front Shaft Bearing Remover
• J 28406  Input Gear Bearing Remover
• J 26900-5  Vernier Caliper

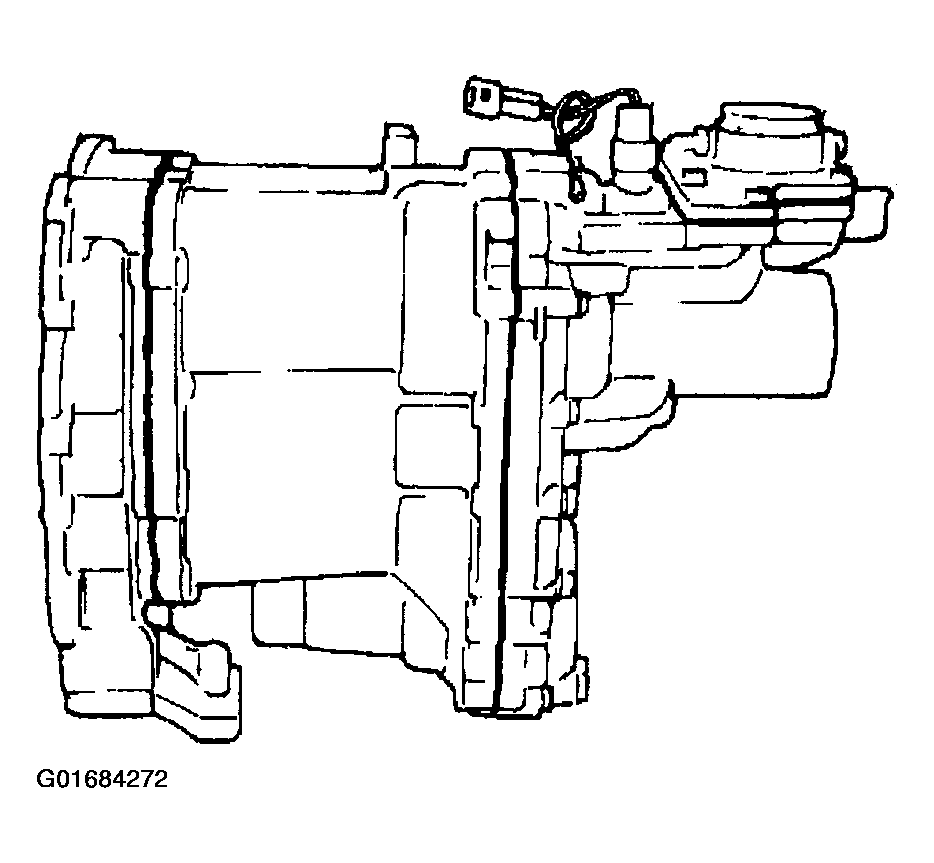

Fig 1: Side View Of Transaxle

1. Remove the following components from the rear case:
   • The four-wheel drive switch
   • The steel ball
   • The O-ring
2. Remove the following components from the rear of the case (if equipped):
   • The four-wheel drive low switch and the steel ball
   • The O-ring
3. Remove the following components from the rear case:
   • One bolt
   • The speedometer driven gear case
   • The O-ring
4. Remove the following components from the rear case:
   • The 5 bolts
   • The gearshift bracket
   • The gearshift lever case (1)
   Fig 2: Removing Gearshift Lever Case

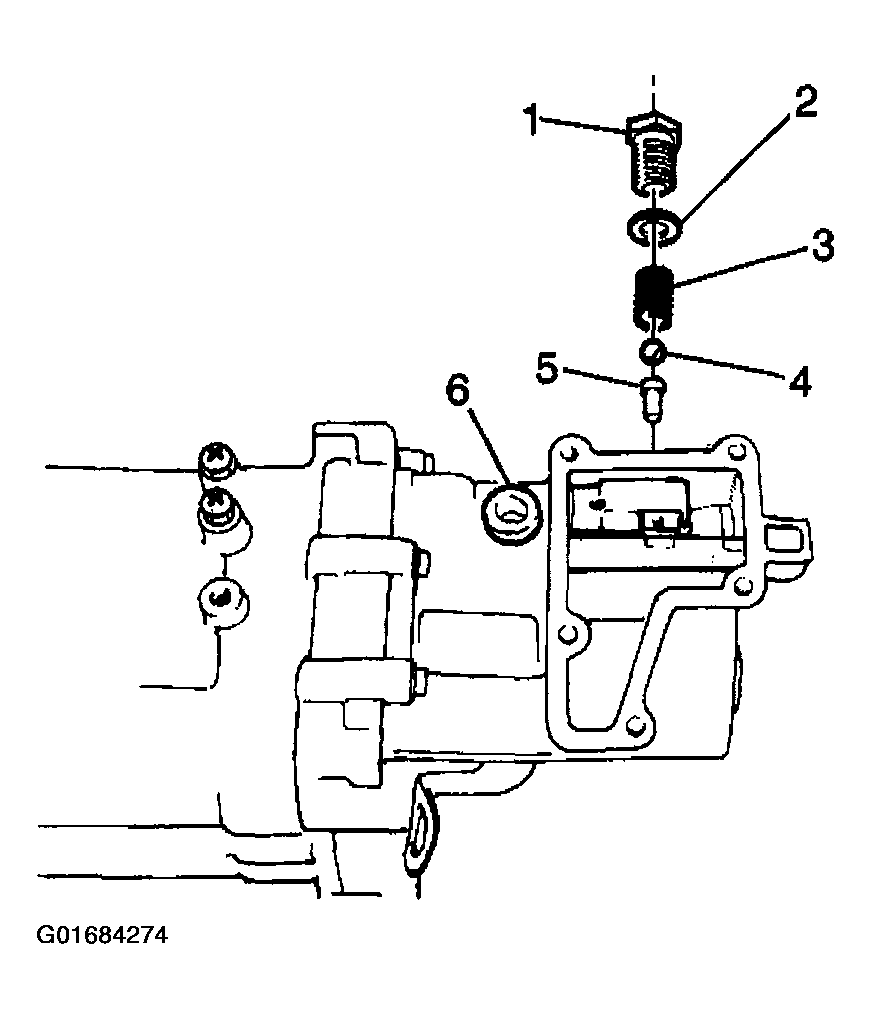

5. Remove the following components from the rear case (6):
   • The select return spring bolt (1)
   • The washer (2)
   • The select return spring (3)
   • The select return ball (4)
   • The select return pin (5)

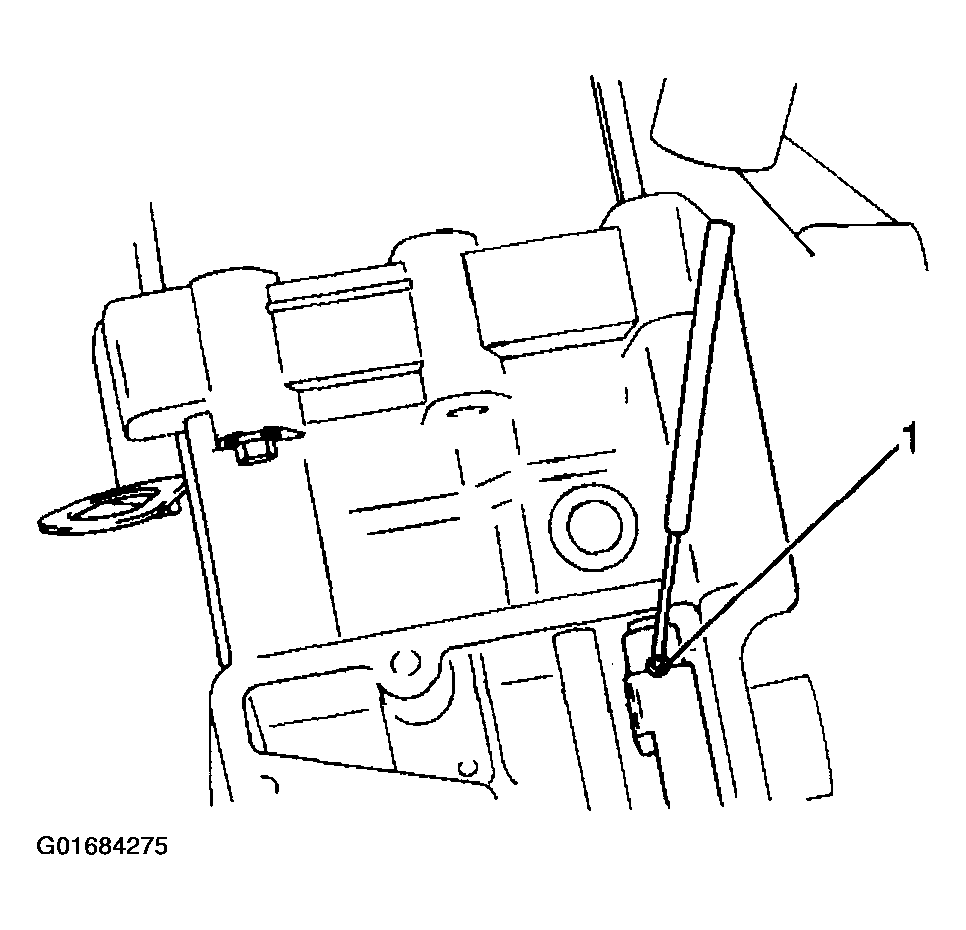

   Fig 3: Removing Components From Rear Case



   Important:  After you remove the rear case, use a magnet in order to extract the pin from the case.

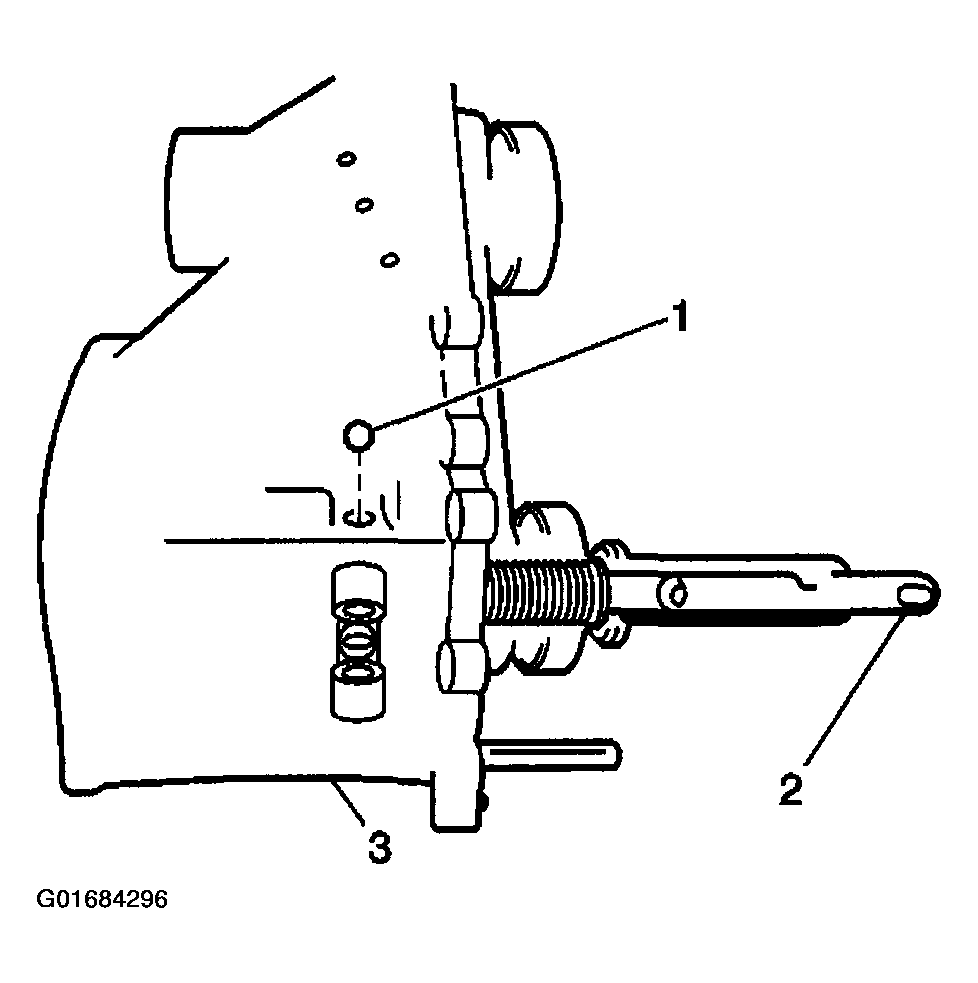

6. Using a standard drift punch and a hammer, drive the roll pin (1) from the reduction shift yoke. This procedure will cause the pin to fall into the transfer case assembly.
   Fig 4: Removing Roll Pin


7. Slide the reduction shift yoke rearward. Pull the reduction shift yoke off the reduction shift shaft and out of the rear case.

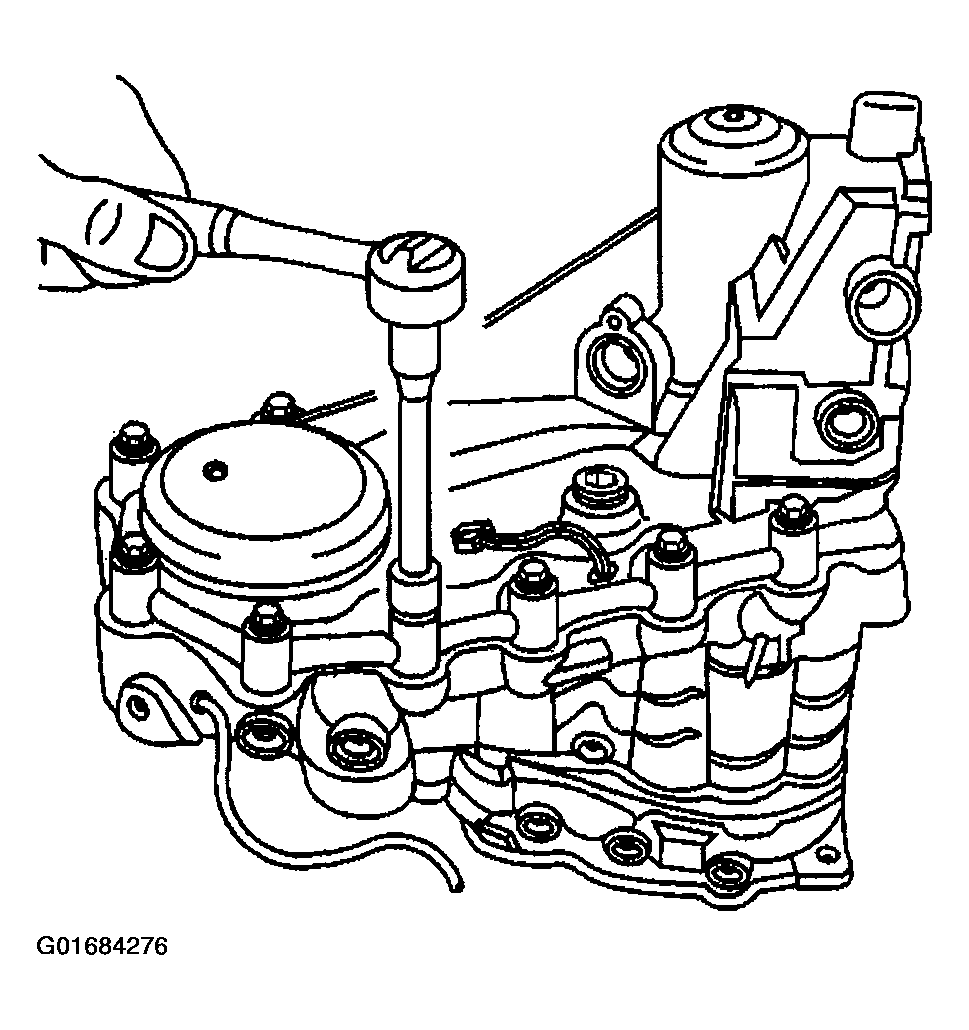

8. Remove the 15 rear case bolts.
   Fig 5: Removing Rear Case Bolts

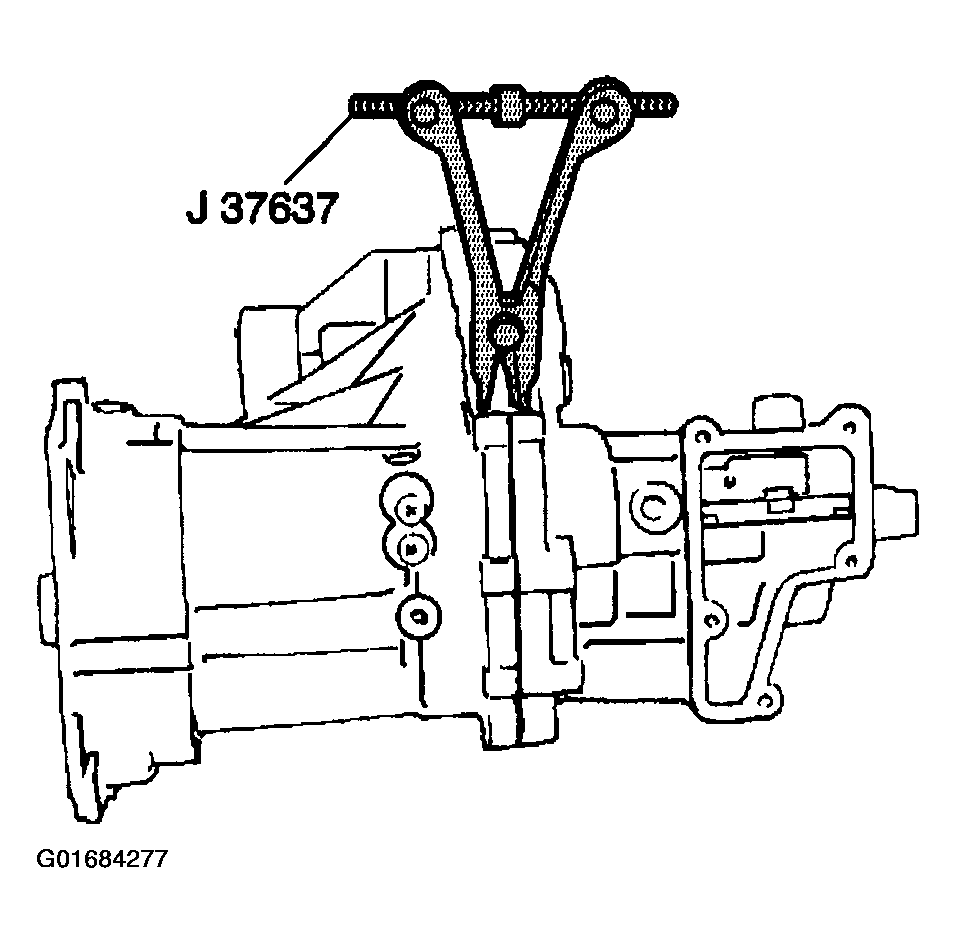

9. Separate the rear case from the center case using a J 37637-A.
   Fig 6: Separating rear case from center case



   Using a magnet, remove the shift yoke roll pin from inside the rear transfer case.

10. Remove the selective shim from the top of the rear output shaft rear bearing.
11. Use J 34757  in order to remove the following components from the rear output shaft:
    • The speedometer drive gear C-clip
    • The speedometer drive gear

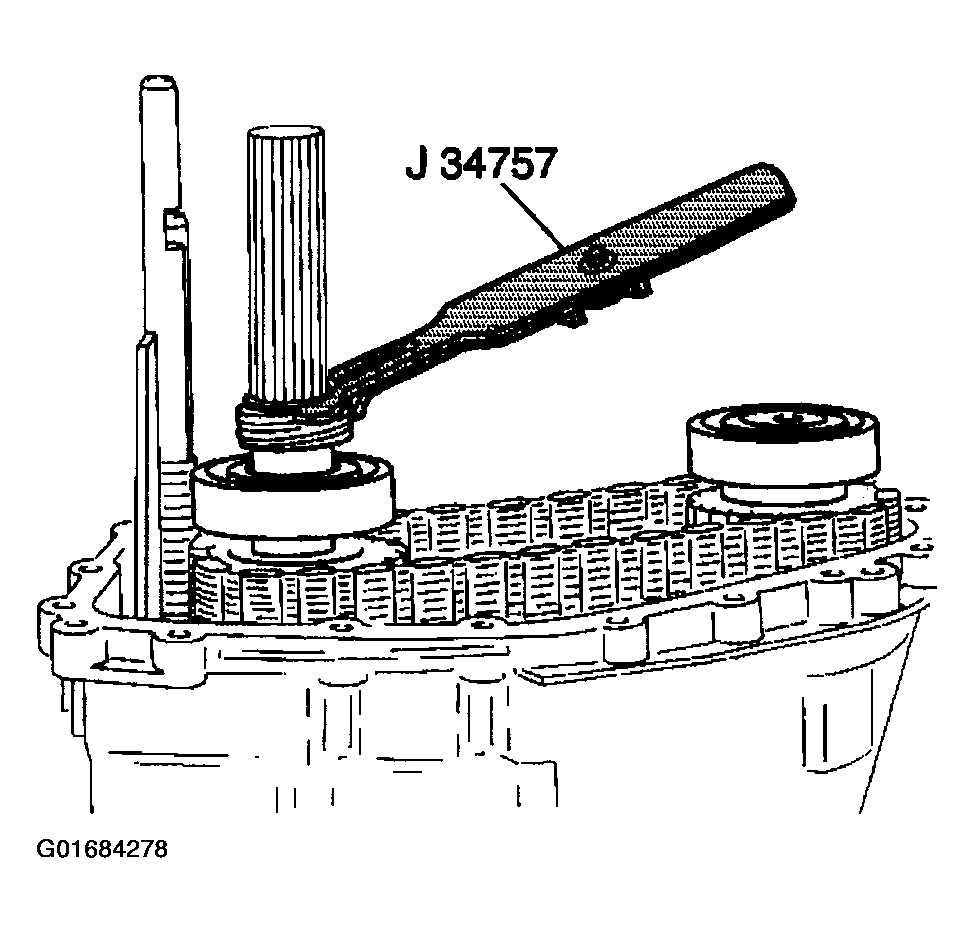

    Fig 7: Removing Speedometer Drive Gear & C-Clip


12. Carefully remove the drive gear ball from the rear output shaft.

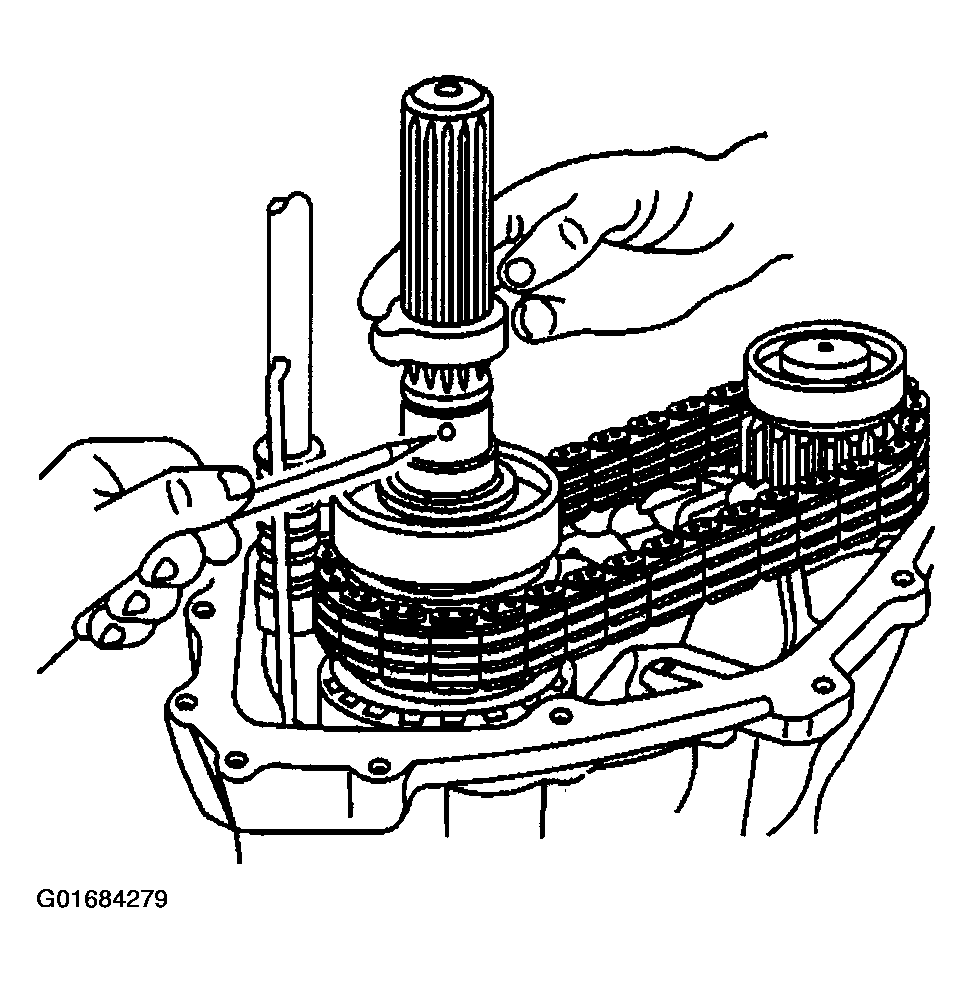

    Fig 8: Removing Drive Gear Ball From Rear Output Shaft


13. Use J 34757  in order to remove the rear output shaft rear bearing C-clip from the rear output shaft.
    Fig 9: Removing Rear Output Shaft Rear Bearing C-Clip


14. Use J 8433  with J 37756  in order to remove the rear output shaft rear bearing from the rear output shaft.

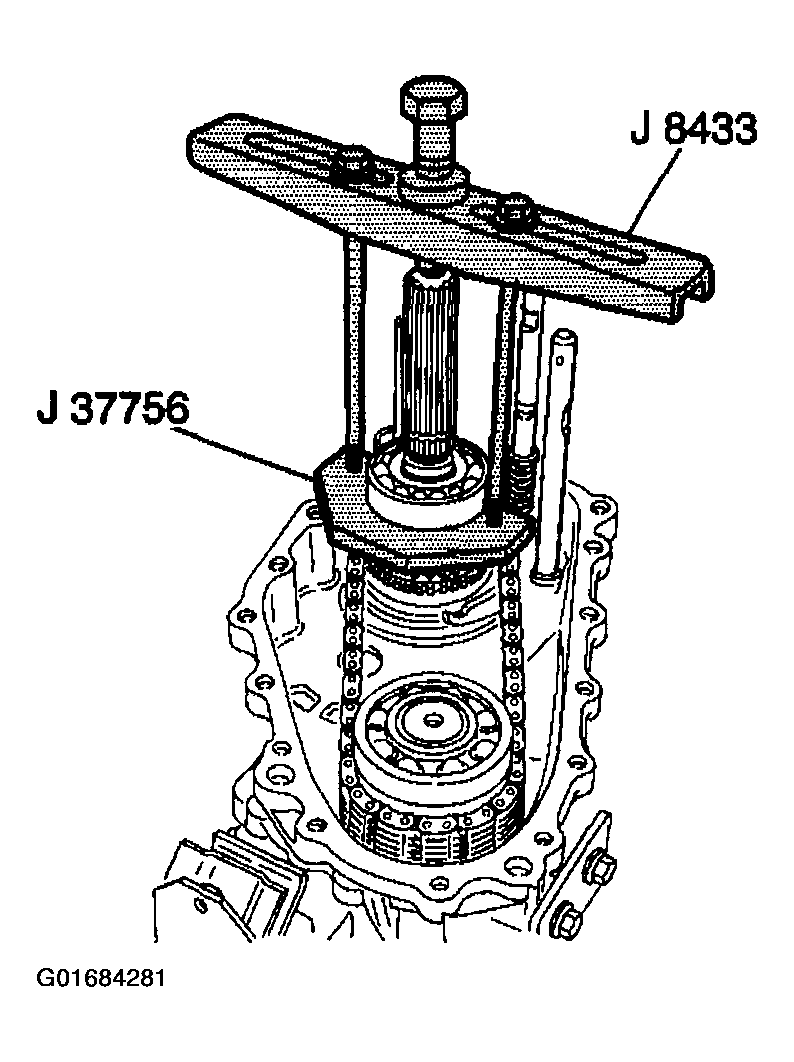

    Fig 10: Removing Rear Output Shaft Rear Bearing



    Important:  Do not lose the rear output shaft washer ball underneath the drive sprocket bushing during the sprocket bushing removal.

15. Remove the following components:
    • The drive sprocket bushing (1) output shaft
    • The drive sprocket needle bearing (2) output shaft

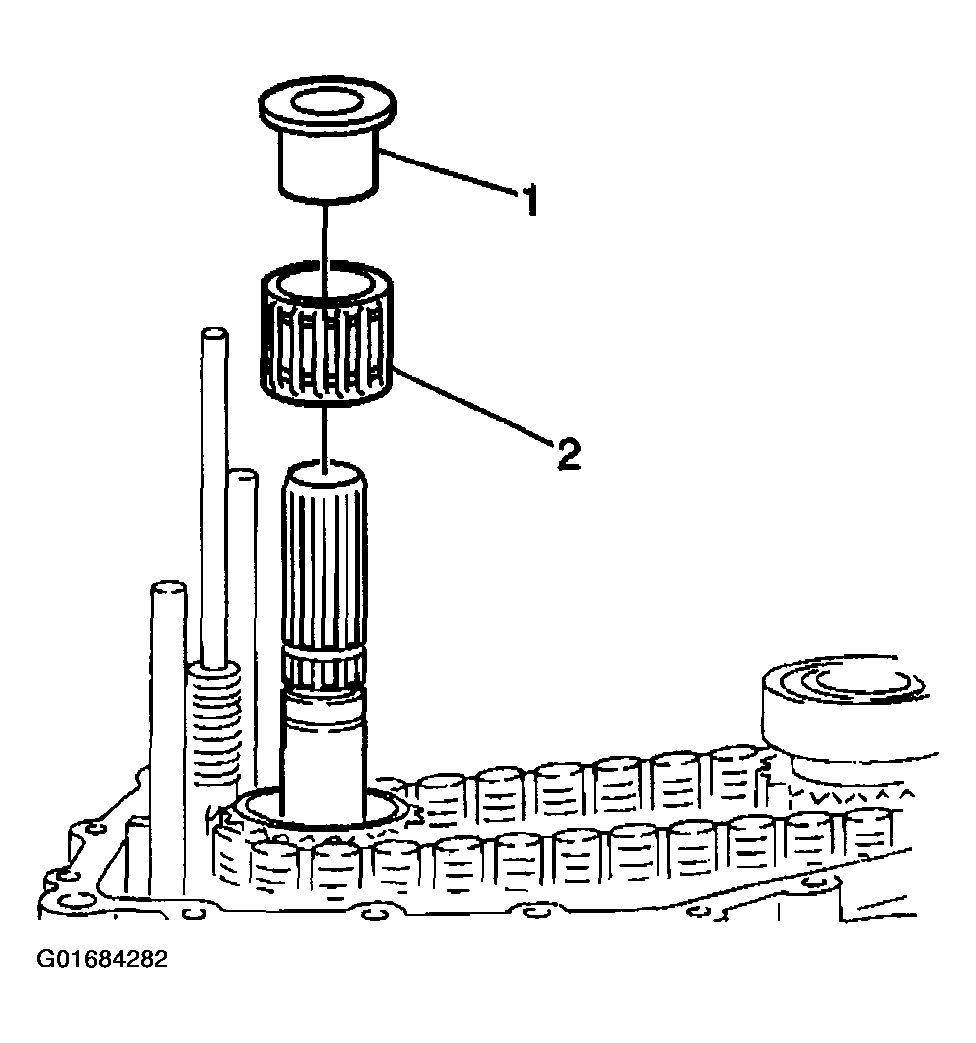

    Fig 11: Removing Drive Sprocket Bushing & Drive Sprocket Needle Bearing


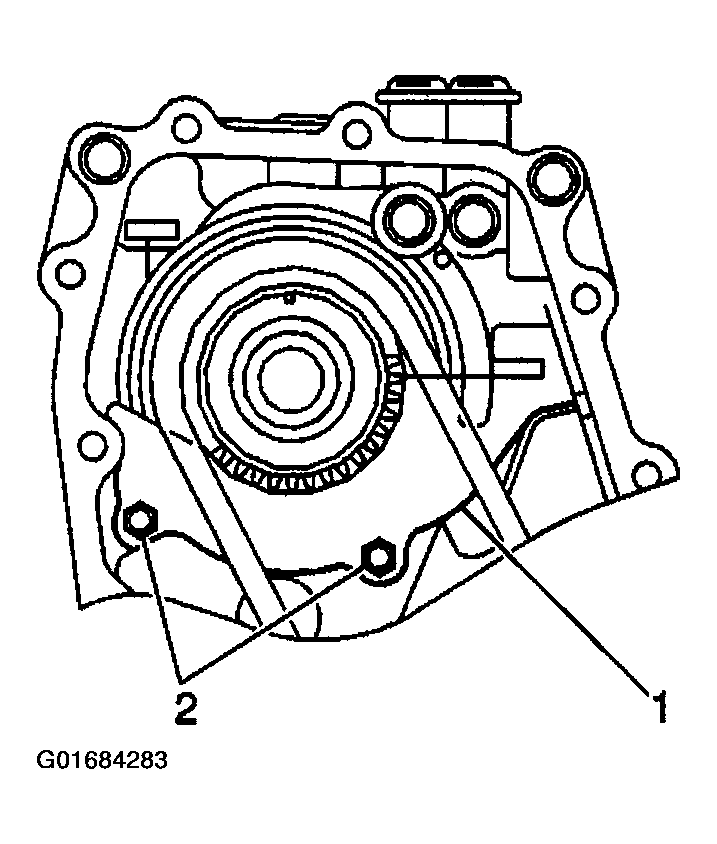

16. Remove the following components from the rear output shaft:
    • 2 screws (2)
    • The synchronizing plate (1)
    Fig 12: Removing Synchronizing Plate

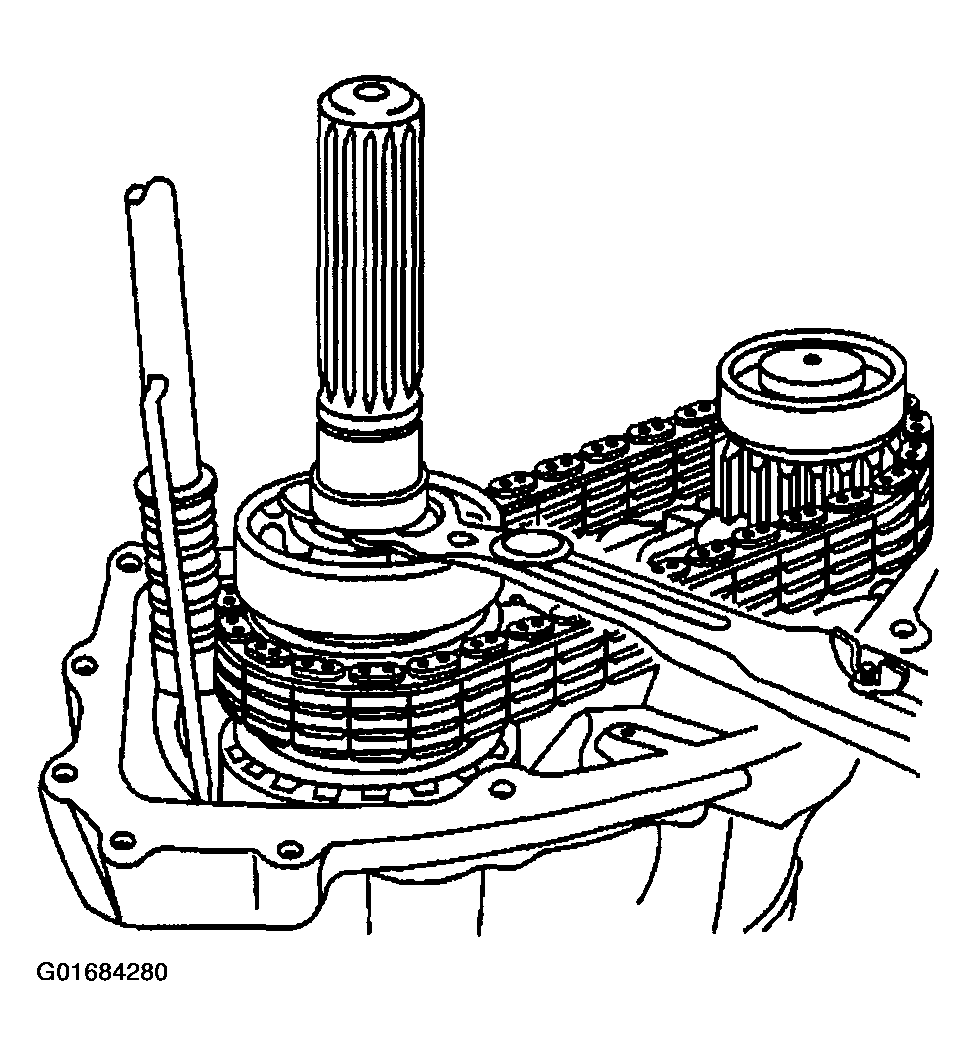

17. Remove the following drive components from the rear output shaft and the front output shaft:
    • The drive sprocket (2)
    • The drive chain (1)
    • The rear output shaft washer ball

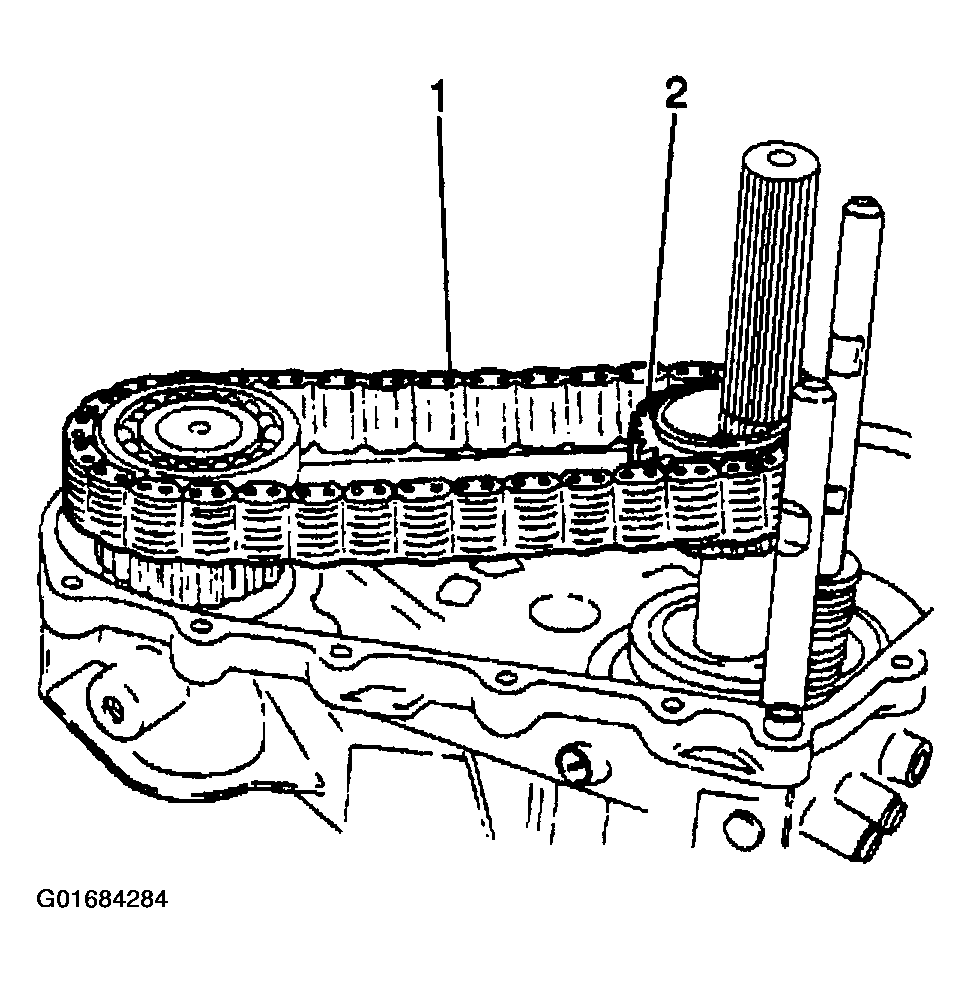

    Fig 13: Removing Drive Sprocket & Chain

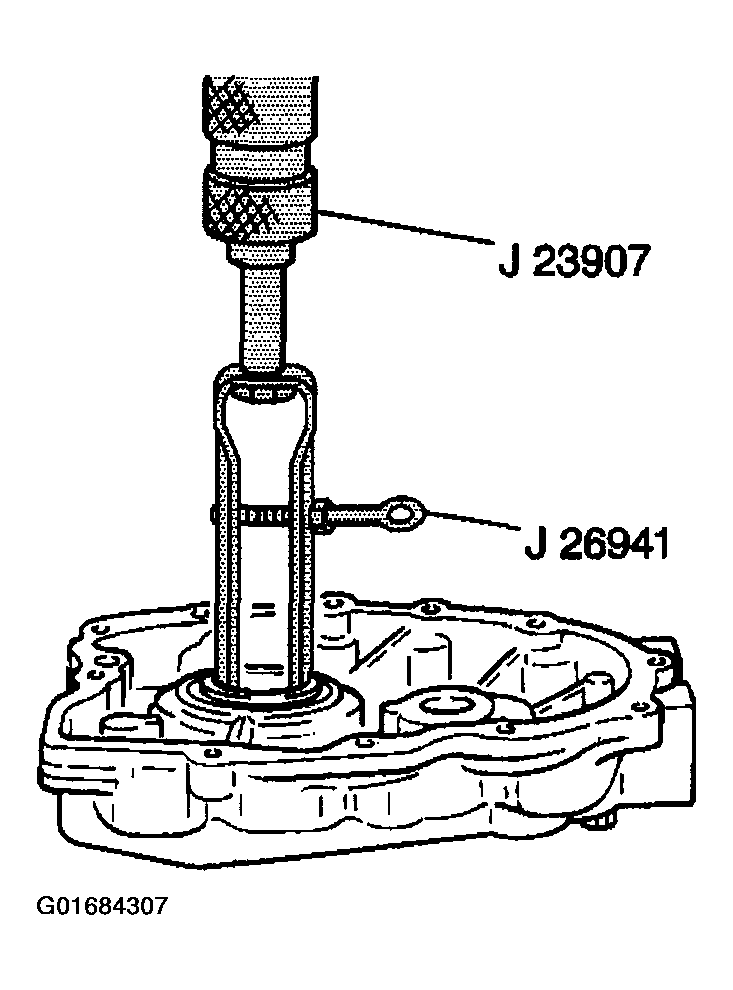

18. Use J 26941  with J 23907  in order to remove the rear output shaft oil seal from the rear case.

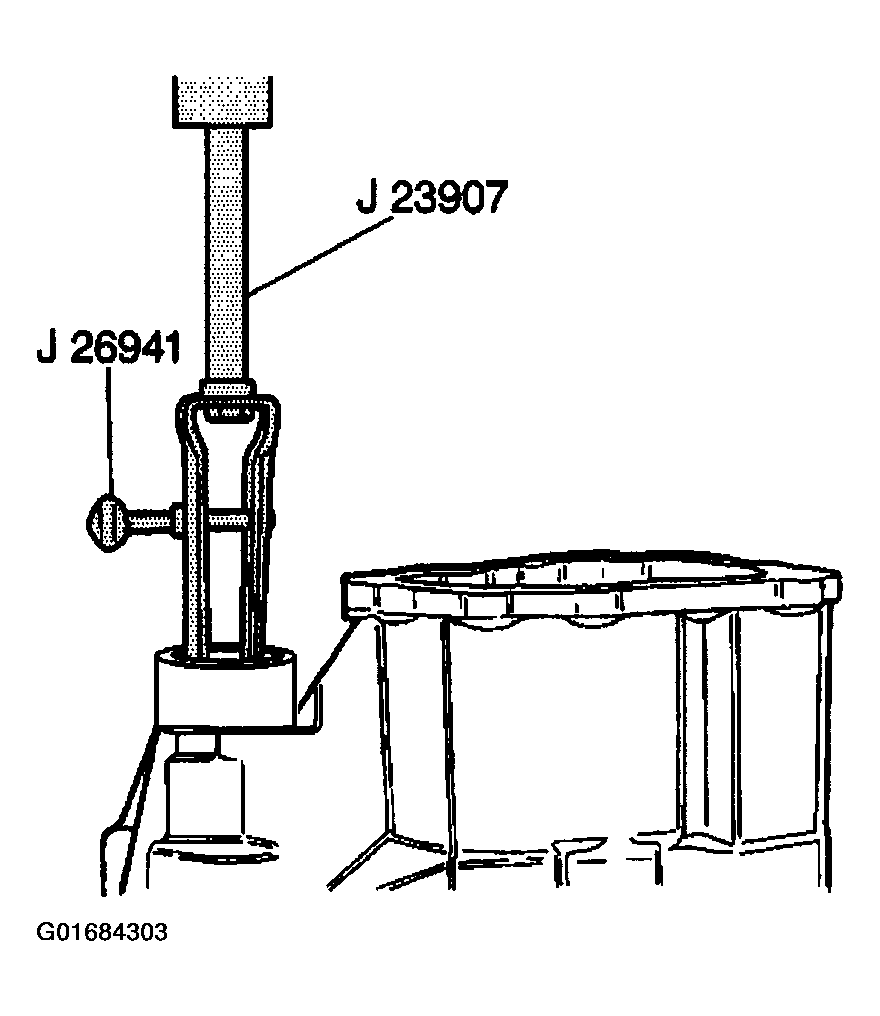

    Fig 14: Removing Rear Output Shaft Oil Seal


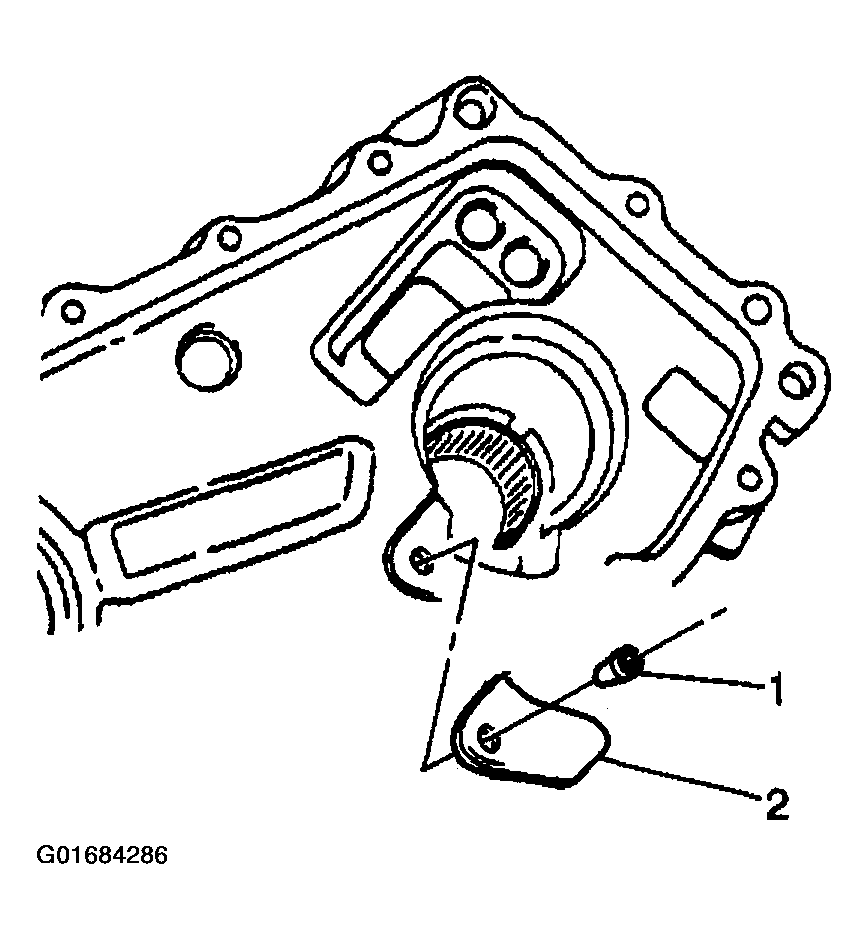

19. Remove the following components from the rear case:
    • One bolt (1)
    • The oil guide
    Fig 15: Removing Oil Guide


20. Use J 26941  and a hammer in order to remove the rear output shaft needle bearing from the rear case.

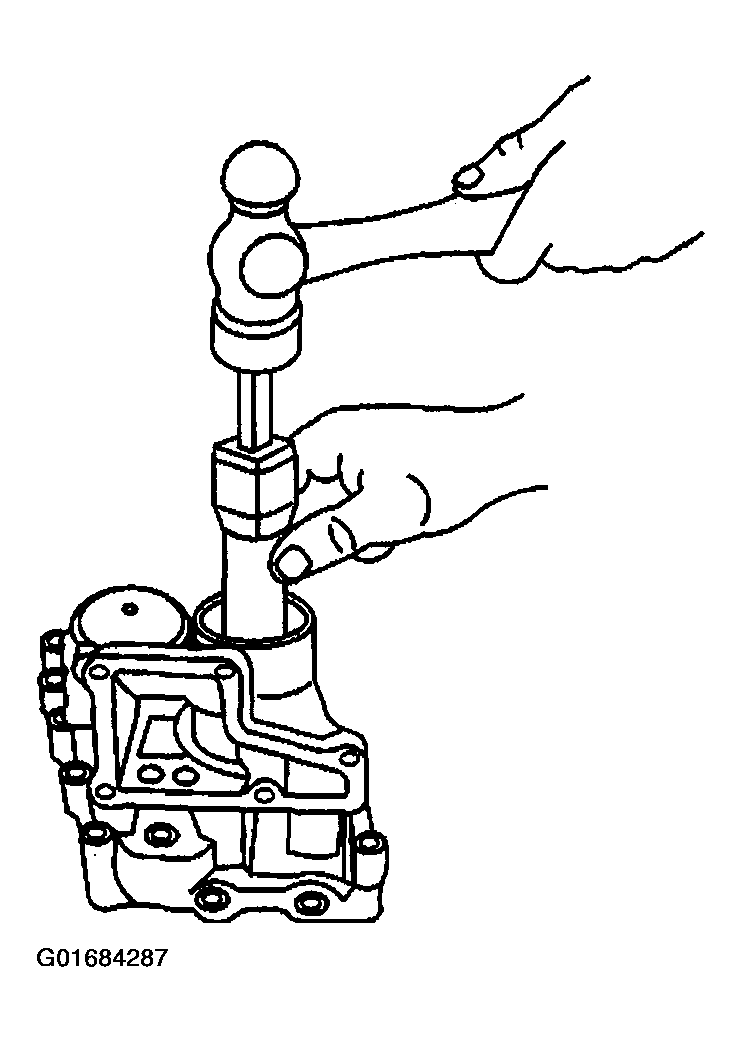

    Fig 16: Removing Rear Output Shaft Needle Bearing


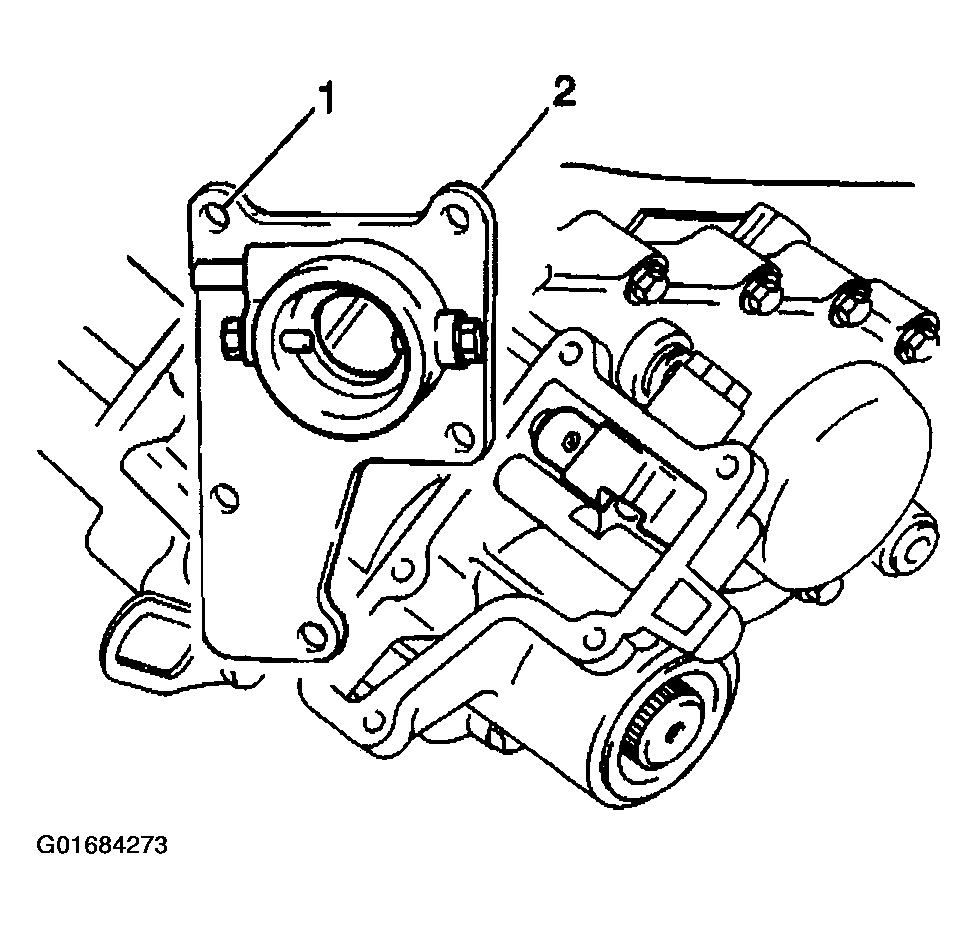

21. Remove the following components from the front case:
    • One bolt (2)
    • One washer
    • The countershaft case plate (1)

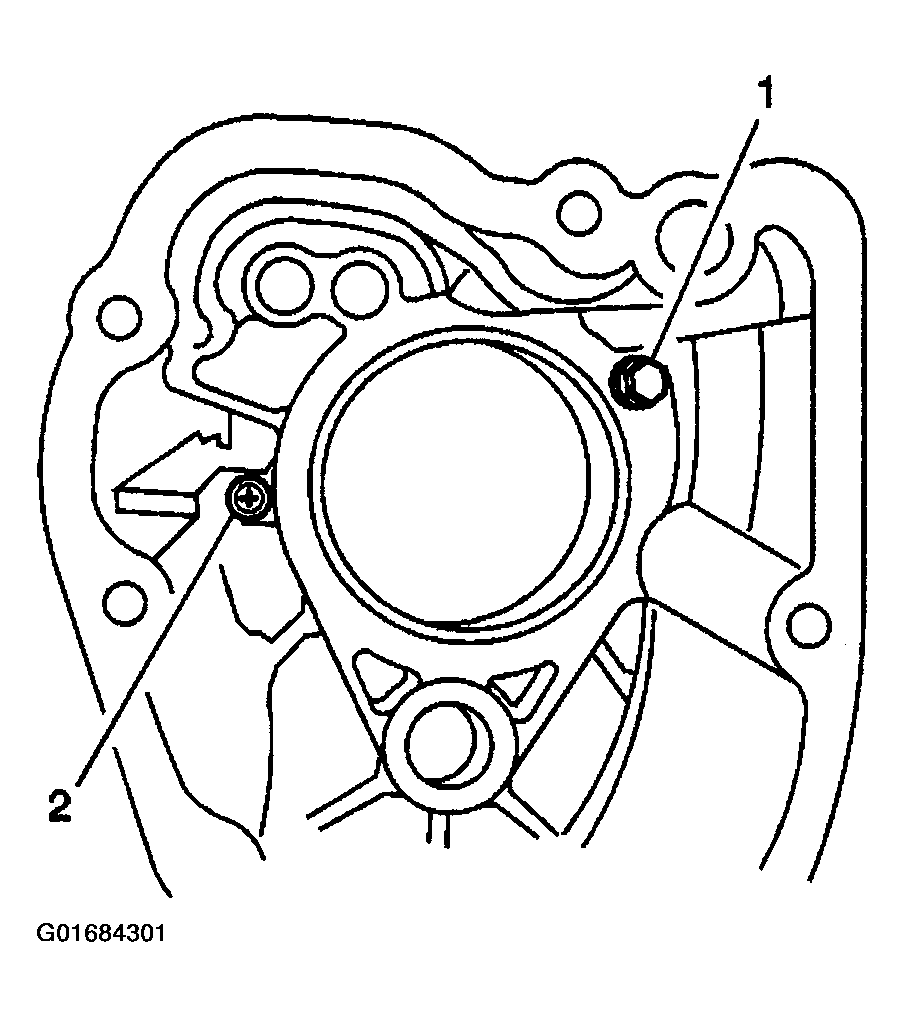

    Fig 17: Removing Countershaft Case Plate

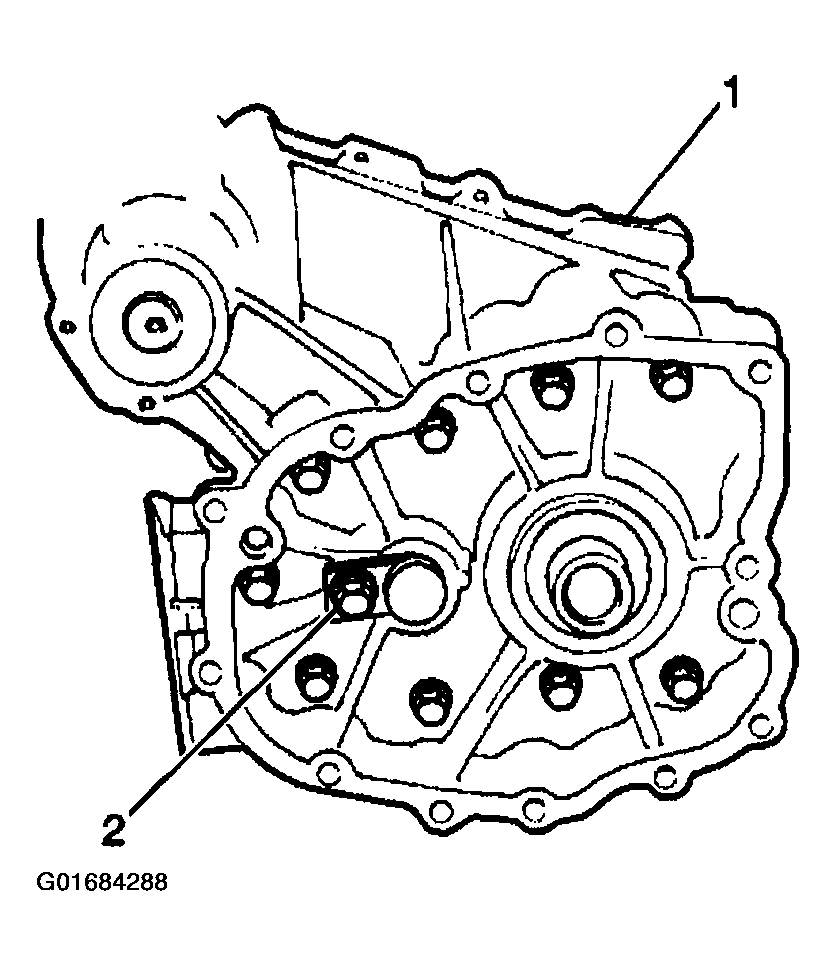

22. Remove the 9 front case bolts (1) from the front case.
    Fig 18: Removing Front Case Bolts


23. Separate the front case from the center case (1).
24. Remove the countershaft assembly (3) from the center case.

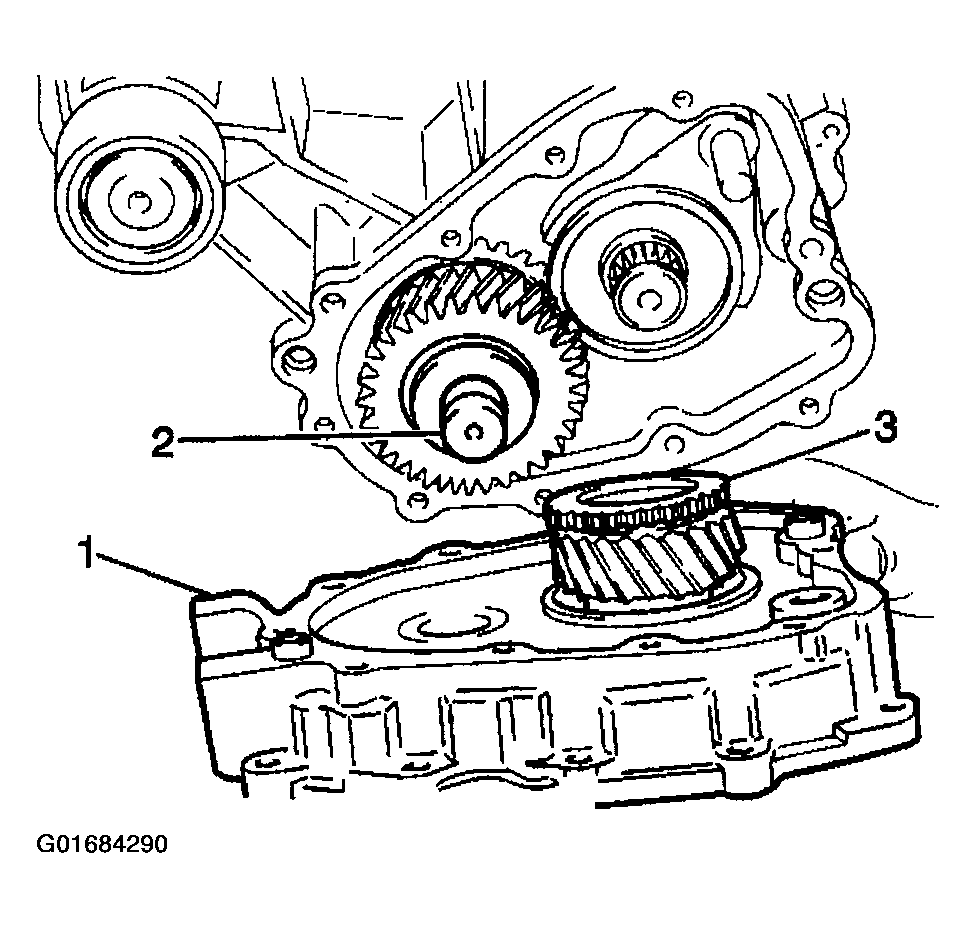

    Fig 19: Separating Front Case From Center Case



    Important:  Do not lose the countershaft washer balls which come out from between the countershaft (9) and the countershaft washers (1,7).

25. Remove the following components from the countershaft (9):
    • The countershaft washers (1,7)
    • The washer balls (3)
26. Remove the following components from the countershaft:
    • The counter gear (6)
    • The countershaft needle bearings (4,8)
    • The countershaft spacer (5)
27. Inspect the countershaft friction ring for excessive wear or damage. Replace as necessary.
28. Inspect the countershaft O-ring for cuts or other damage. Replace as necessary.

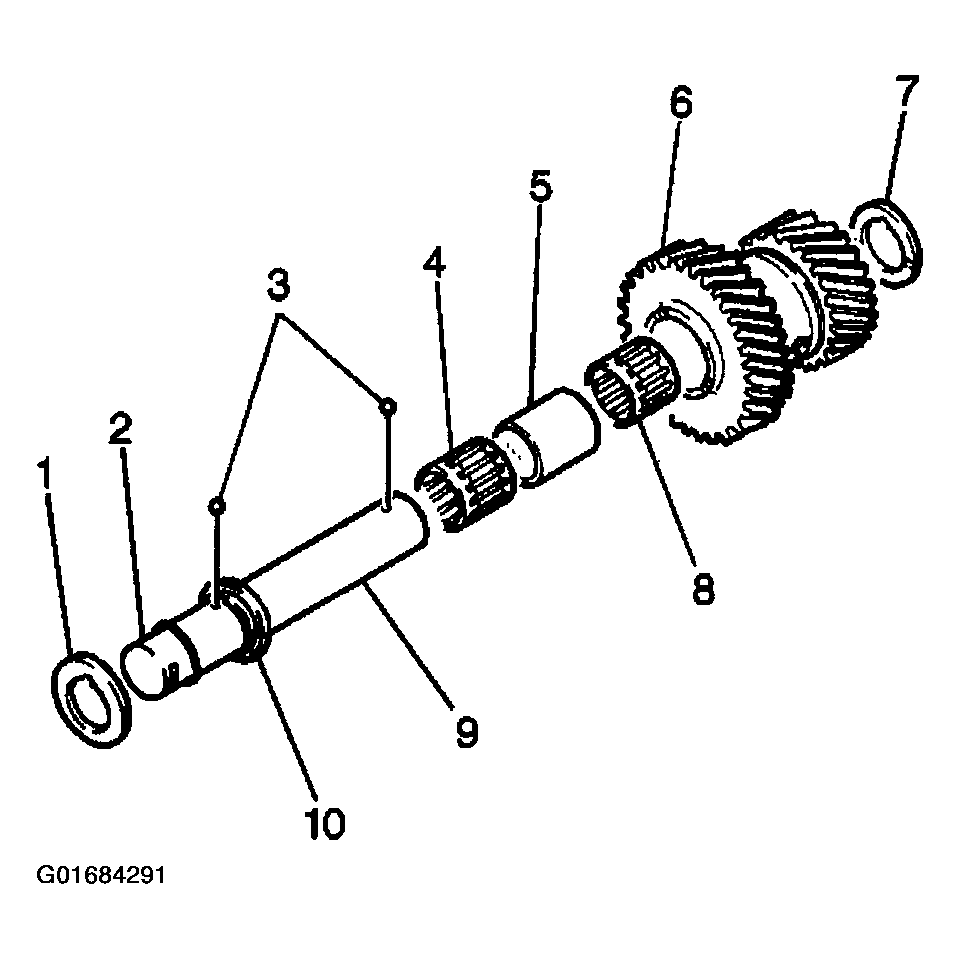

    Fig 20: Identifying Countershaft Components



    Important:  Do NOT remove either the countershaft friction ring (10) or the O-ring (2) unless absolutely necessary. If you remove either one, replace with new components.

29. Remove the countershaft O-ring from the countershaft.
30. Use J 39497  and a press arbor (2) in order to remove the countershaft friction ring (1) from the countershaft (3).
    Fig 21: Removing Countershaft Friction Ring


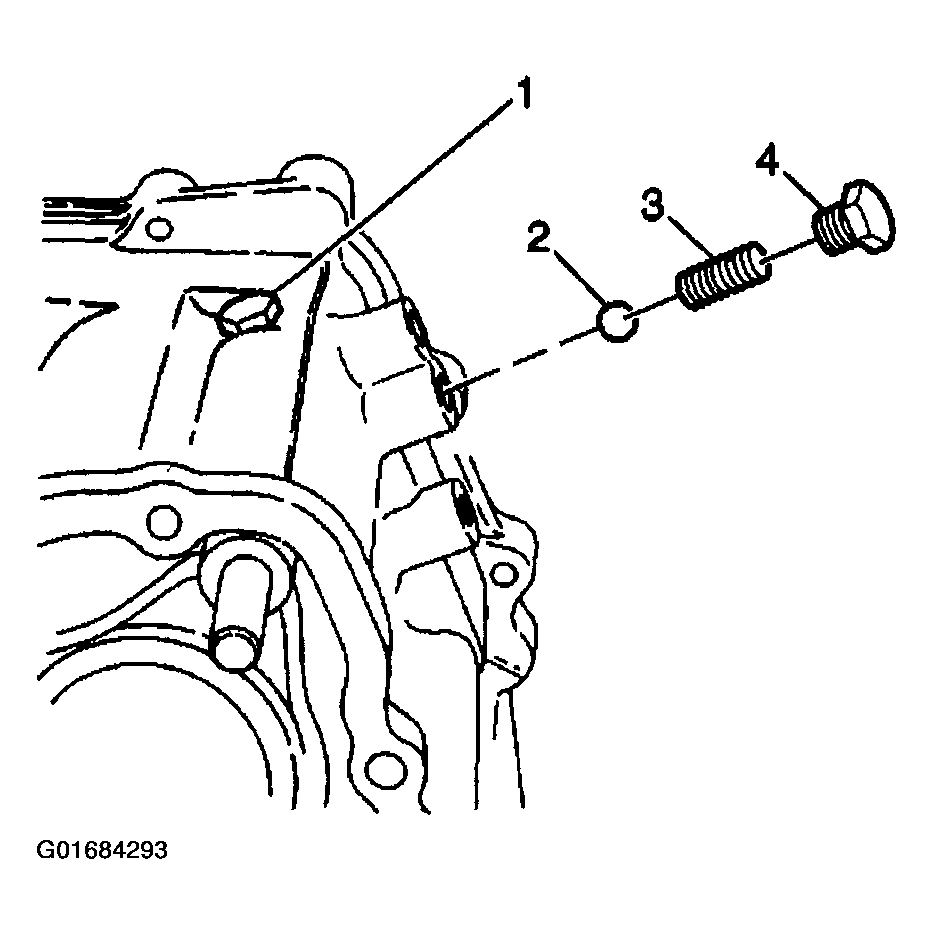

31. Remove the following components from the center case:
    • The 1 rubber plug (1)
    • The 2 locating screws (4)
    • The 1 washer
    • The 2 locating springs (3)
    • The 2 locating balls (2)
    Fig 22: Removing Components From Center Case



    Important:  Observe the alignment marks on the following components in order to ensure correct alignment during assembly:

    • The caged needle bearing
    • The reduction clutch sleeve and hub
    • The front drive clutch sleeve and hub

    If no alignment marks are present, scribe new marks on these components.

32. Remove the following components from the rear output shaft, in front of the center case:
    • The reduction shift shaft (2)
    • The reduction shift fork (1)
    • The reduction clutch sleeve (3)

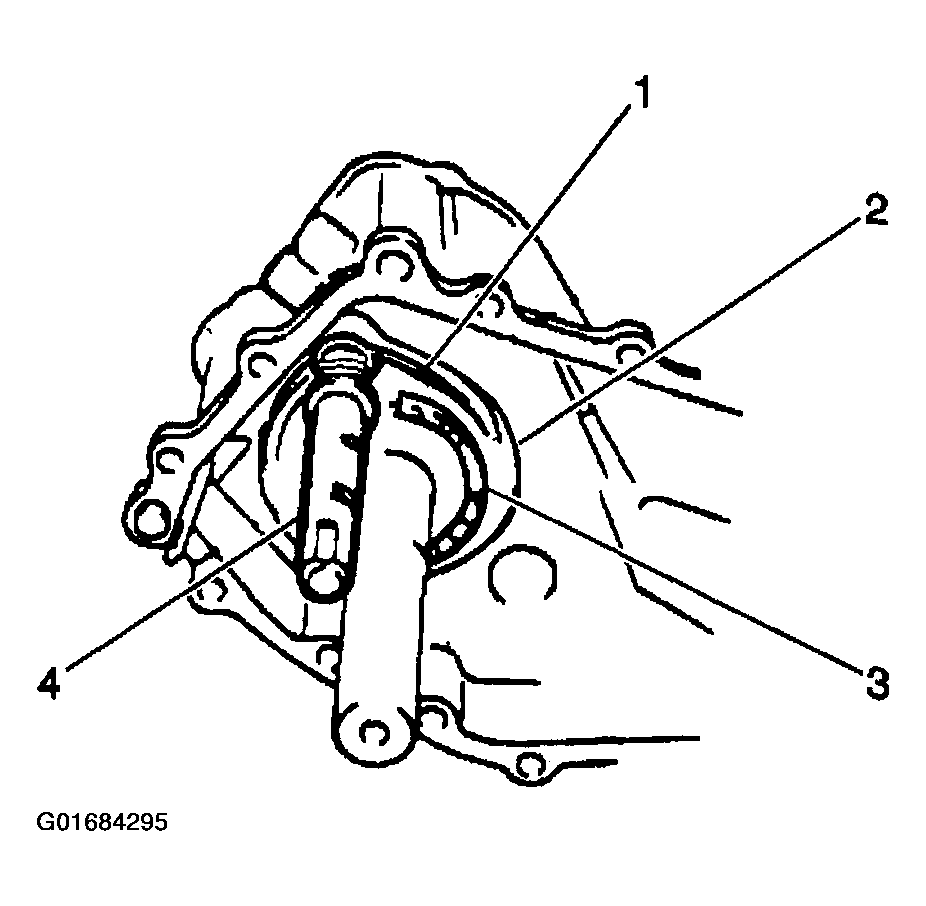

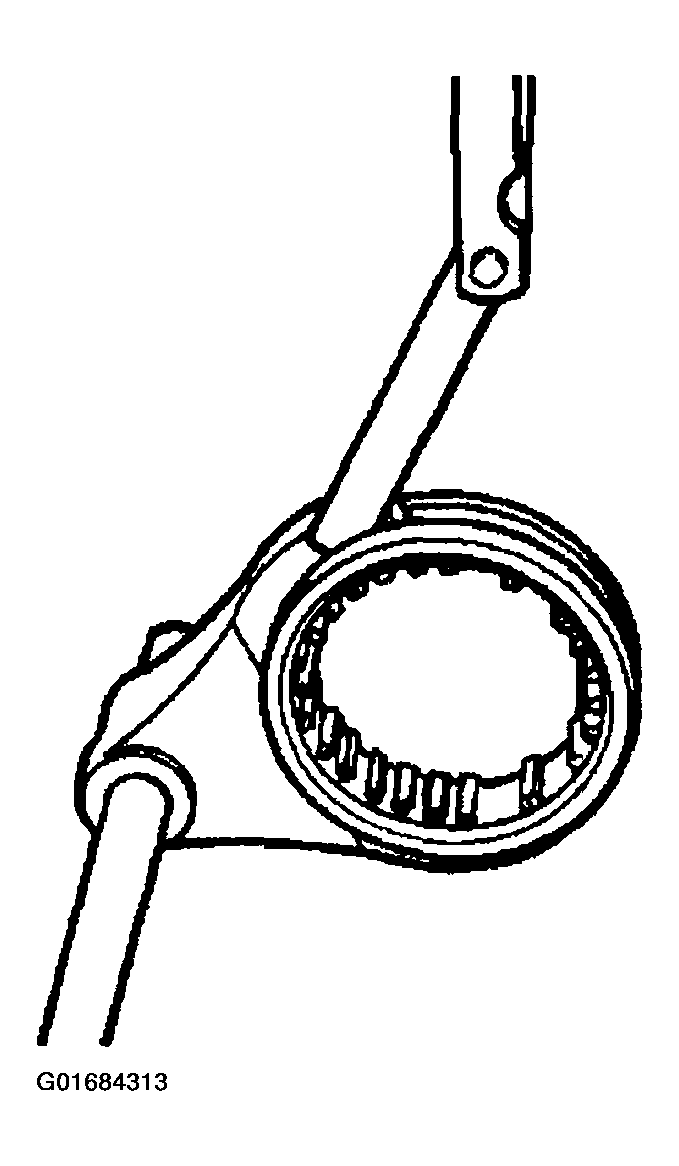

    Fig 23: Removing Reduction Shift Shaft, Reduction Shift Fork & Reduction Clutch Sleeve


33. Remove the following components from the rear output shaft, in the rear of the center case:
    • The front drive shift shaft (4)
    • The front drive shift fork (1)
    • The front drive clutch sleeve (2)
    • The front drive clutch hub (3)
    Fig 24: Removing Front Drive Shift Shaft, Front Drive Shift Fork, Front Drive Clutch Sleeve & Front Drive Clutch Hub


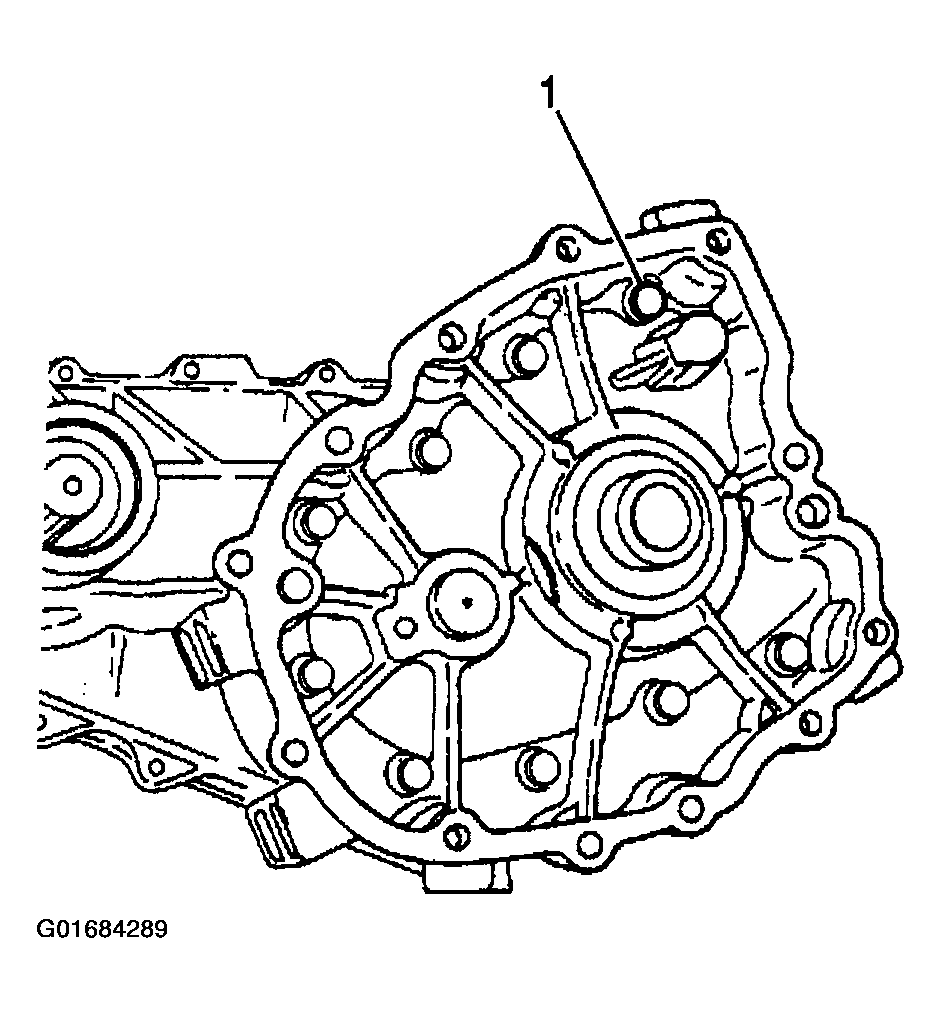

34. Remove the interlock ball (1) from the center case passage.
    Fig 25: Removing Interlock Ball From Center Case Passage


35. Use J 34757  in order to remove the reduction hub C-clip (3) from the rear output shaft.
36. Remove the following components from the rear output shaft.
    • The reduction clutch hub (2)
    • The low output gear
    • The low output gear needle bearing (1)

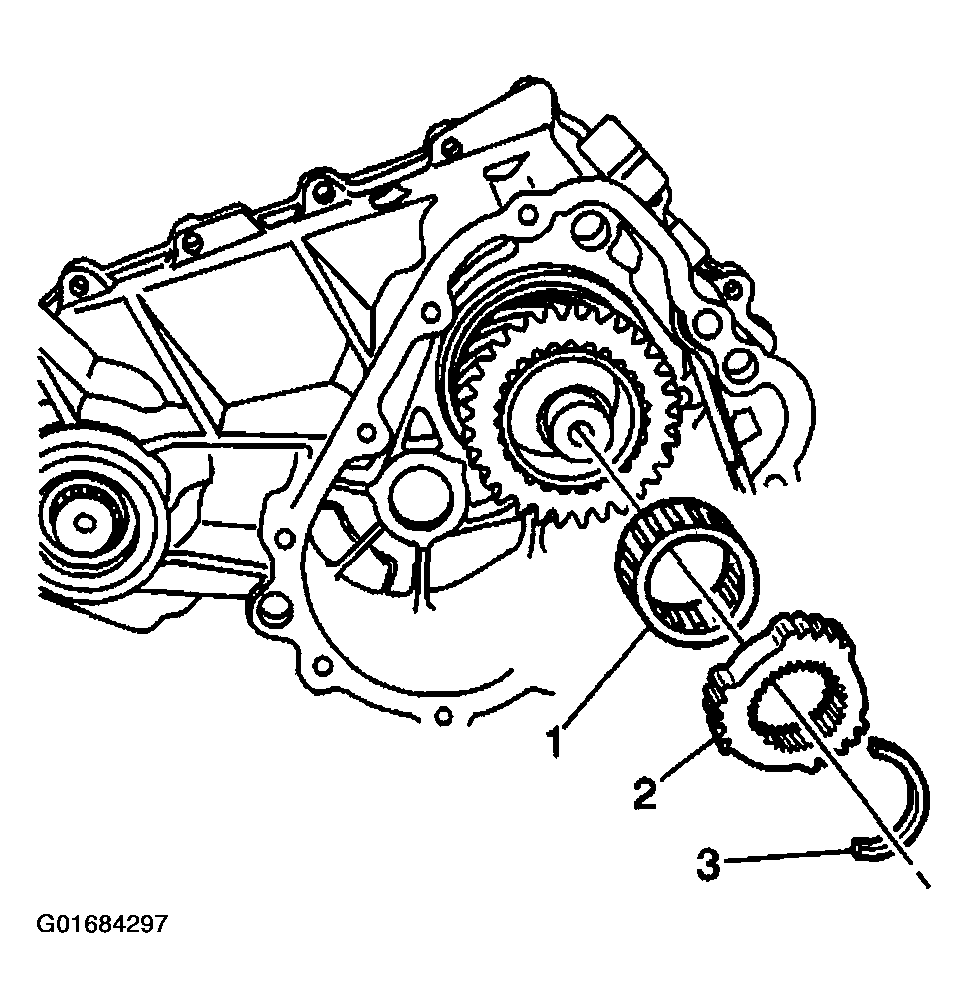

    Fig 26: Removing Low Output Gear Needle Bearing & Reduction Clutch Hub

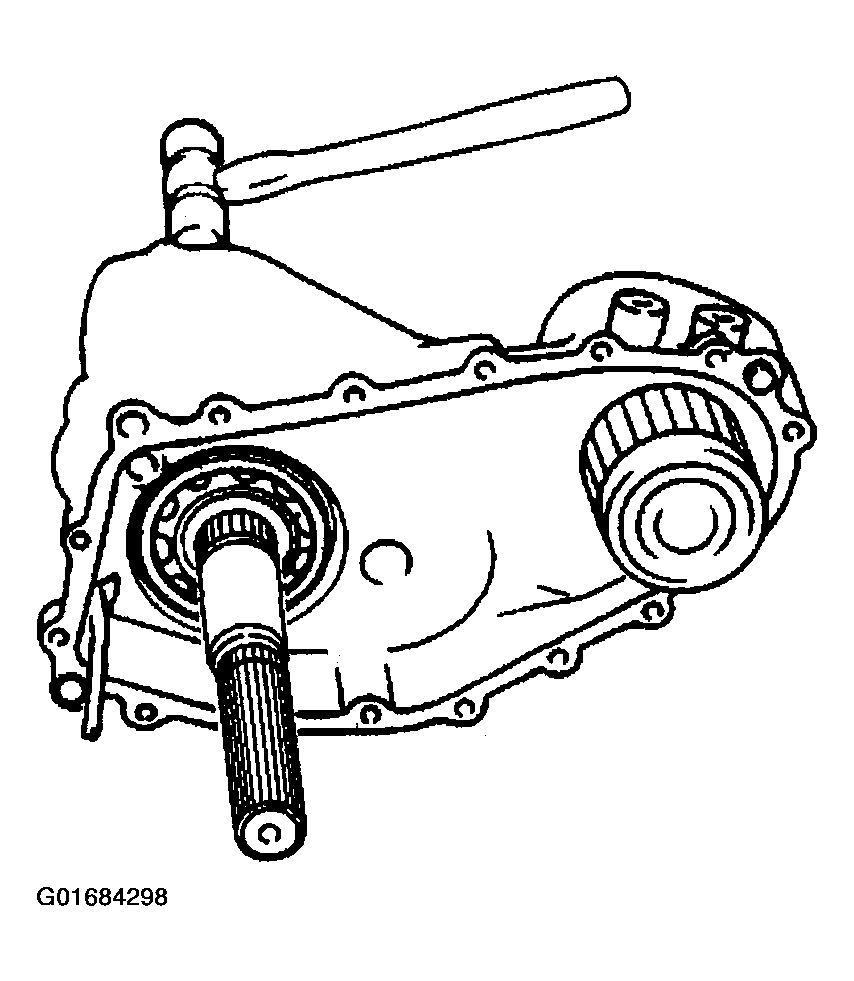

37. Use a plastic mallet in order to remove the rear output shaft from the center case.
    Fig 27: Removing Rear Output Shaft From Center Case


38. Use J 22912-01  and a press arbor in order to remove the rear output shaft front bearing from the rear output shaft.

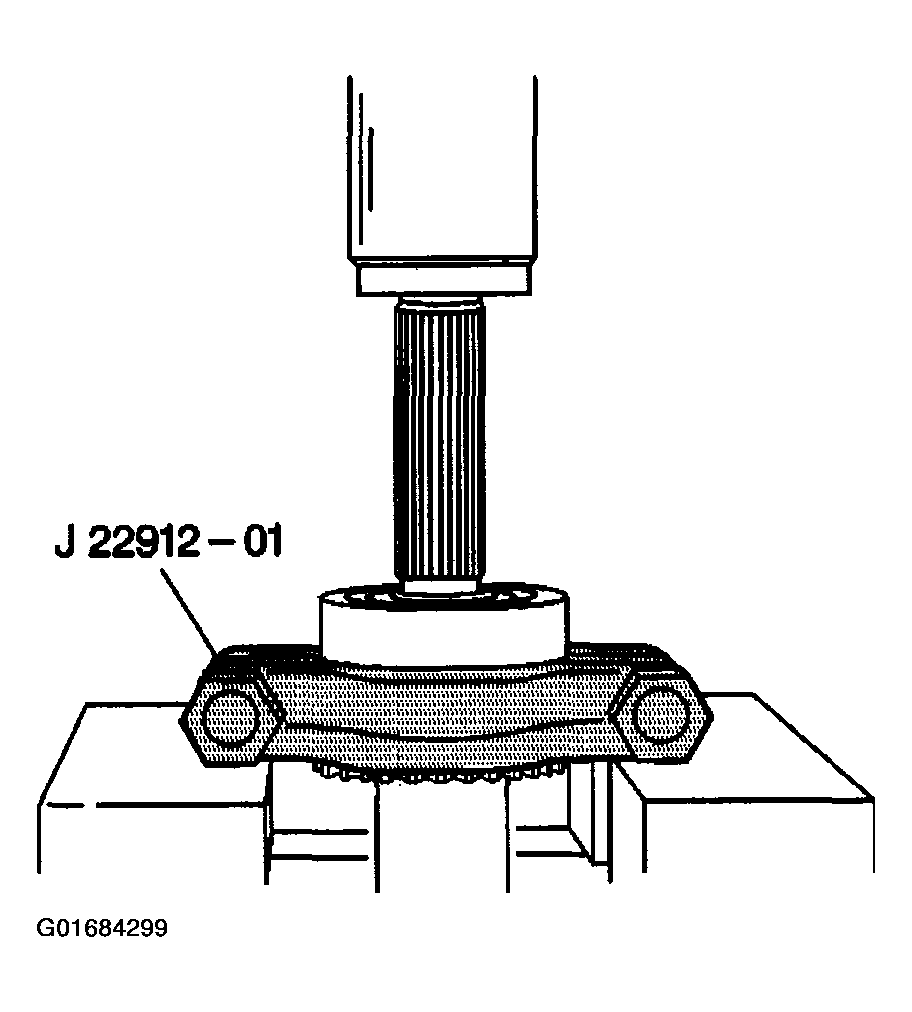

    Fig 28: Removing Rear Output Shaft Front Bearing


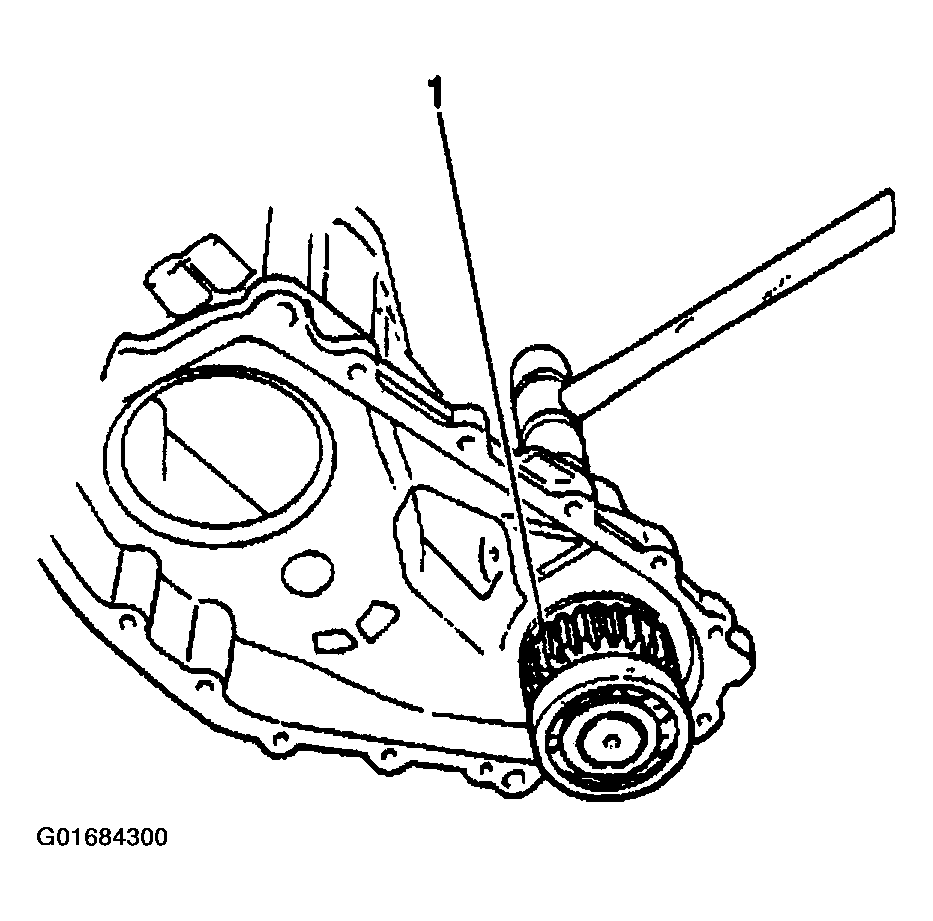

39. Using a plastic mallet, remove the front output shaft and the bearings (1) from the center case.
    Fig 29: Removing Front Output Shaft & Bearings


40. Remove the following components from the center case:
    • One bolt (1)
    • The case gutter
    Fig 30: Removing Case Gutter

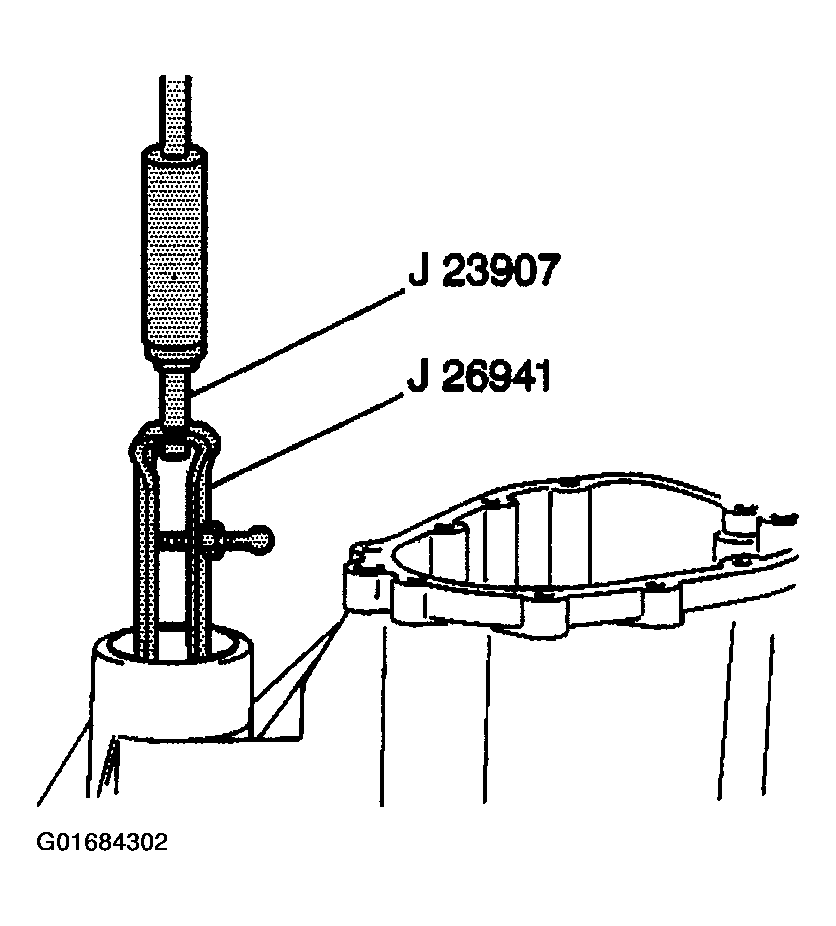

41. Use J 26941  with J 23907  in order to remove the front output shaft oil seal from the center case.

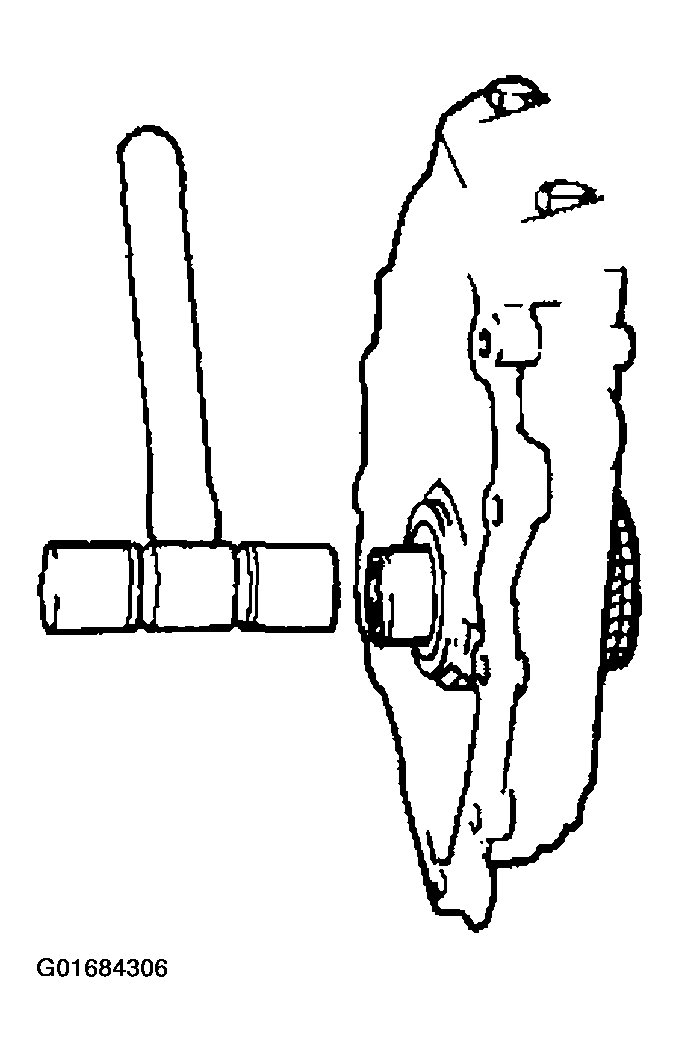

    Fig 31: Removing Front Output Shaft Oil Seal


42. Using J 26941  and a hammer, remove the front output shaft needle bearing from the center case.
    Fig 32: Removing Front Output Shaft Needle Bearing


43. Use J 22912-01  with J 34844  and a press arbor in order to remove the front output shaft bearings from the front output shaft.

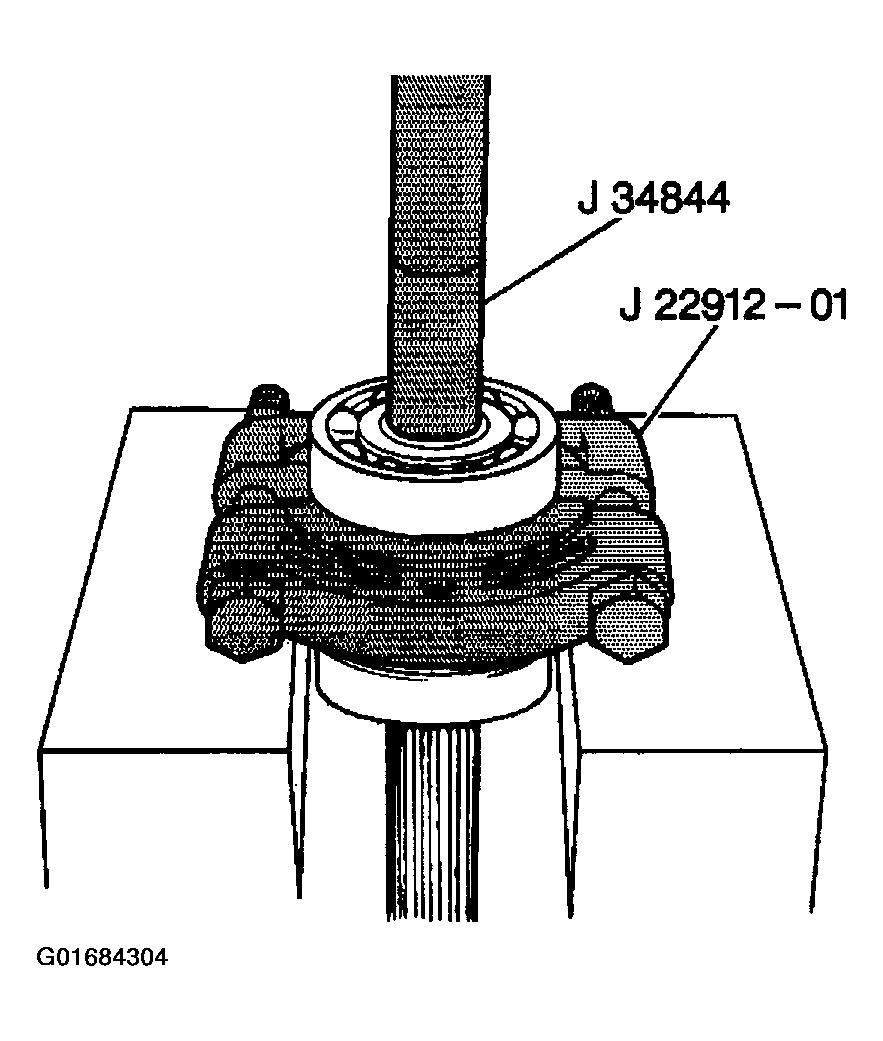

    Fig 33: Removing Front Output Shaft Bearings


44. Loosen the center bearing snap ring within the input gear. You cannot remove this snap ring at this time.
    Fig 34: Loosening Center Bearing Snap Ring Within Input Gear


45. Using a plastic mallet, remove the input gear assembly from the front case.
    Fig 35: Removing Input Gear Assembly

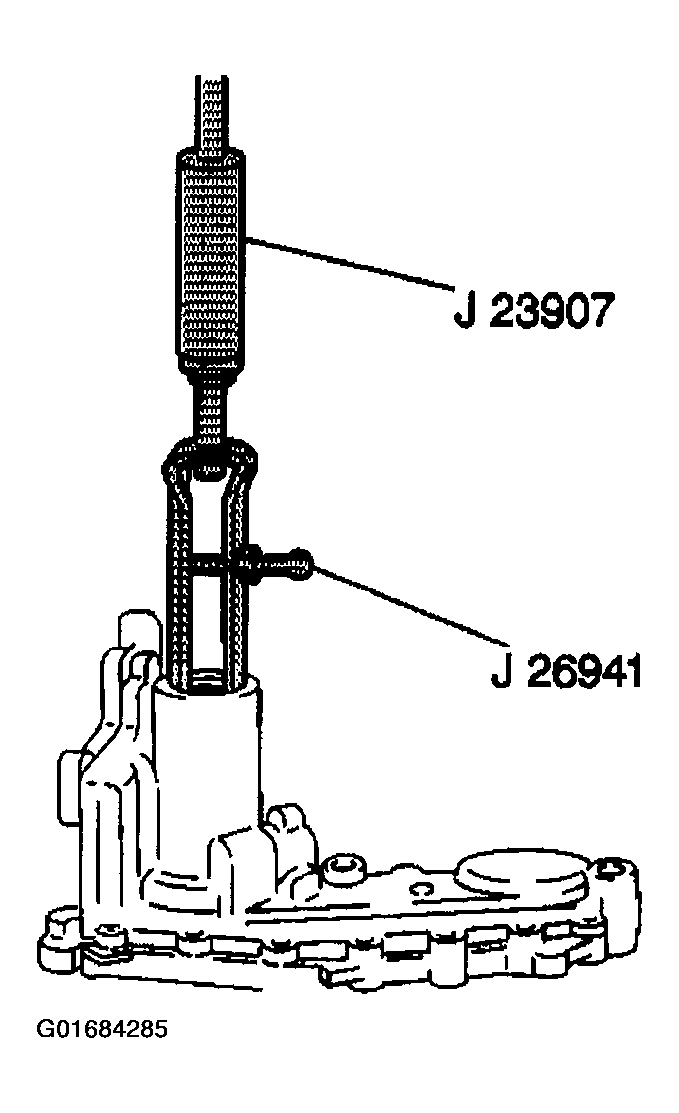

46. Using J 26941  with J 23907,  remove the input gear oil seal from the front case.
    Fig 36: Removing Input Gear Oil Seal



    Important:  During gear assembly removal, the bearing may move, binding the snap ring in its groove. Apply light pressure with the mallet in order to slide the bearing back to its original position before you attempt to remove the snap ring.

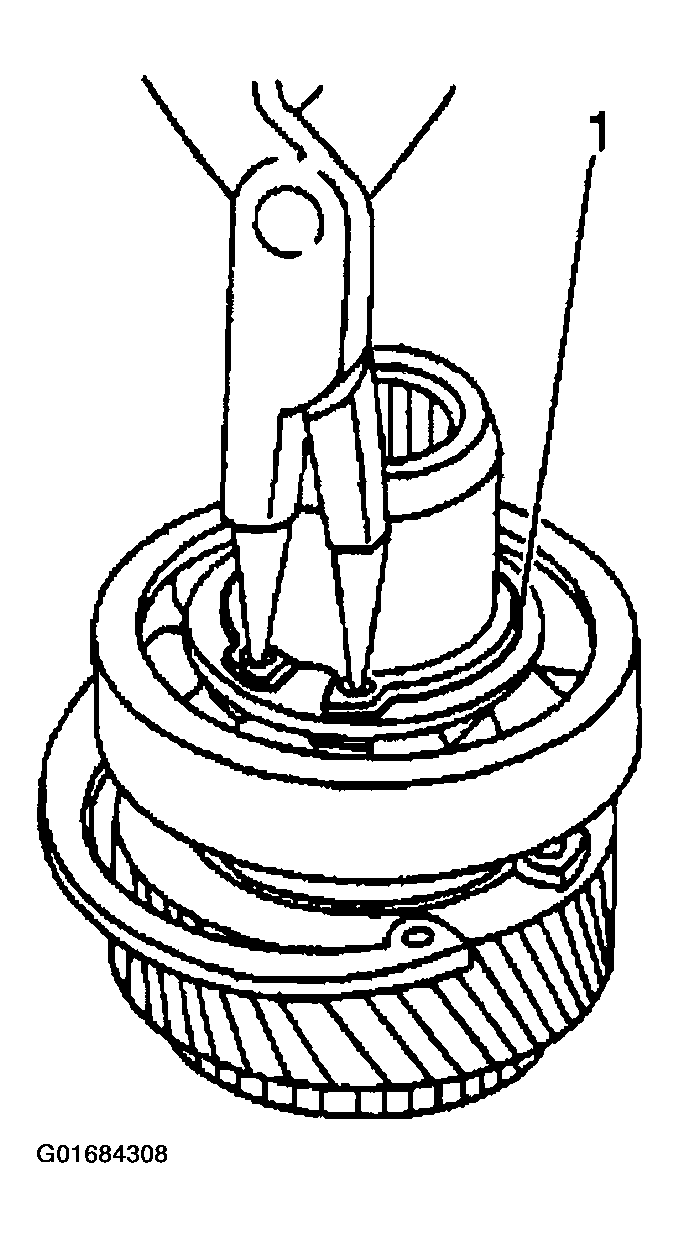

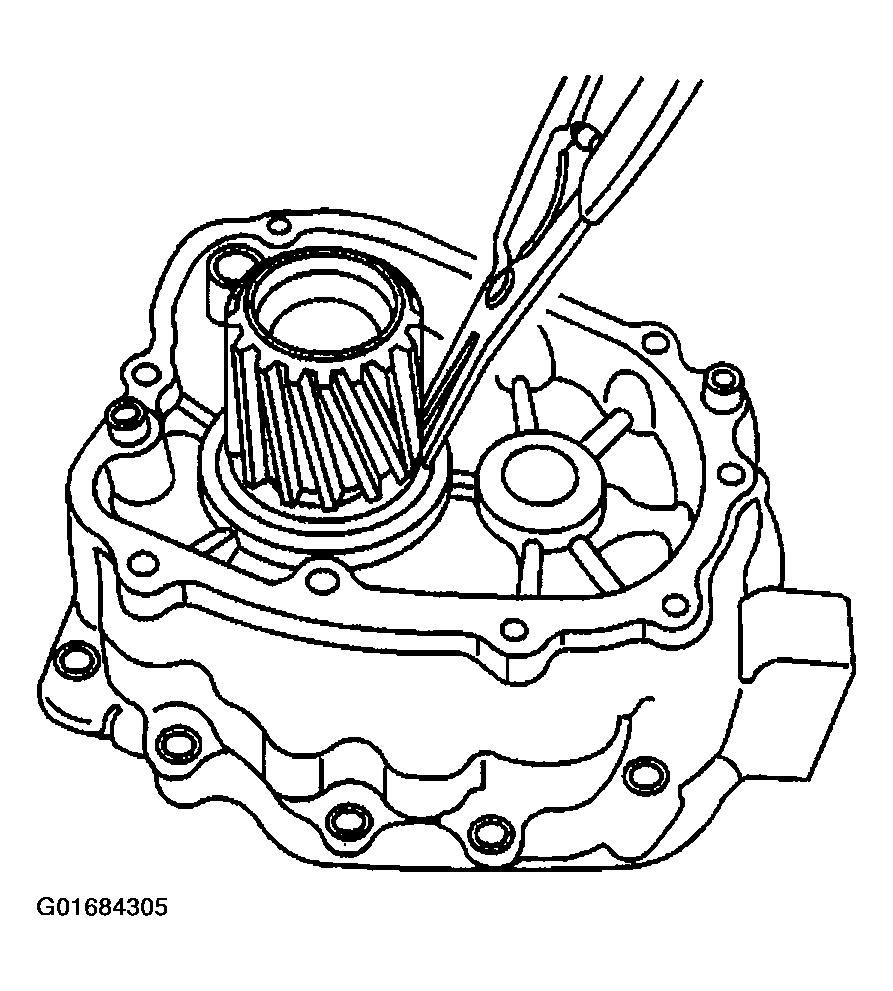

47. Using snap ring pliers, remove the side bearing snap ring (1) from the input gear.
    Fig 37: Removing Side Bearing Snap Ring

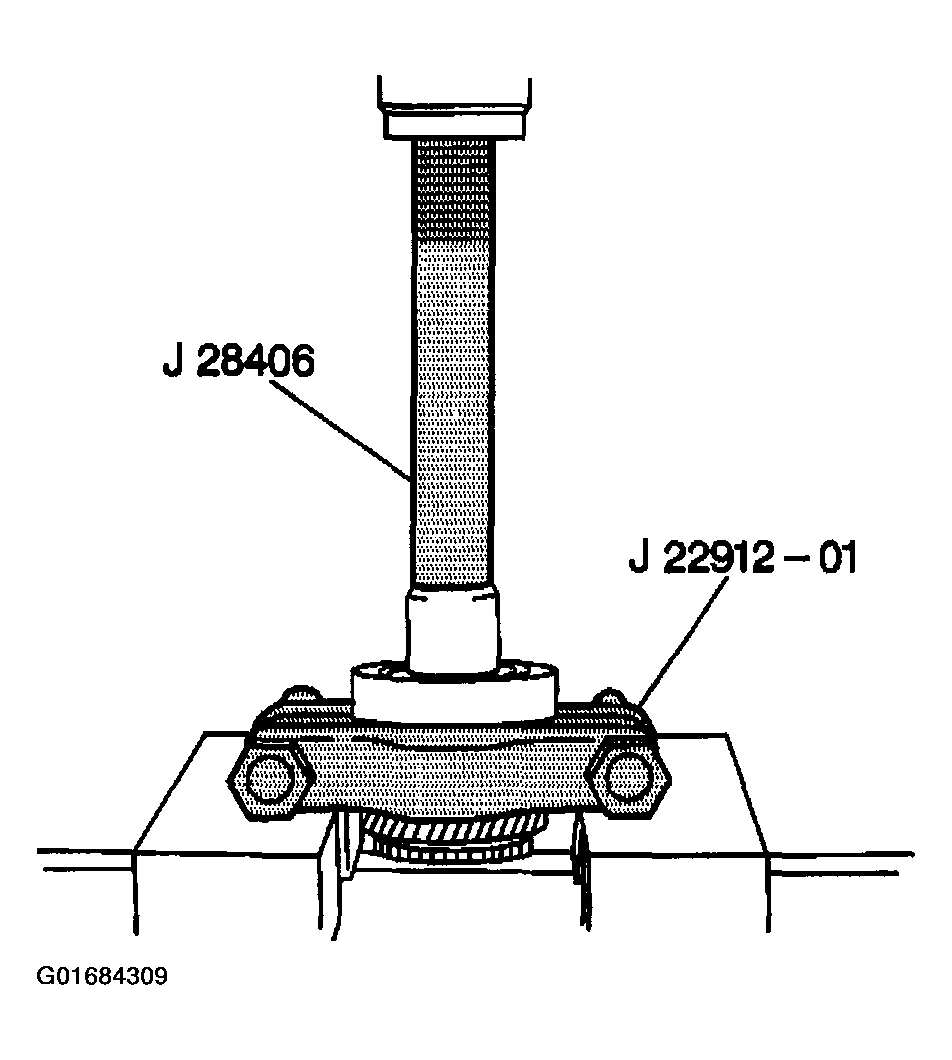

48. Use J 22912-01  with J 28406  and a press arbor in order to remove the input gear bearing from the input gear.
    Fig 38: Removing Input Gear Bearing


49. Remove the center bearing snap ring from the input gear.

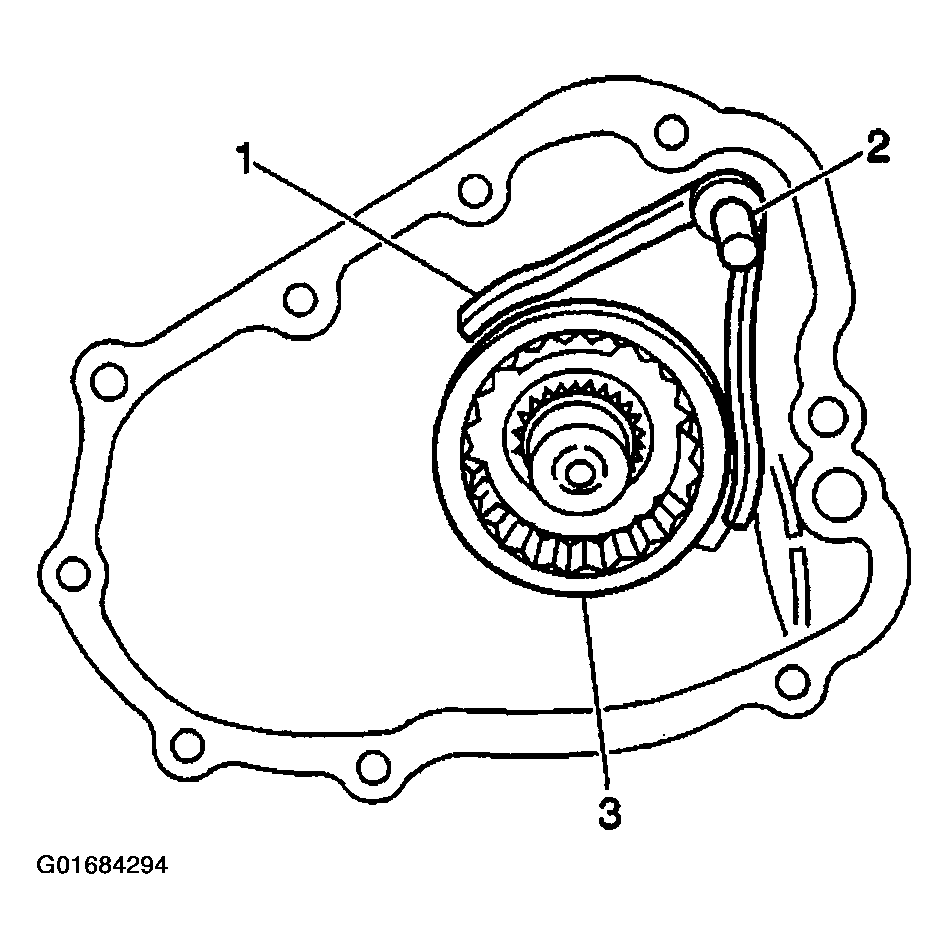

50. Remove one roll pin from the reduction shift fork.
51. Remove the reduction roll fork from the reduction shift shaft.
52. Remove the following components from the front drive shift shaft:
    • The two E-clips (6)
    • The shaft stop washer (5)
    • The front drive shift fork (4)
    • The front drive fork spring (3)
    Fig 39: Disassembling Front Drive Shift Shaft



    Important:  Careful cleaning of the component mating surfaces will ensure proper case sealing.

53. Clean the following components with solvent and dry thoroughly:
    • The front case
    • The rear case
    • The center case
54. Clean all of the internal components with solvent and dry thoroughly.
55. Inspect the following components for cracks or porosity:
    • The front case
    • The rear case
    • The center case
    • The gearshift lever case

    Replace as necessary.

56. Inspect the drive teeth and the clutching teeth of all of the gears and sprockets for the following conditions:
    • Broken teeth
    • Chipped teeth
    • Gear clash damage
57. Inspect the shift shafts and the forks for the following conditions:
    • Excessive wear
    • Distortion
    • Replace as necessary
58. Inspect each ball bearing for smooth rotation. If the rotation is abnormal, replace the ball bearing.
59. Inspect the needle bearing and the bearing contacting surface for damage. Replace as required.
60. Inspect the gear tooth surface and the shift mechanism. Correct an abnormal mechanism or replace as required.
61. Inspect the drive chain and the sprockets for abnormal wear or damage. Replace as required.
62. Inspect the oil seal for leakage and inspect the oil seal lip for excessive hardness.

    Inspect the corresponding surface of the shaft where the oil seal lip contacts. Correct an abnormal condition or replace as required.

63. Inspect the gear tooth surface of the speedometer drive gear. Replace a damaged gear.
64. Inspect the clutch hubs (1) and the sleeves (2) for the following conditions:
    • Poor fit
    • Cracked teeth (3)

    Broken teeth Replace as necessary

    Fig 40: Inspecting Clutch Hubs & Sleeves


65. Inspect the locating springs for the following conditions:
    • Weakness
    • Distortion

    Replace as necessary

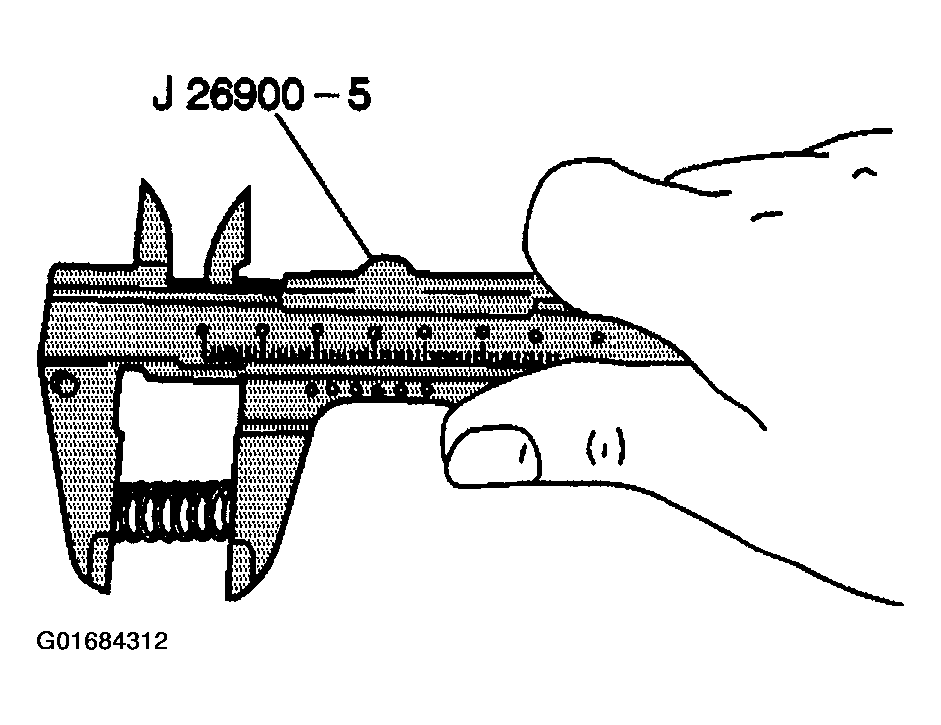

66. Use J 26900-5  in order to measure each locating spring.

    Measurement

    Standard spring length is 19.5 mm (0.768 in).

    If a spring length measures below 18.0 mm (0.709 in), replace the springs as necessary.

    Fig 41: Measuring Locating Springs


67. Use a feeler gage in order to measure the shift fork-to-clutch sleeve clearance.

    Measurement

    The maximum shift fork-to-clutch sleeve clearance is 1.0 mm (0.039 in).

    If the clearance is greater than 1.0 mm (0.039 in), replace the shift fork and the clutch sleeve as necessary.

    Fig 42: Measuring Shift Fork-To-Clutch Sleeve Clearance


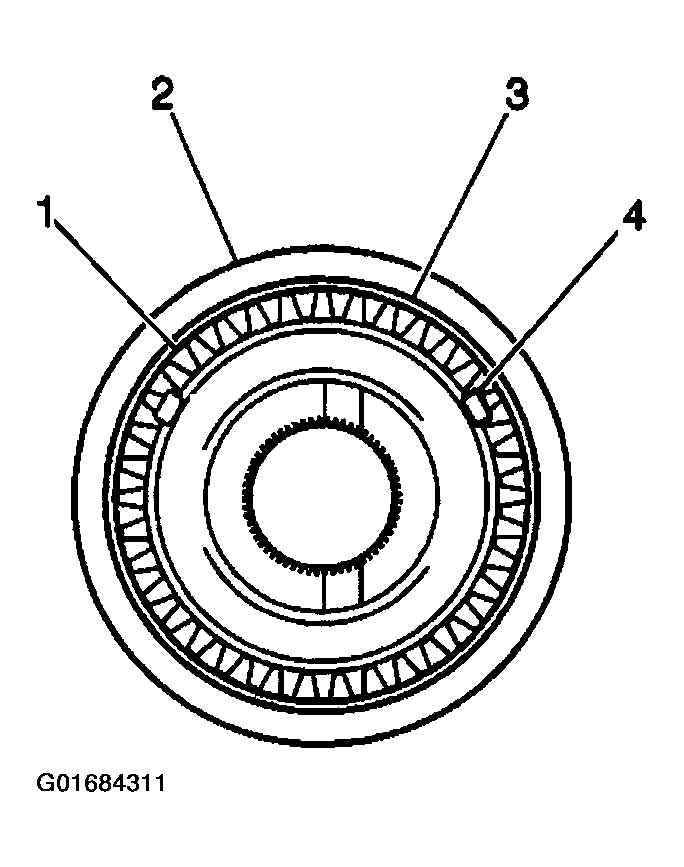

68. Assemble the following components:
    • The synchronizer outer ring (4)
    • The inner ring (2)
    • The cone (3)
    Fig 43: Assembling Synchronizer Outer Ring, Inner Ring & Cone


69. Measure the step difference (1) between the outer ring and the inner ring.

    Measurement

    The standard difference between the inner ring and the outer ring is 1.0-1.4 mm (0.039-0.055 in).

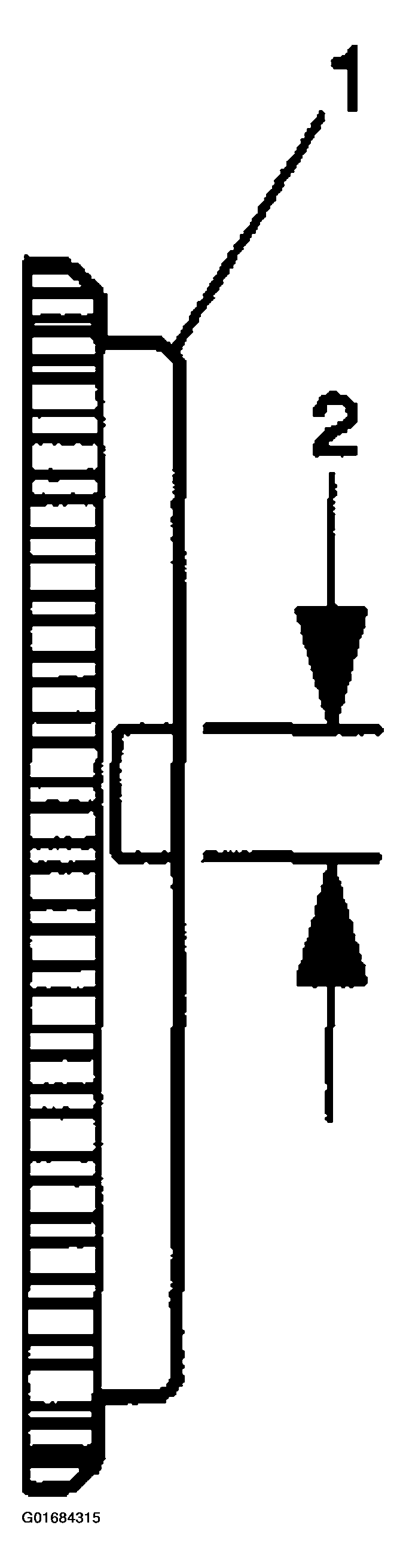

70. Measure the key slot width (2) in the synchronizer outer ring (1) and inspect each chamfered tooth of the gear and the synchronizer ring. If necessary, replace the outer ring.

    Measurement

    The maximum slot width in the outer ring is 10.1 mm (0.397 in).

    Fig 44: Measuring Key Slot Width In Synchronizer Outer Ring
