Installation Procedure

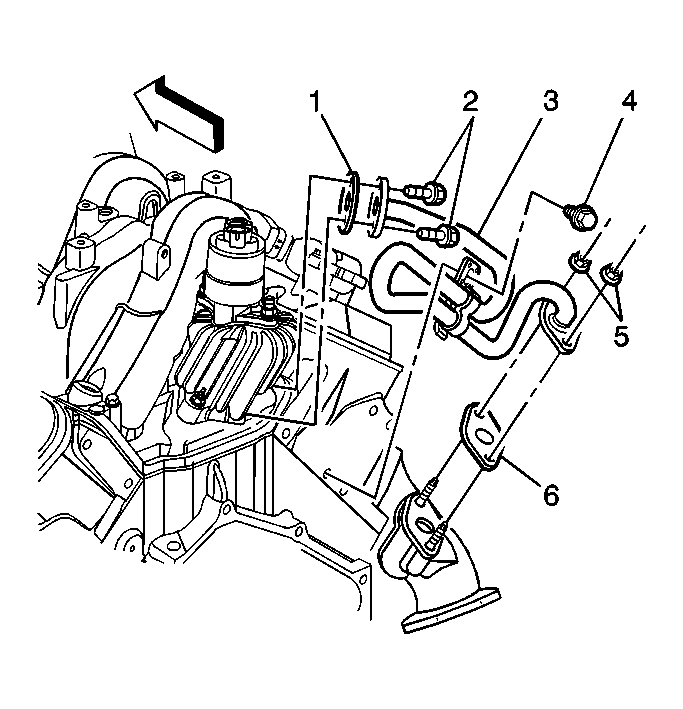

    Fig 1: EGR Valve And Components
    GM732205Courtesy of GENERAL MOTORS COMPANY
  1. Install new gaskets (1) and (6).
  2. Install the EGR valve pipe (3)
  3. Refer to FASTENER NOTICE in Cautions and Notices.

    Install the retaining bolts (2).

    Tighten

    Tighten the bolts to 30 N.m (22 lb ft).

  4. Install the bolt (4) to the right side head.

    Tighten

    Tighten the bolt to 50 N.m (37 lb ft).

  5. Install the nuts (5) to exhaust manifold

    Tighten

    Tighten the nuts to 30 N.m (22 lb ft).
