Installation Procedure

    Fig 1: Exploded View Of Fuel Rails & Injector Components
    GM350543Courtesy of GENERAL MOTORS COMPANY
  1. Install the fuel pressure connection core assembly (24) using a standard valve core removal and installation tool.
  2. Tighten the fuel filler cap.
  3. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (Auxiliary Battery) , Battery Negative Cable Disconnection and Connection (Single Battery) in Engine Electrical.
  4. Use the following procedure in order to inspect for leaks:
    1. Turn ON the ignition, with the engine OFF, for 2 seconds.
    2. Turn OFF the ignition for 10 seconds.
    3. Turn ON the ignition, with the engine OFF.
    4. Inspect for fuel leaks.
  5. Install the fuel pressure connection valve cap (23).
  6. Install the engine sight shield. Refer to Upper Intake Manifold Sight Shield Replacement (6.0 L w/RPOs Y91 and Z88) , Upper Intake Manifold Sight Shield Replacement (4.8 L, 5.3 L, and 6.0 L) in Engine Mechanical.

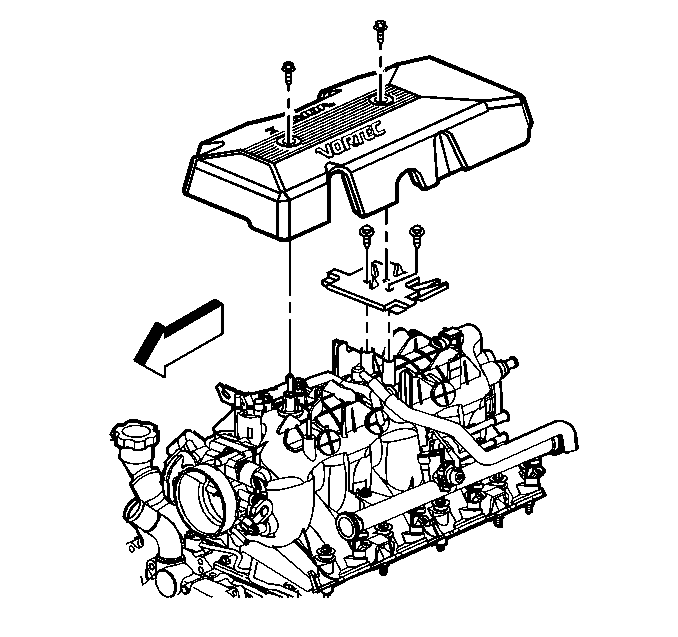

    7. Fig 2: Engine Sight Shield (4.8L, 5.3L, 6.0L)
    GM260101Courtesy of GENERAL MOTORS COMPANY
  7. Install the engine sight shield. Refer to Upper Intake Manifold Sight Shield Replacement (6.0 L w/RPOs Y91 and Z88) , Upper Intake Manifold Sight Shield Replacement (4.8 L, 5.3 L, and 6.0 L) in Engine Mechanical
