Cruise Control Module: Installation

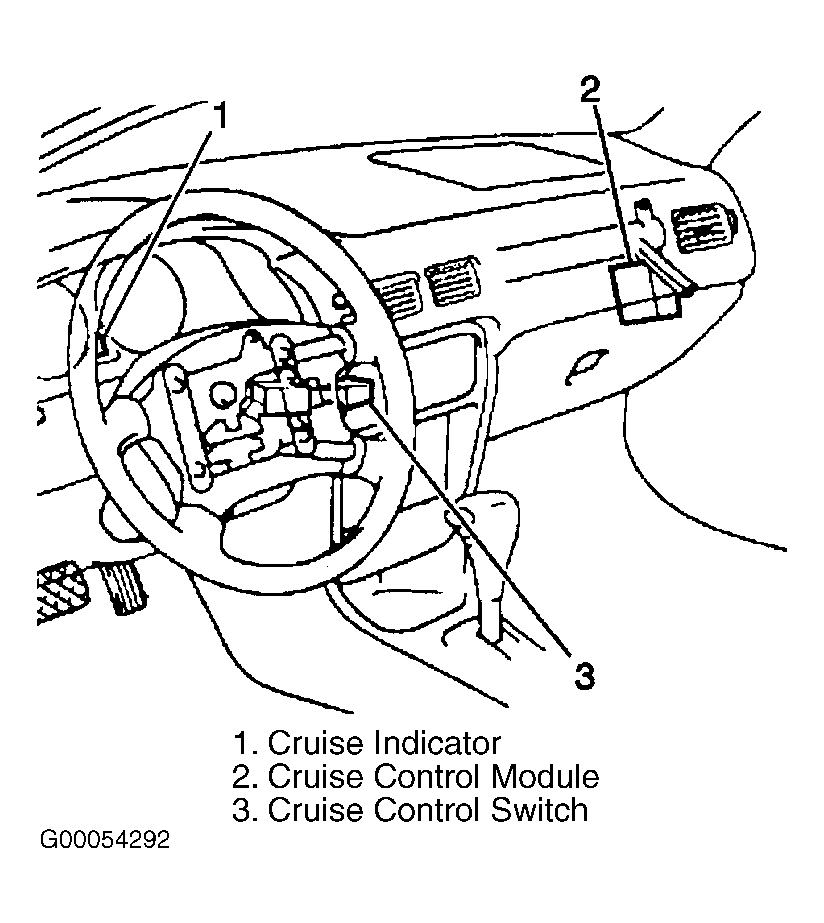

Install cruise control module (2) to instrument panel and secure module with mounting bolt. See Figure . Tighten cruise control module mounting bolt to 89 INCH lbs. (10 N.m).
Connect cruise control module electrical connector.
Install instrument panel compartment. See INSTRUMENT PANEL COMPARTMENT .
