MULTIFUNCTION Switch: Installation

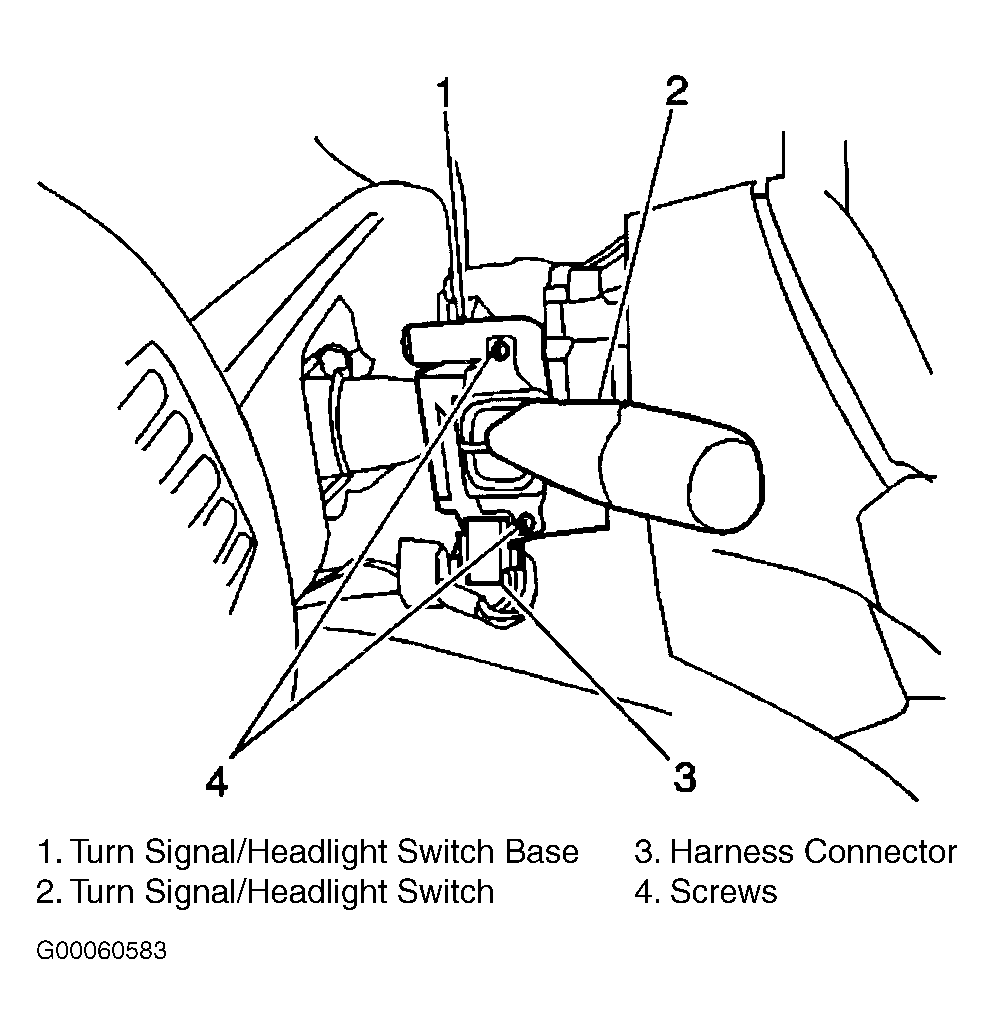

  1. Install turn signal/headlight switch (2) to steering column. Secure switch with 2 screws (4). See Figure .
  2. Connect turn signal/headlight switch electrical connector (3).

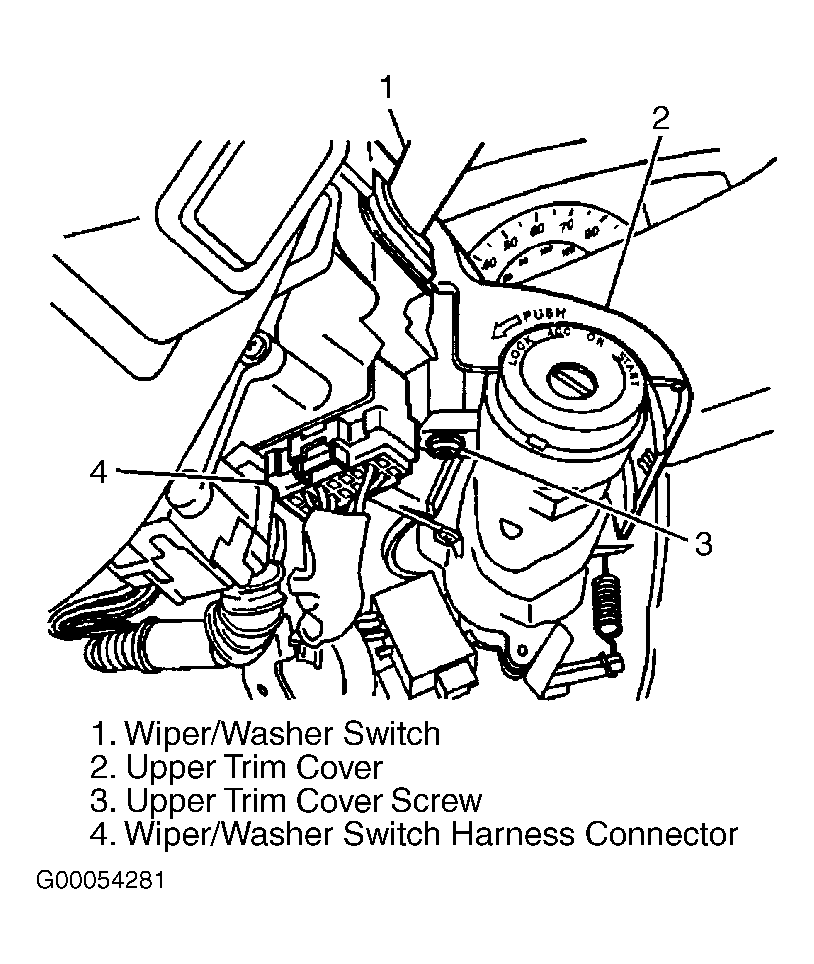

  3. Install steering column upper trim cover (2) to vehicle. Secure trim cover with screw (3). See Figure .

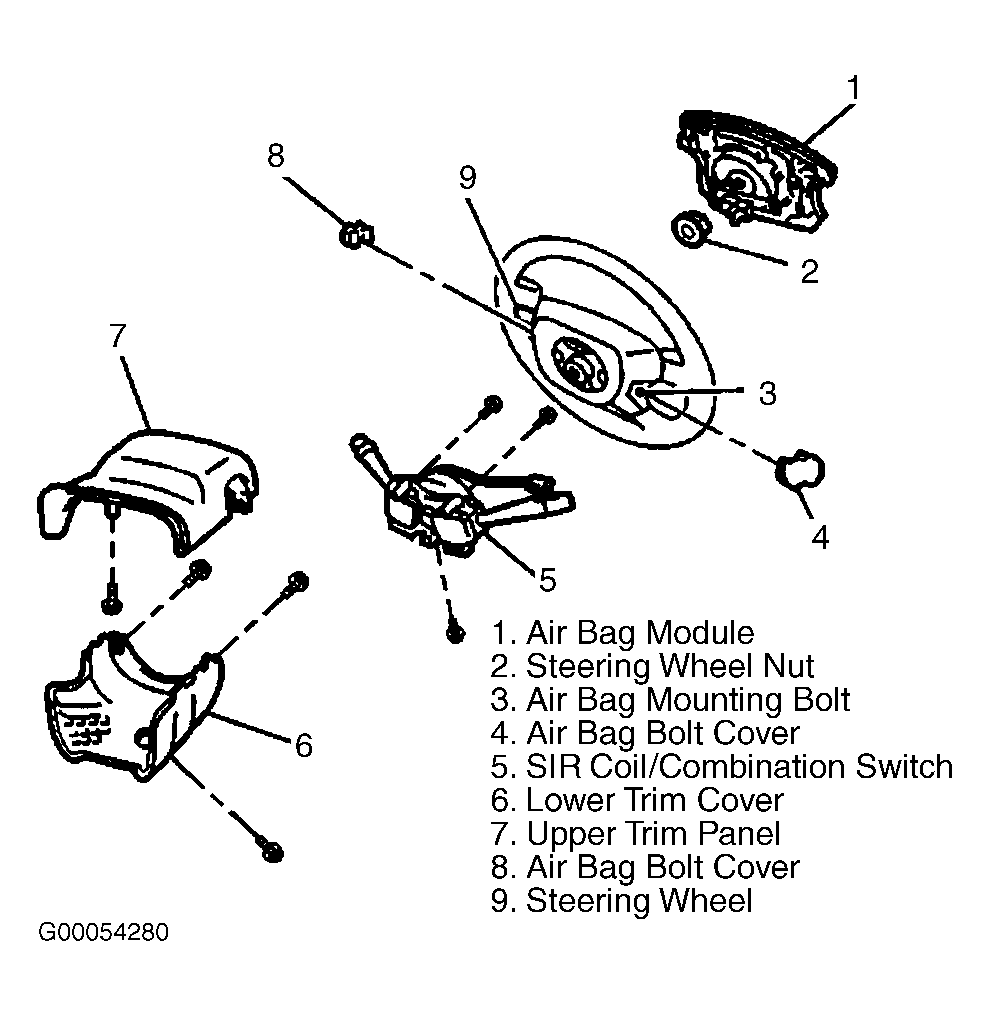

  4. Install steering column lower trim cover (6) to vehicle. Secure trim cover with 3 screws. See Figure .
  5. Enable air bag System. See appropriate AIR BAG RESTRAINT SYSTEMS article.
