Park/Neutral Position Switch
NOTE:
Park/Neutral Position (PNP) switch may also be known as Transmission Range (TR) sensor or neutral safety switch. Adjust PNP switch so engine starts with transmission in Park or Neutral only.

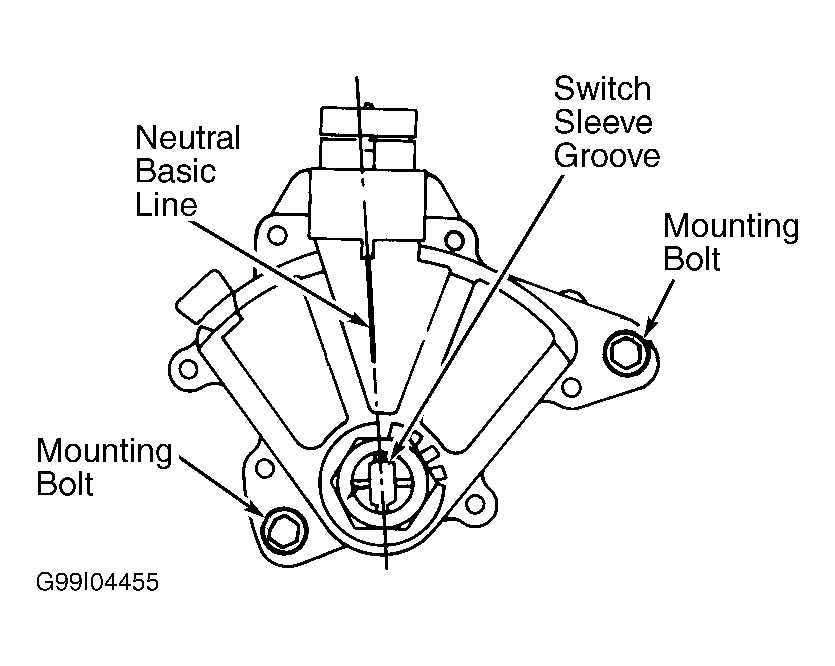

- Raise and support vehicle. Remove engine under cover. Place gearshift lever in Neutral. Ensure transmission shift lever is in Neutral detent. Loosen PNP switch mounting bolts. Rotate PNP switch so neutral basic line scribed on PNP switch aligns with groove in PNP switch sleeve. See Fig 1 .
- Hold shift lever and tighten mounting bolts. Install engine under cover. Lower vehicle. Set parking brake, block drive wheels and ensure starter operates with transmission in Park and Neutral only.
