Relay Box

NOTE: Relay box is located on driver's side of engine compartment. See Figure.

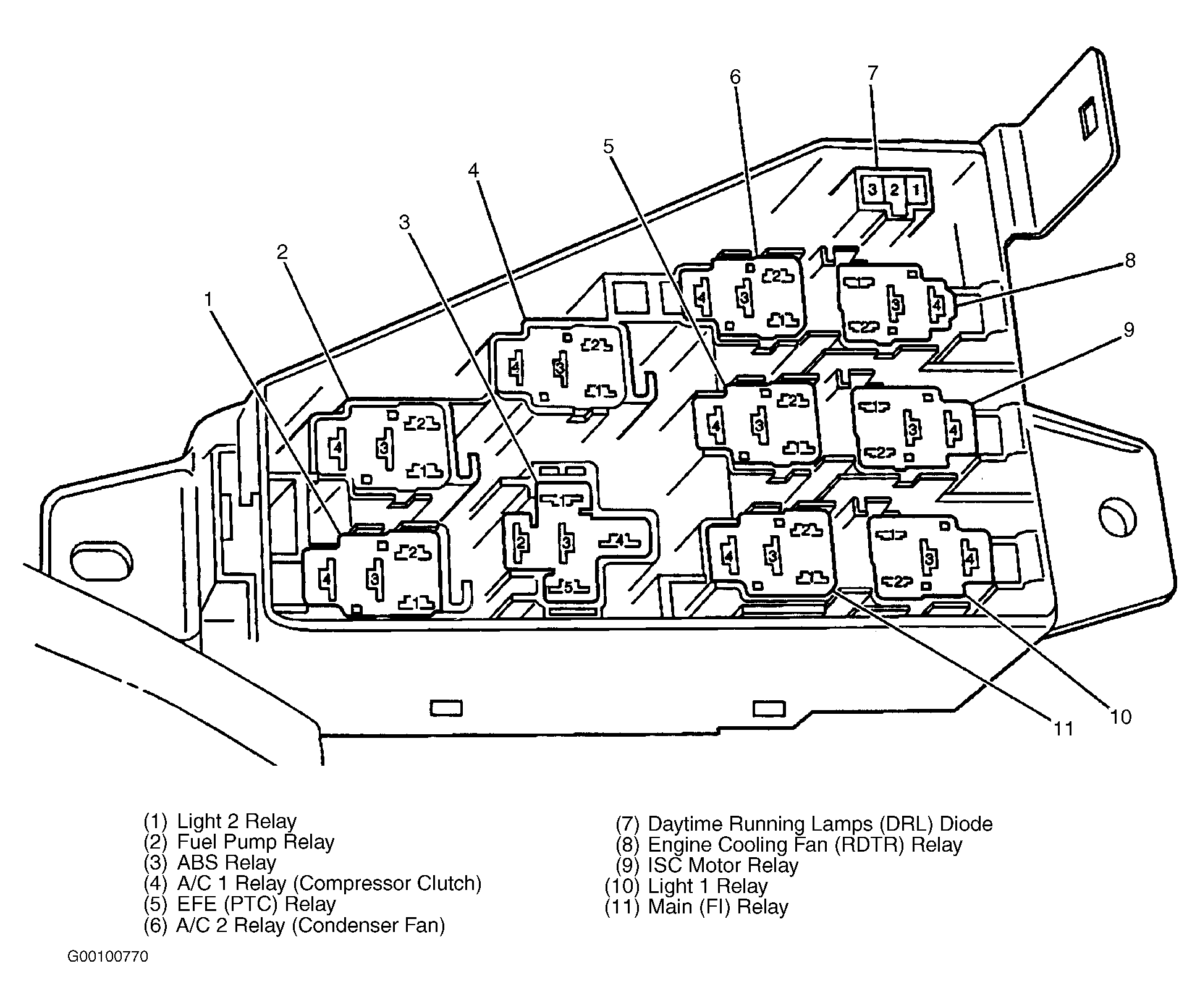

Fig 1: Identifying Relay Box Components

G00100770

Courtesy of GENERAL MOTORS CORP.
