Fuse Box

NOTE: Fuse box is located on driver's side of engine compartment. See Fig 1.

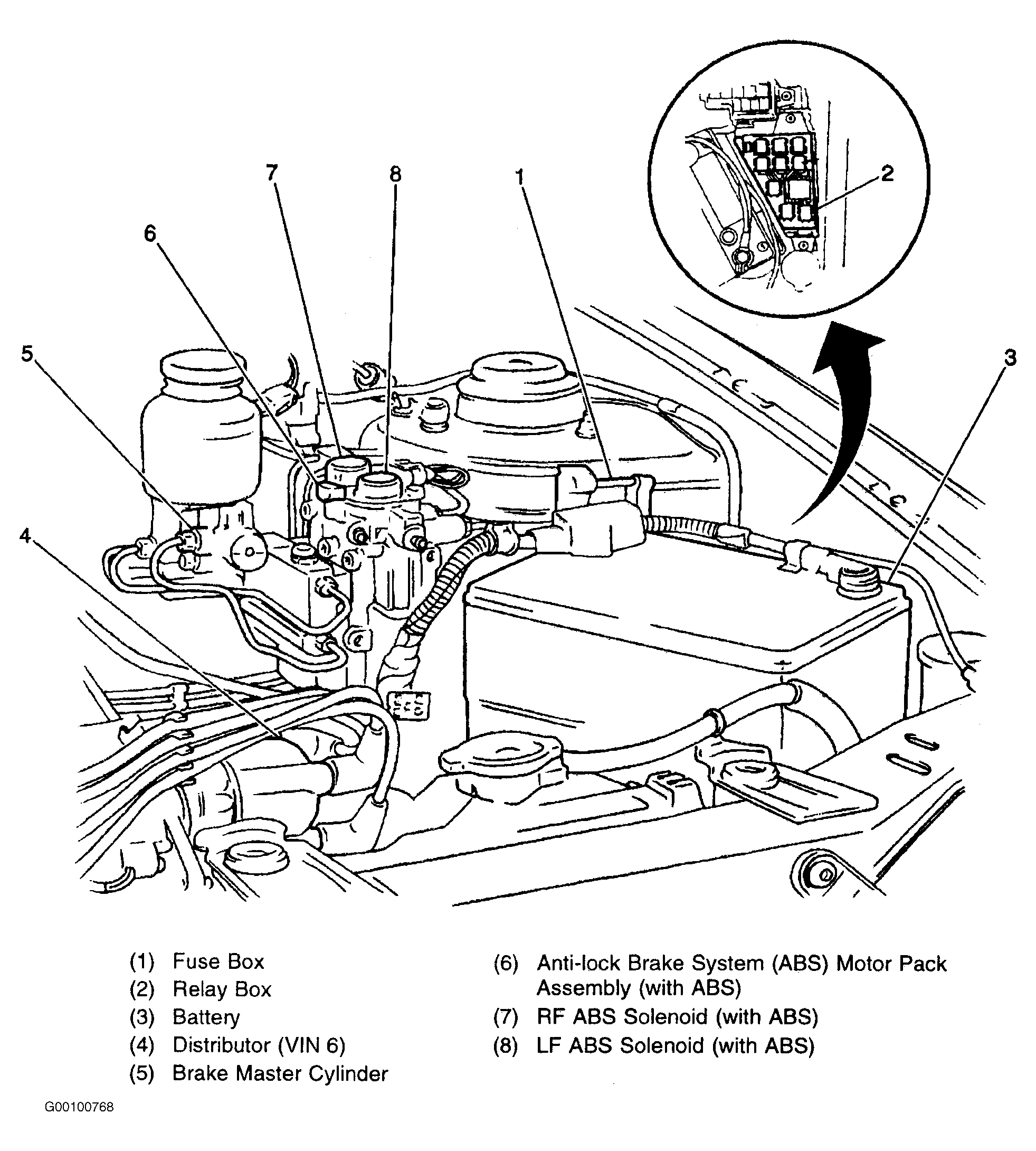

Fig 1: Locating Fuse Box & Relay Box

Courtesy of GENERAL MOTORS CORP.

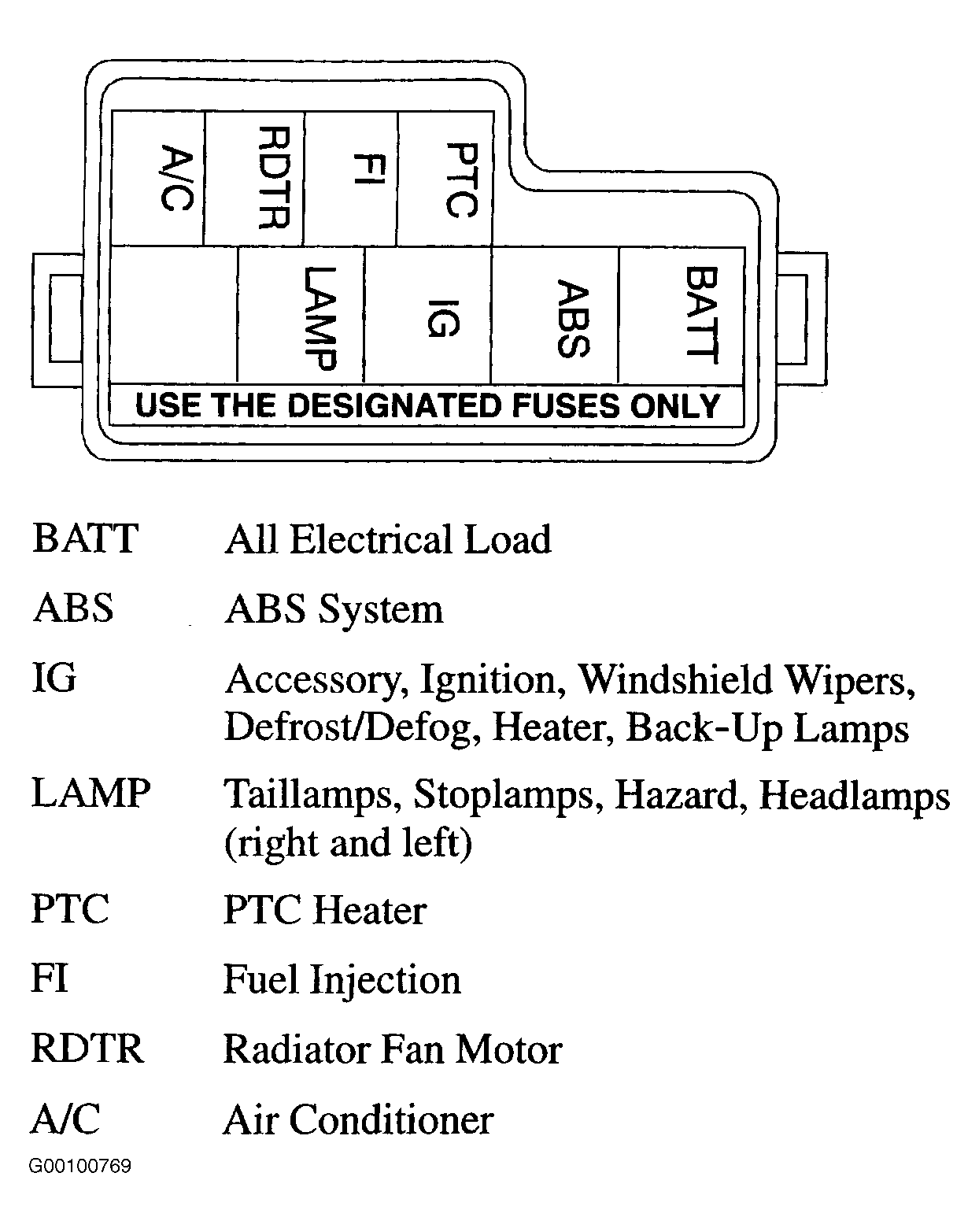

Fig 2: Identifying Fuse Box Components

Courtesy of GENERAL MOTORS CORP.
