Transaxle Range Switch Signal (Metro - With A/T)

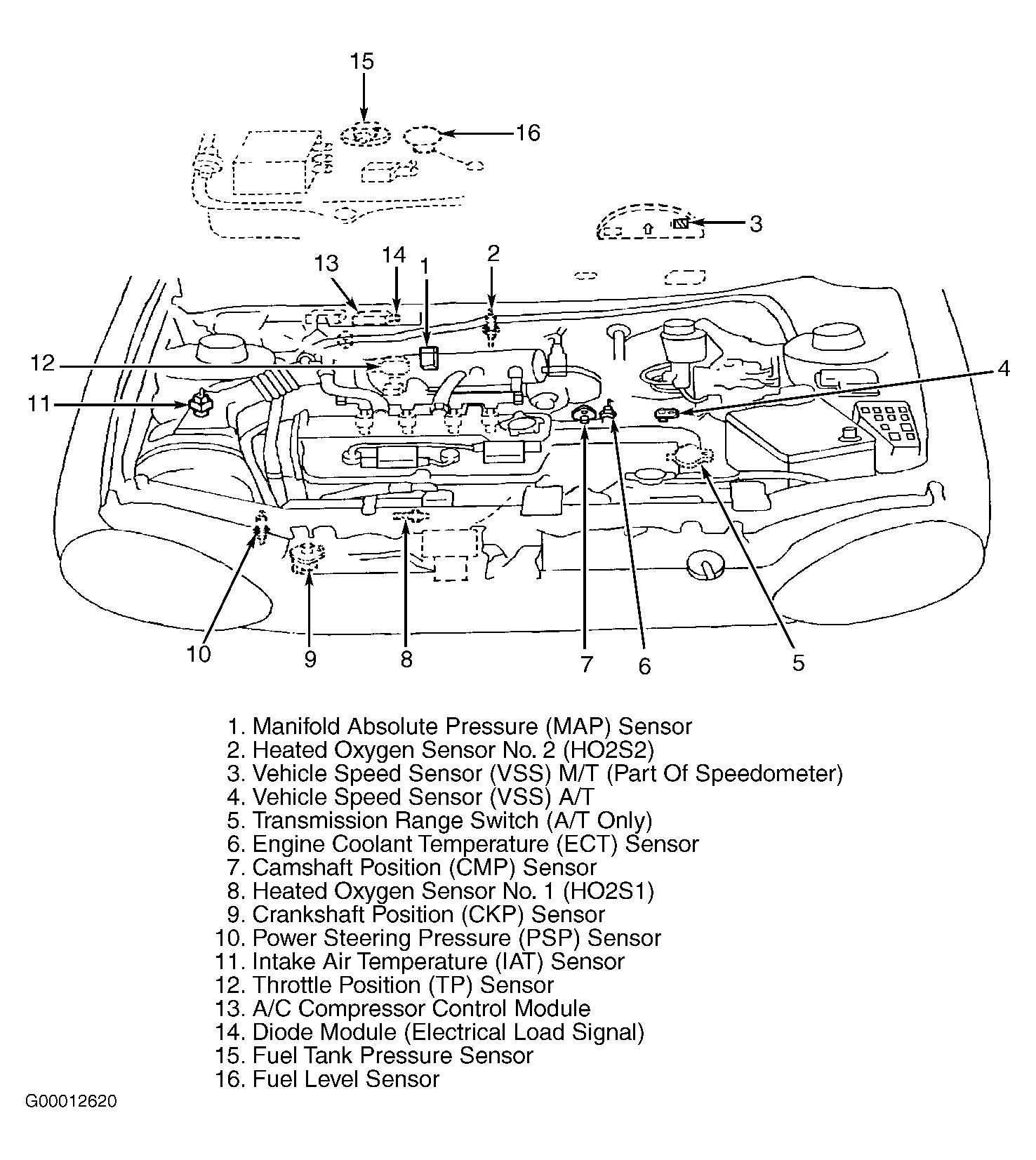

PCM monitors a voltage signal sent from Transaxle Range (TR) switch to monitor transaxle range (gear selection). PCM uses this signal to control fuel injectors, Idle Air Control (IAC) valve and automatic transaxle performance. For component location, see Figure.
