Right Instrument Panel Junction Block

NOTE: Right instrument panel junction block is located of passenger's side end of instrument panel. See Fig 1 .

Fig 1: Locating Right Instrument Panel Junction Block

Courtesy of GENERAL MOTORS CORP.

Fig 2: Identifying Right Instrument Panel Junction Block Components

Courtesy of GENERAL MOTORS CORP.

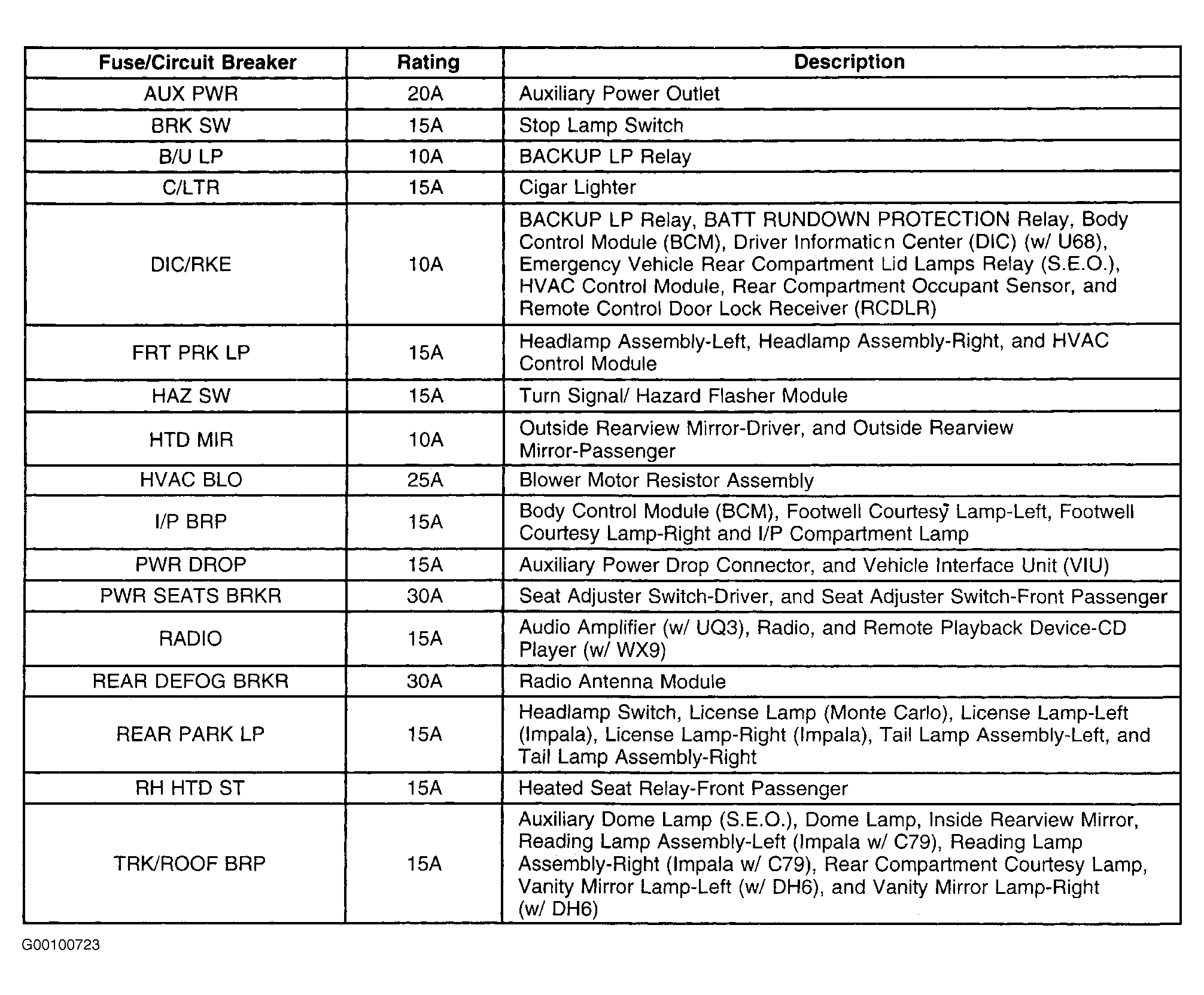

Fig 3: Right Instrument Panel Junction Block Legend

Courtesy of GENERAL MOTORS CORP.
