Bottom UNDERHOOD Junction Block

NOTE: Bottom underhood junction box is located on passenger's side of engine compartment. See Figure .
Fig 1: Identifying Bottom Underhood Junction Block Components
G00056791Courtesy of GENERAL MOTORS CORP.

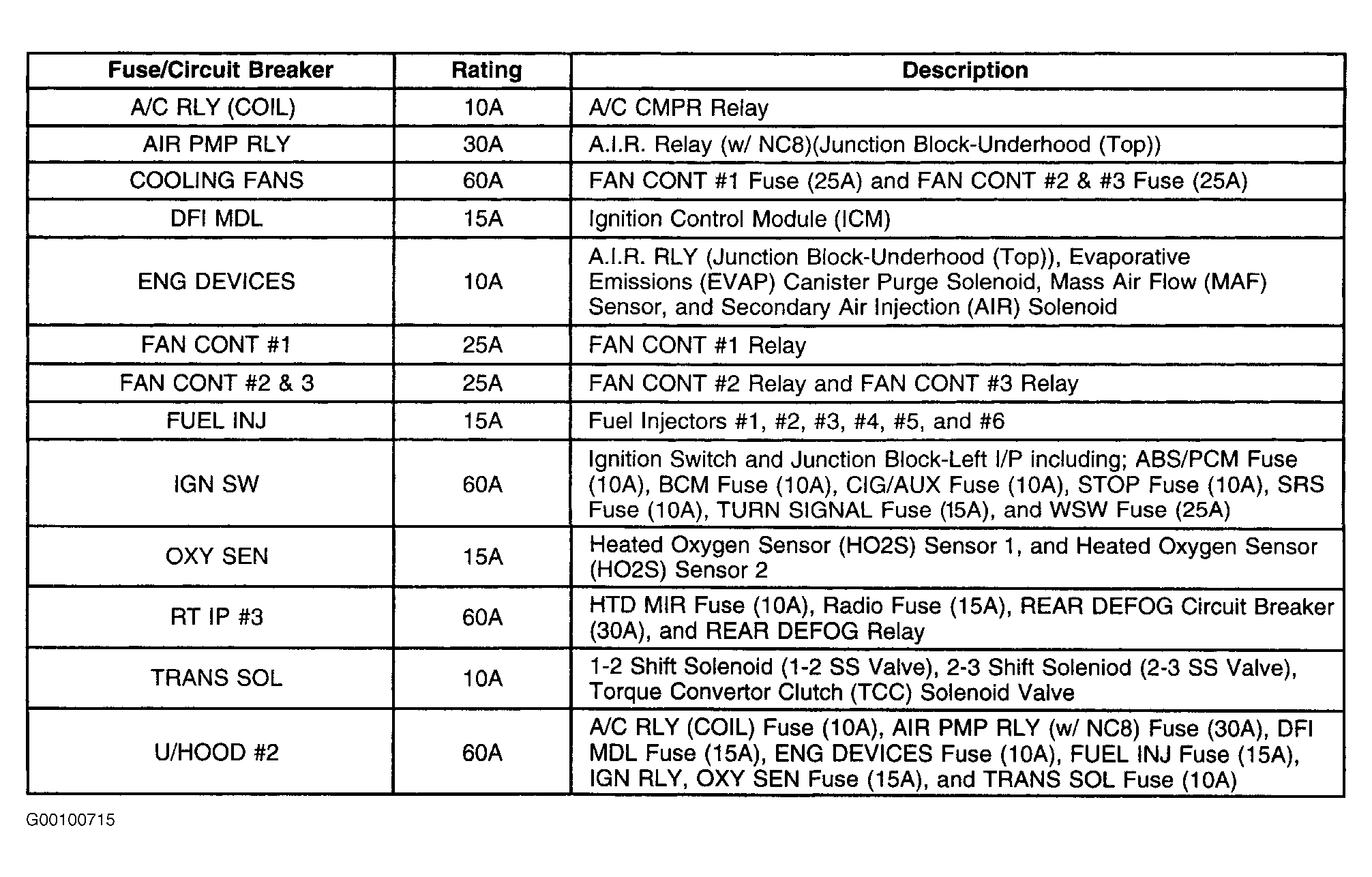

Fig 2: Bottom Underhood Junction Block Legend
G00100715Courtesy of GENERAL MOTORS CORP.
