Rear Fuse Block

NOTE: Rear fuse block is located behind the driver's side interior panel to the rear of the driver door, above the RSA-T module. See Fig 1 .

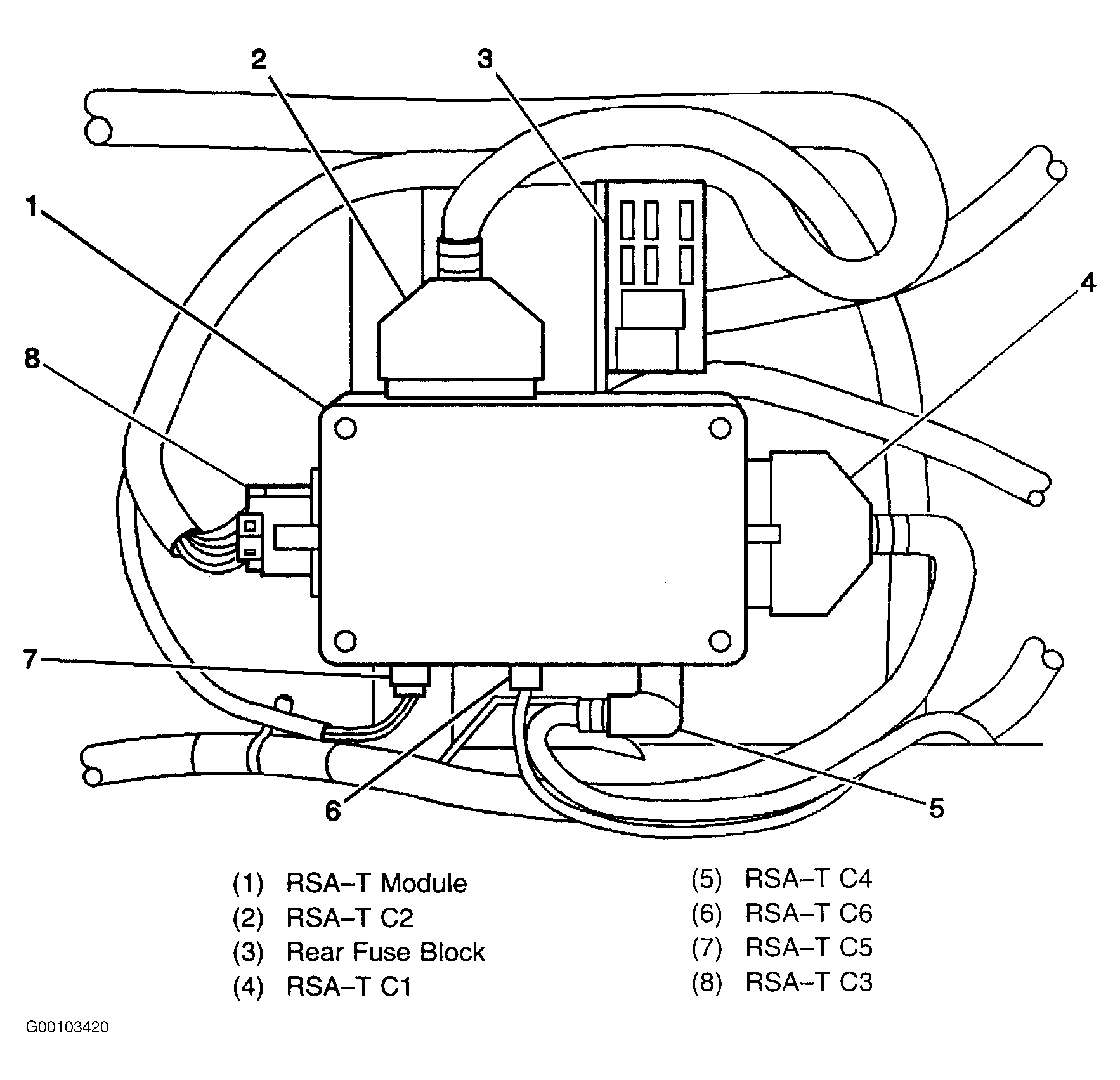

Fig 1: Locating Rear Fuse Block
G00103420Courtesy of GENERAL MOTORS CORP.

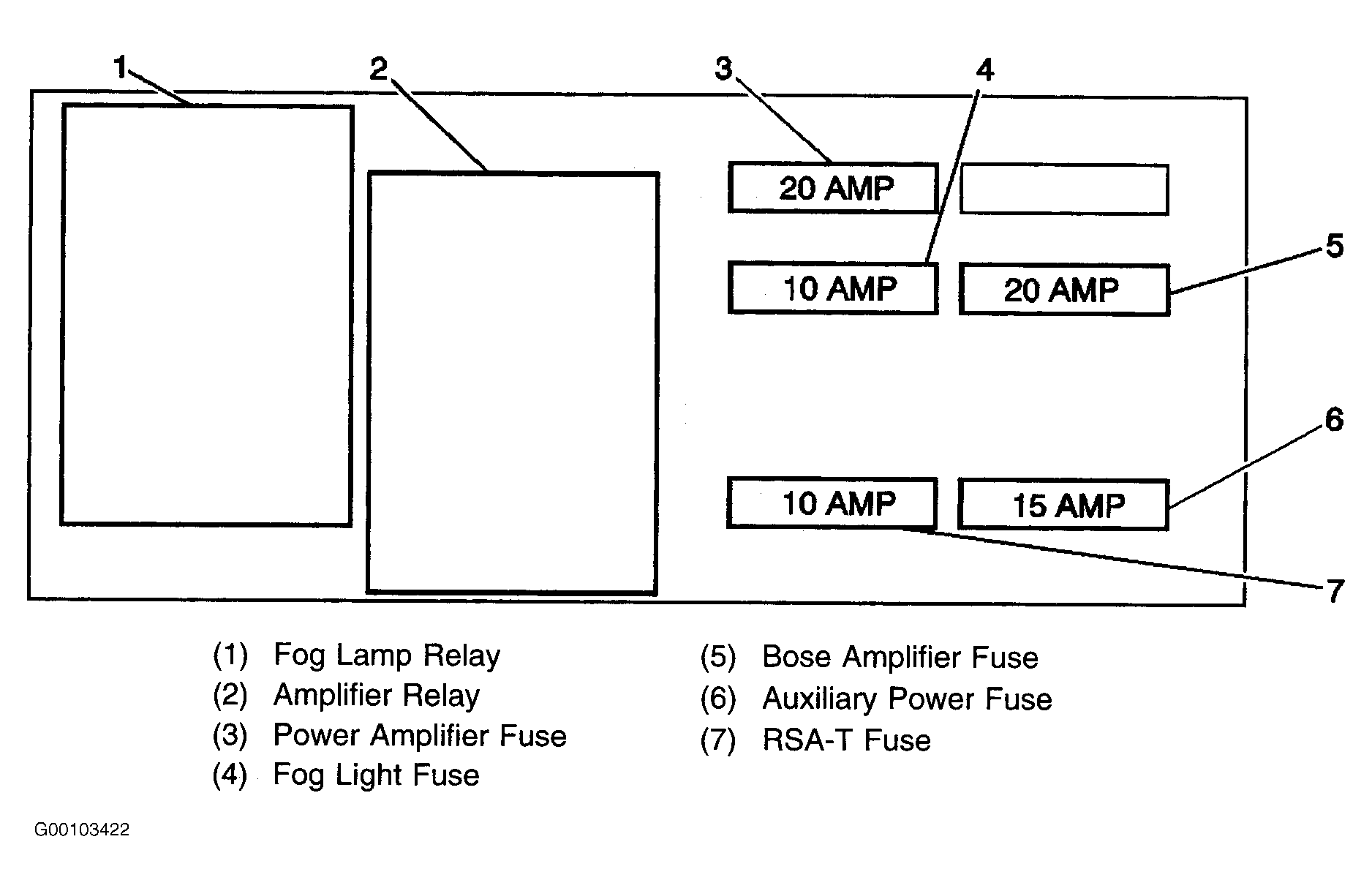

Fig 2: Identifying Rear Fuse Block Components & Legend
G00103422Courtesy of GENERAL MOTORS CORP.
