Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wiper arms. Refer to Wiper Arm Replacement .
  2. Remove the air inlet grille panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT .
  3. Remove the wiper motor module. Refer to Wiper Motor Module Replacement .
  4. Remove the wiper motor crank arm. Refer to Wiper Motor Crank Arm Replacement .
  5. Remove the wiper motor screws.
  6. Remove the wiper motor from the wiper motor module.
  7. Remove the wiper motor splash shield from the wiper motor.

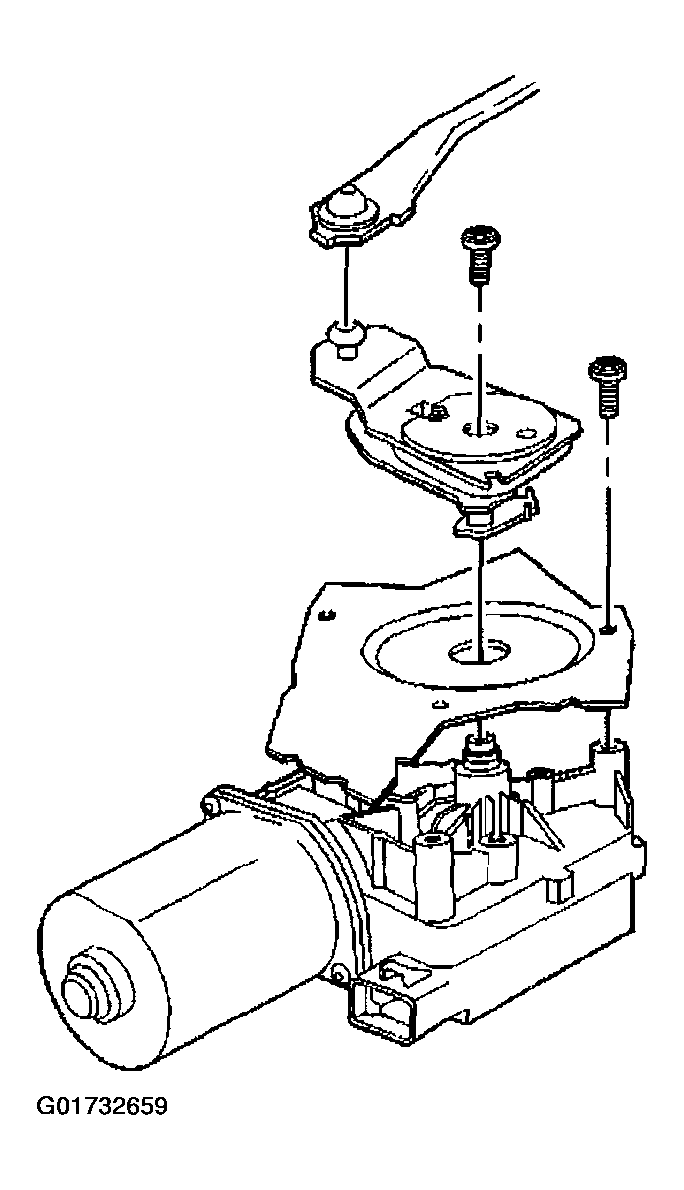

    Fig 1: Removing Wiper Motor
    G01732659Courtesy of GENERAL MOTORS CORP.
