Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wiper blade from the wiper arm. Refer to Wiper Arm Blade Replacement .
  2. The wiper blade element (4) has two notches at one end which are engaged by the bottom claw set (3) of the wiper blade (1). At the notched end of the wiper blade (2), pull the blade element from the wiper blade (1).

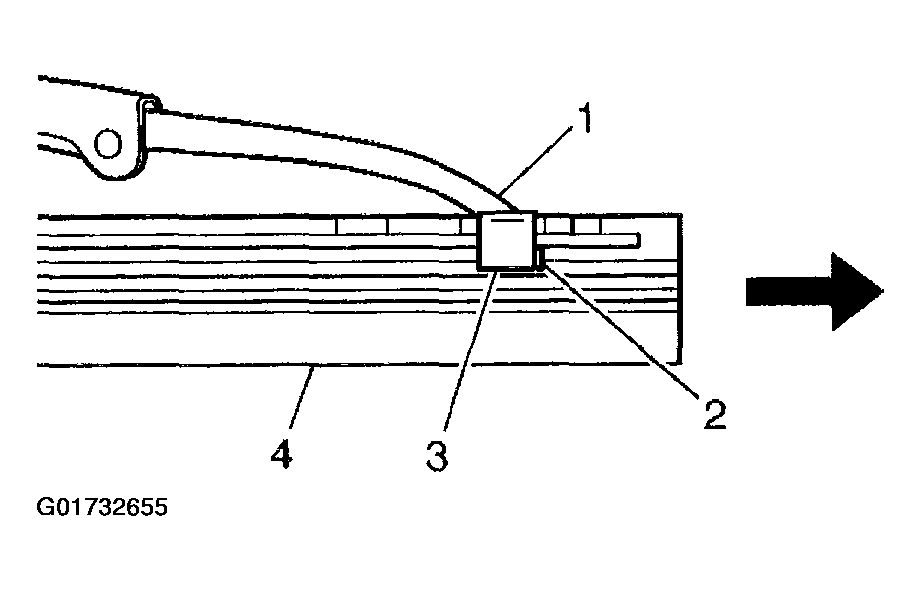

    Fig 1: Removing Wiper Blade Element
    G01732655Courtesy of GENERAL MOTORS CORP.
