Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Drain the washer solvent from the washer solvent container.
  3. Remove the washer solvent container nuts.
  4. Remove the washer hose retention clamp from the frame rail stud.
  5. Remove the washer solvent container from the mounting studs in the wheelhouse.
  6. Disconnect the washer solvent container level sensor electrical connector.

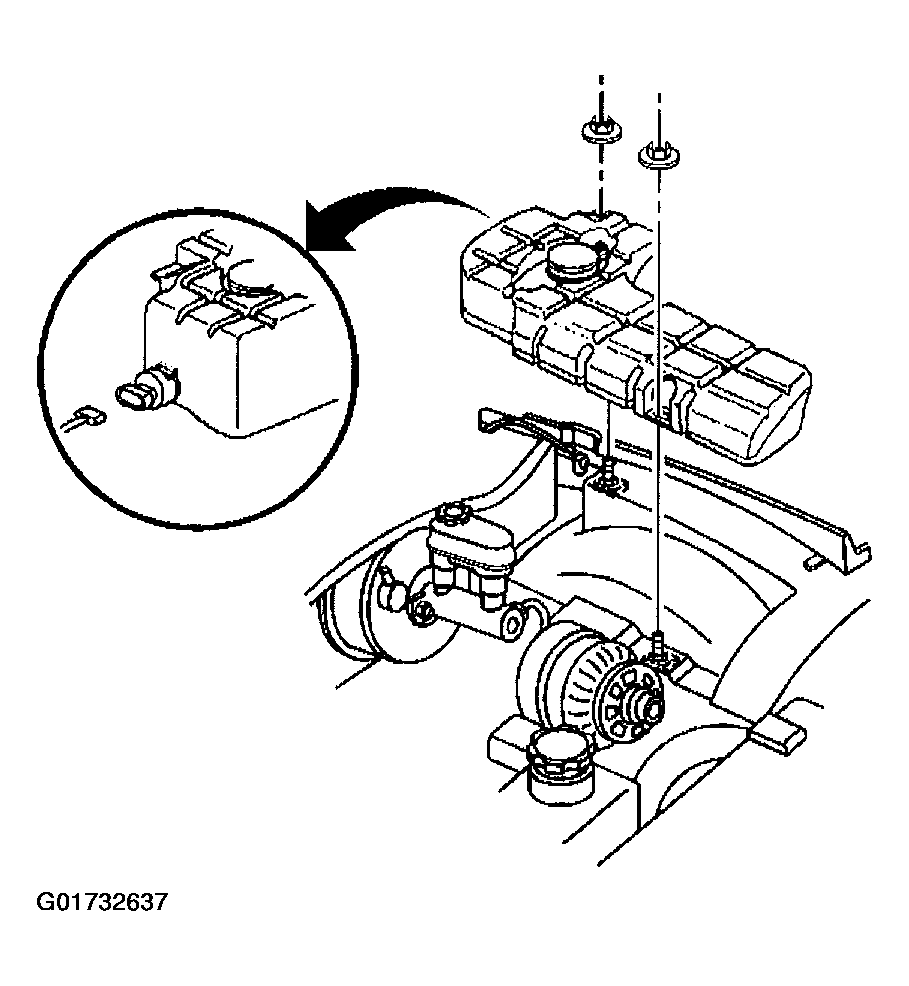

    Fig 1: Removing Washer Solvent Container From Mounting Studs
    G01732637Courtesy of GENERAL MOTORS CORP.
  7. Disconnect the washer pump electrical connector.
  8. Disconnect the washer pump hose.
  9. Remove the washer solvent container from the vehicle.

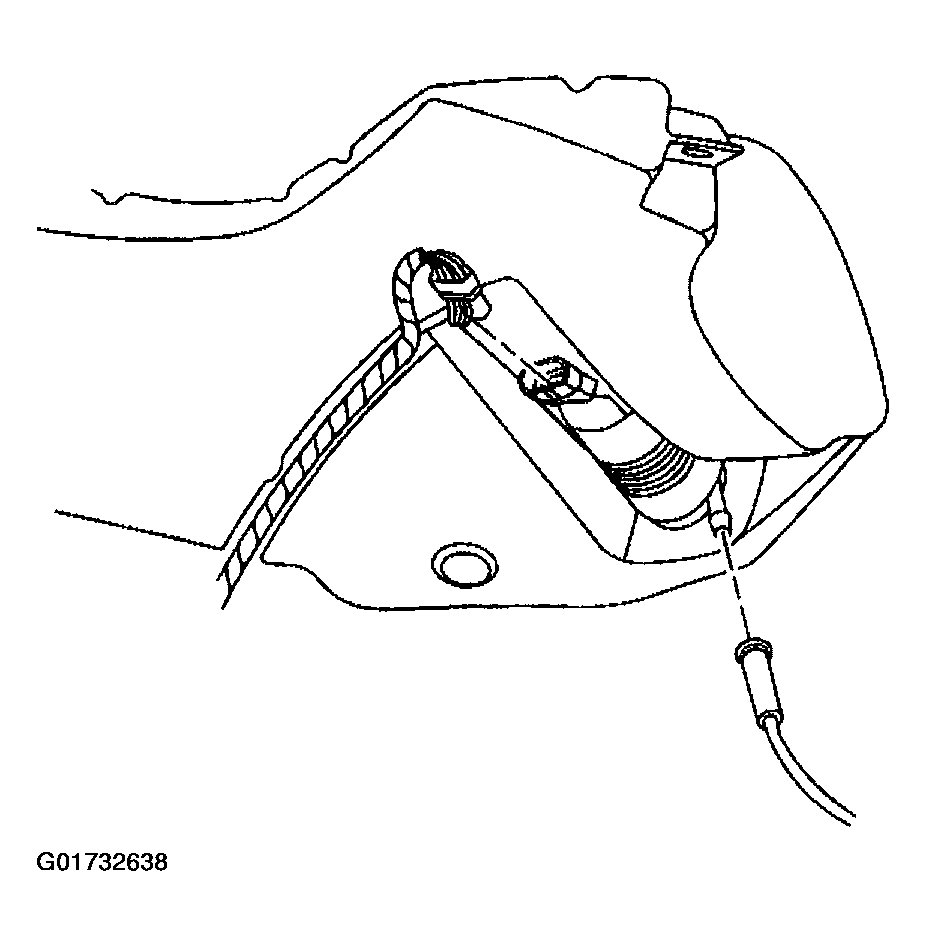

    Fig 2: Disconnecting Washer Pump Electrical Connector & Hose
    G01732638Courtesy of GENERAL MOTORS CORP.
