Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the washer solvent container. Refer to Washer Solvent Container Replacement .
  2. Disconnect the washer pump electrical connector.
  3. Disconnect the washer pump hose.

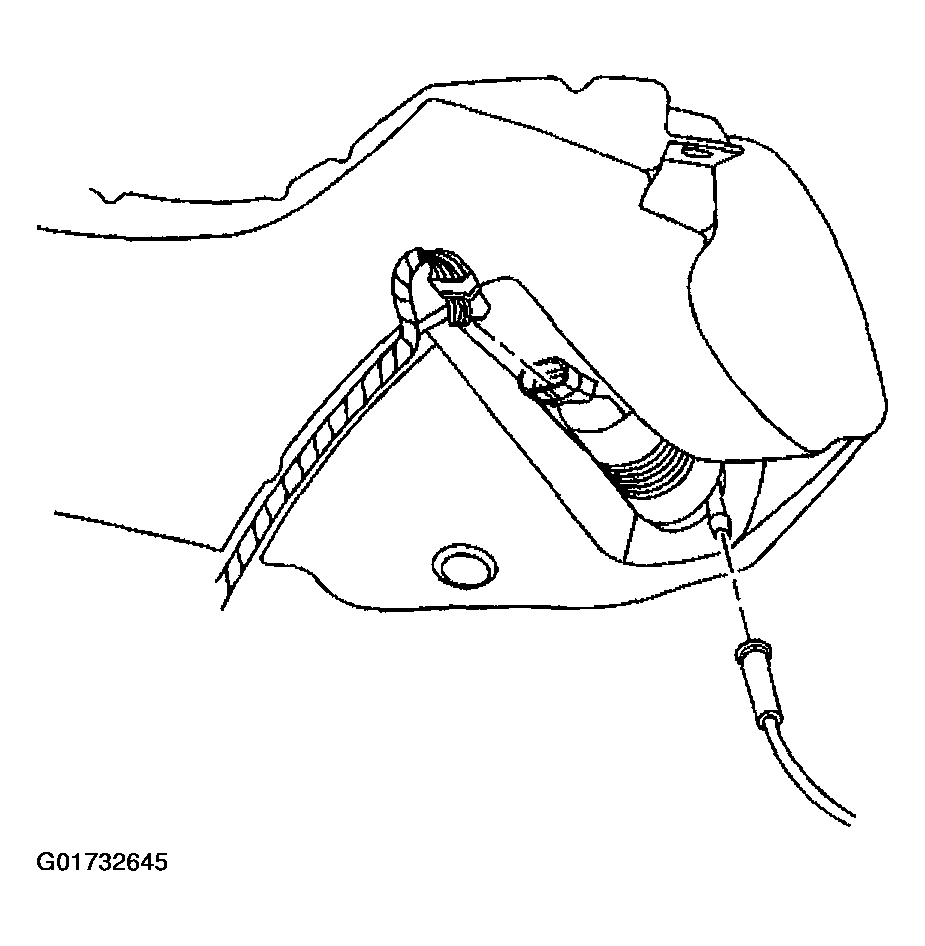

    Fig 1: Disconnecting Washer Pump Electrical Connector & Hose
    G01732645Courtesy of GENERAL MOTORS CORP.
  4. Using a small flat-bladed tool, remove the washer pump from the washer solvent container.
  5. Using a small flat-bladed tool, remove the washer pump seal from the washer solvent container.

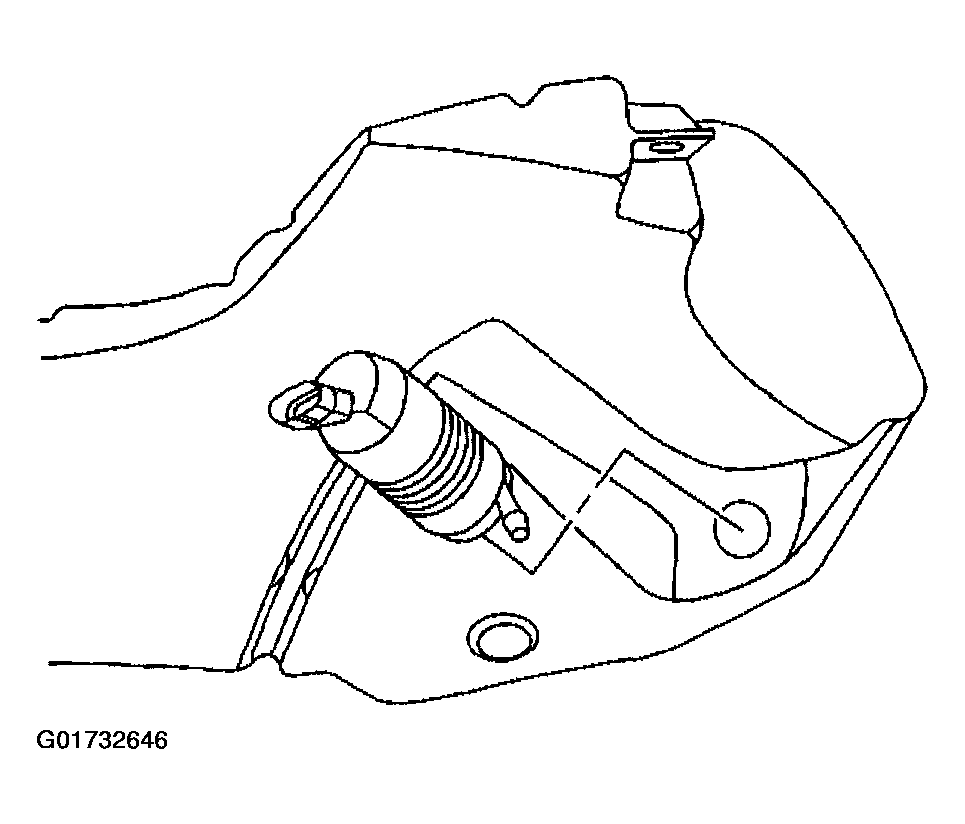

    Fig 2: Removing Washer Pump & Seal
    G01732646Courtesy of GENERAL MOTORS CORP.
