Theft Deterrent System Connector End Views

WARNING: This page is about a different car, the 2002 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

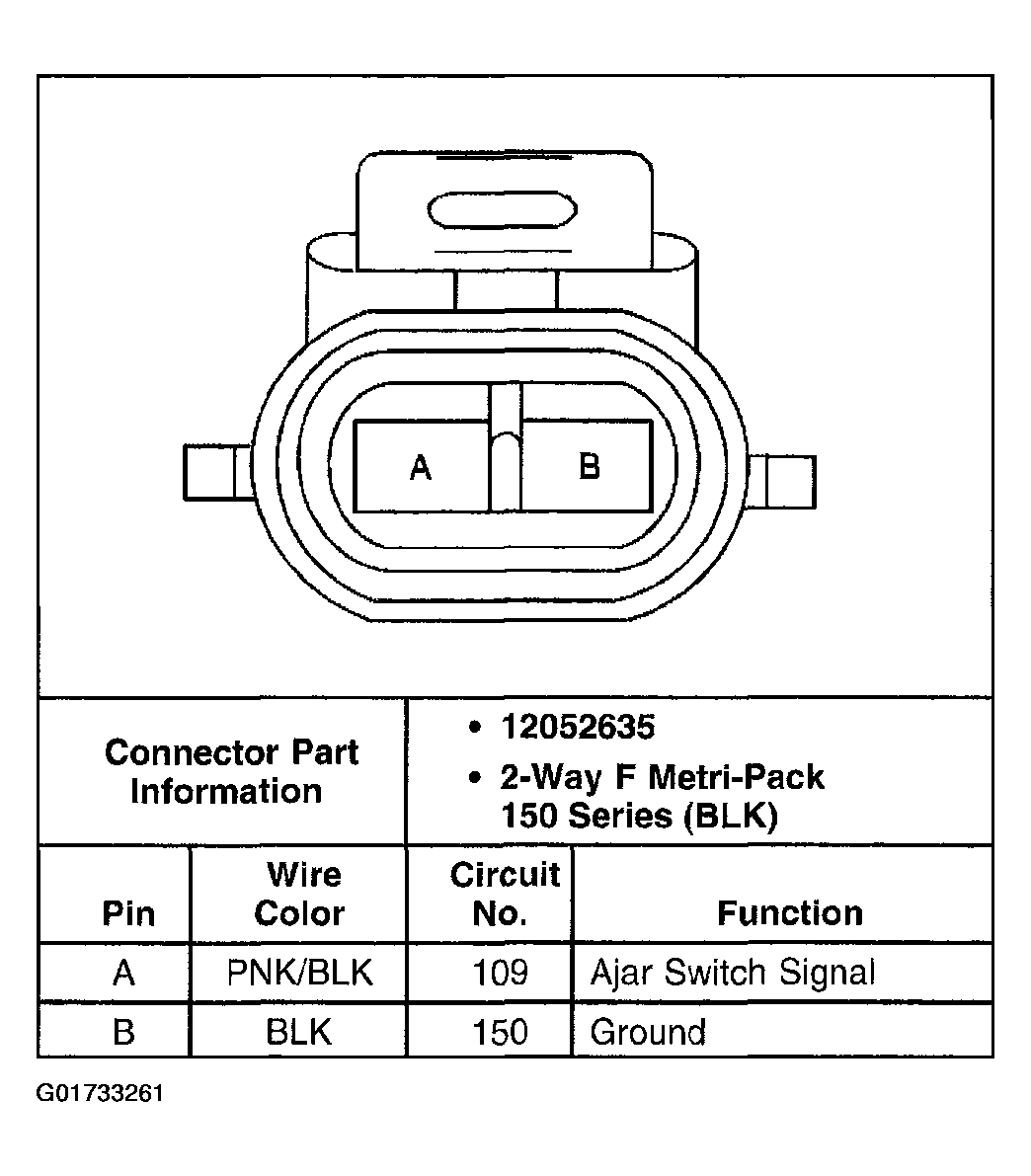

Fig 1: Hood Ajar Switch
G01733261Courtesy of GENERAL MOTORS CORP.

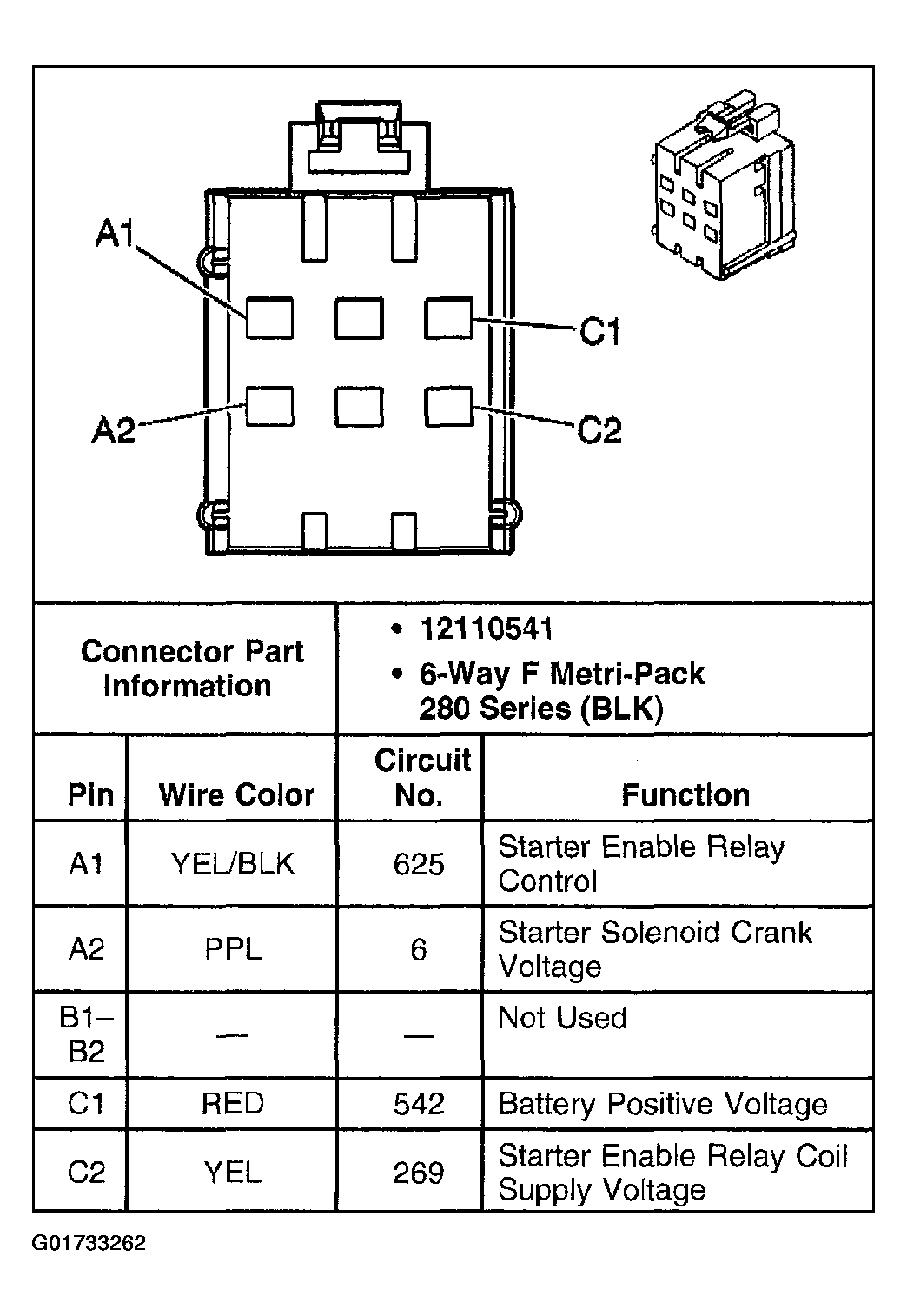

Fig 2: Theft Deterrent Relay
G01733262Courtesy of GENERAL MOTORS CORP.
