| Air Injection Pipe-To-Exhaust Manifold Bolts |
15 (20) |
| Camshaft Retainer Bolt |
18 (24) |
| Camshaft Sensor Bolt |
18 (24) |
| Camshaft Sprocket Bolt |
26 (35) |
| Connecting Rod Cap Bolts |
| First Design |
| Step 1 |
15 (20) |
| Step 2 |
Additional 60 Degrees |
| Second Design |
| Step 1 |
15 (20) |
| Step 2 |
Additional 75 Degrees |
| Crankshaft Balancer Bolt |
| With Original Bolt To Seat Balancer |
240 (325) |
| Step 1 With New Bolt |
37 (50) |
| Step 2 With New Bolt |
Additional 140 Degrees |
| Crankshaft Oil Deflector Nuts |
18 (24) |
| Crankshaft Oil Seal Cover To Block Bolt (Front & Rear) |
18 (24) |
| Crankshaft Position Sensor Bolts |
18 (24) |

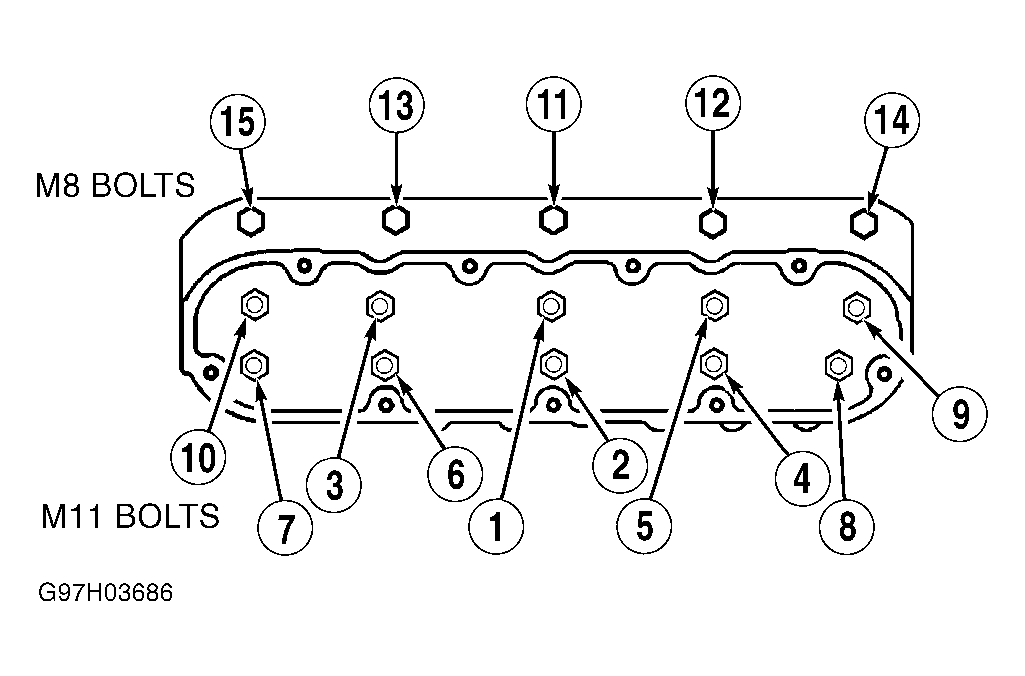

| Cylinder Head Bolts |
|
| Drive Belt Idler Pulley Bolt |
37 (50) |
| Drive Belt Tensioner Bolt |
37 (50) |
| Engine Mount Bracket Bolt |
37 (50) |
| Engine Mount Nut |
48 (65) |
| Engine Mount-to-Engine Mount Bracket Nut |
48 (65) |
| Exhaust Manifold Bolts |
| Step 1 |
11 (15) |
| Step 2 |
18 (24) |
| Flexplate/Flywheel-To-Crankshaft Bolts |
| Step 1 |
15 (20) |
| Step 2 |
37 (50) |
| Step 3 |
74 (100) |
| Flywheel Hub Collar Bolt (A/T) |
96 (130) |
| Knock Sensors |
15 (20) |

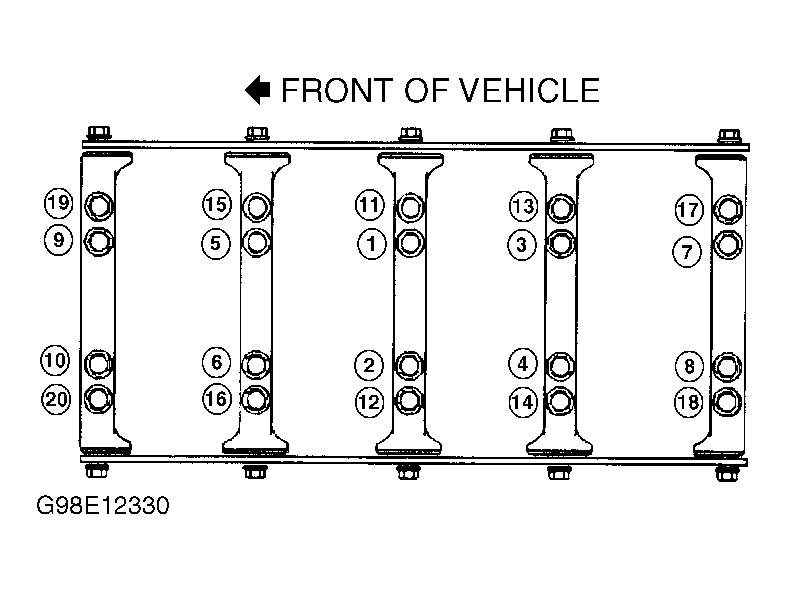

| Main Bearing Cap |
| Inner Bolts |
| Step 1 |
15 (20) |
| Step 2 |
Additional 80 Degrees |
| Outer Studs |
| Step 1 |
15 (20) |
| Step 2 |
Additional 53 Degrees |
| Side Bolts |
18 (24) |
| Oil Pan |
| M6 Bolts |
|
| M8 Bolts |
18 (24) |
| Oil Pump Screen Nuts |
18 (24) |
| Oil Pump Screen-To-Oil Pump Bolt |
|
| Oil Pump-To-Block Bolt |
18 (24) |
| Oxygen Sensor |
30 (41) |
| Rocker Arm Bolts |
22 (30) |
| Spark Plugs |
12 (16) |
| Starter Bolts |
37 (50) |
| Transmission-To-Driveline Support Assembly Bolts |
37 (50) |
| Valley Cover Bolts |
18 (24) |
| Valve Lifter Guide Bolts |
18 (24) |
| Water Pump Bolts |
| Step 1 |
11 (15) |
| Step 2 |
22 (30) |
| Water Pump Cover Bolts |
11 (15) |
| Water Pump Pulley Bolt |
| Step 1 |
|
| Step 2 |
18 (24) |
| INCH Lbs. (N.m) |
| Flywheel Cover Bolts |
106 (12) |
| Fuel Rail Bolts |
89 (10) |
| Ignition Coil Bolts |
106 (12) |

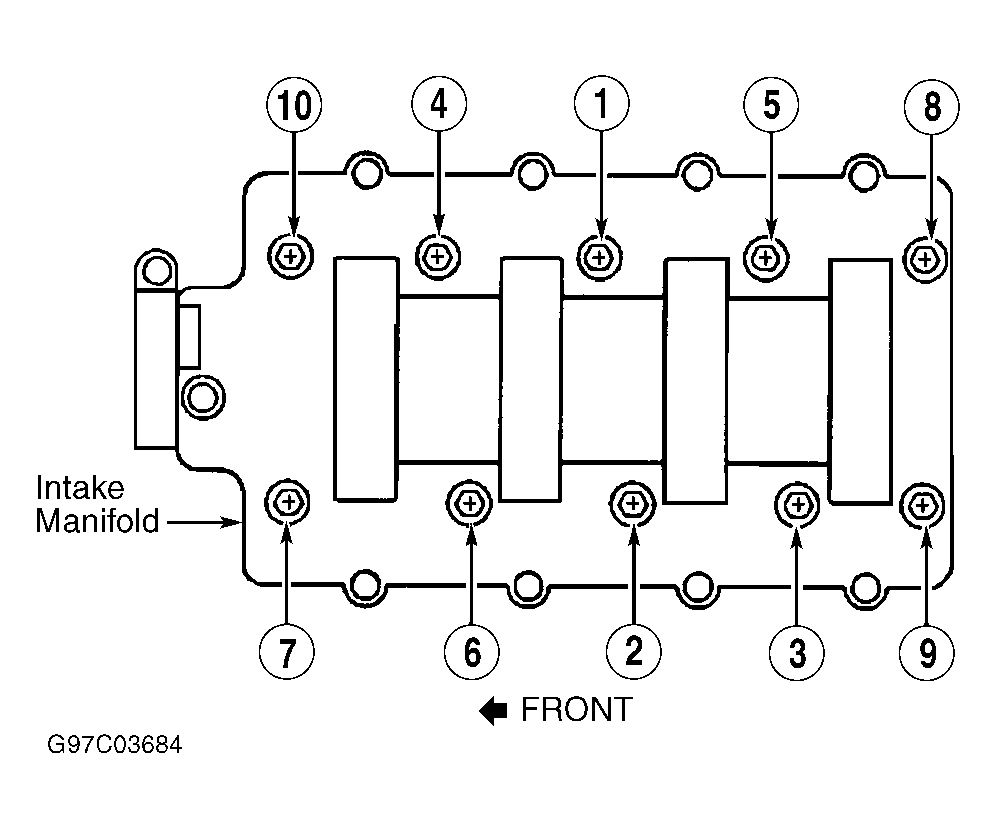

| Intake Manifold Bolts |
| Step 1 |
44 (5) |
| Step 2 |
89 (10) |
| Oil Level Sensor |
116 (13) |
| Oil Pump Cover Bolts |
106 (12) |
| Throttle Body Bolts |
106 (12) |
| Valve Cover Bolts |
106 (12) |
| Valve Lifter Guide Bolts |
106 (12) |
| Vapor Vent Pipe Bolts |
106 (12) |
