Power Seat System: Description

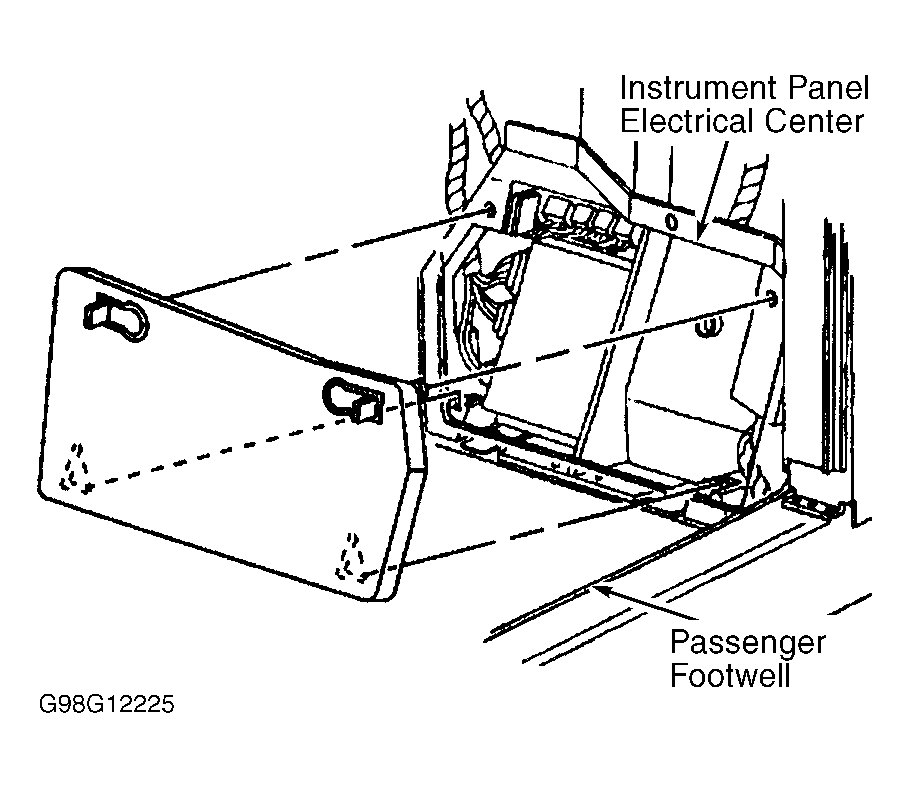

Power seats operate using toggle switches located on outboard side of seat. Seat adjusters are powered by a 12-volt, reversible motor with an internal circuit breaker. Two 20-amp circuit breakers, located in instrument panel electrical center, protect power seat wiring. See Fig 1 . Optional features include memory and power lumbar.
