Torque Specifications
WARNING: This page is about a different variant/trim than selected.
TORQUE SPECIFICATIONS
| Application |
Ft. Lbs. (N.m) |
| Camshaft Sprocket Bolt |
22 (30) |
| Connecting Rod Cap Nut |
| Step 1 |
22 (30) |
| Step 2 |
Additional 90 degrees |
| Crankshaft Balancer Bolt |
189 (256) |

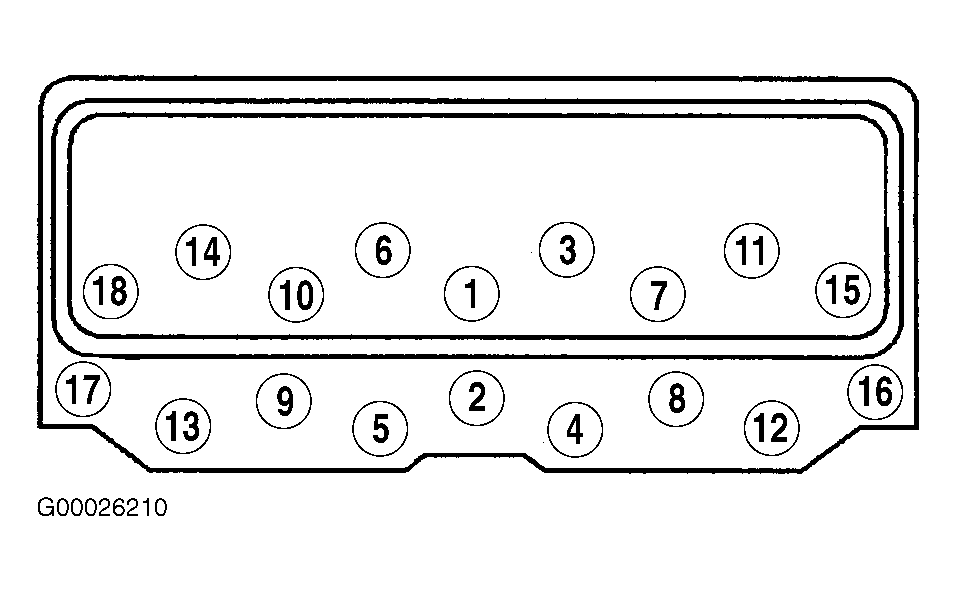

| Cylinder Head Bolts |
| Step 1 |
22 (30) |
| Step 2 |
Additional 120 degrees |
| Step 3 |
| Long Bolts No. 1, 2, 3, 6, 7, 8, 9, 10, 11, 14, 16 & 17 |
Additional 60 degrees |
| Medium Bolts No. 15 & 18 |
Additional 45 degrees |
| Short Bolts No. 4, 5, 12, & 13 |
Additional 30 degrees |
| Exhaust Manifold Center Bolt |
26 (35) |
| Exhaust Manifold Heat Shield |
| Bolt |
19 (26) |
| Nut |
19 (26) |
| Exhaust Manifold Nut |
12 (16) |
| Flywheel Bolt |
| Step 1 |
30 (41) |
| Step 2 |
59 (80) |
| Step 3 |
74 (100) |
| Main Bearing Cap Bolt |
| Inner Bolts |
| Step 1 |
22 (30) |
| Step 2 |
Additional 90 degrees |
| Outer Studs |
| Step 1 |
22 (30) |
| Step 2 |
Additional 80 degrees |
| Oil Pan Bolt |
| Step 1 |
|
| Step 2 |
19 (26) |
| Oil Pump Bolt |
56 (76) |
| Valve Lifter Guide Retainer bolt |
19 (26) |
| Valve Rocker Arm Nut |
19 (26) |
| Valve Rocker Arm Stud |
37 (50) |
| Water Pump Bolt |
| Step 1 |
18 (24) |
| Step 2 |
37 (50) |
| Water Pump Pulley Bolt |
19 (26) |
| INCH Lbs. (N.m) |
| Camshaft Position Sensor Bolt |
106 (12) |
| Camshaft Retainer Bolt |
106 (12) |
| Crankshaft Position Sensor Bolt |
106 (12) |
| Front Cover Bolt |
89 (10) |
| Step 1 |
54 (6) |
| Step 2 |
106 (12) |
| Flywheel Cover Bolt |
106 (12) |
| Intake Manifold Bolt |
| Step 1 |
44 (5) |
| Step 2 |
44 (5) |
| Step 3 |
89 (10) |
| Step 4 |
89 (10) |
| Oil Pump Cover Bolt |
106 (12) |
| Valve Cover Bolt |
| Step 1 |
53 (6) |
| Step 2 |
106 (12) |
