Connector Identification

WARNING: This page is about a different car, the 2000 Pontiac Sunfire and 2000 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to illustrations to identify SIR connector terminals. See Fig 1, Fig 5, Fig 2, Fig 3 & Fig 4 .

Fig 1: Identifying SDM Connector Terminals

G99J00363

Courtesy of GENERAL MOTORS CORP.

Fig 2: Identifying Front-end Discriminating Sensor Connector Terminals

G98D09243

Courtesy of GENERAL MOTORS CORP.

Fig 3: Identifying SIR Coil Connector Terminals

G98D09276

Courtesy of GENERAL MOTORS CORP.

Fig 4: Identifying Air Bag Connector Terminals

G98H09278

Courtesy of GENERAL MOTORS CORP.

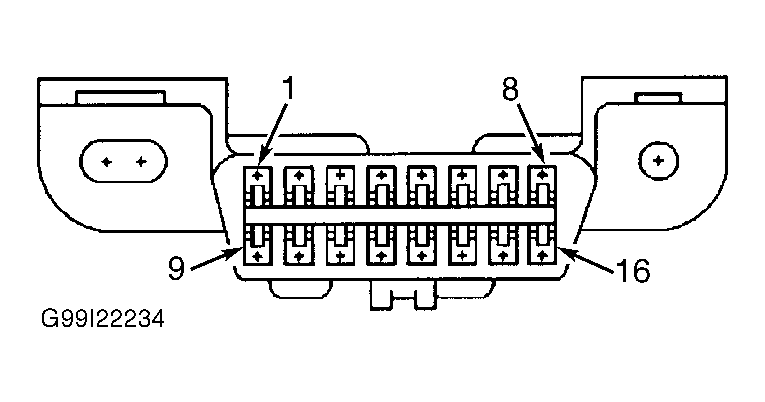

Fig 5: Identifying Data Link Connector (DLC) Terminals

G99I22234

Courtesy of GENERAL MOTORS CORP.
