Lighting Systems Component Views

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

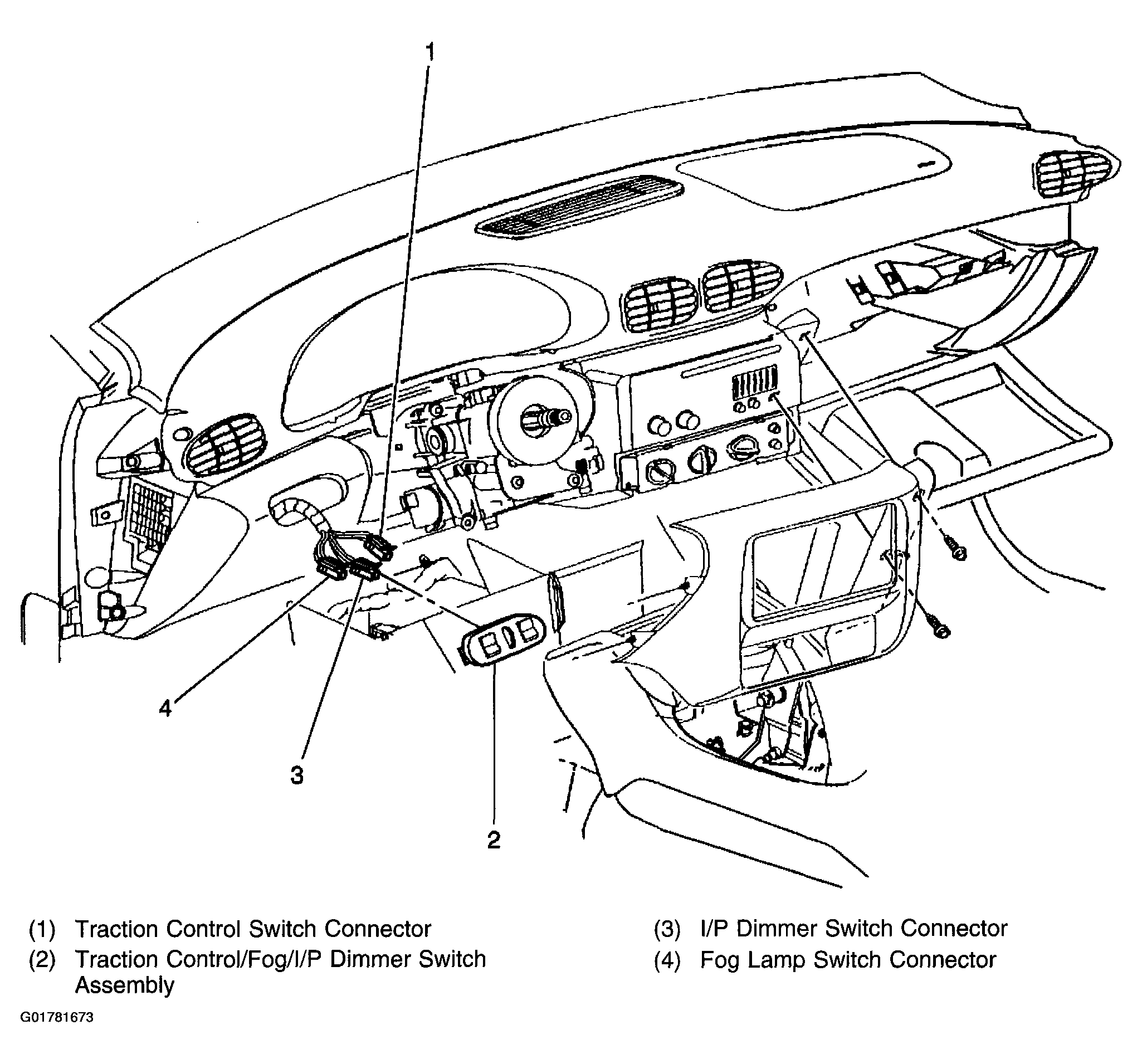

Fig 1: Locating Traction Control, Dimmer & Foglight Switch (Pontiac)

Courtesy of GENERAL MOTORS CORP.

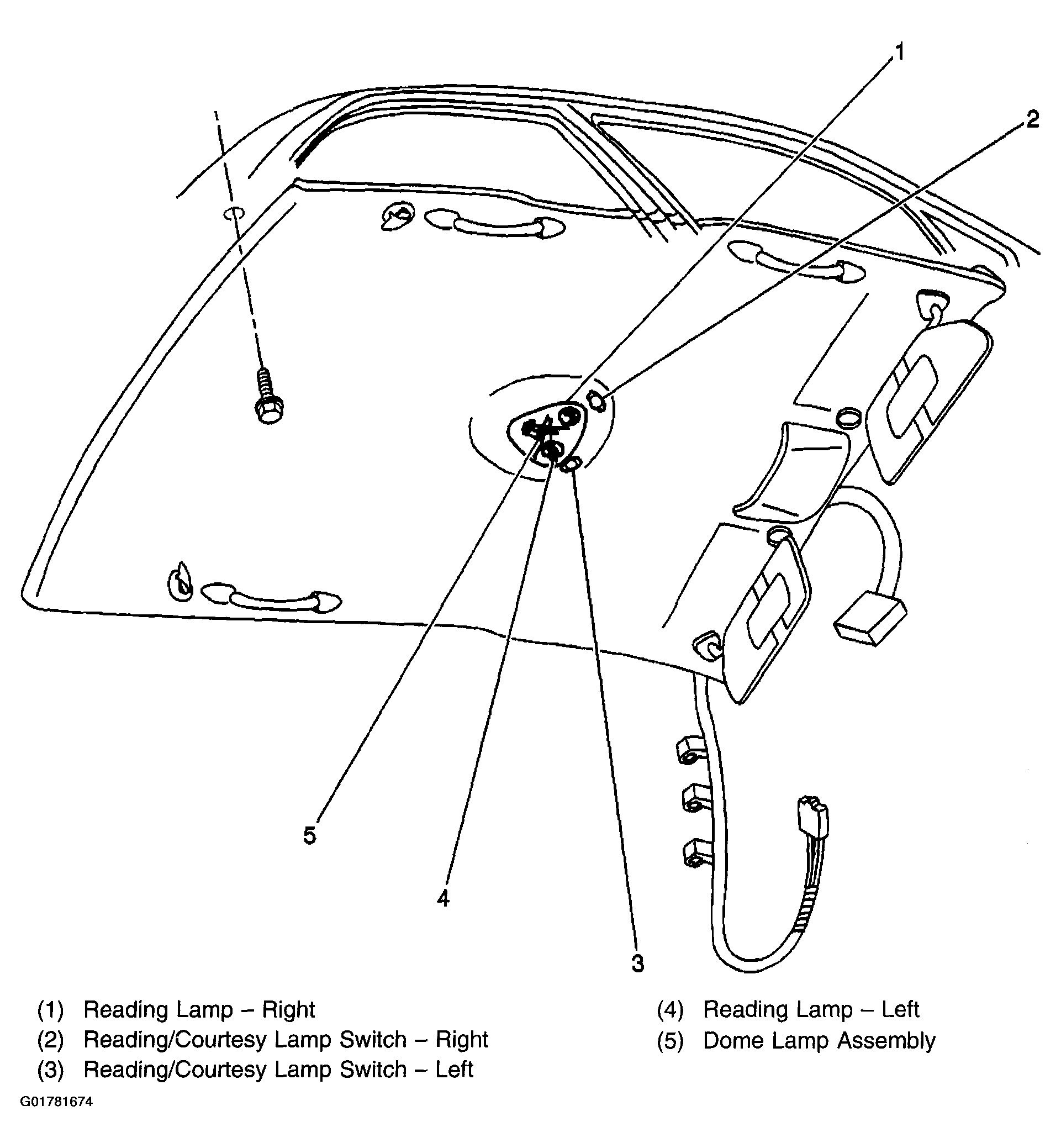

Fig 2: Locating Interior Light

Courtesy of GENERAL MOTORS CORP.

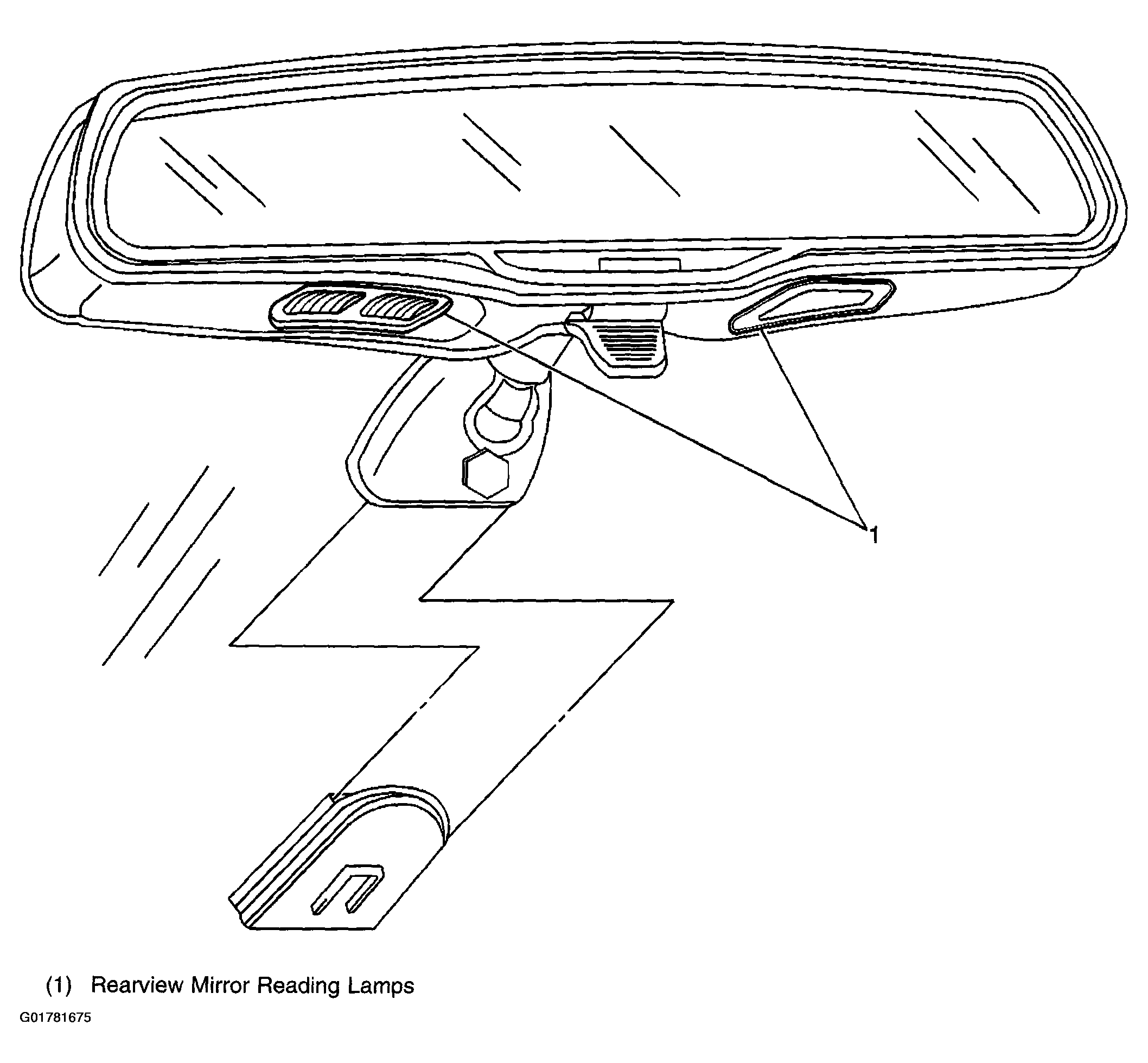

Fig 3: Locating Rearview Mirror Lamps

Courtesy of GENERAL MOTORS CORP.

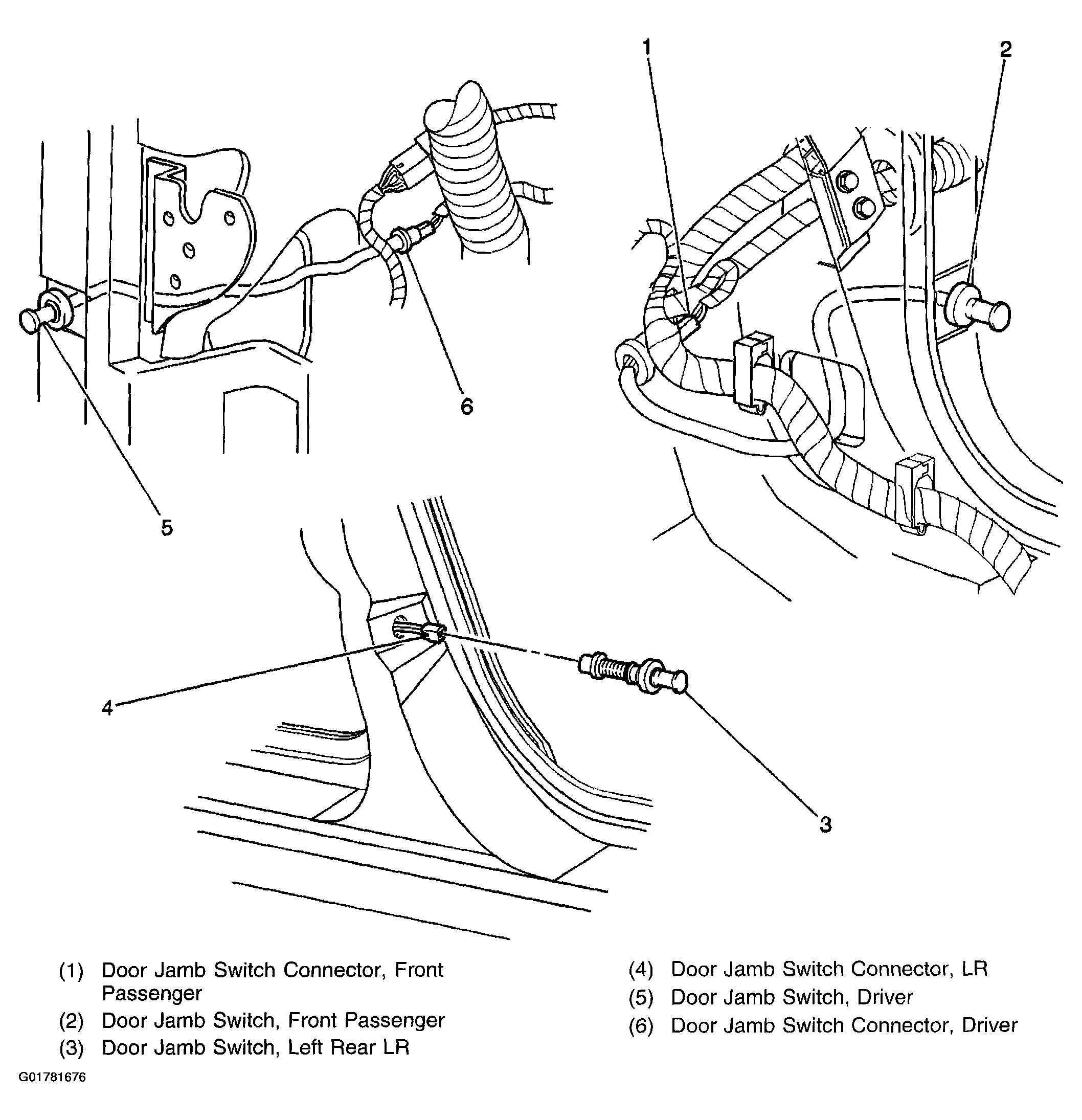

Fig 4: Locating RF, LR & LF Door Jamb Switch & Connector

Courtesy of GENERAL MOTORS CORP.

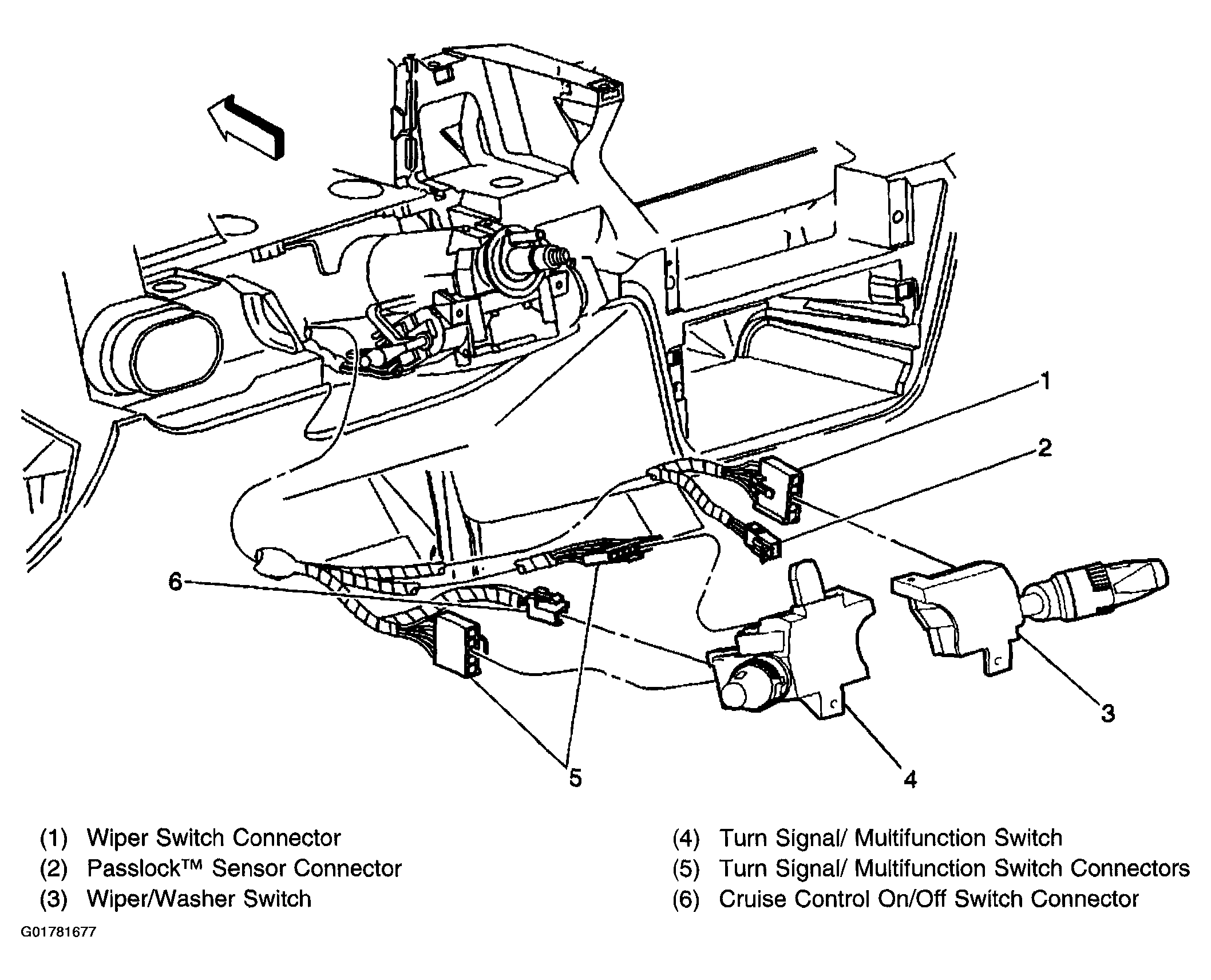

Fig 5: Locating Multi-Function Switch Components

Courtesy of GENERAL MOTORS CORP.

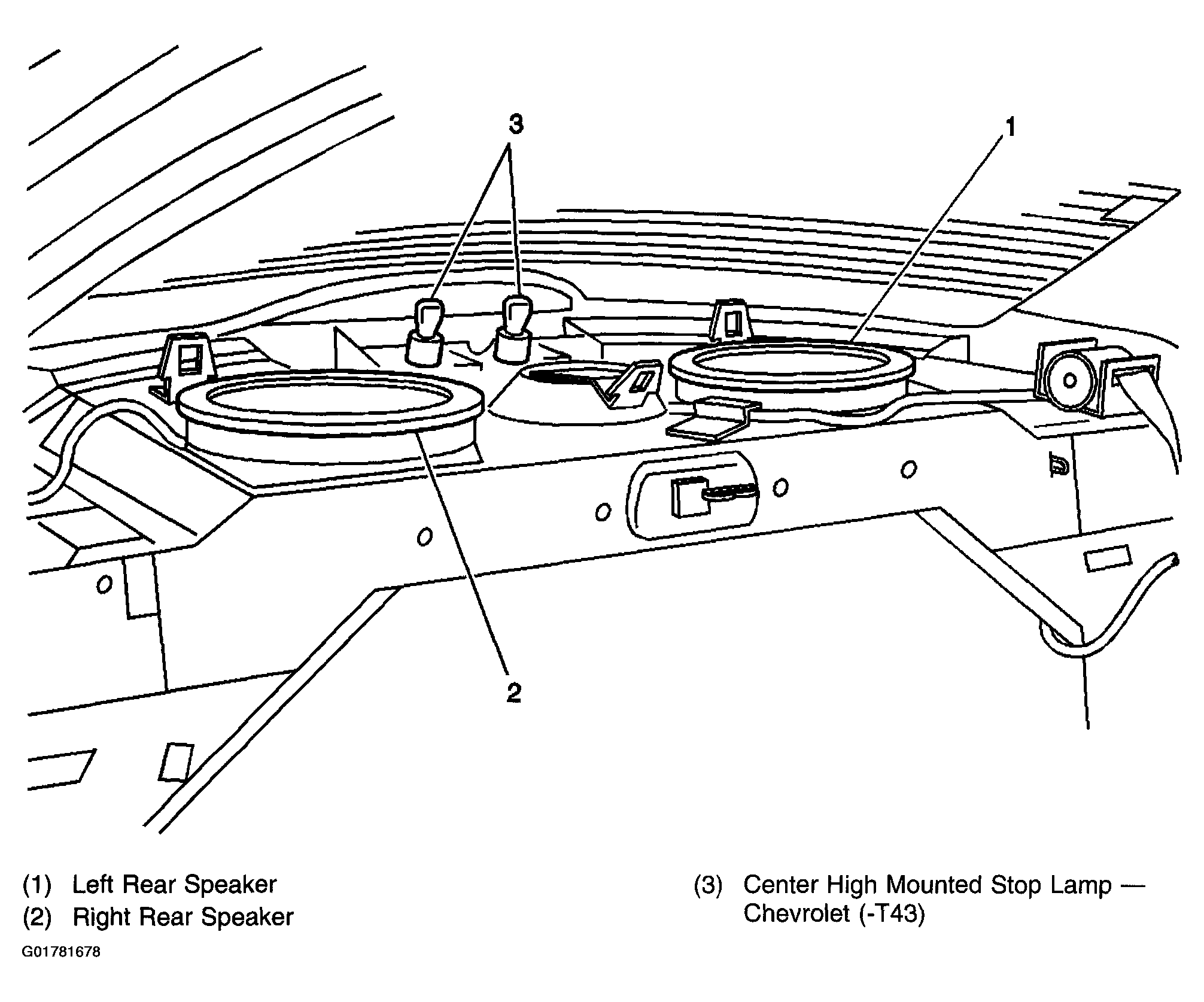

Fig 6: Locating Rear Package Shelf Speakers & CHMSL

Courtesy of GENERAL MOTORS CORP.

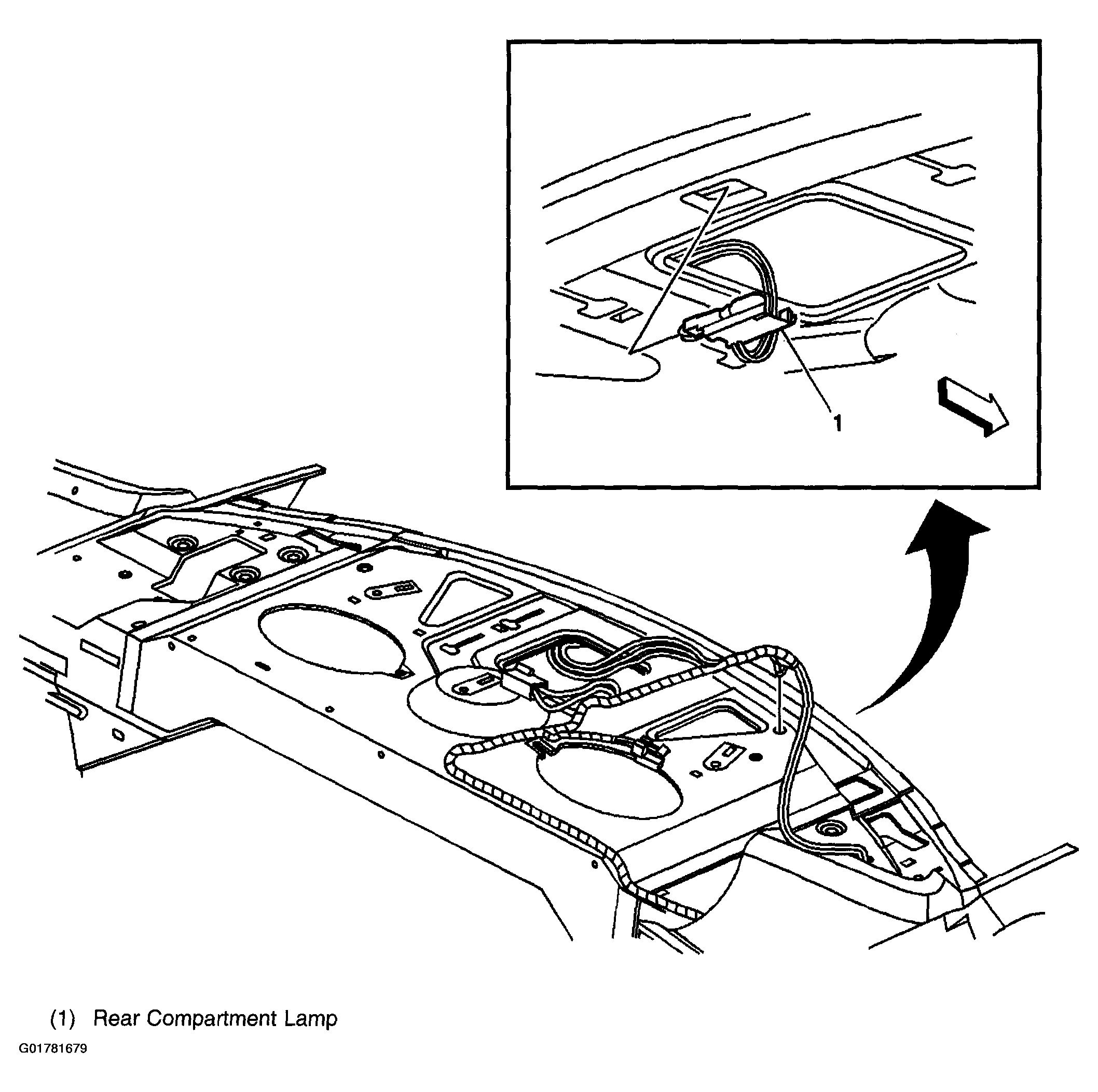

Fig 7: Locating Rear Compartment Lamp

Courtesy of GENERAL MOTORS CORP.

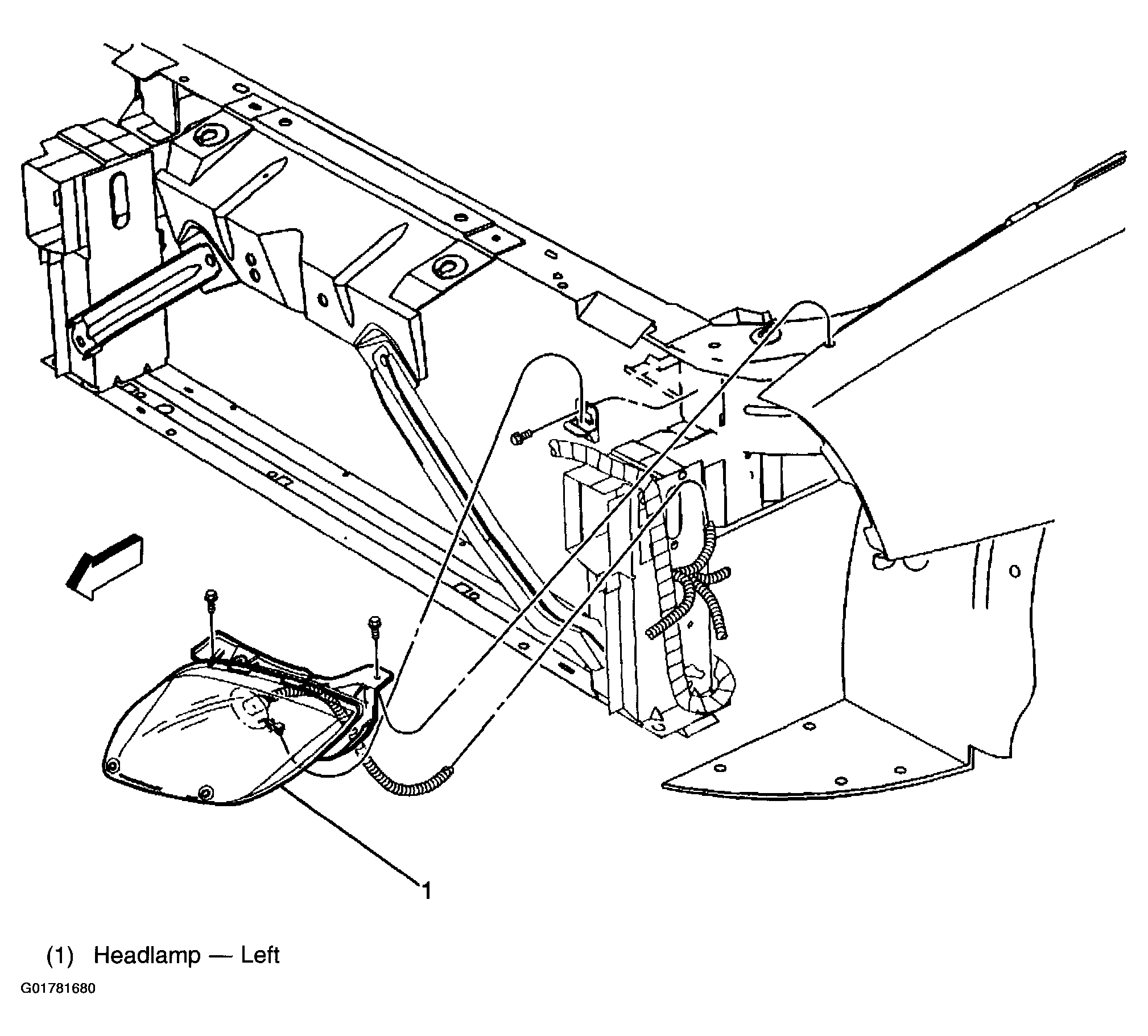

Fig 8: Locating LF Headlight

Courtesy of GENERAL MOTORS CORP.

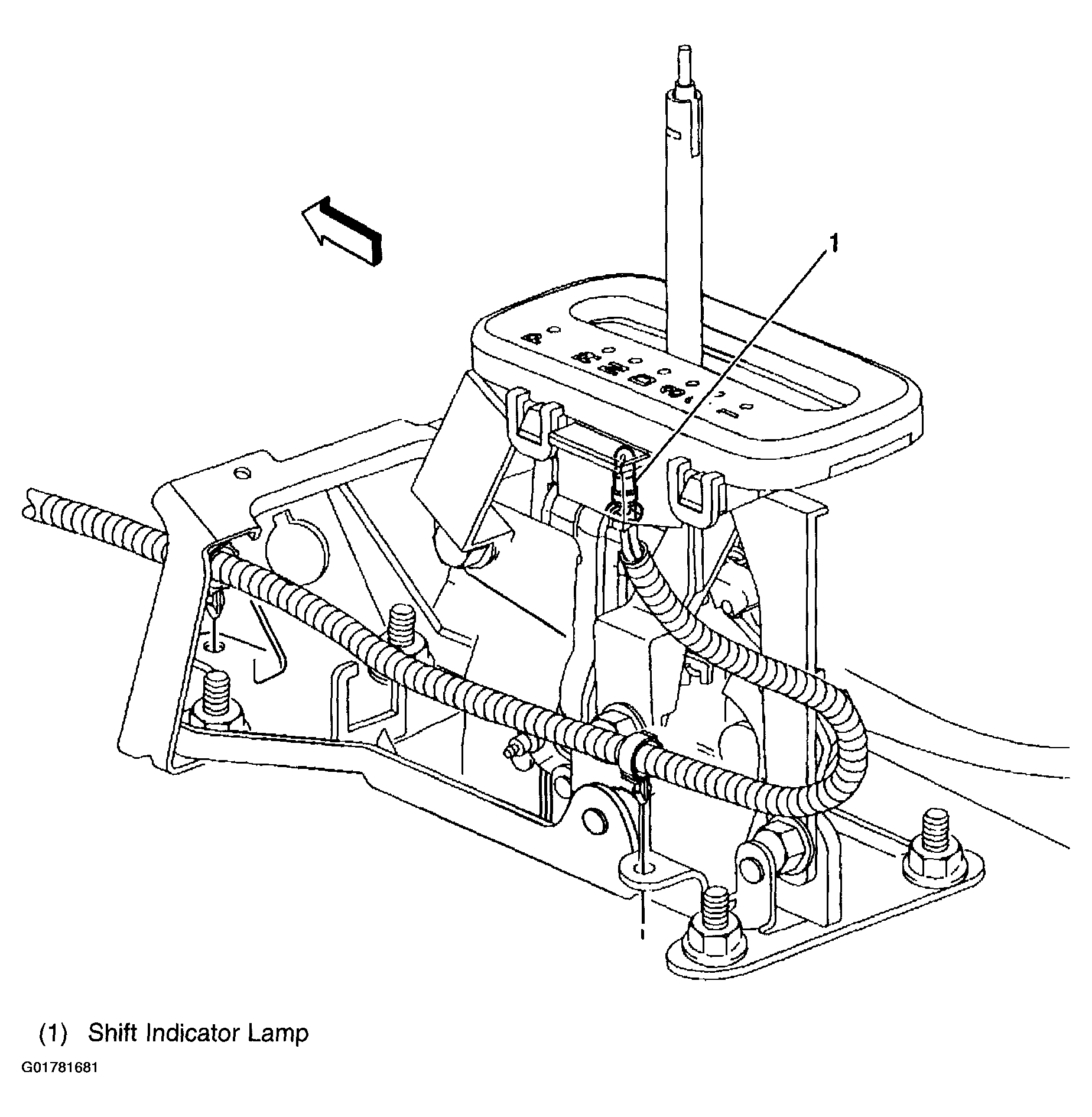

Fig 9: Locating Indicator Light Under Center Console

Courtesy of GENERAL MOTORS CORP.

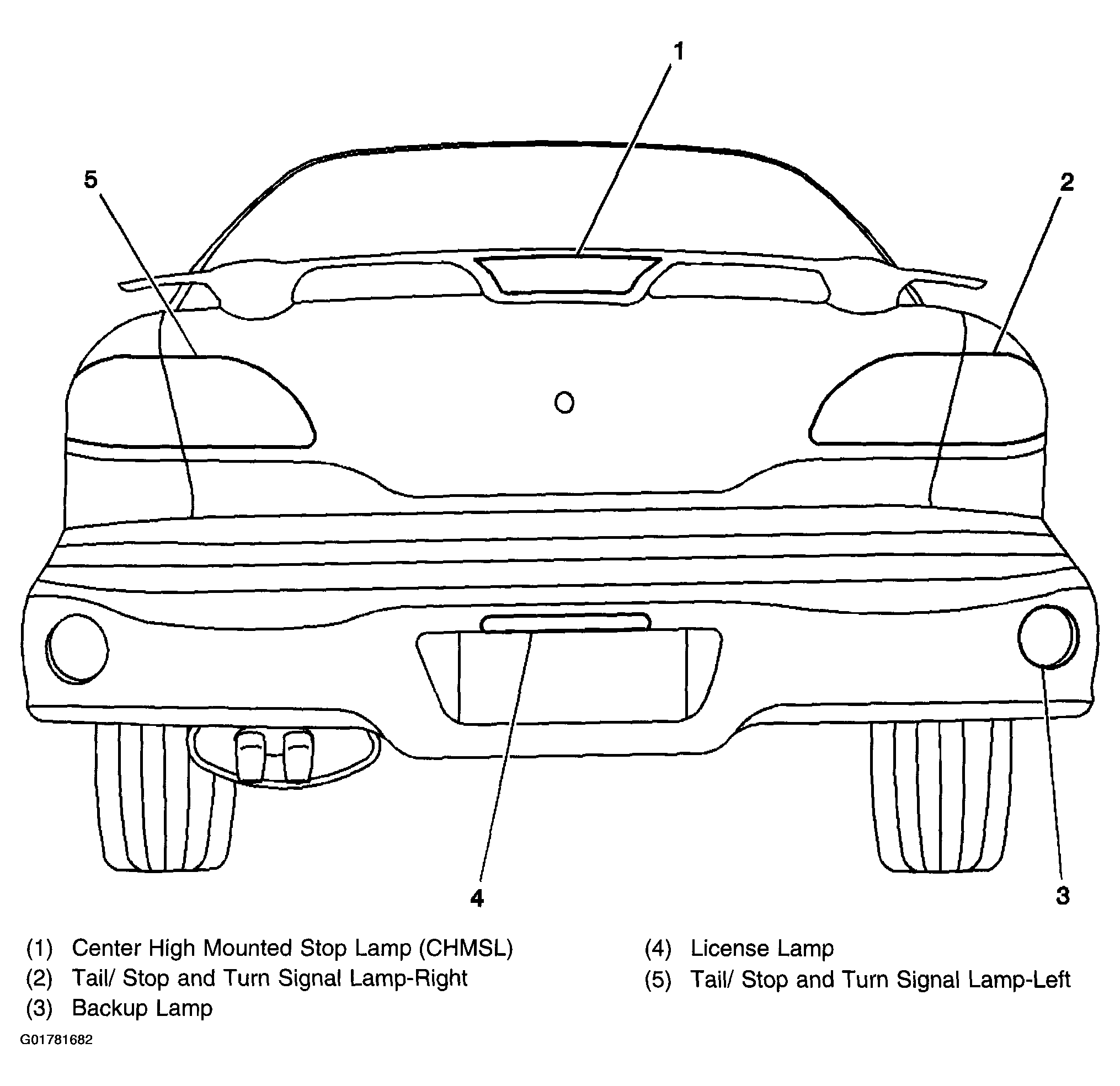

Fig 10: Locating Rear Lamps - Pontiac

Courtesy of GENERAL MOTORS CORP.
