Rear Window Regulator: Installation
NOTE:
Use correct fastener in correct location. Replacement fasteners must be correct part number for that application. Fasteners requiring replacement or fasteners requiring use of thread locking compound or sealant are identified in service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage fastener. Use correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

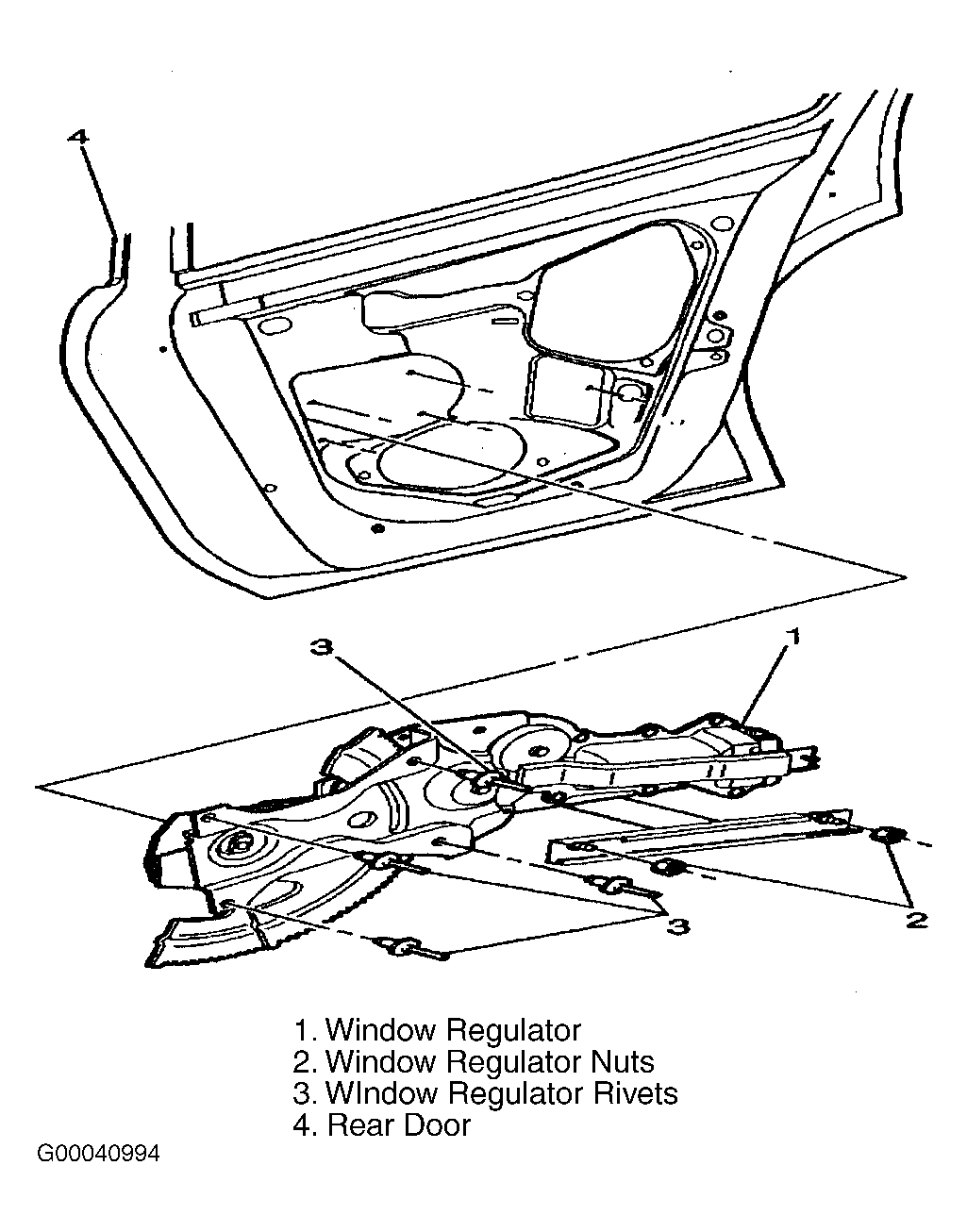

Position window regulator (1) in door. See Fig 1 . Install window regulator rivets (3). Install window regulator nuts (2). Tighten regulator nuts (2) to 89 INCH lbs. (10 N.m). Remove tape from window and push window down to regulator. Install window-to-regulator nuts (2). Install water deflector. Install the door trim panel.
