Removal Procedure

WARNING: This page is about a different car, the 2002 GMC C3500 HD and 2002 Chevrolet C3500 HD. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the bolts (2) that retain the instrument panel center support bracket to the steering column bracket (1).
  2. Remove the bolt (3) that retains the reinforcement to the instrument panel center support bracket.
  3. Disconnect the electrical connector from the illuminated entry module.
  4. Remove the instrument panel center support bracket (4).

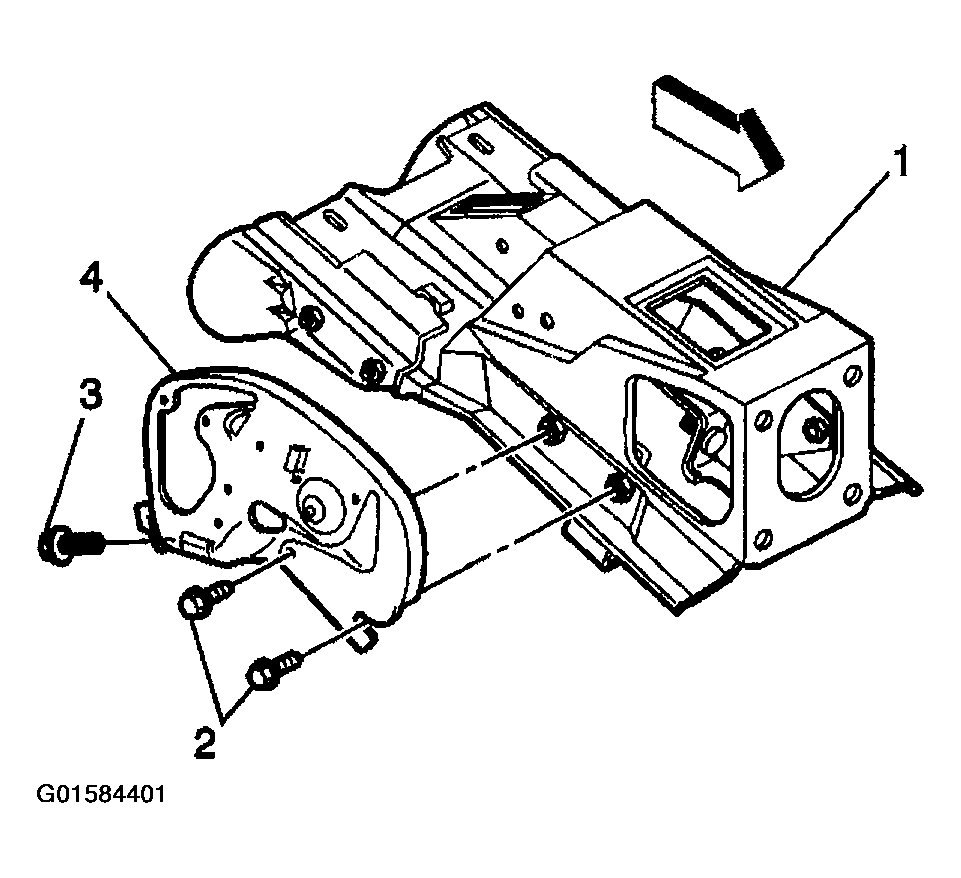

    Fig 1: Steering Column Bracket, Bolts & IP Center Support Bracket
    G01584401Courtesy of GENERAL MOTORS CORP.
  5. Remove the illuminated entry module retainer (3).
  6. Remove the illuminated entry module (2) from the instrument panel center support bracket.

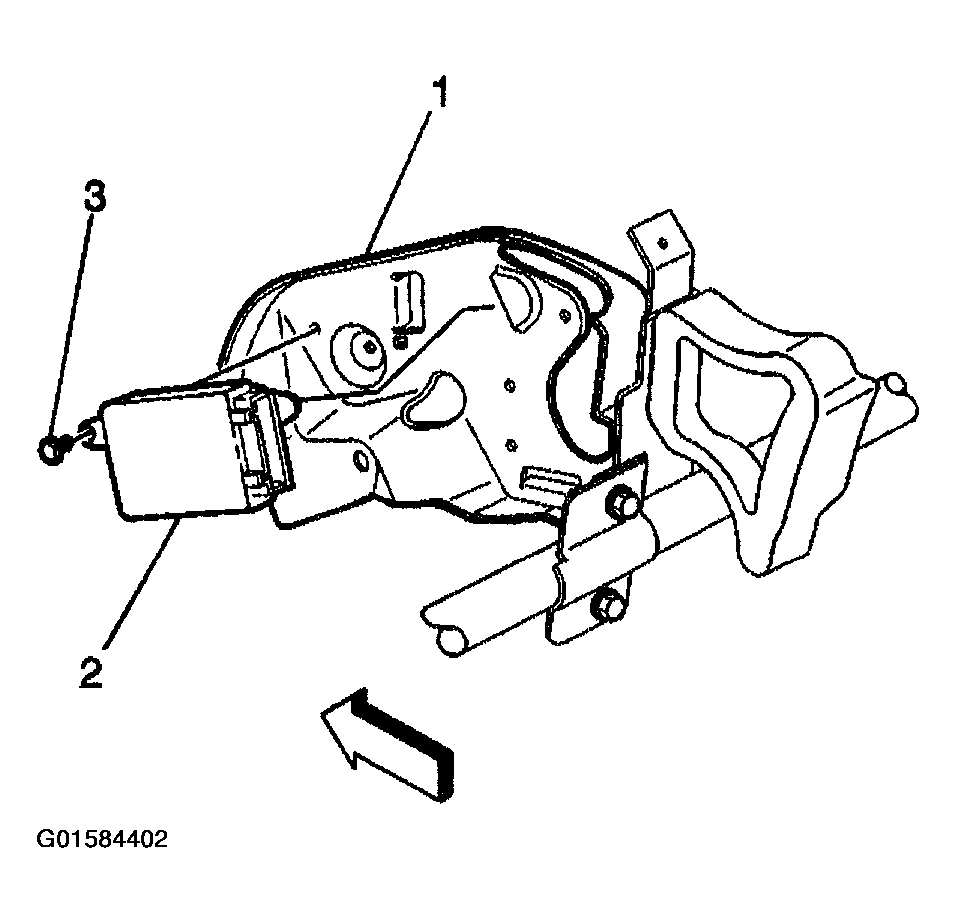

    Fig 2: Illuminated Entry Module & Retainer
    G01584402Courtesy of GENERAL MOTORS CORP.
