Installation Procedure

WARNING: This page is about a different car, the 2002 GMC C3500 HD and 2002 Chevrolet C3500 HD. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the illuminated entry module (2) to the instrument panel center support bracket.
  2. Install the illuminated entry module retainer (3).
  3. Connect the electrical connector to the illuminated entry module.

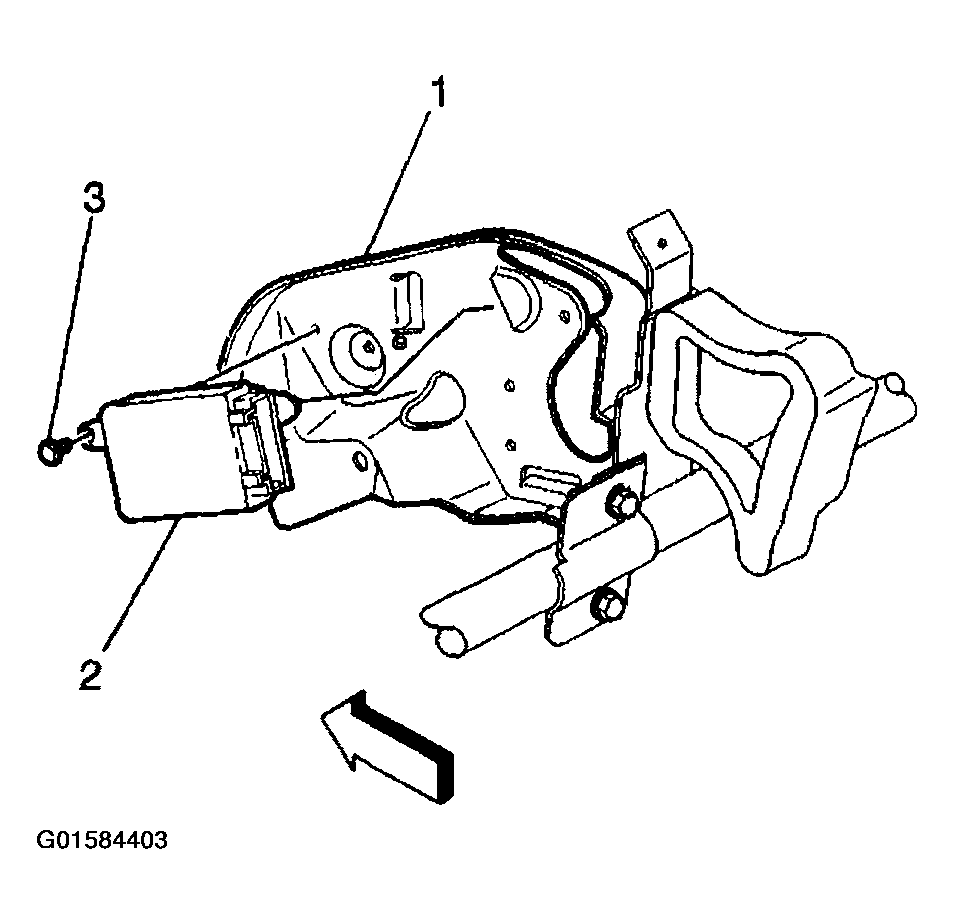

    Fig 1: Illuminated Entry Module & Retainer
    G01584403Courtesy of GENERAL MOTORS CORP.
  4. Install the instrument panel center support bracket (4).
    NOTE: Refer to FASTENER NOTICE .
  5. Install the bolt (3) that retains the reinforcement to the instrument panel center support bracket.

    Tighten

    Tighten the bolt to 2 N.m (18 lb in).

  6. Install the bolts (2) that retain the instrument panel center support bracket to the steering column bracket (1).

    Tighten

    Tighten the bolts to 65 N.m (47 lb ft).

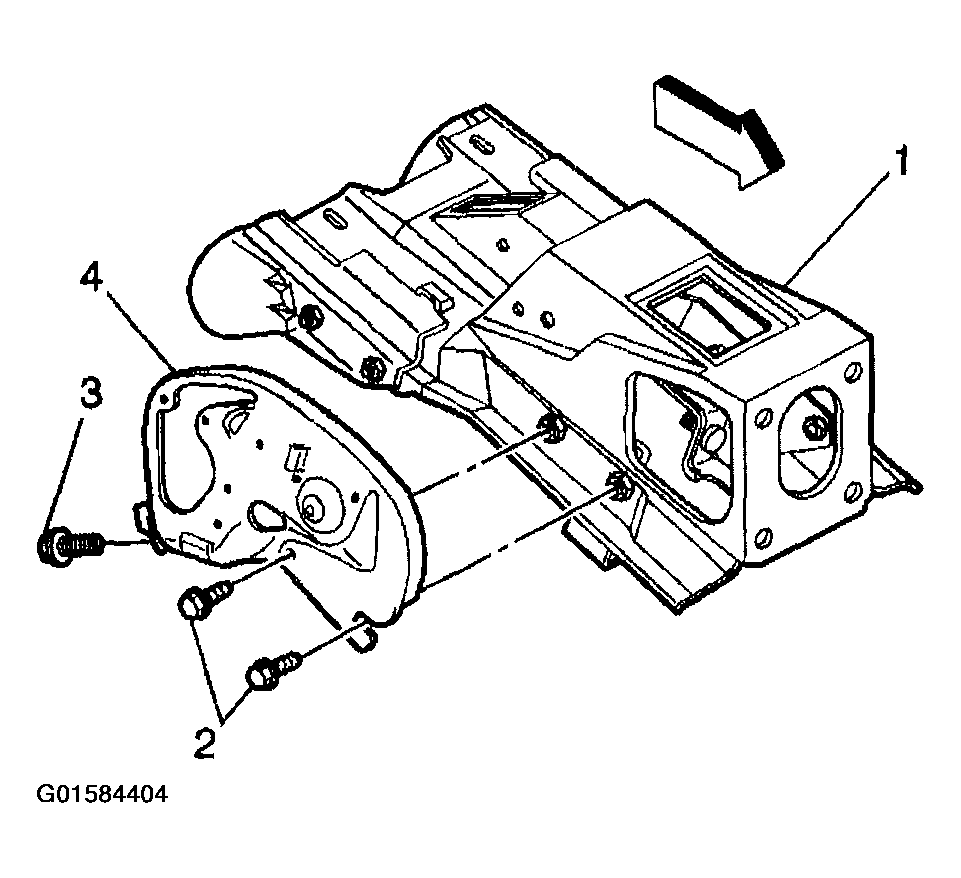

    Fig 2: Steering Column Bracket, Bolts & IP Center Support Bracket
    G01584404Courtesy of GENERAL MOTORS CORP.
