Lighting Systems Component Views

WARNING: This page is about a different car, the 2002 GMC C3500 HD and 2002 Chevrolet C3500 HD. However, it is still accessible from the selected car via links, so may be relevant.

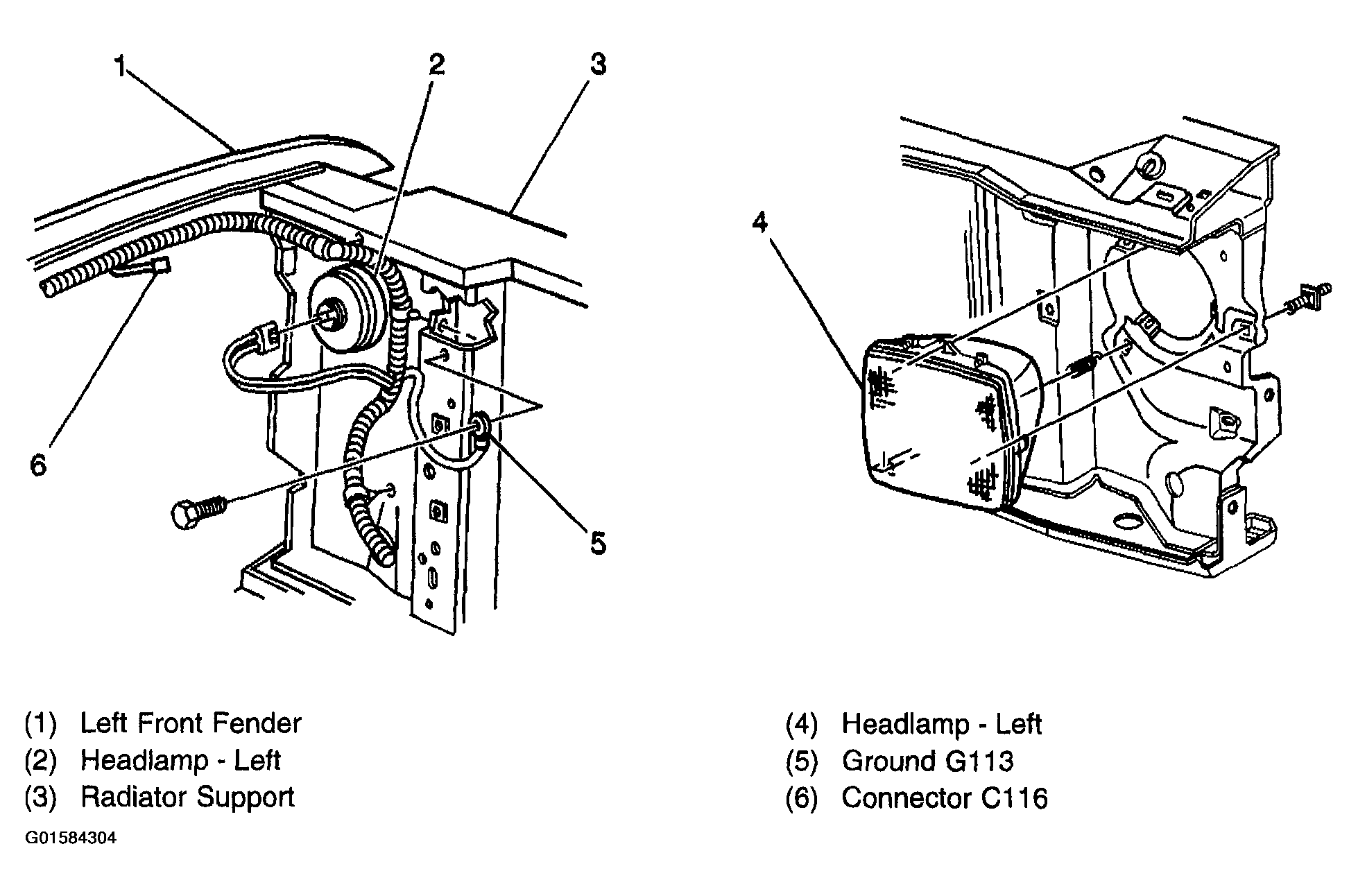

Fig 1: Headlamp Mounting & Left Side Wiring - Base
G01584304Courtesy of GENERAL MOTORS CORP.

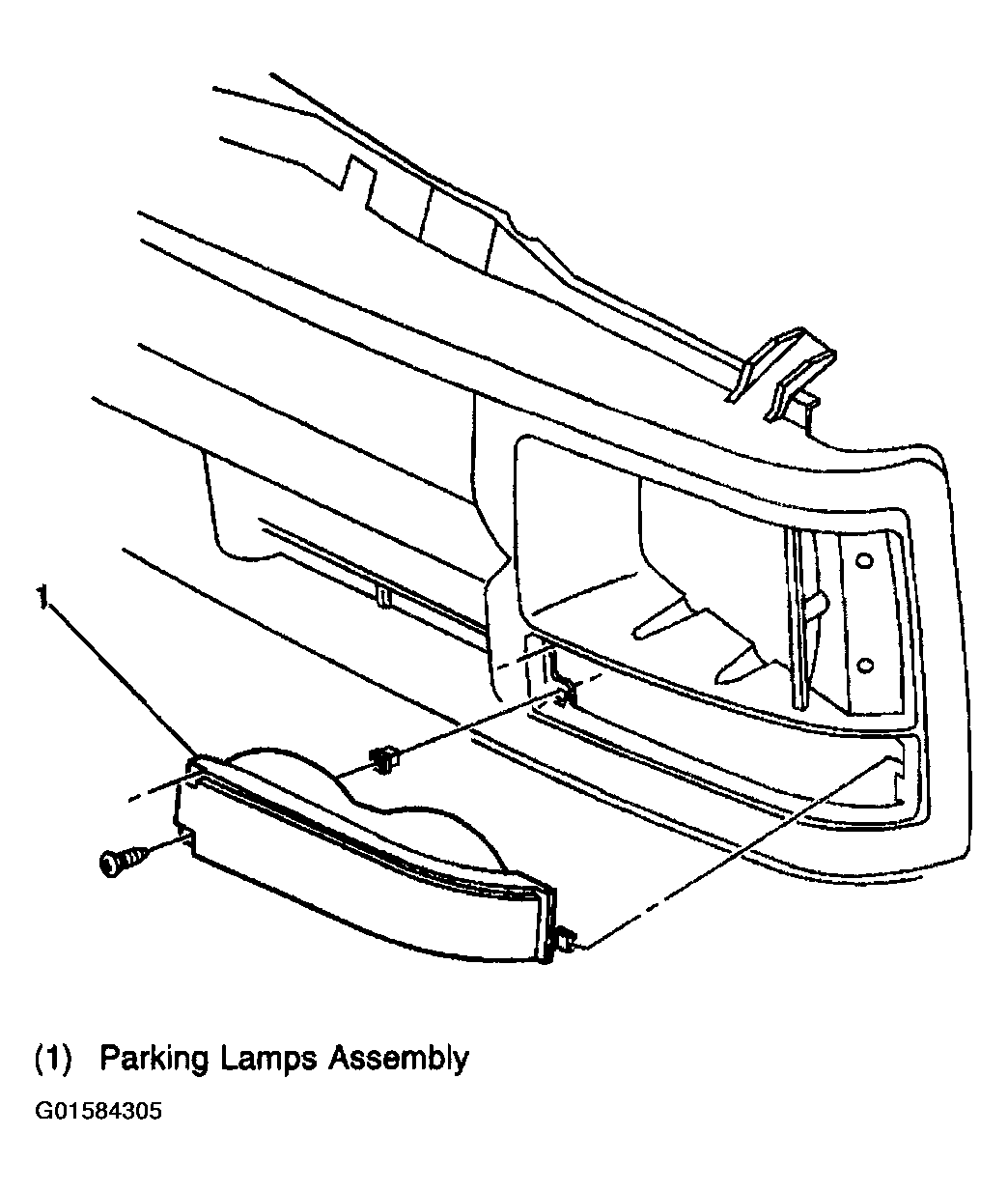

Fig 2: Parking Lamps Mounting - Base
G01584305Courtesy of GENERAL MOTORS CORP.

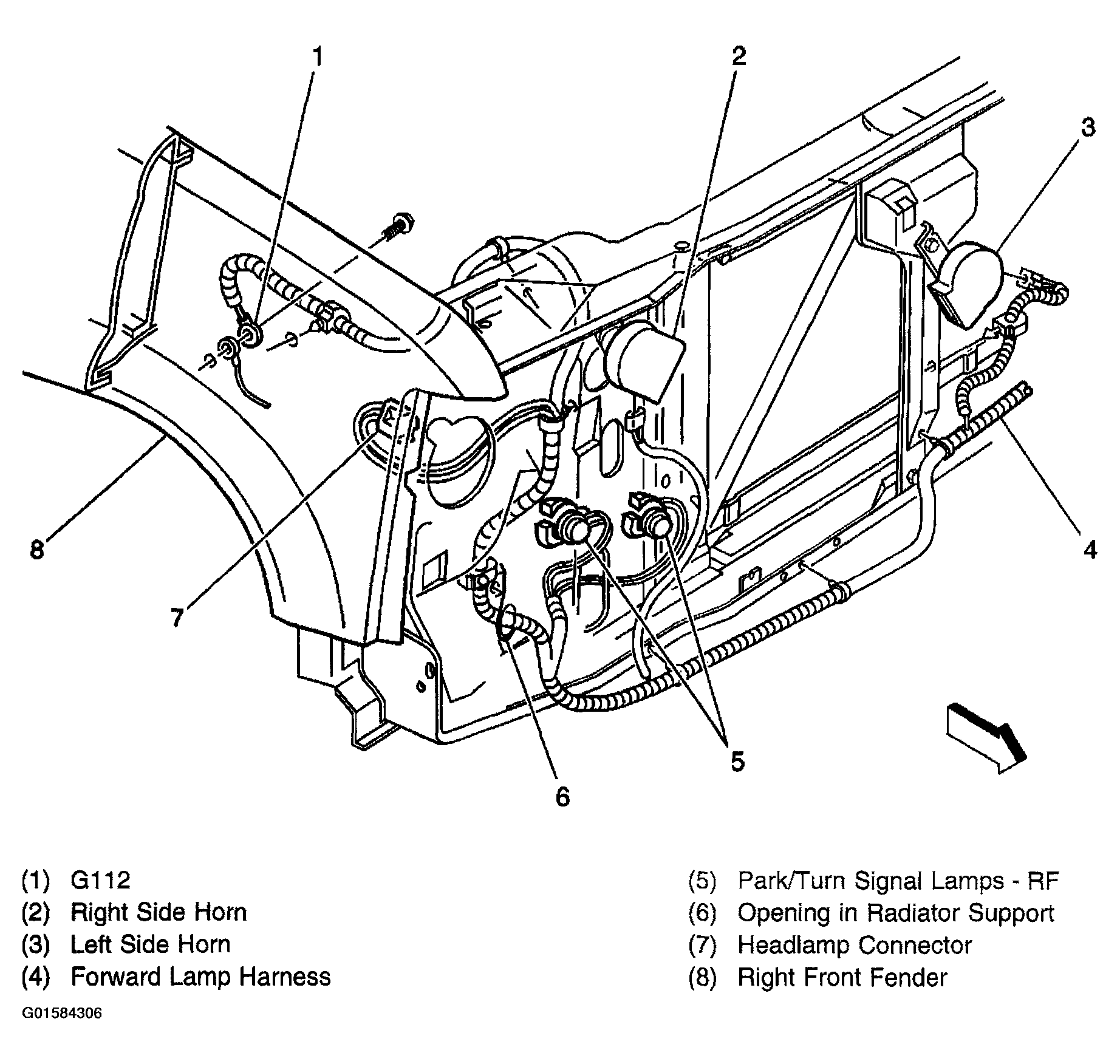

Fig 3: G112 & Forward Lamps Harness - Right Side, Base Headlamps
G01584306Courtesy of GENERAL MOTORS CORP.

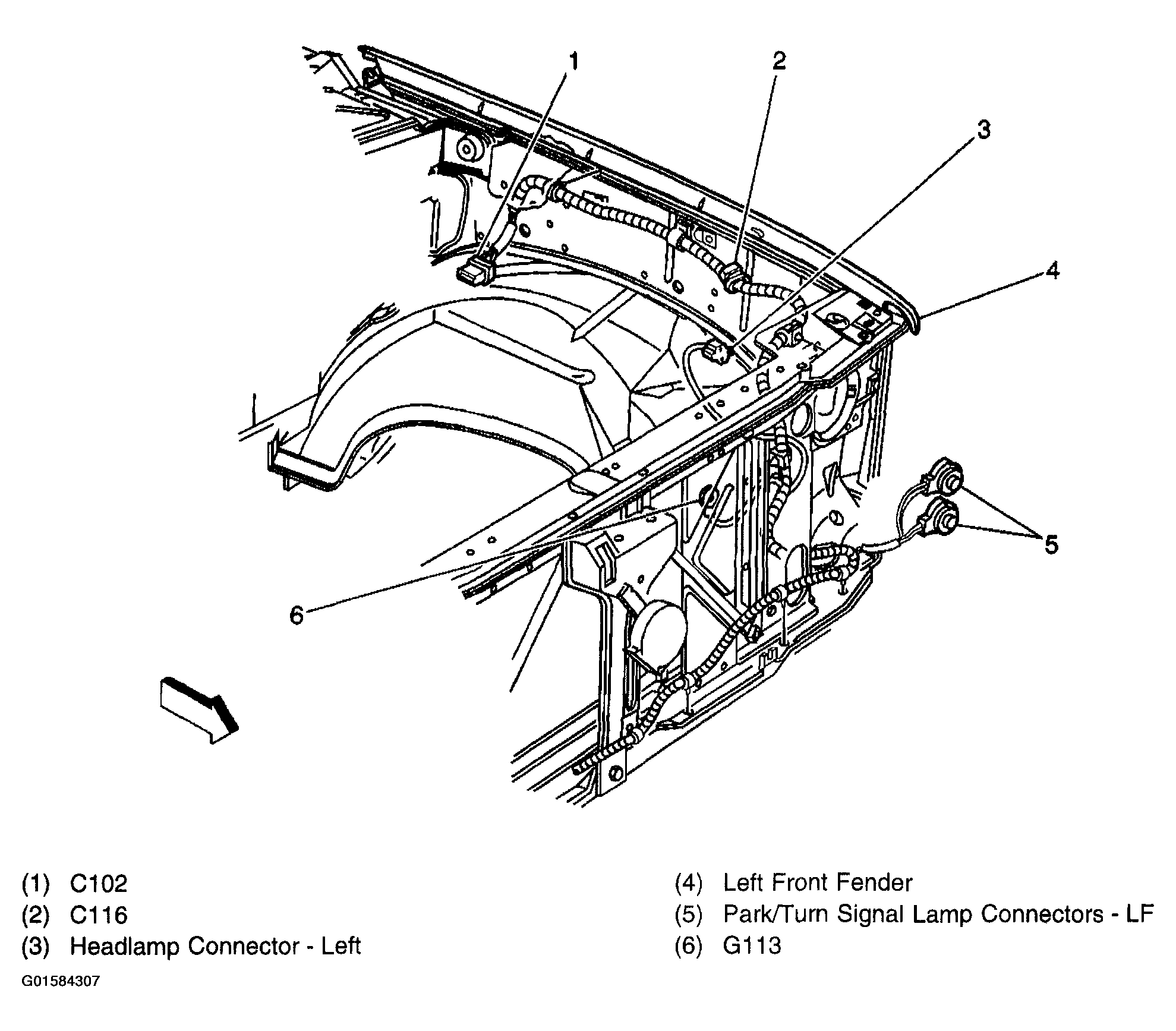

Fig 4: Forward Lamps Harness - Left Side - Base Headlamps
G01584307Courtesy of GENERAL MOTORS CORP.

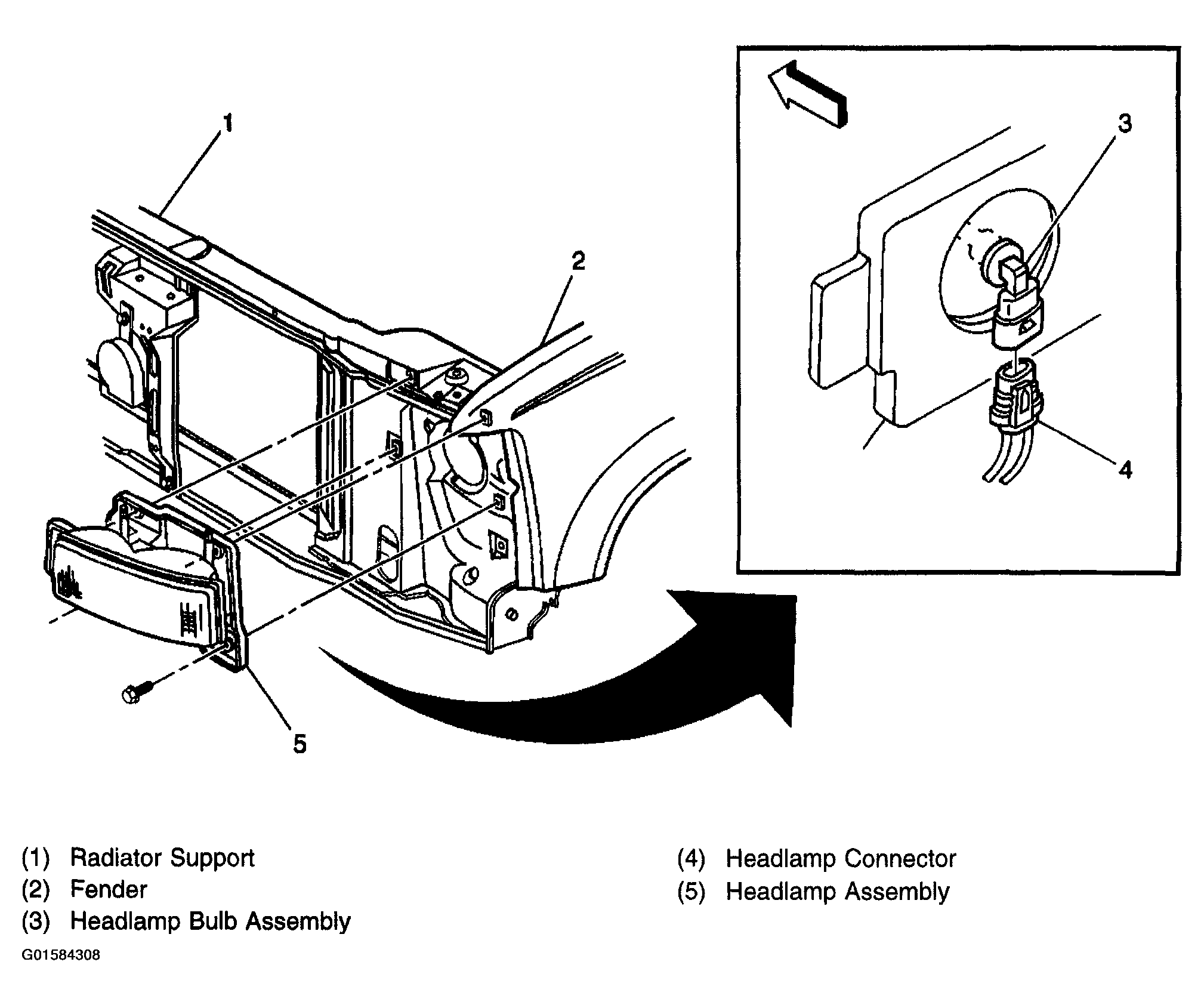

Fig 5: Headlamp Mounting & Connector - V22
G01584308Courtesy of GENERAL MOTORS CORP.

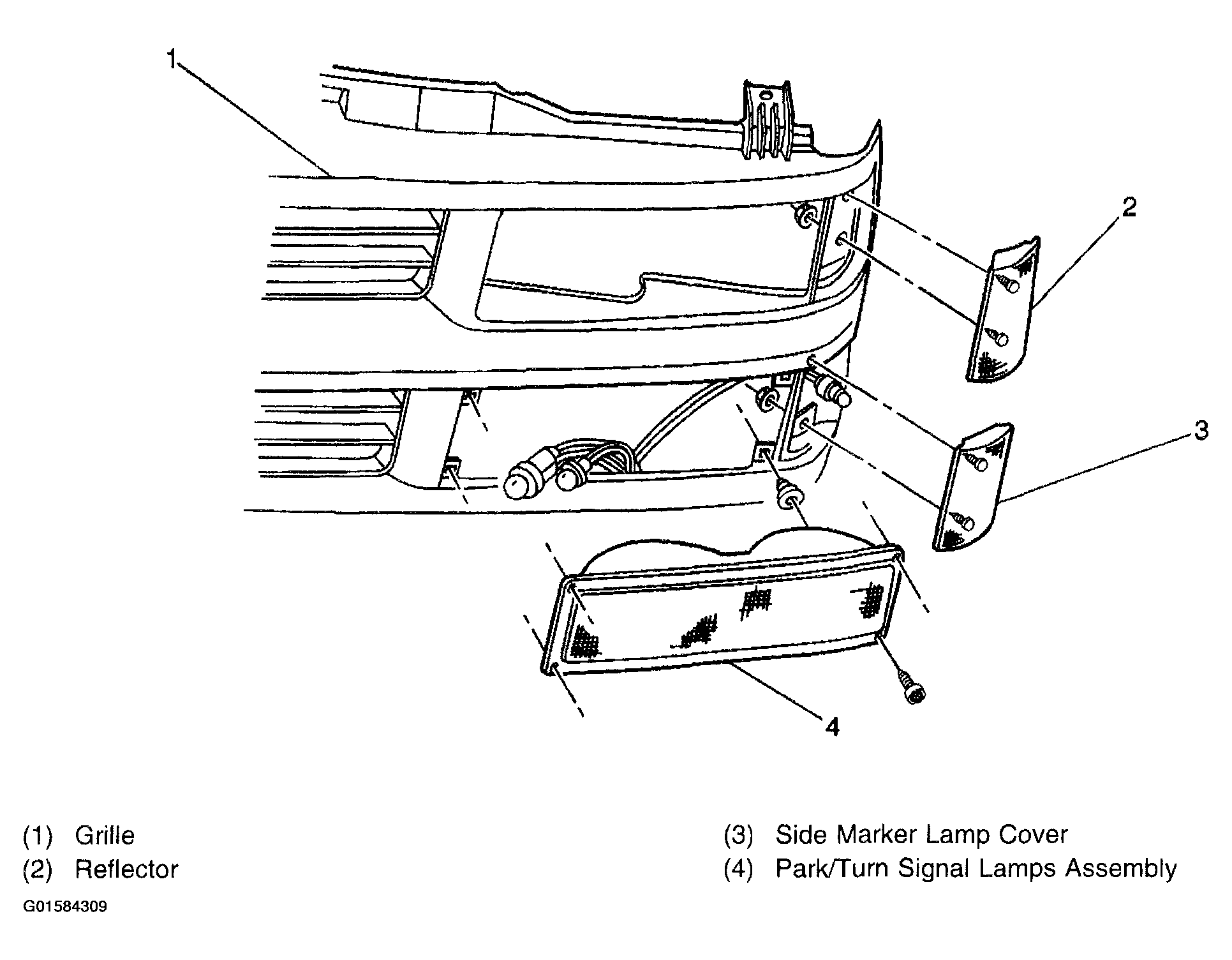

Fig 6: Park & Side Marker Lamps Mounting - V22
G01584309Courtesy of GENERAL MOTORS CORP.

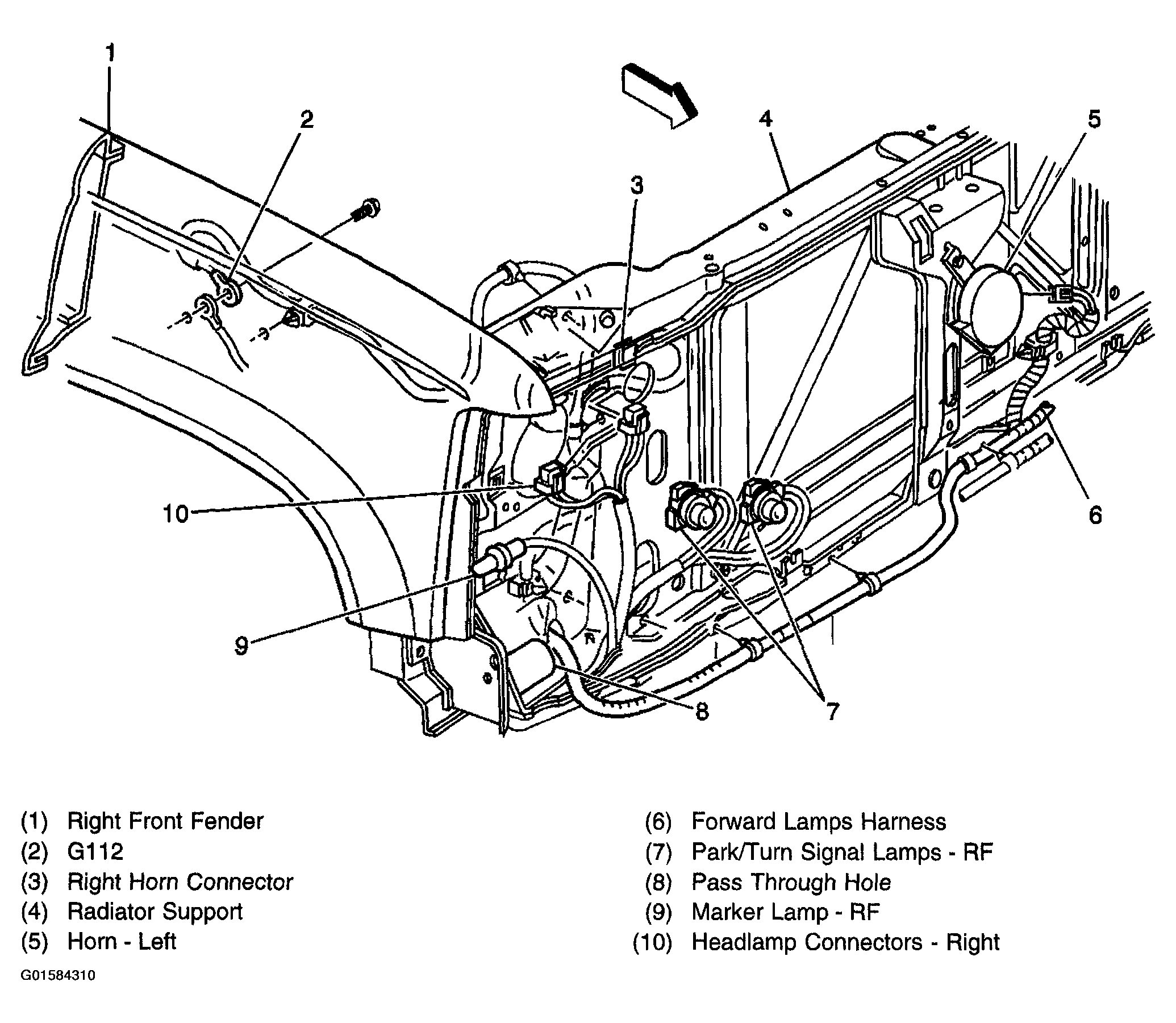

Fig 7: G112 & Forward Lamps Harness - V22
G01584310Courtesy of GENERAL MOTORS CORP.

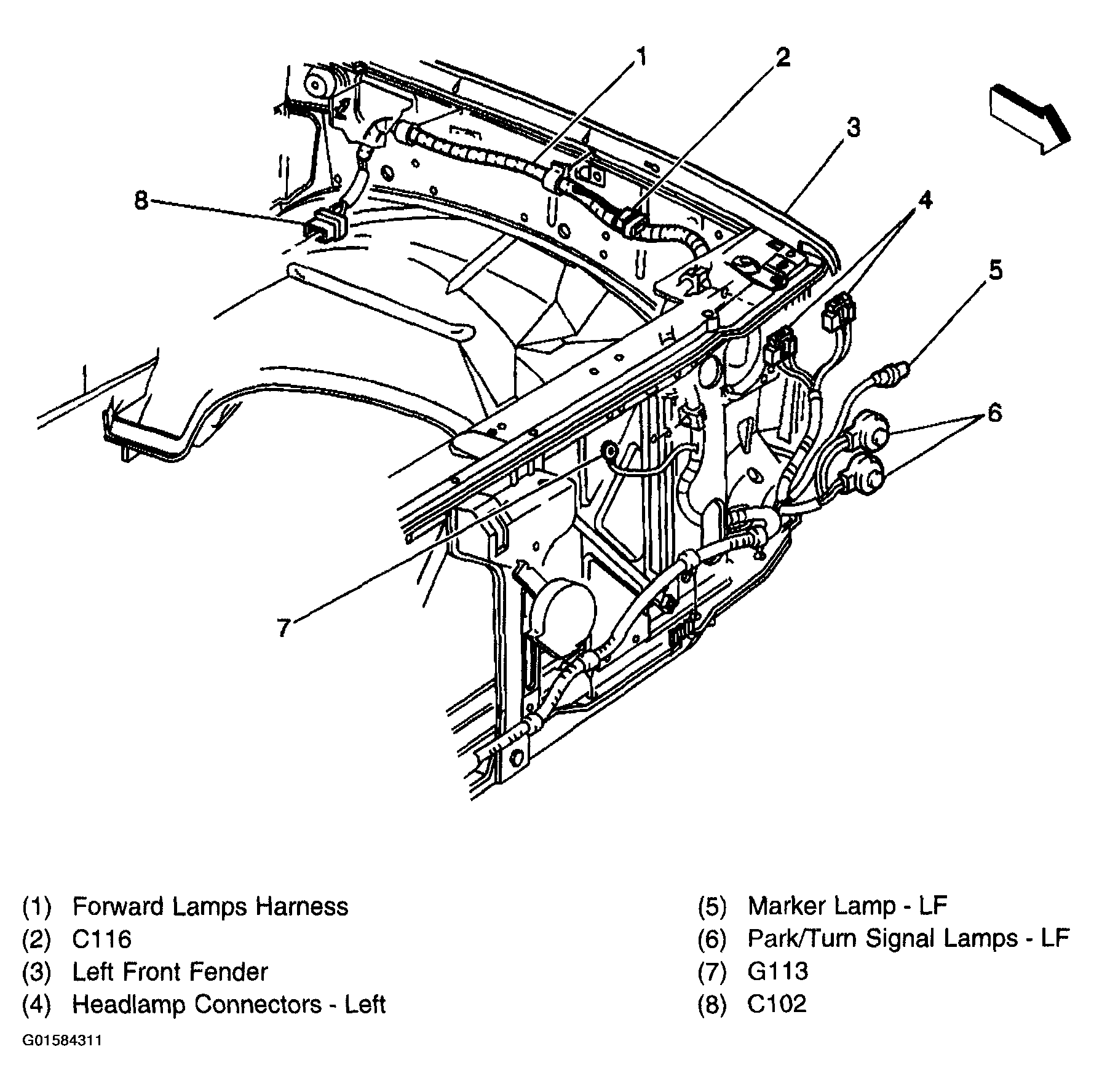

Fig 8: G113, C102, C116 & Forward Lamps Harness - V22
G01584311Courtesy of GENERAL MOTORS CORP.

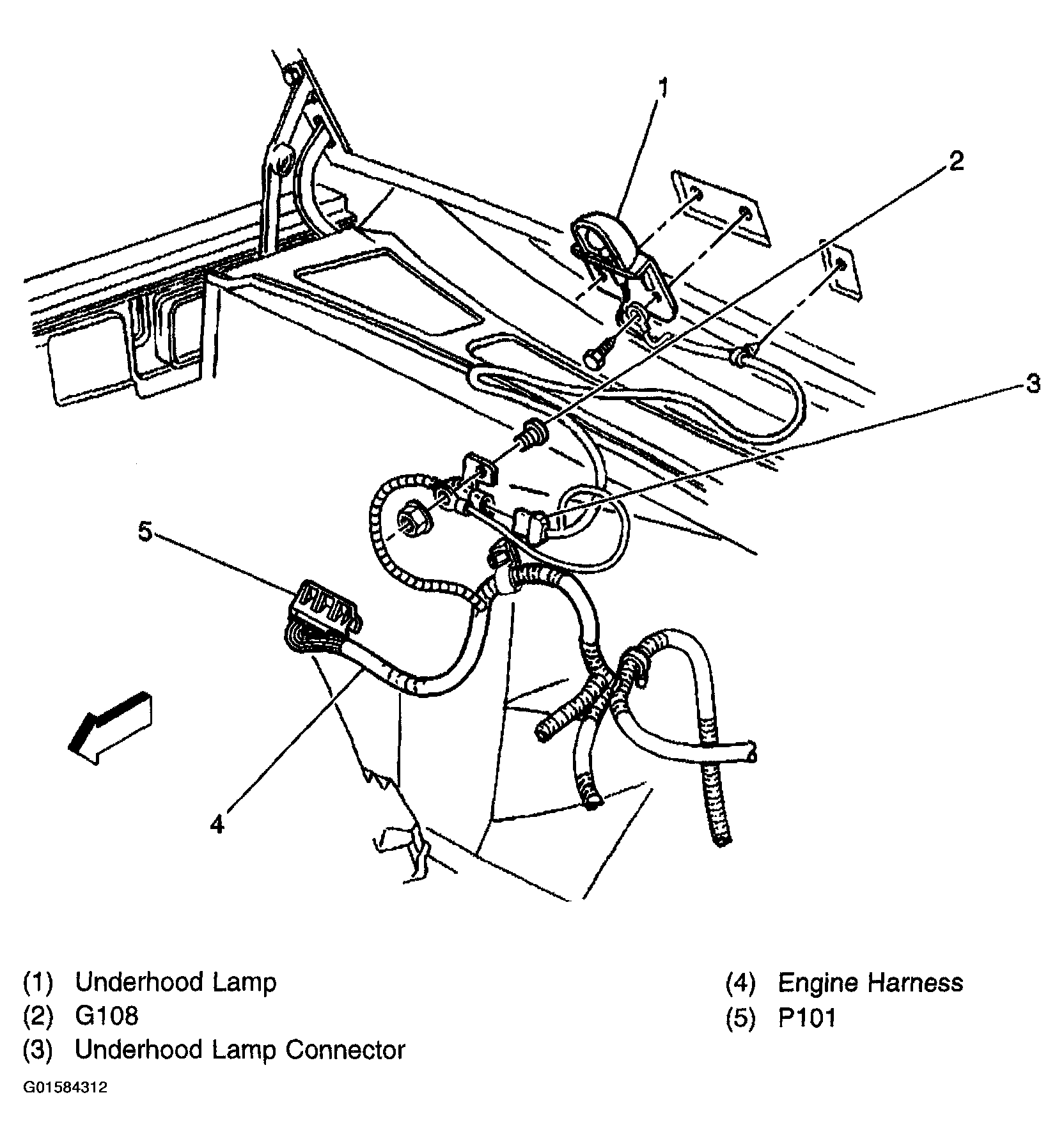

Fig 9: Underhood Lamp
G01584312Courtesy of GENERAL MOTORS CORP.

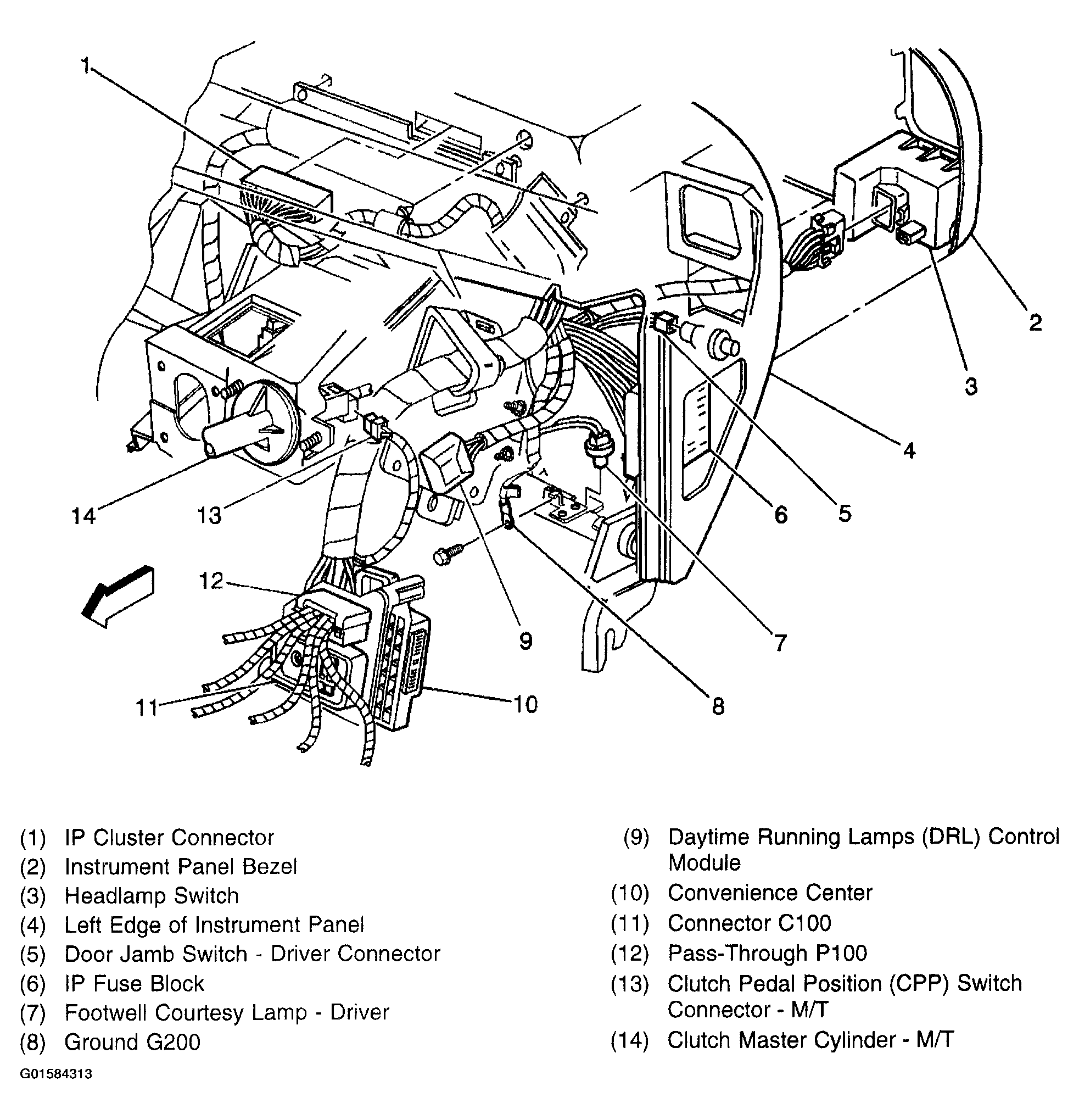

Fig 10: C100, P100, G200, CPP Switch & Lighting Components - Left Side Of IP
G01584313Courtesy of GENERAL MOTORS CORP.

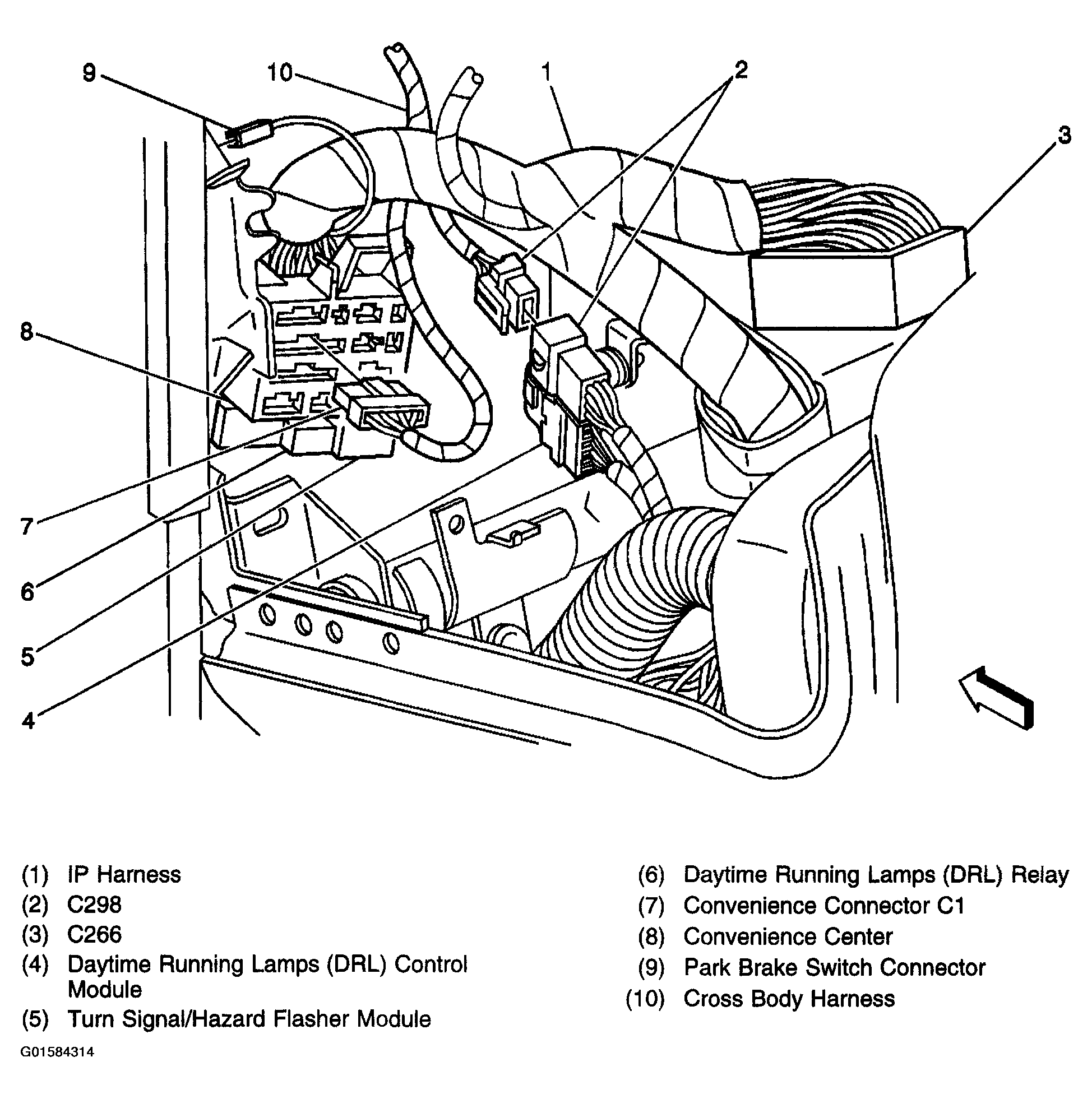

Fig 11: C298, Convenience Center & DRL Control Module
G01584314Courtesy of GENERAL MOTORS CORP.

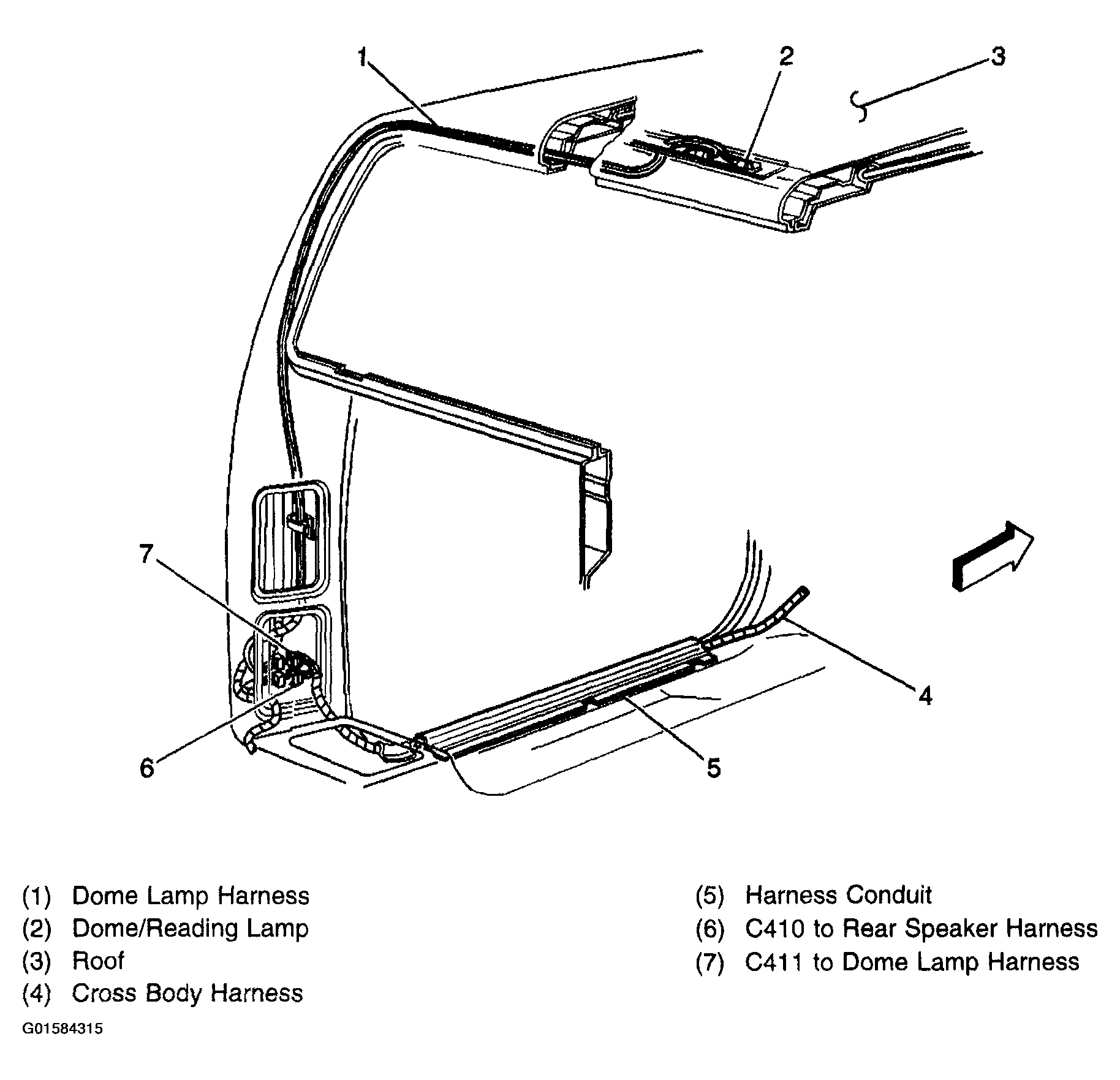

Fig 12: C410, C411, Cross Body Harness & Dome Lamp Harness
G01584315Courtesy of GENERAL MOTORS CORP.

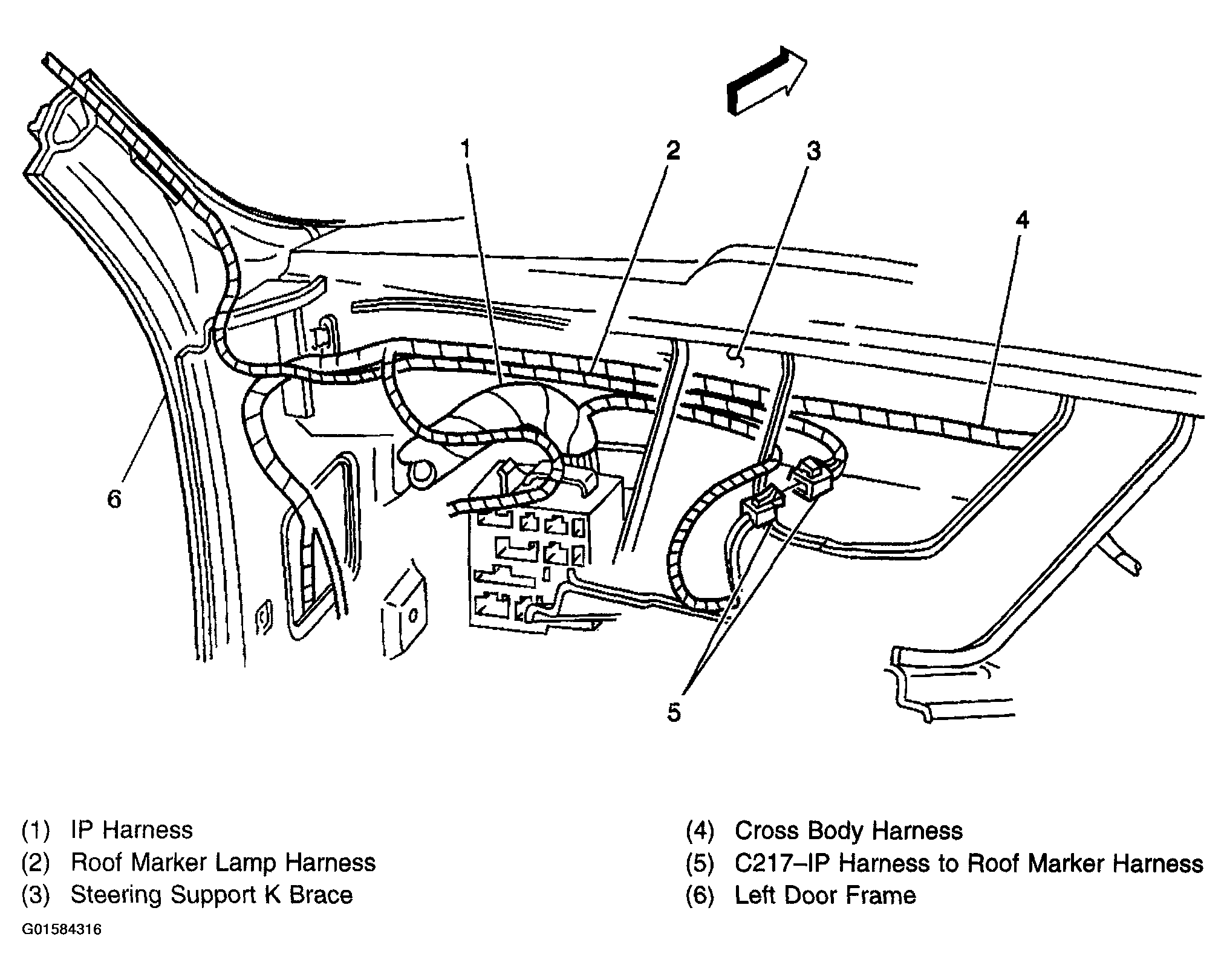

Fig 13: C271, Cross Body Harness & Roof Marker Lamp Harness
G01584316Courtesy of GENERAL MOTORS CORP.

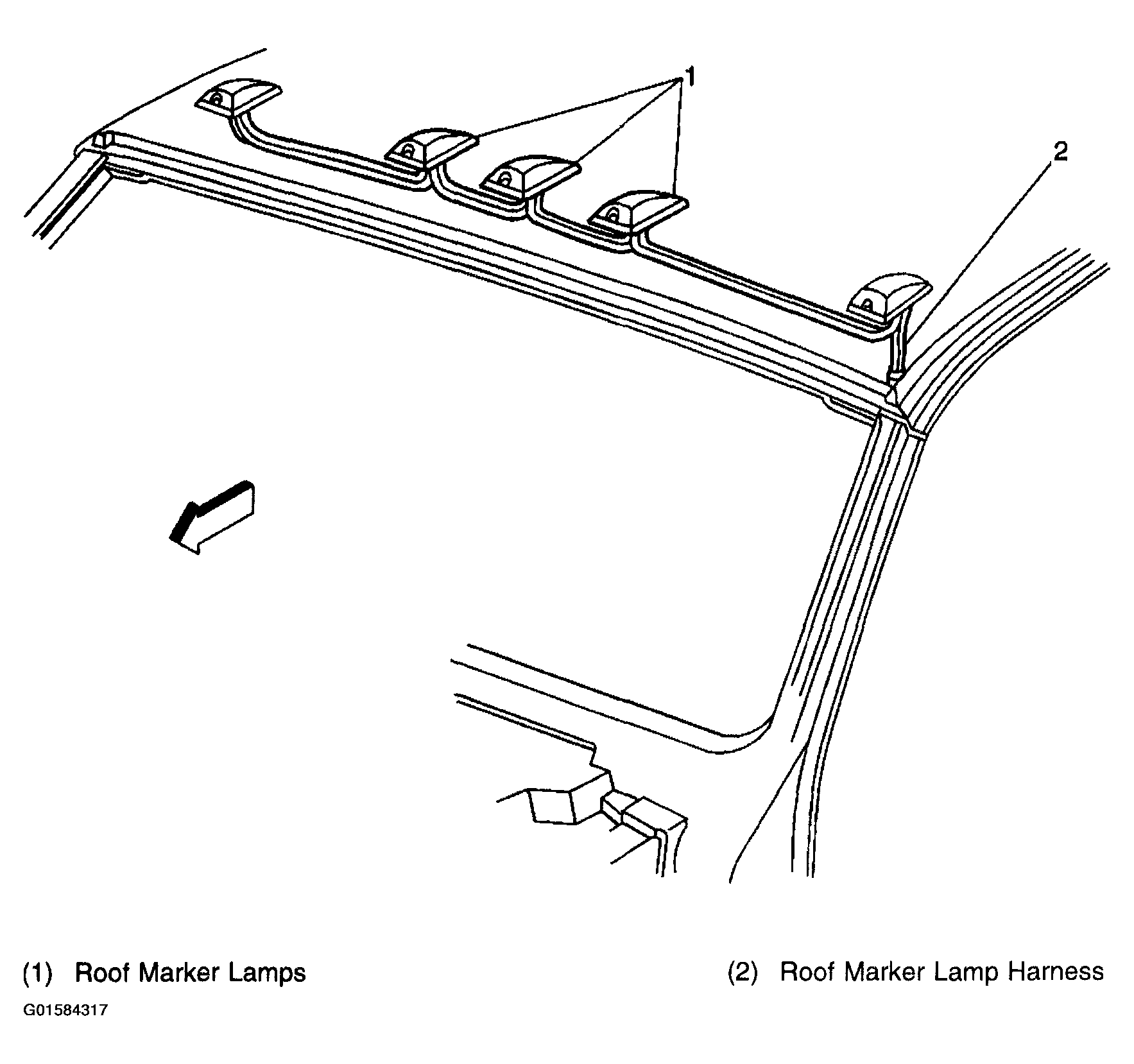

Fig 14: Roof Marker Lamps
G01584317Courtesy of GENERAL MOTORS CORP.

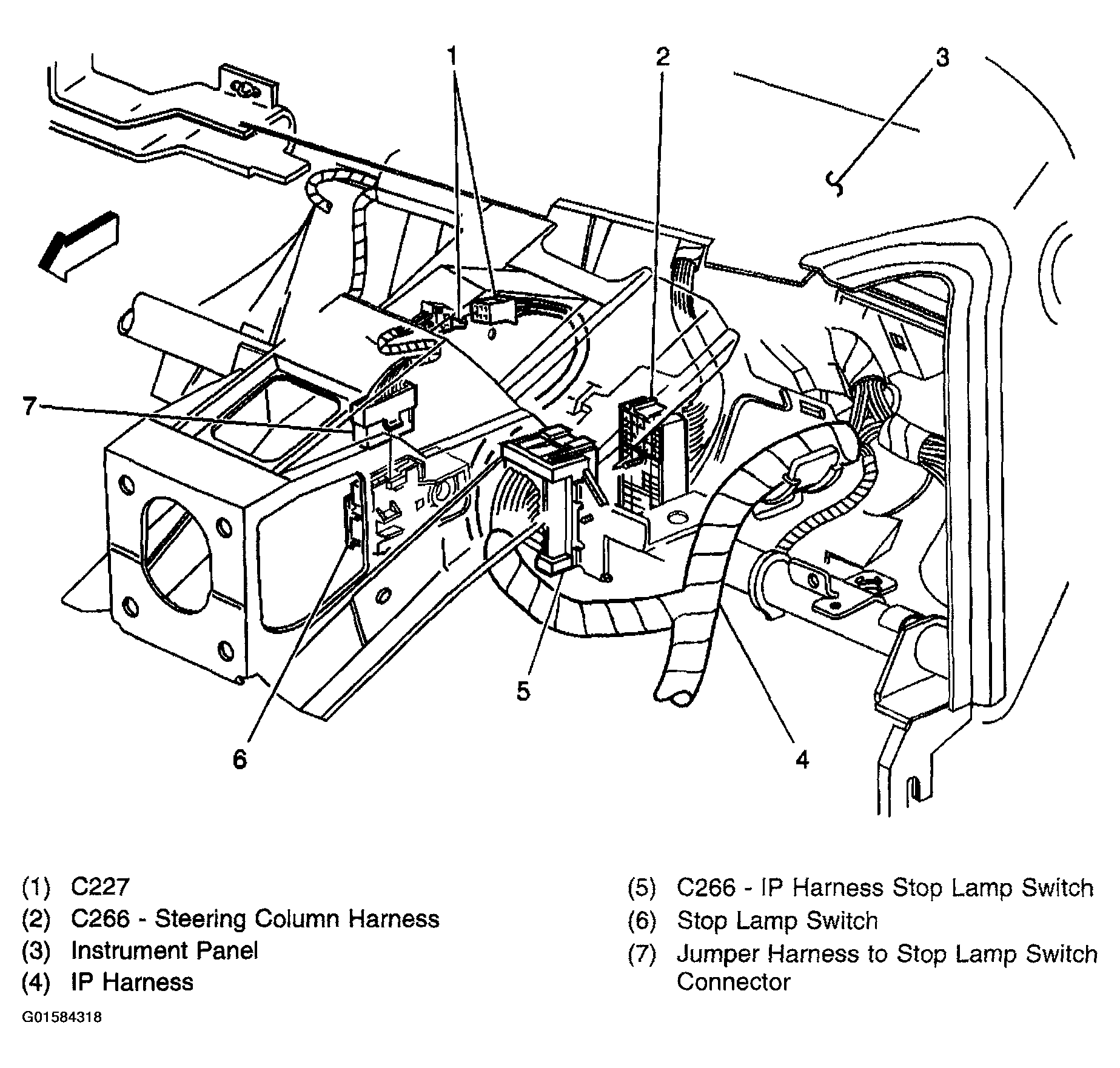

Fig 15: C227, C266, Stop Lamp Switch & Steering Harness Connections
G01584318Courtesy of GENERAL MOTORS CORP.

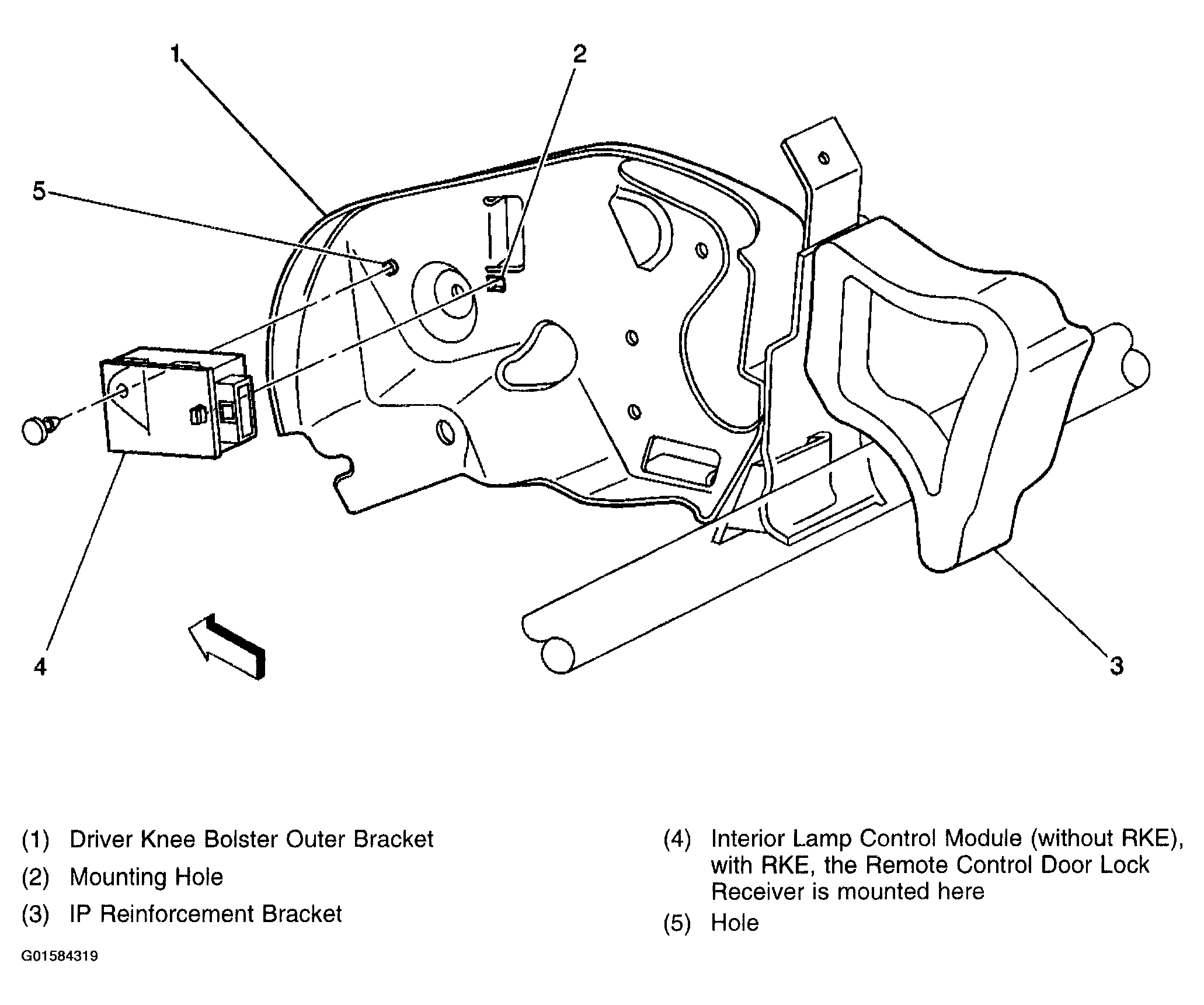

Fig 16: Interior Lamp Control Or Remote Control Door Lock Receiver Module
G01584319Courtesy of GENERAL MOTORS CORP.

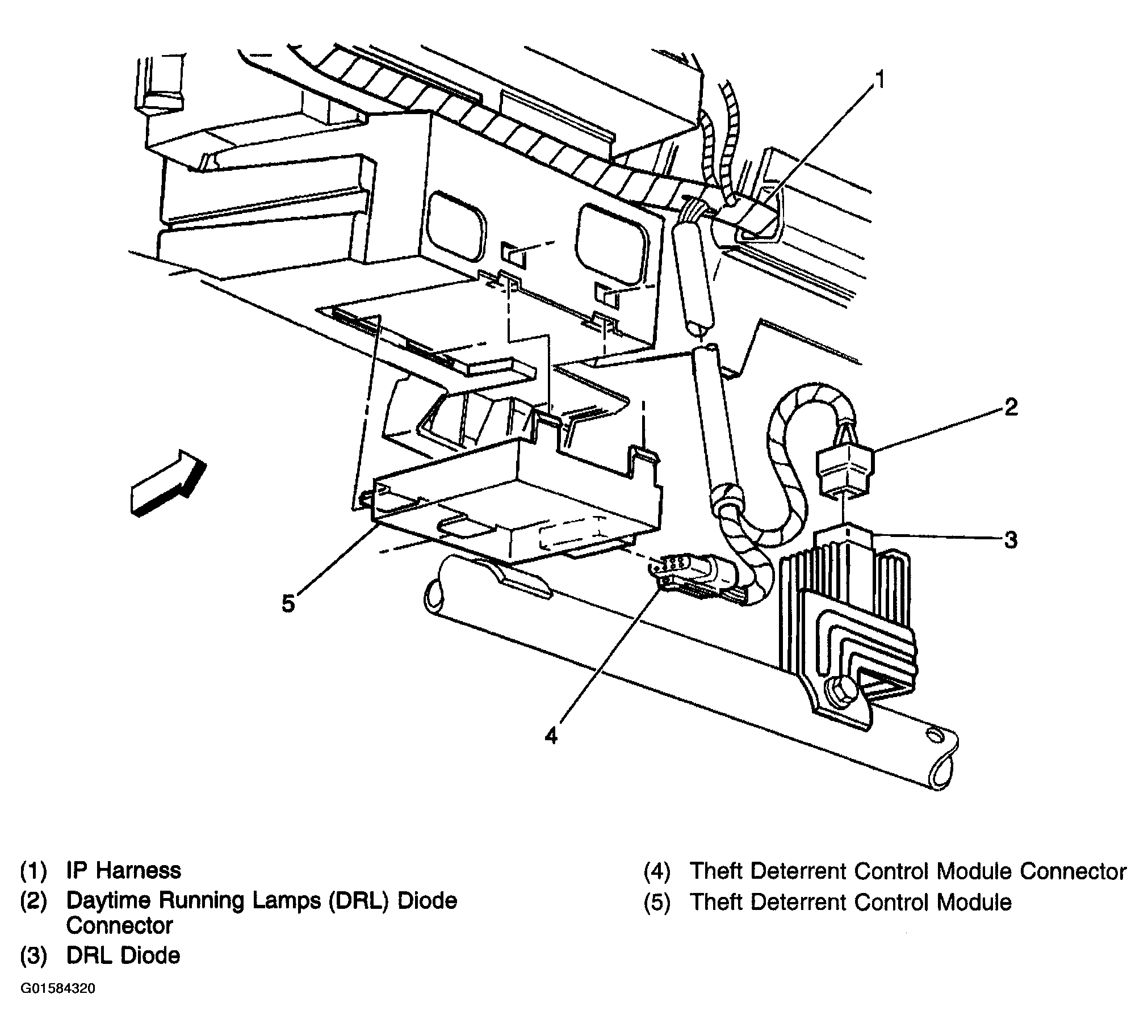

Fig 17: Daytime Running Lamp (DRL) Diode
G01584320Courtesy of GENERAL MOTORS CORP.

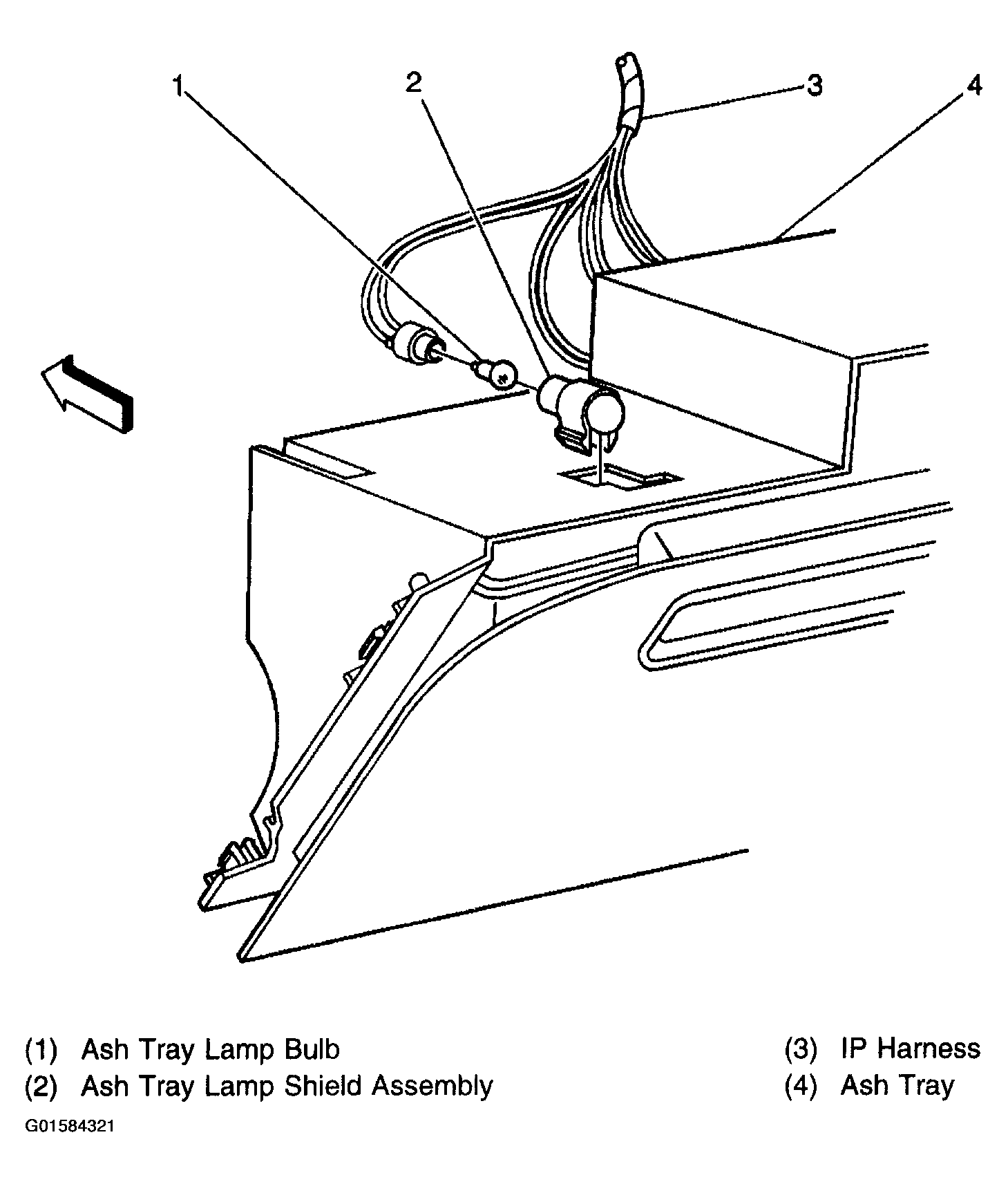

Fig 18: Ash Tray Lamp
G01584321Courtesy of GENERAL MOTORS CORP.

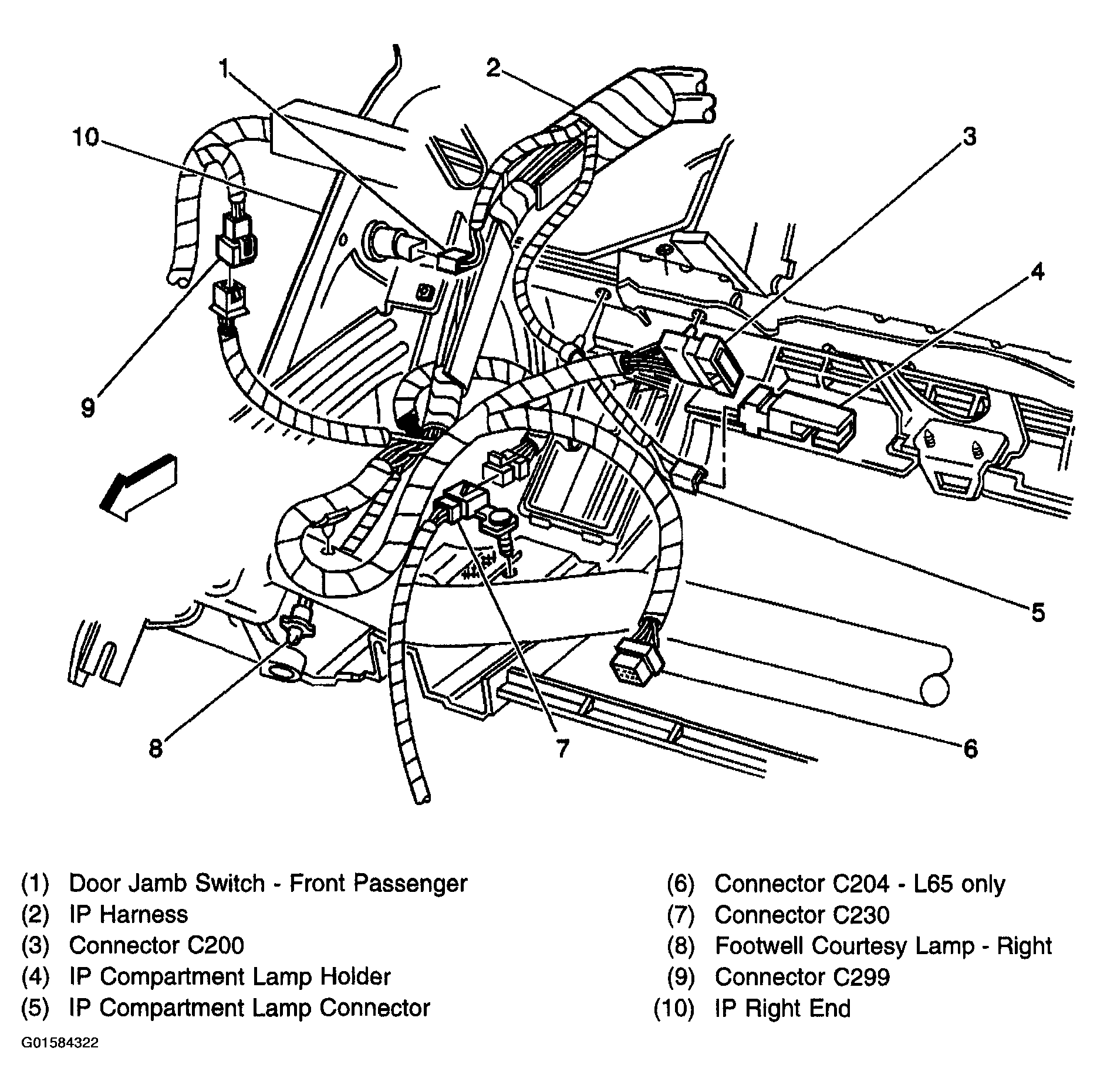

Fig 19: IP Compartment Lamp, Footwell Courtesy Lamp - Right & Door Jamb Switch - Front Passenger
G01584322Courtesy of GENERAL MOTORS CORP.

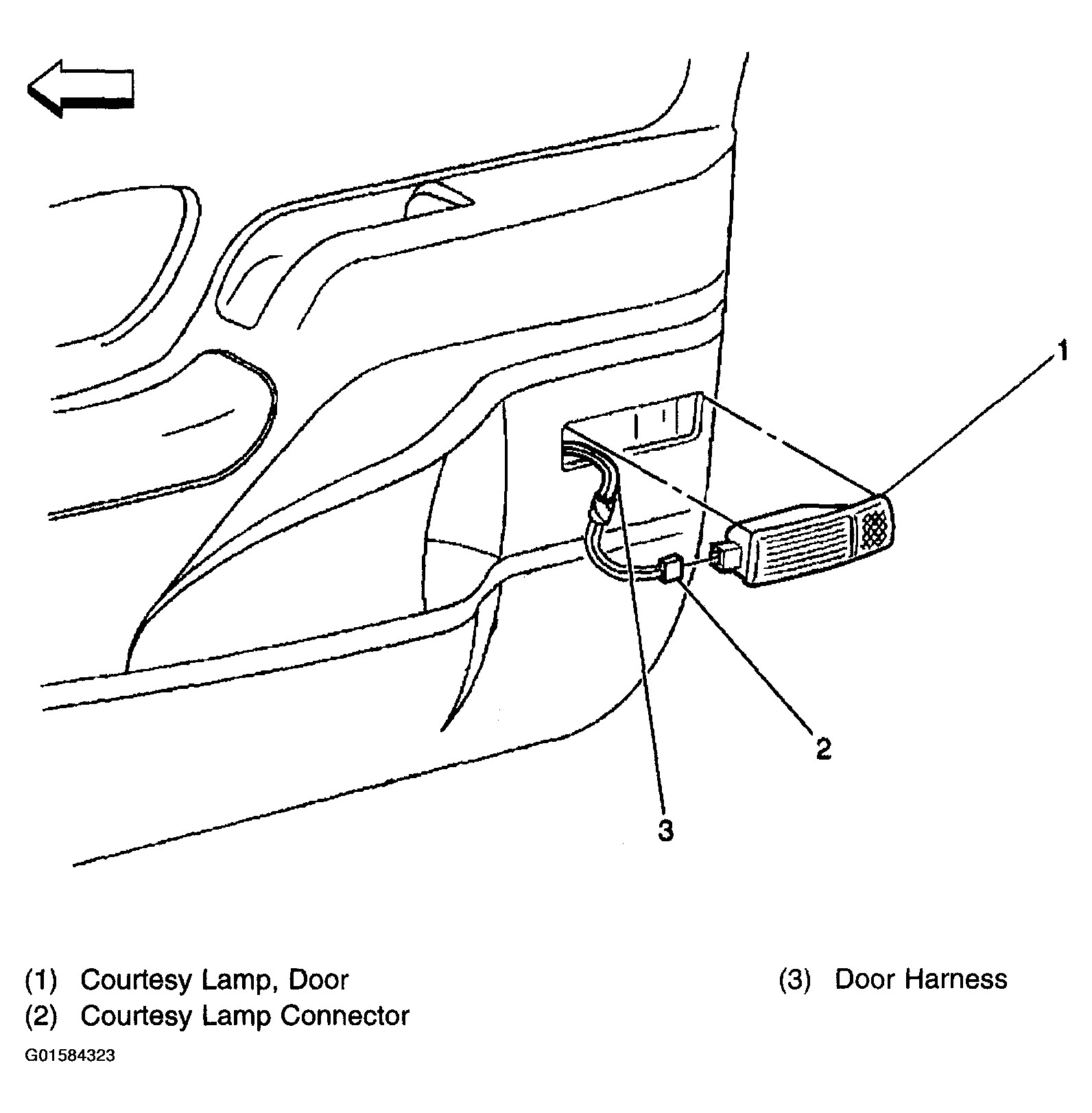

Fig 20: Courtesy Lamp, All Doors
G01584323Courtesy of GENERAL MOTORS CORP.

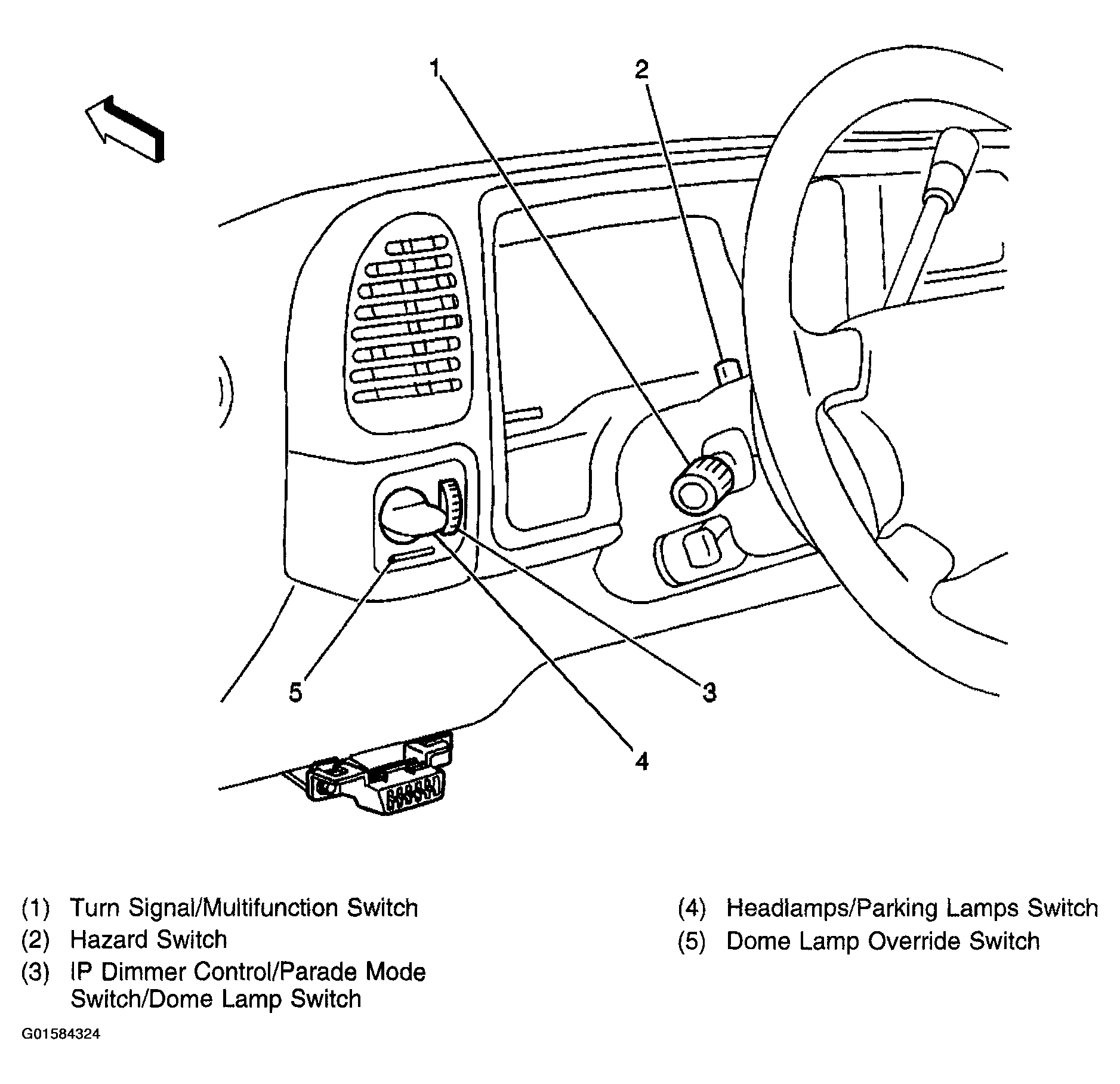

Fig 21: Lighting Switches
G01584324Courtesy of GENERAL MOTORS CORP.

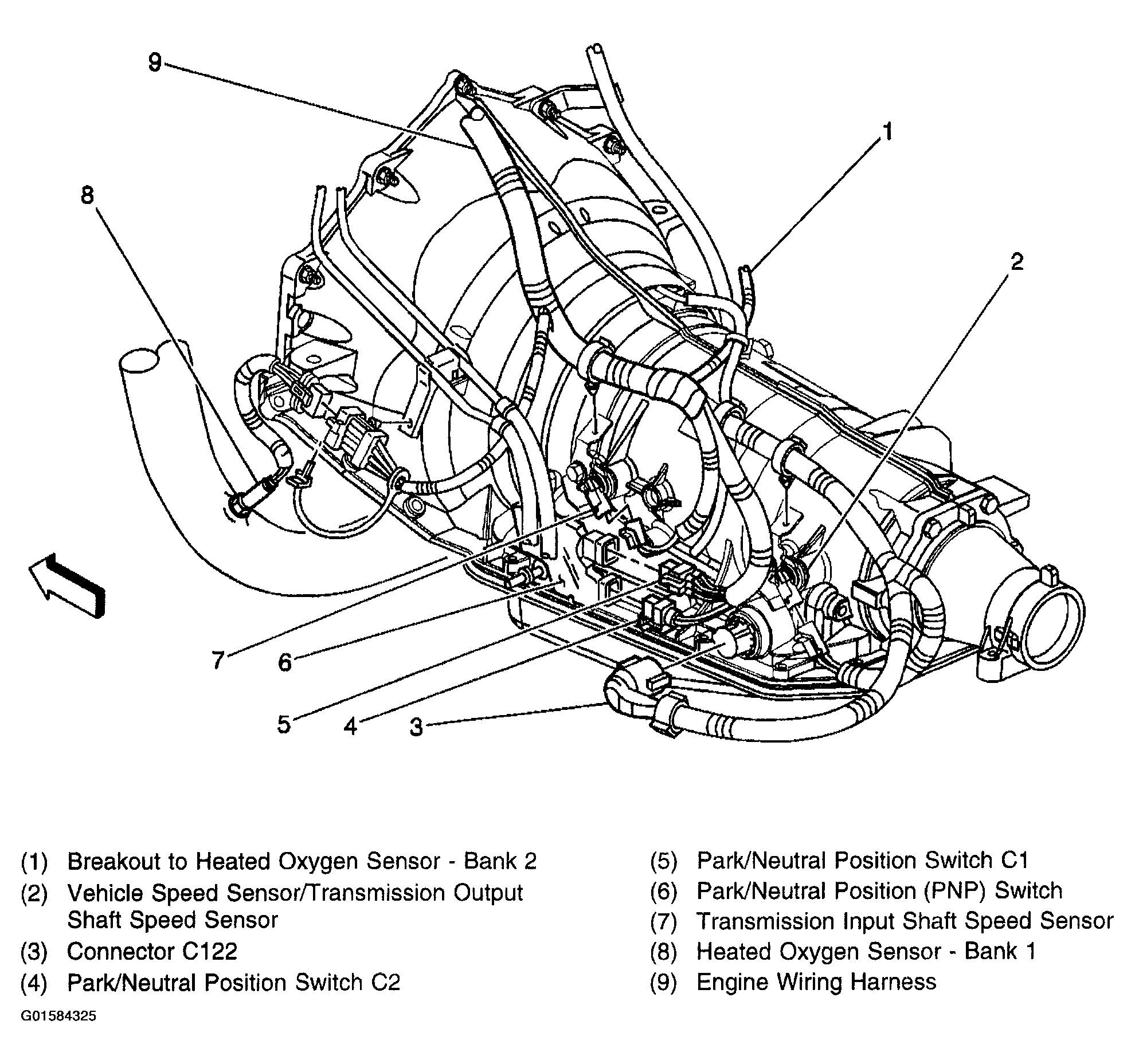

Fig 22: Automatic Transmission
G01584325Courtesy of GENERAL MOTORS CORP.

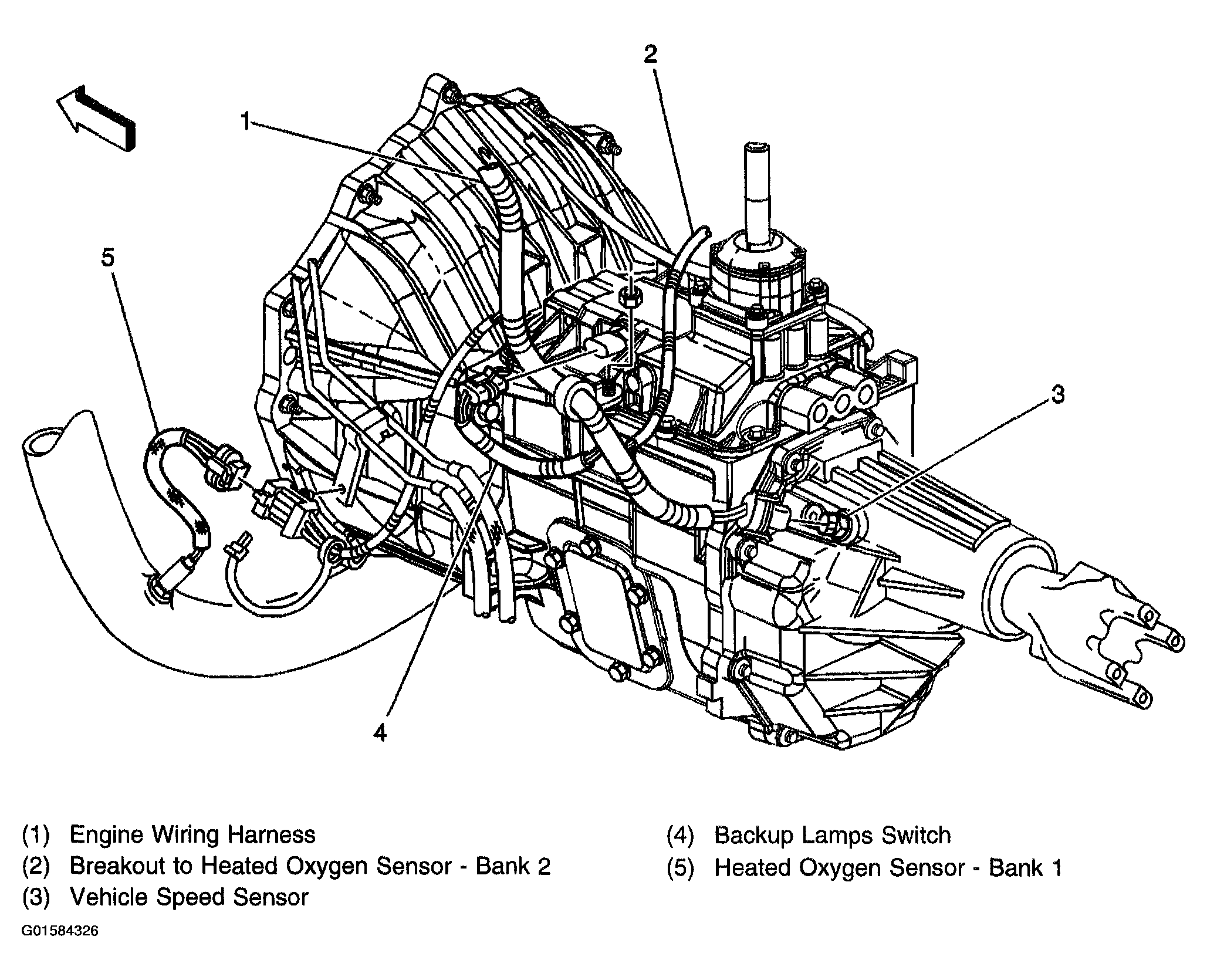

Fig 23: Manual Transmission
G01584326Courtesy of GENERAL MOTORS CORP.

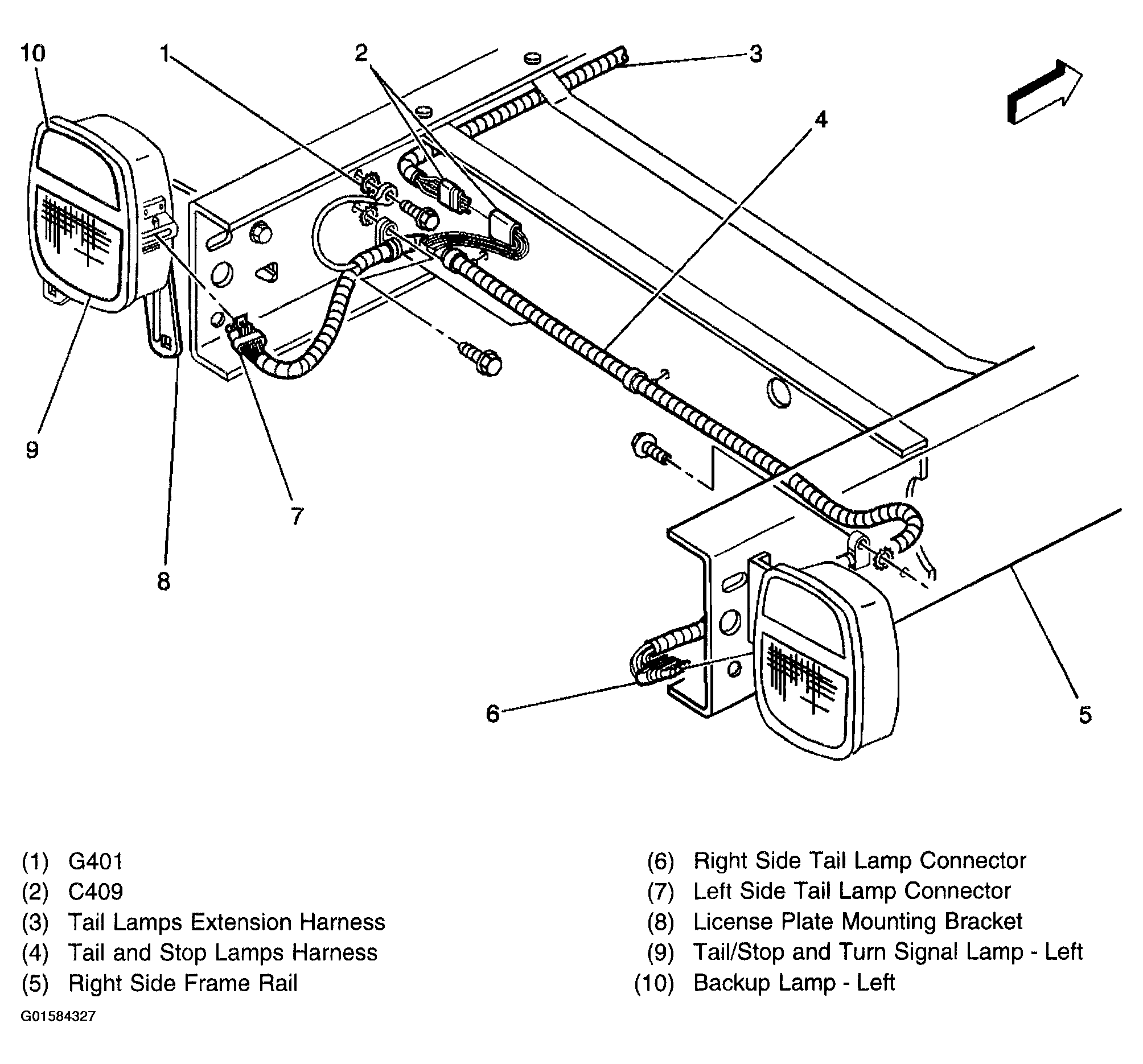

Fig 24: G401, C409 & Tail Lamps
G01584327Courtesy of GENERAL MOTORS CORP.
