Section 1473 (Wheel Alignment)
>>
Specifications
>>
Wheel Alignment Specifications
Wheel Alignment Specifications
WARNING:
This page is about a different car, the 2002 GMC C3500 HD and 2002 Chevrolet C3500 HD. However, it is still accessible from the selected car via links, so may be relevant.

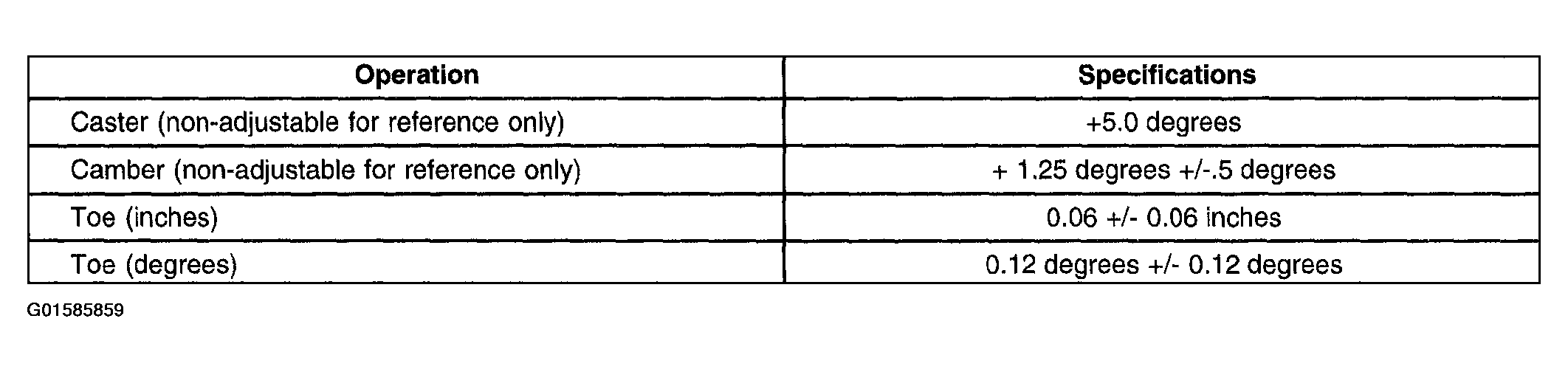

Fig 1: Wheel Alignment Specifications
Courtesy of GENERAL MOTORS CORP.
