Installation Procedure

WARNING: This page is about a different car, the 2002 GMC C3500 HD and 2002 Chevrolet C3500 HD. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the wiper transmission assembly to the vehicle.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the transmission to cowl bolts.

    Tighten

    Tighten the bolts to 7 N.m (62 lb in).

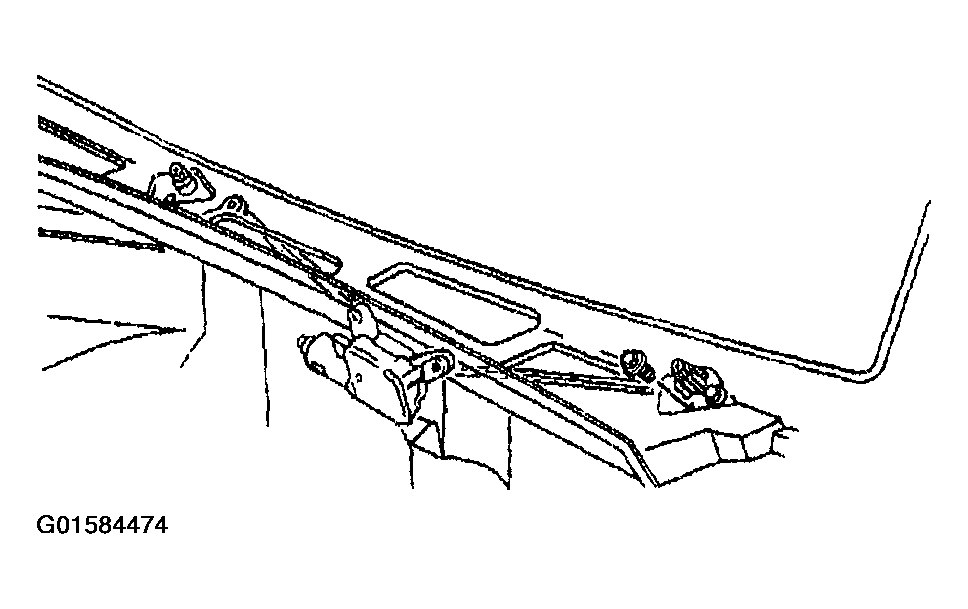

    Fig 1: Wiper Transmission Assembly & Cowl Bolts
    G01584474Courtesy of GENERAL MOTORS CORP.
  3. Install the transmission brackets to the wiper motor crank arm.

    Tighten

    Tighten the drive link nuts to 5 N.m (44 lb in).

  4. Install the air inlet grille panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT .
  5. Install the wiper arms. Refer to Wiper Arm Replacement .

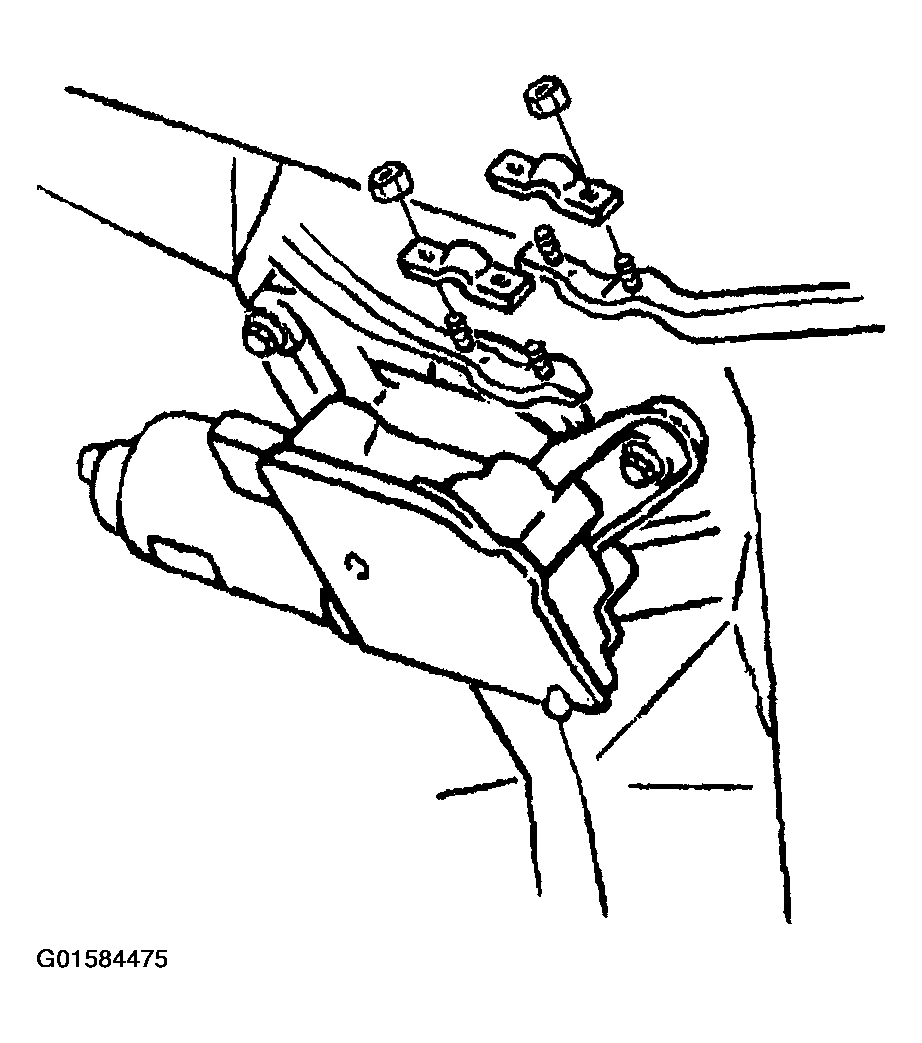

    Fig 2: Wiper Transmission Brackets & Bolts
    G01584475Courtesy of GENERAL MOTORS CORP.
