Installation Procedure

WARNING: This page is about a different car, the 2002 GMC C3500 HD and 2002 Chevrolet C3500 HD. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the wiper motor on the vehicle.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the three bolts.

    Tighten

    Tighten the three bolts to 7 N.m (62 lb in).

  3. Install the drive link brackets to the wiper motor crank arm with the right side linkage closest to the wiper motor.

    Tighten

    Tighten the link nuts to 5 N.m (44 lb in).

  4. Connect the electrical connector to the wiper motor.
  5. Install the air inlet grille panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT .
  6. Install the wiper arms. Refer to Wiper Arm Replacement .

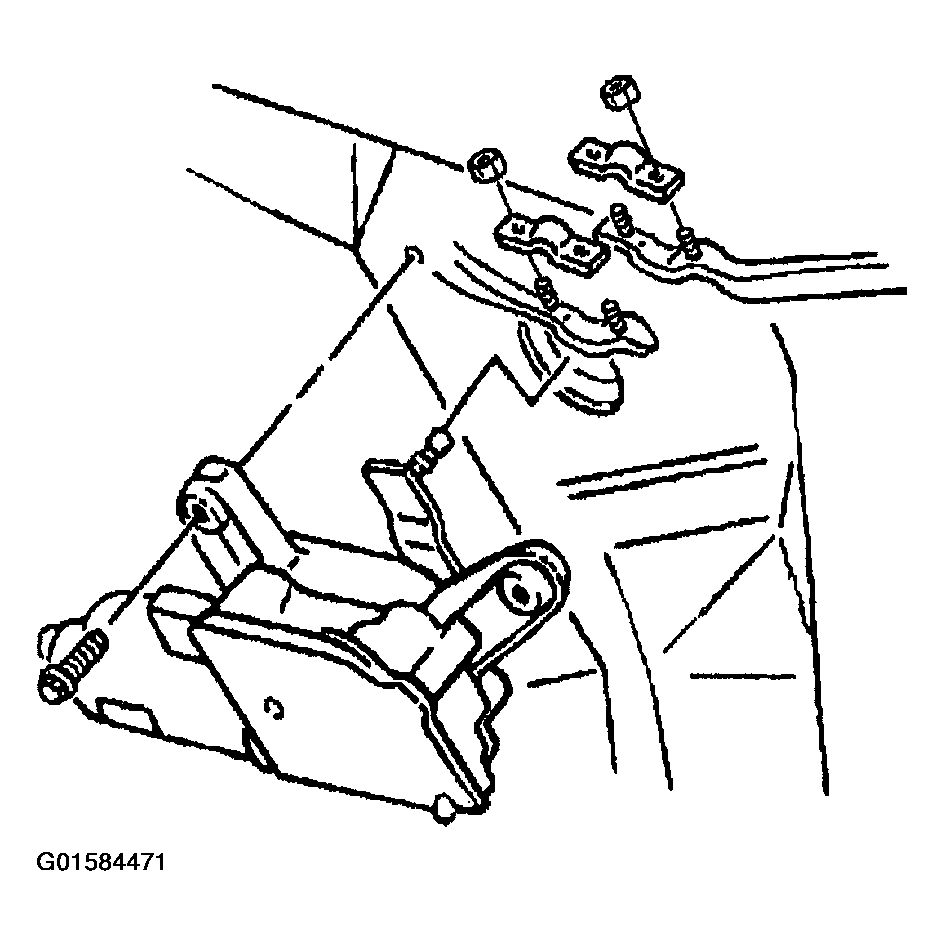

    Fig 1: Wiper Motor, Brackets & Bolts
    G01584471Courtesy of GENERAL MOTORS CORP.
