Installation Procedure

WARNING: This page is about a different car, the 2002 GMC C3500 HD and 2002 Chevrolet C3500 HD. However, it is still accessible from the selected car via links, so may be relevant.

Important:  Keep the wiper blade claws in the rubber claw channel of the wiper blade element. Do not allow the claws of the wiper blade to contact the metal spline of the wiper blade element.

  1. Insert the open end of the wiper blade element (3) into the bottom claws of the wiper blade (2).
  2. Guide the wiper blade element (3) through the wiper blade (1) claw sets.
  3. Engage the bottom claw (2) of the wiper blade (1) into the notches in wiper blade element (3).
  4. Install the wiper blade onto the wiper arm. Refer to Wiper Arm Blade Replacement .

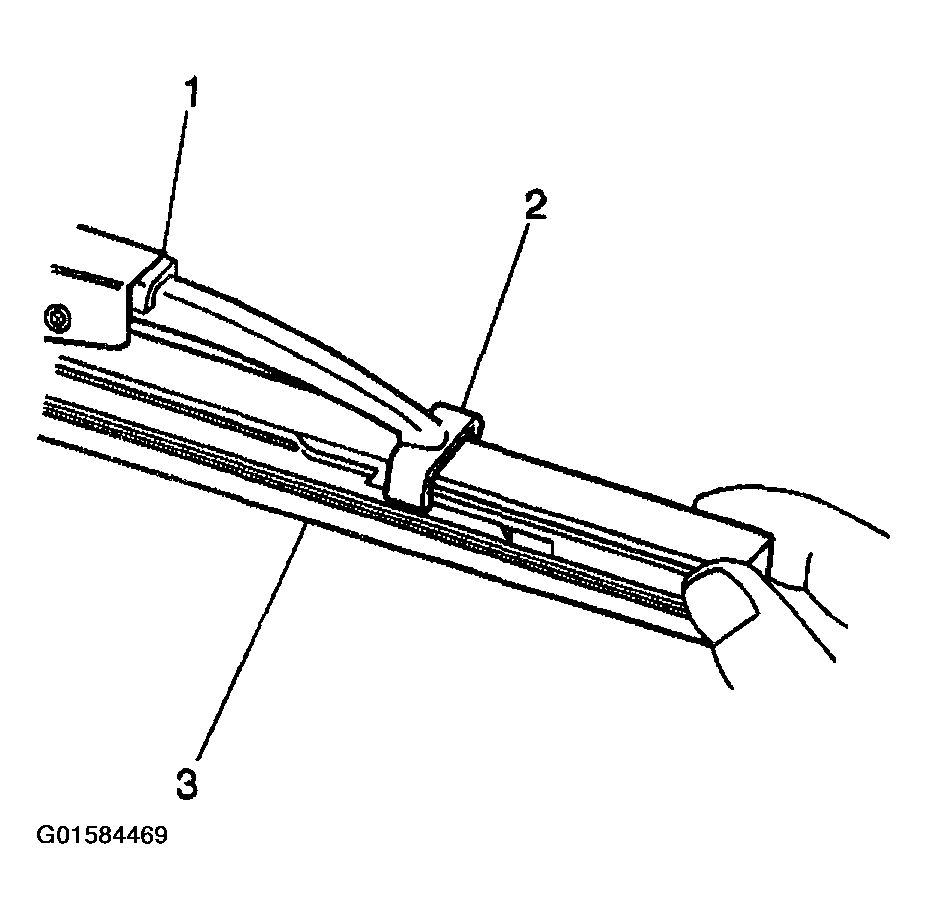

    Fig 1: Wiper Blade, Bottom Claws & Wiper Blade Element
    G01584469Courtesy of GENERAL MOTORS CORP.
