Installation Procedure

WARNING: This page is about a different car, the 2002 GMC C3500 HD and 2002 Chevrolet C3500 HD. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the wiper arm on the transmission drive shaft so that the wiper blade aligns with the mark made on the windshield before removal.
  2. Seat the arm assembly on the drive shaft.

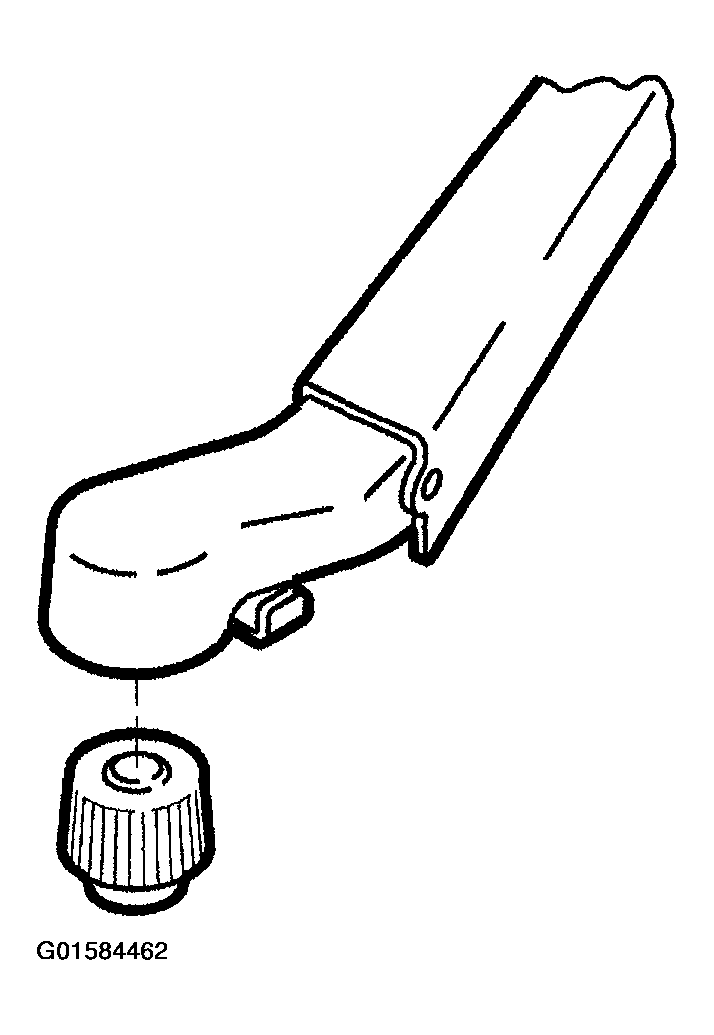

    Fig 1: Wiper Arm & Drive Shaft
    G01584462Courtesy of GENERAL MOTORS CORP.
  3. Press in the retaining latch.
  4. Connect the washer hose.
  5. Clean the position mark or masking tape from the windshield.
  6. Operate the wipers and check for proper operation.

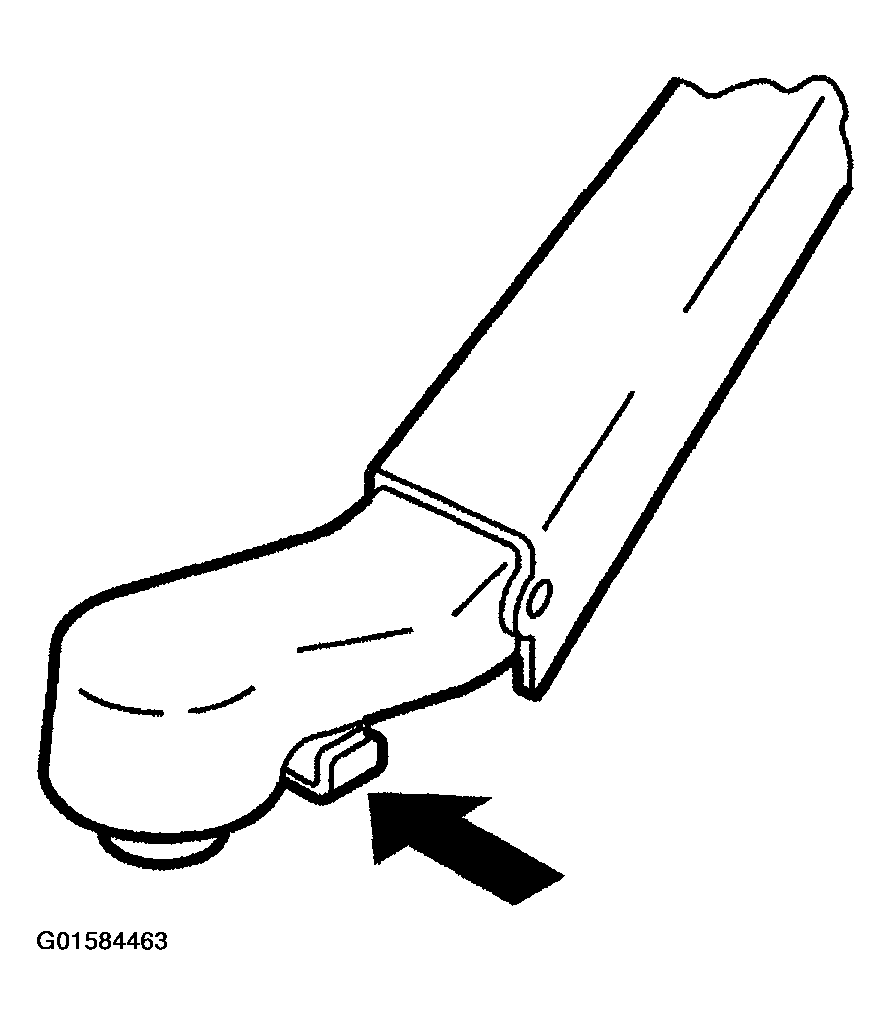

    Fig 2: Wiper Arm & Retaining Latch
    G01584463Courtesy of GENERAL MOTORS CORP.
