Installation Procedure

WARNING: This page is about a different car, the 2002 GMC C3500 HD and 2002 Chevrolet C3500 HD. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the washer solvent container on the vehicle.
  2. Connect the electrical connector(s) to the washer pump(s).
  3. Connect the hose(s) to the washer pump(s).
    NOTE: Refer to FASTENER NOTICE .
  4. Install the two bolts.

    Tighten

    Tighten the two bolts to 6 N.m (53 lb in).

  5. Install the auxiliary battery and battery tray, if equipped. Refer to BATTERY TRAY REPLACEMENT .

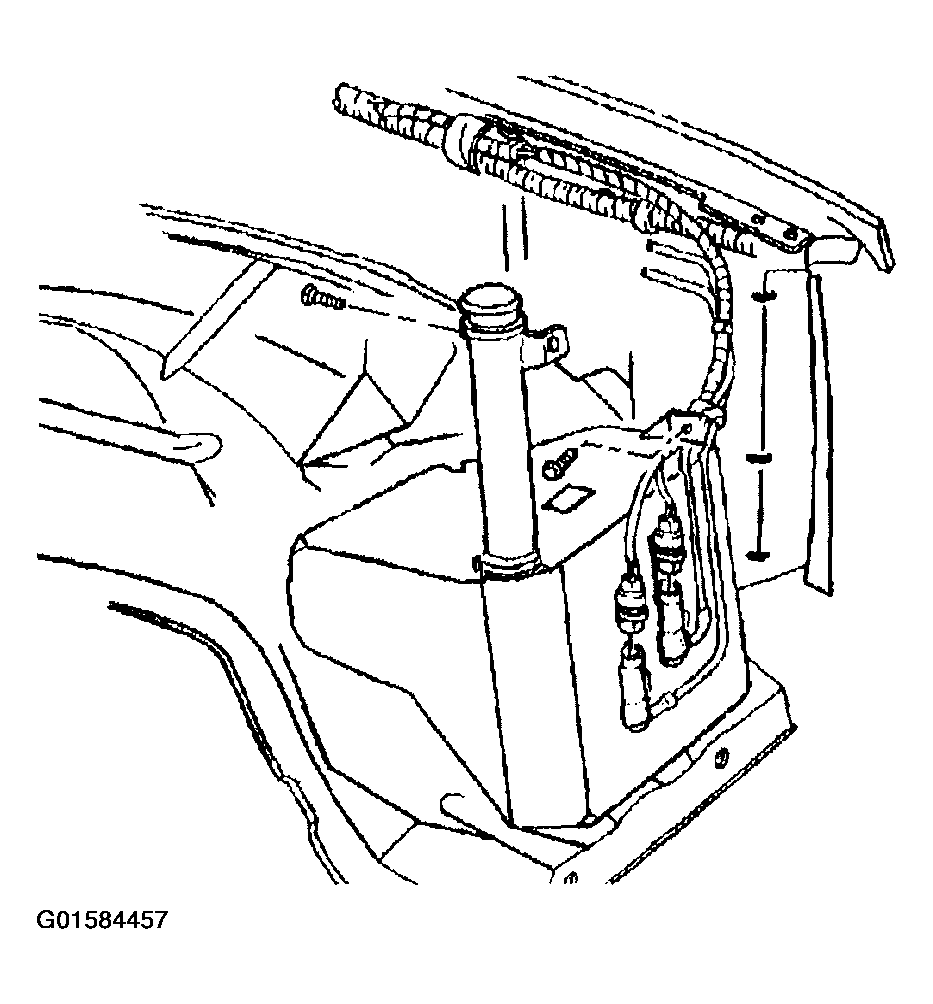

    Fig 1: Washer Solvent Container & Bolts
    G01584457Courtesy of GENERAL MOTORS CORP.
