Installation Procedure

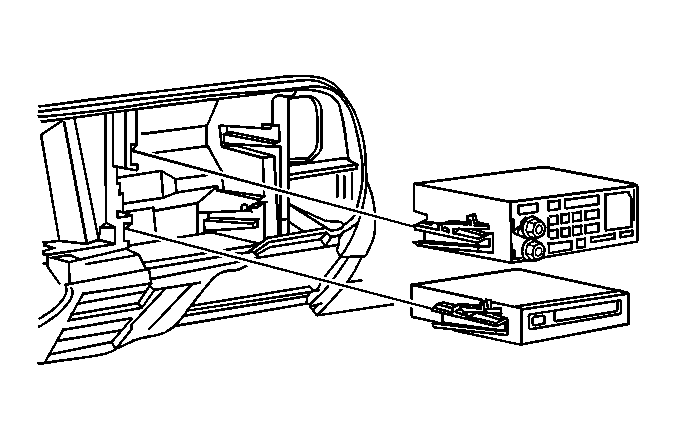

    Fig 1: Radio
    GM264160Courtesy of GENERAL MOTORS COMPANY
  1. Connect the electrical connectors.
  2. Install the CD player.
  3. When the CD player is fully seated, snap the unit into the retainers.
  4. Install the Instrument Panel trim bezel. Refer to Instrument Panel Cluster Trim Plate Bezel Replacement .
  5. Connect the negative battery cable.
  6. Verify the component operation.
