Reverse Servo: Installation

NOTE: Failure to perform the following step may result in no reverse gear due to the servo pin not aligning with the reverse band.

Raise the driver (left) side of the vehicle until it is higher than the passenger (right) differential side. This ensures that the reverse band is in the proper location.

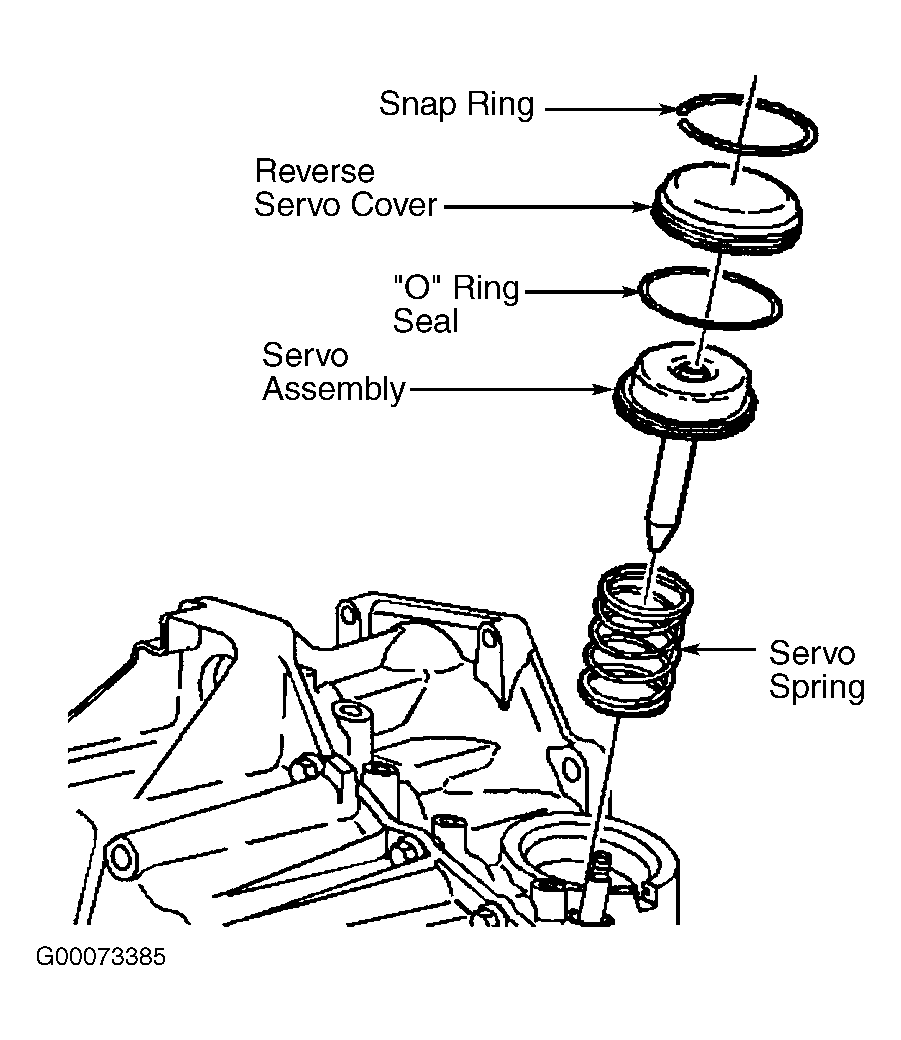

Install the servo spring. See Figure . Install the servo assembly.

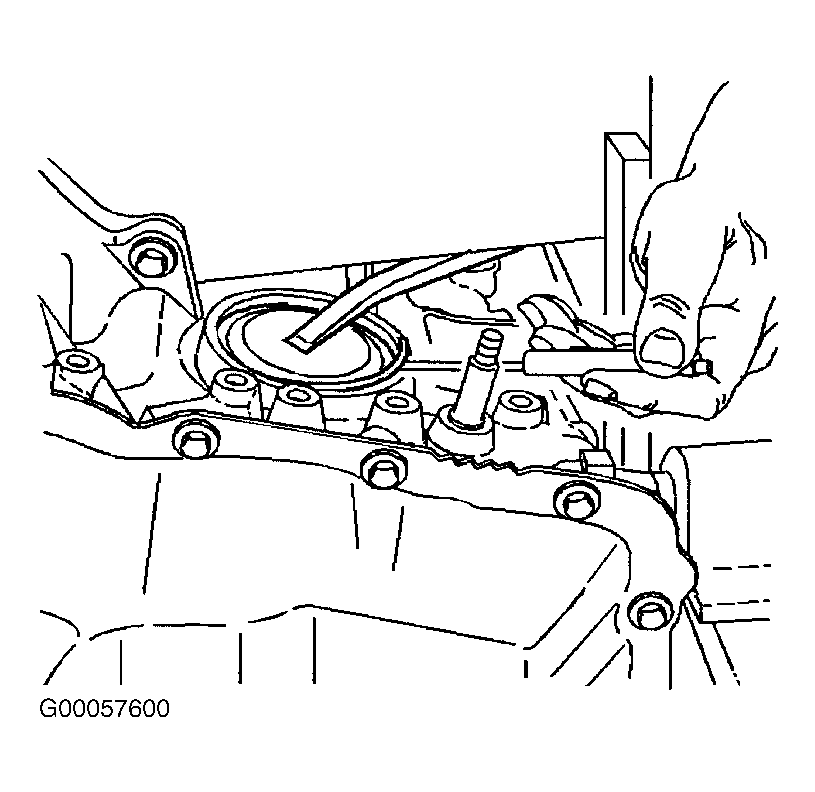

Install the reverse servo cover with new O-ring seal. See Figure . Install the snap ring. Install the throttle body air inlet duct.
